AKG WMS420HEADSET Wireless Headset Mic System

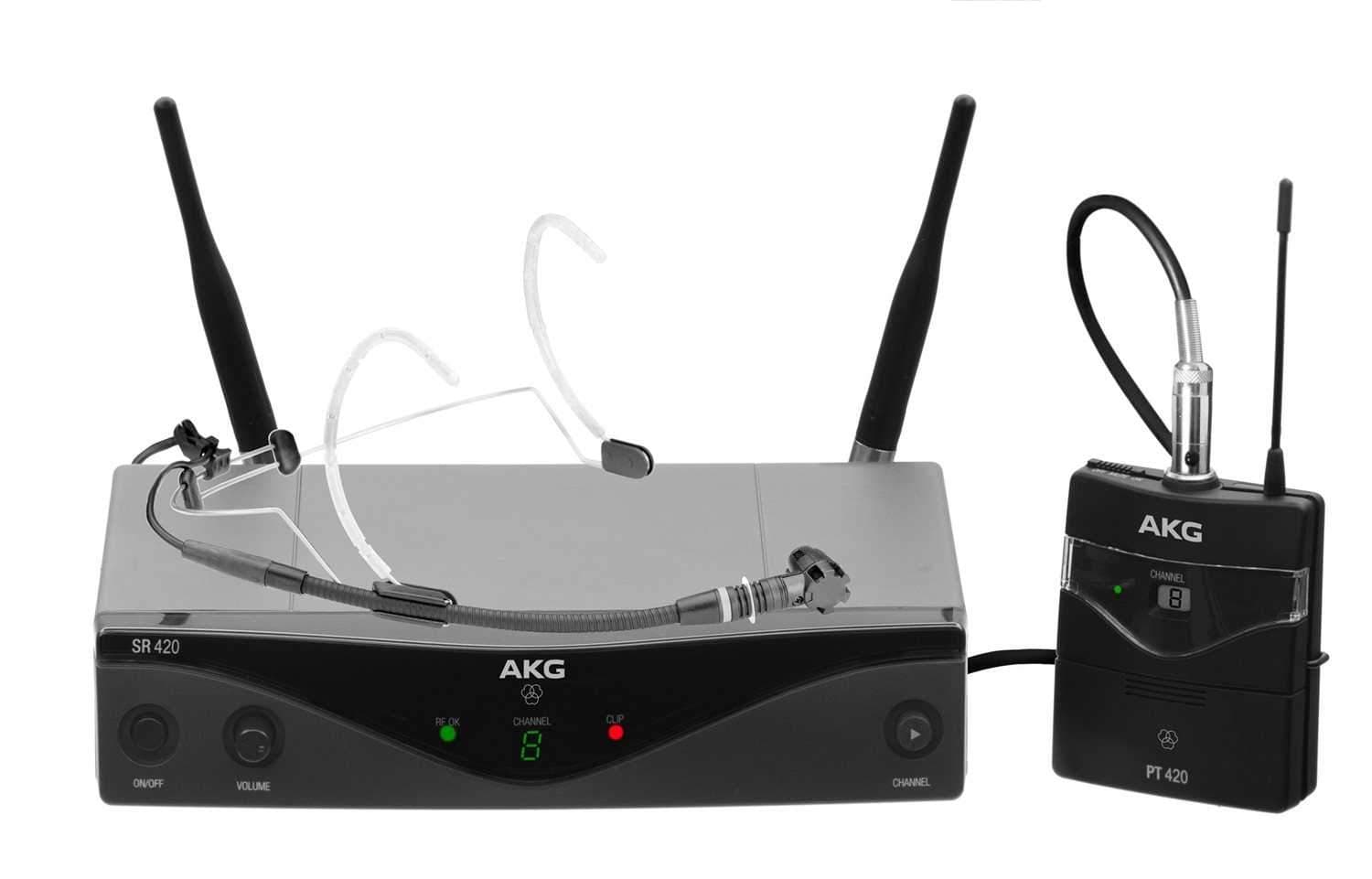

AKG WMS420 Wireless Headset Microphone System

Flexible and Expandable for Live Sound, Presentations, and Installations

The WMS420 Headworn Set is a professional multi-channel wireless microphone system with the C555 L high-performance head-worn condenser microphone. It's perfect for hands-free applications like presentations or onstage performances. The C555 L sits securely and comfortably on the head and can be attached to either side of the behind-the-neck headband as you like.

Package includes:

• 1 x Bodypack transmitter PT420
• 1 x Stationary receiver SR420
• 1 x Head-worn microphone C555 L
• 1 x Windscreen W444
• 2 x Receiver antennas
• 1 x AC adapter
• 1 x AA size battery

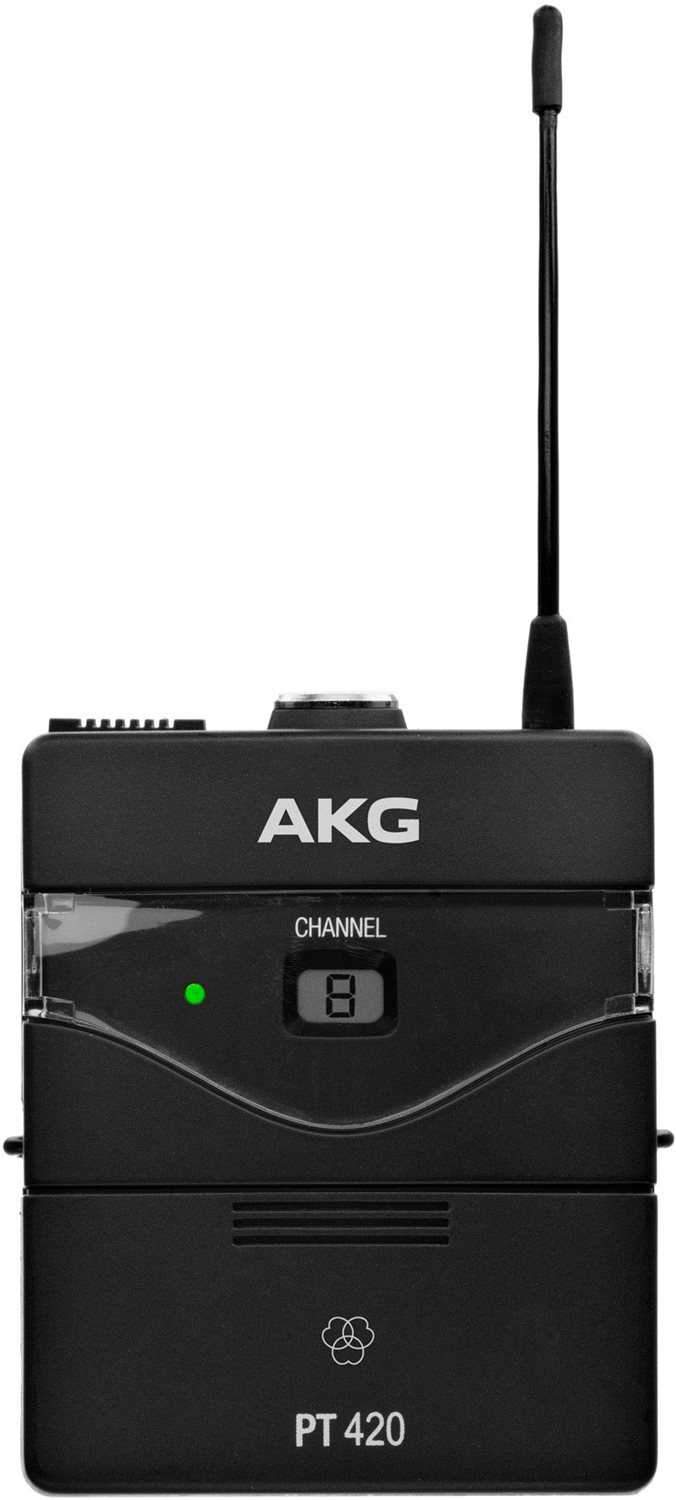

PT420 Bodypack Transmitter

The PT420 is a small, rugged analog high-performance wireless body-pack transmitter. A professional mini XLR audio connector makes it compatible with all kinds of guitars, basses, instrumental pickups, and headsets. It's great for stress-free work on small stages, in houses of worship, and in conference rooms.

The PT420 has a gain control for perfect input volume adjustment and a noiseless on/off/mute switch. A battery-status indicator shows red before the battery dies, giving you full control of performance time. The package includes a rugged guitar cable.

Features:

• Compatible with all AKG MicroMics - Use the transmitter in a wide range of applications
• Up to eight hours with a single AA battery - Long operation time and a low battery indicator ensure secure operation
• Noiseless on/off/mute switch for easy operation
• Gain control on transmitter for immediate volume adjustment

Specifications:

Audio

• Audio Frequency bandwidth: 40 to 20,000 Hz
• Signal to Noise: 105 dB-A dB-A
• THD at 1 kHz: 0.8% Prozent

Pocket Transmitter

• Transmitter Synchronization: Manual

Audio Input

• Type: Mini XLR
• Gender: Female
• Contacts: 3-pin
• Maximum audio level: 12dB dB
• Rated Impedance: 1 Ohms

Battery 1

• Battery Type: LR6 AA alkaline battery
• Number of Batteries1
• Operating Time: Up to eight hours with one AA battery

Battery 2

• Battery Type: HR 6 AA (NiHM) rechargeable battery
• Number of Batteries: 1
• Operating Time: Up to eight hours with one AA battery

Dimensions/Weight

• Length: 60 mm
• Height: 75.5 mm
• Width: 30 mm
• Net Weight: 214 g

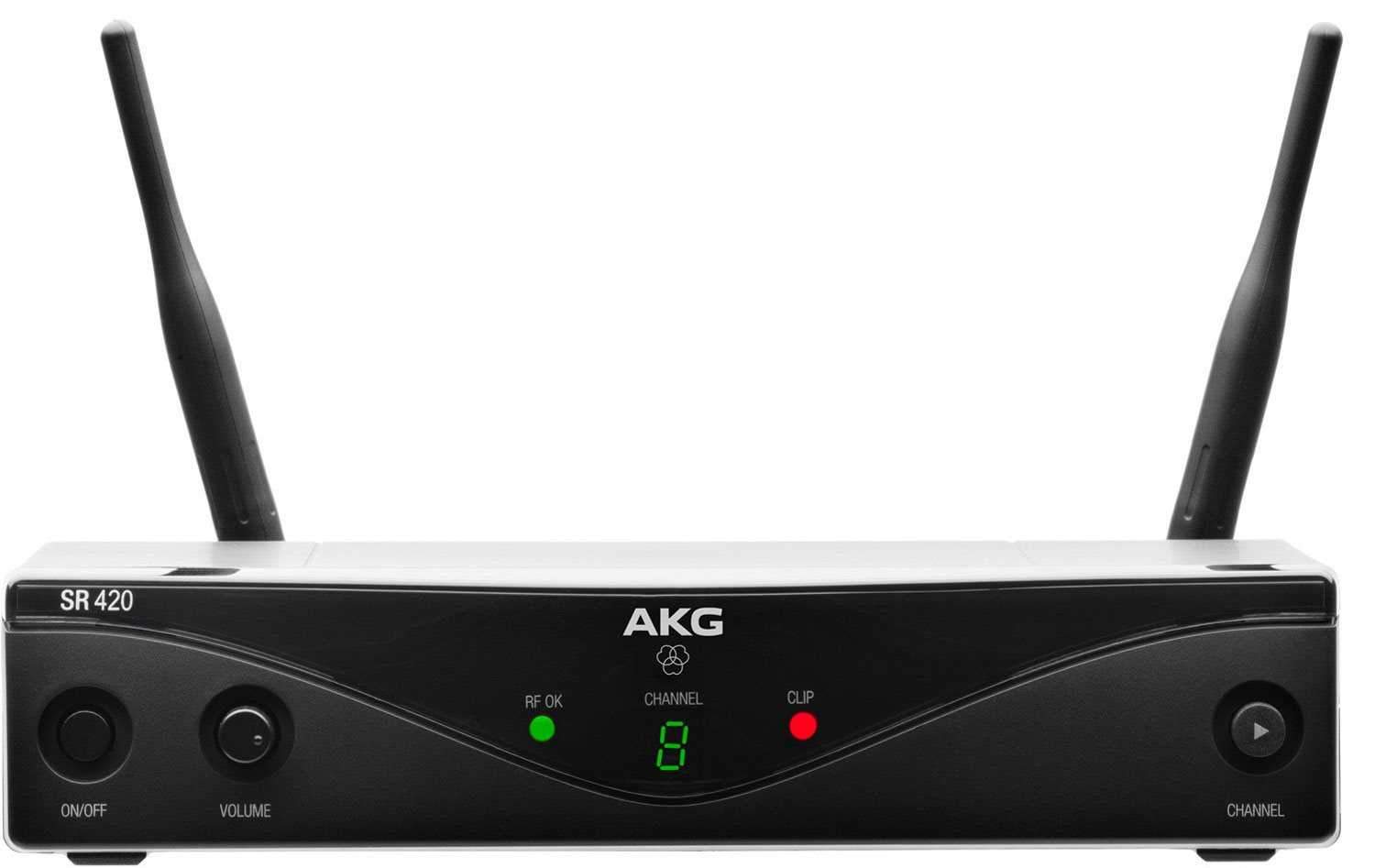

SR420 Stationary Receiver

The SR420 analog high-performance space naversity wireless receiver is easy to use with different channel presets up to eight channels. It's great for instrumental and vocal performances in small clubs, houses of worship, and conference rooms.

The SR420 has an audio clipping and RF signal LED for easy system status monitoring. Best audio signal output is provided via both a professional XLR and a 1/4' jack connector. For worldwide use, the receiver comes with a universal, switched mode power supply kit.

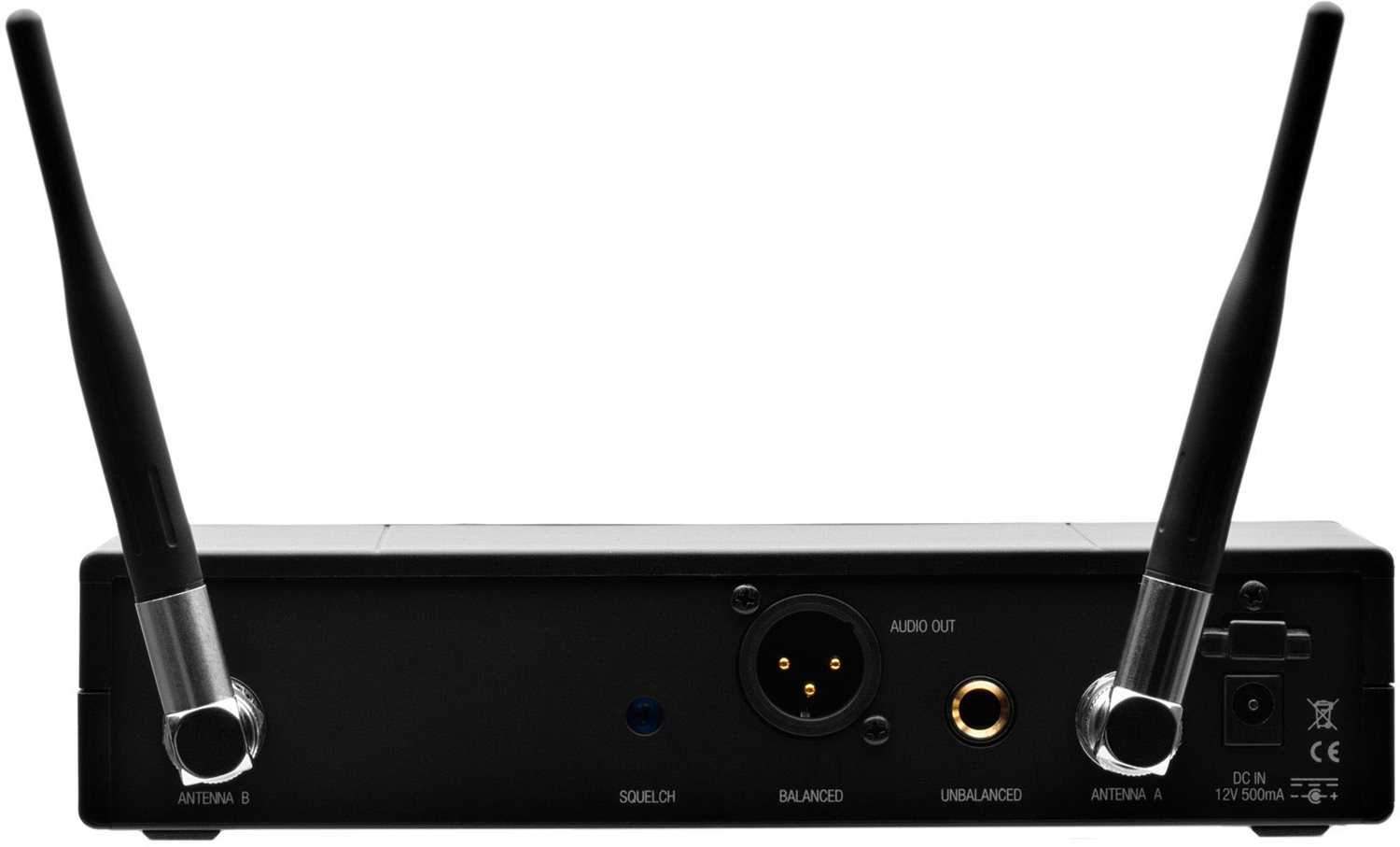

The SR420 has two external and detachable antennas on the rear side and BNC connectors at standard 50ohms.

Features:

• Detachable receiver antennas enable the use of professional RF accessories
• Up to 30MHz selection bandwidth allows the use of up to 8 channels simultaneously
• Professional balanced XLR and unbalanced 1/4' jack output for the best audio signal
• Audio clip and RF control LED on receiverfor easy monitoring of your performance
• Adjustable squelch level for secure audio transmission in all environments

Specifications:

Radio

• Tuning Range: Up to 30 MHz (depending on frequency band)
• Frequency Bands: A: 530,025 to 559,000 MHz; U1: 606,100 to 613,900 MHz; U2: 614,100 to 629,900 MHz; B1: 748,100 to 751,900 MHz; B2: 774,100 to 777,900 MHz; M: 826,300 to 831,000 MHz; D: 863,100 to 864,900 MHz; K: 925,100 to 931,850 MHz
• Diversity System: Antenna switching
• RF Output: 10, 20 or 50 mW (depending on frequency band)
• Audio Bandwidth: 40 ¨¬ 20 000 Hz (+/- 3dB)
• Frequency Selection: Fixed frequency
• Wireless channels within device: Up to 8 compatible channels within one frequency band
• Radio Range (Line of Sight): 30m
• Modulation: FM

General

• Detachable Antenna: yes
• Racksize: 1/2 Racksize (19')

Dimensions/Weight

• Length: 150 mm
• Height: 44 mm
• Width: 200 mm

C555 L Head-worn microphone

The C555 L high-performance head-worn condenser microphone is ideal for handsfree applications like presentations or onstage performances. The C555 L sits securely and comfortably on the head and can be attached to either side of the behind-the-neck headband as you like. A transducer shock mount reduces handling noise to a minimum. The moisture shield ensures a high degree of humidity protection for the microphone.

The C555 L has a three-pin mini XLR connector and can be used with all AKG WMS Series body-pack transmitters, B29 L battery power supply, or the MPA VL adapter for external phantom powering.

Features:

• Lightweight and adjustable-headband construction for maximum comfort and freedom of movement
• Left and right flexible boom mounting for precise positioning to the sound source
• Cardioid polar pattern for problem-free use with high ambient noise rejection
• Flexible shock mount for efficient suppression of mechanical and body noise
• Moisture shield ensuring a dry microphone capsule

Specifications:

General

• Audio Frequency bandwidth: 80 to 20000 Hz
• Sensitivity: 35 mV/Pa
• Equivalent Noise Level: 22 dB-A
• Signal to Noise: 72 dB-A
• Electrical Impedance: 200 Ohms
• Recommended Load Impedance: 2000 Ohms

Powering Interface

• Voltage: 2 to 12 V
• Current: 2 mA

Audio Output

• Type: Mini XLR
• Gender: Female
• Contacts: 3-pin

Design

• Finish: matte black

Dimensions/Weight

• Diameter: 134 - 134 mm
• Net Weight: 26 g

The AKG WMS420 Wireless Headset Microphone System is a great choice for live sound, presentations, and installations. It's perfect for anyone who needs a reliable and high-quality microphone system. The system includes a bodypack transmitter, a stationary receiver, a head-worn microphone, a windscreen, two receiver antennas, an AC adapter, and an AA size battery. The PT420 Bodypack Transmitter is a small, rugged analog high-performance wireless body-pack transmitter. The SR420 Stationary Receiver is an easy-to-use analog high-performance wireless receiver with up to eight channels. The C555 L Head-worn microphone is a high-performance head-worn condenser microphone that's perfect for hands-free applications. The system has a variety of features, including compatibility with all AKG MicroMics, up to eight hours of operation with a single AA battery, and a noiseless on/off/mute switch. The system also has a variety of technical specifications, including an audio frequency bandwidth of 40 to 20,000 Hz, a signal to noise ratio of 105 dB-A, and a THD at 1 kHz of 0.8%. The system is lightweight and easy to use, making it a great choice for anyone who needs a reliable and high-quality microphone system.
