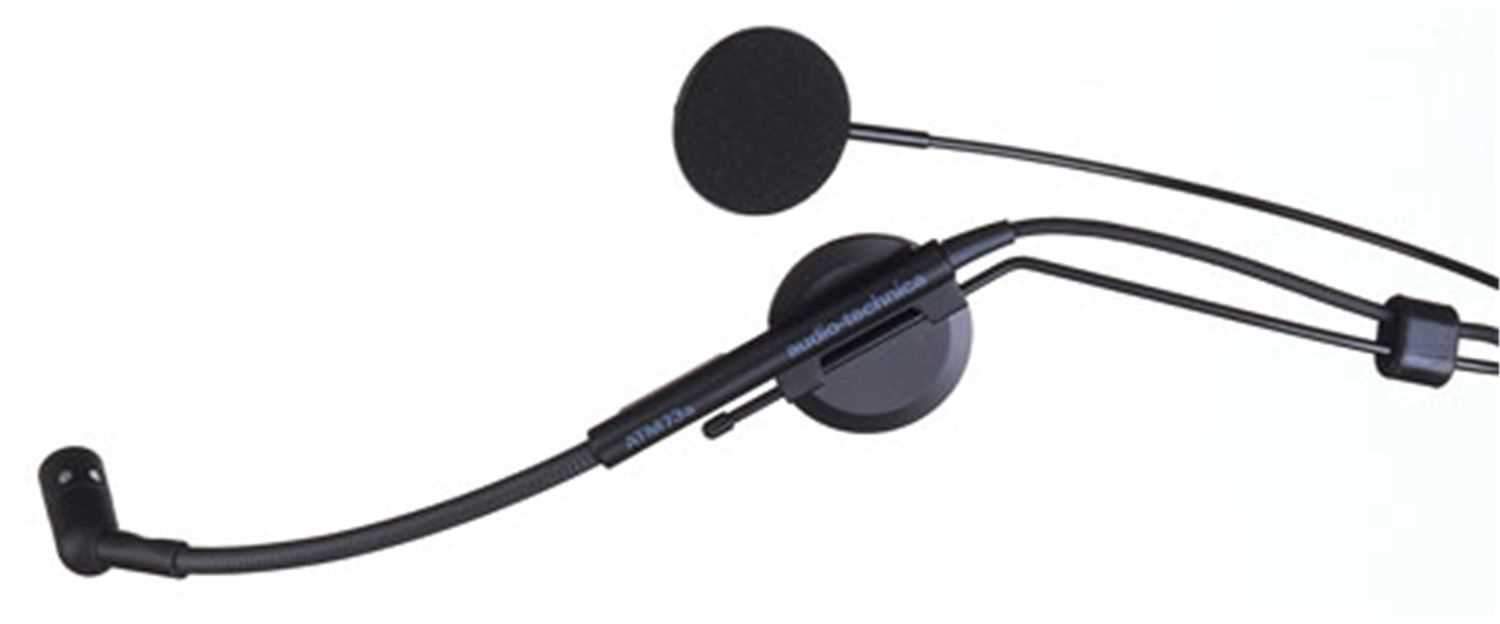

Cardioid Condenser Headworn MicrophoneTerminated with locking 4-pin connector for A-T UniPak body-pack wireless transmitters. 55' (1.4 m) cable. Includes windscreens
Features:
- • Perfect for drummers, keyboard players and those who need hands-free operation
• Comfortable and unobtrusive headband design with side-of-mouth pickup
• Belt-mounted power module runs on battery or phantom power - • Cardioid polar pattern enhances isolation of desired sound source
• Also available as ATM73cW without power module; 55' (1.4 m) cable terminated with locking 4-pin connector for A-T UniPak wireless systems
Specifications:
- • ELEMENT: Fixed-charge back plate, permanently polarized condenser
- • POLAR PATTERN: Cardioid
- • FREQUENCY RESPONSE: 40-15,000 Hz
- • LOW FREQUENCY ROLL-OFF: 80 Hz, 18 dB/octave
- • OPEN CIRCUIT SENSITIVITY: PHANTOM -55 dB (1.7 mV) re 1V at 1 Pa -BATTERY: 56 dB (1.5 mV) re 1V at 1 Pa
- • IMPEDANCE: PHANTOM 200 ohms -BATTERY: 270 ohms
- • MAXIMUM INPUT SOUND LEVEL: PHANTOM 146 dB SPL, 1 kHz at 1% T.H.D.- BATTERY: 132 dB SPL, 1 kHz at 1% T.H.D.
- • DYNAMIC RANGE (typical) -PHANTOM 111 dB, 1 kHz at Max SPL- BATTERY 97 dB, 1 kHz at Max SPL
- • SIGNAL-TO-NOISE RATIO: 59 dB, 1 kHz at 1 Pa
- • PHANTOM POWER REQUIREMENTS: 11-52V DC, 2 mA typical
- • BATTERY TYPE: 1.5V AA/UM3
- • BATTERY CURRENT / LIFE 0.4 mA / 1200 hours typical (alkaline)
- • SWITCH Off, on-flat, on-roll-off
- • WEIGHT (MICROPHONE): 1.1 oz (31 g)
- • WEIGHT (POWER MODULE): 4.9 oz (139 g)
- • DIMENSIONS (MICROPHONE): 0.39' (10.0 mm) diameter
- • DIMENSIONS (POWER MODULE): 3.31' (84.0 mm) H x 2.48' (63.0 mm) W x 0.87' (22.0 mm) D
- • DIMENSIONS (HEADSET): 6.49' (165.0 mm) nominal at widest point, 2.64' (67.0 mm) flexible boom
- • OUTPUT CONNECTOR (POWER MODULE): Integral 3-pin XLRM-type
- • CABLE: 4.6` (1.4 m) long (permanently attached to microphone), 0.10' (2.6 mm) diameter, 2-conductor shielded cable with TA3F-type connector
The Audio Technica ATM73CW is a great choice for drummers, keyboard players or anyone seeking hands-free operation. Its comfortable headband design with side-of-mouth pickup ensures a pleasant experience. The belt-mounted power module can run on battery or phantom power. Measuring 0.39' (10.0 mm) in diameter, the microphone weighs 1.1 oz (31 g), while the power module, with dimensions of 3.31' (84.0 mm) H x 2.48' (63.0 mm) W x 0.87' (22.0 mm) D, weighs 4.9 oz (139 g). The headset has a nominal width of 6.49' (165.0 mm) at its widest point and a 2.64' (67.0 mm) flexible boom.
