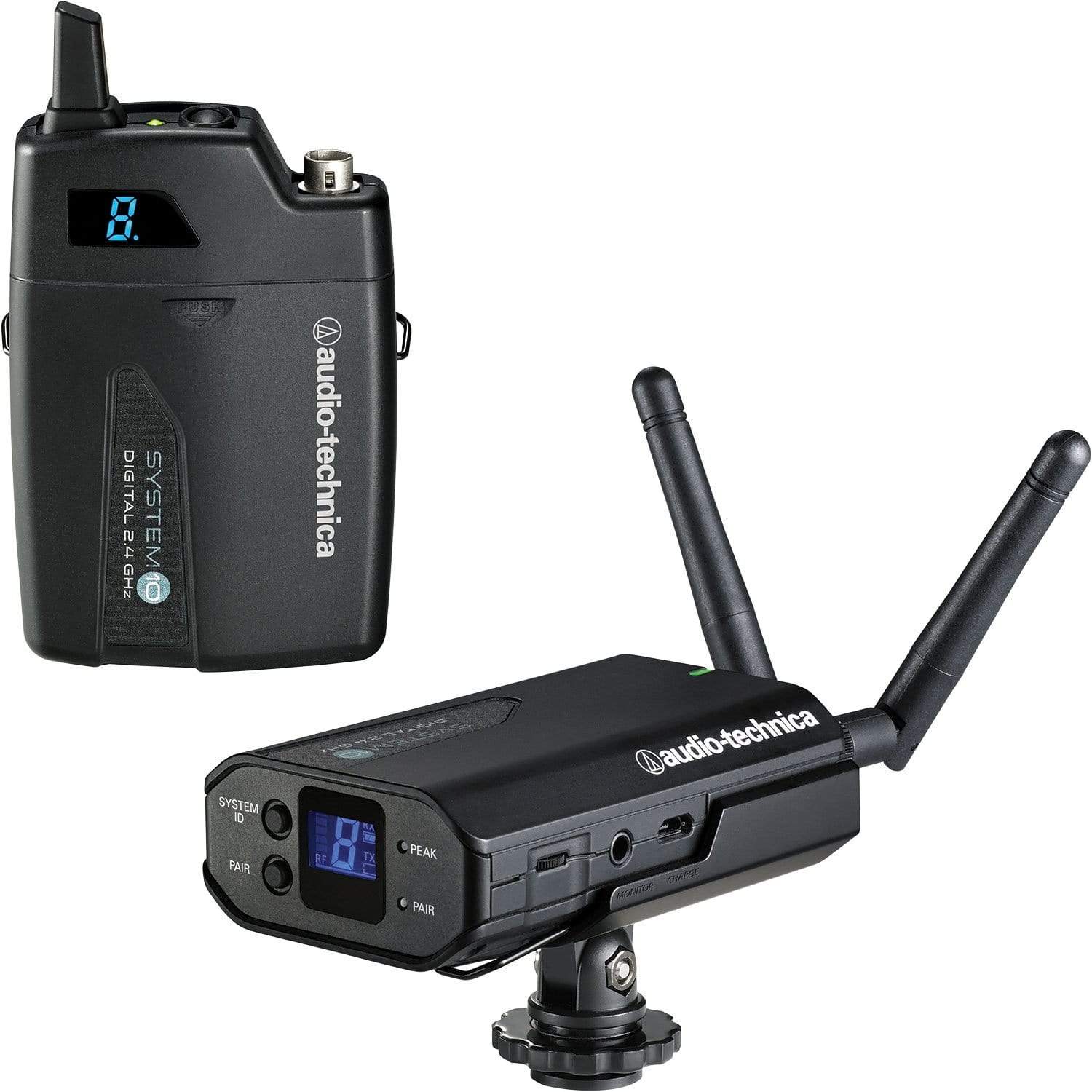

Audio Technica System 10 Wireless Camera Mount Set
This system includes the Audio Technica ATW-R1700 receiver and ATW-T1001 UniPak transmitter. Select a Wireless Essentials microphone or cable to complete the system.
• Compact and portable design for on-the-go media capture
• Ideal for video production, ENG, and mobile applications
• Features three levels of naversity assurance for reliable performance
The System 10 Camera-Mount high-fidelity digital wireless system is perfect for capturing media on the go. With its compact and portable design, it's great for video production, electronic news gathering (ENG), and every mobile application in between. The receiver has multiple mounting options to fit a variety of cameras and recording devices.
Like all products in the System 10 digital wireless family, the Camera Mount offers three levels of naversity assurance: frequency, time, and space. It's easy to use with instantaneous channel selection, sync, and setup, and its digital 24-bit/48 kHz wireless operation provides top-notch sound quality and dependable performance. Also, since the receiver operates in the 2.4 GHz range, it's always free from TV interference.
Features:- Digital 24-bit/48 kHz wireless operation for amazing sound quality and reliable performance
- Operates in the 2.4 GHz range - completely free from TV interference
- Ultra compact receiver size with multiple mounting options
- Selectable balanced and unbalanced output jacks with level control for use with most cameras and recording devices
- Internal rechargeable 12-hr battery
- Separate headphone port and volume control for local audio monitoring
- Multi-pairing function to link a single receiver with up to eight body-pack or handheld transmitters
- Three levels of naversity assurance: frequency, time & space
- Automatic frequency selection for seamless, interference-free operation
- Extremely easy operation with instantaneous channel selection, sync and setup
System Specifications:- Operating frequencies: 2.4 GHz ISM band
- Dynamic range: >109 dB (A-weighted), typical
- Total harmonic distortion: <0.05% typical
- Operating range: 100' / 30m radius, 200' / 60m diameter typical
- Open range environment with no interfering signals
- Operating temperature range: 0°C to +40°C / 32°F to 104°F
- Battery performance may be reduced at very low temperatures
- Frequency response: 20Hz to 20kHz, depending on microphone type
- Audio sampling: 24 bits / 48 kHz

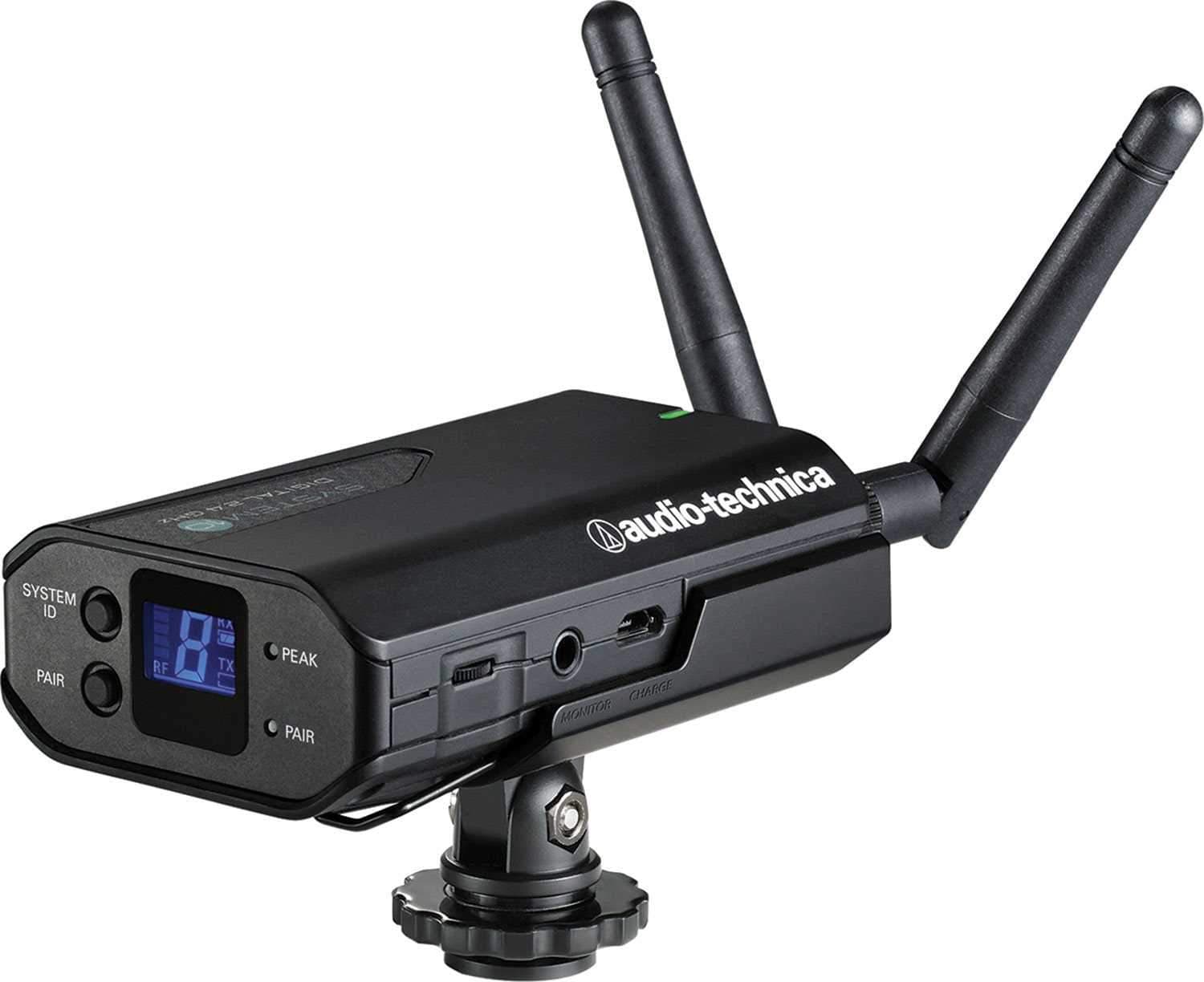

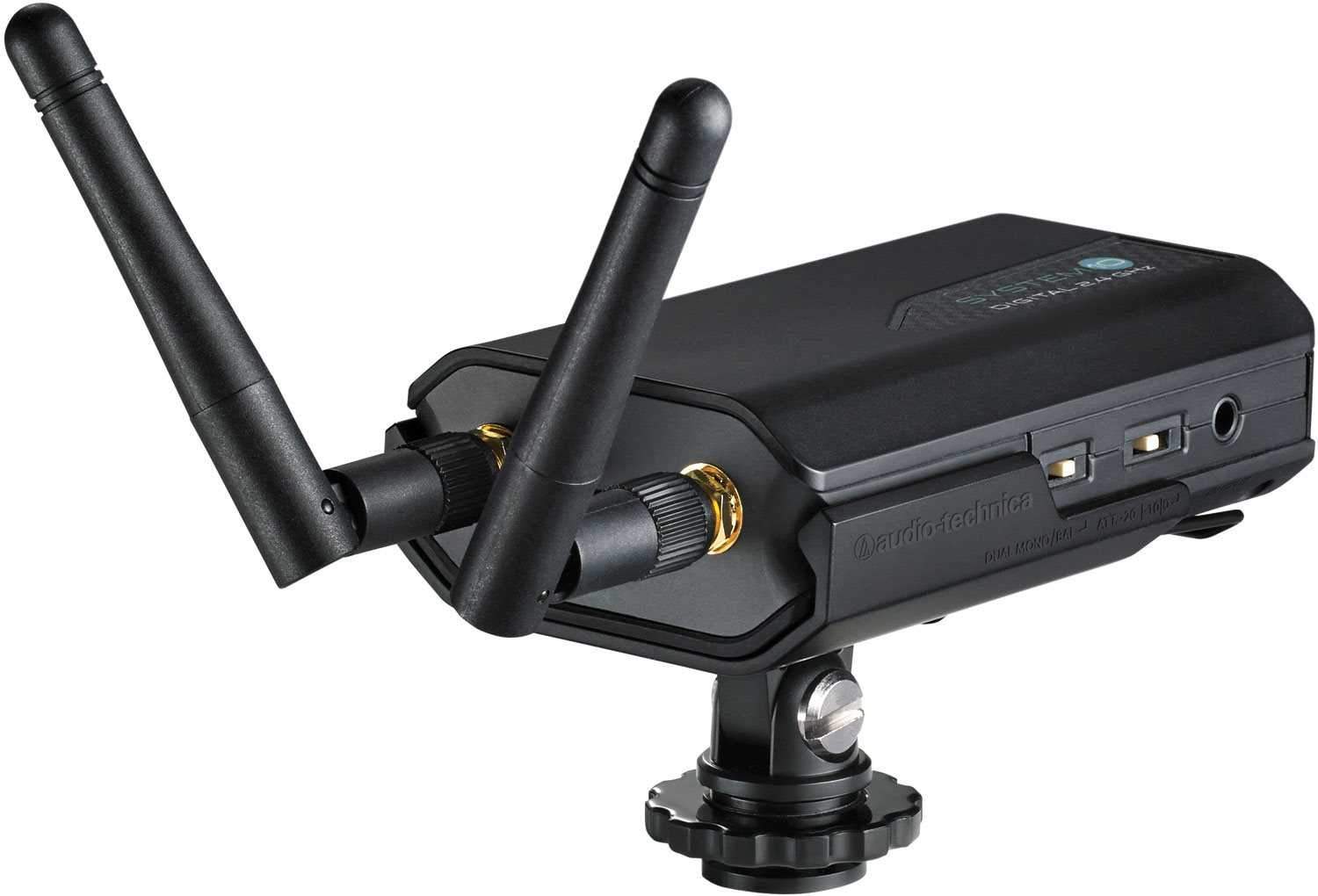

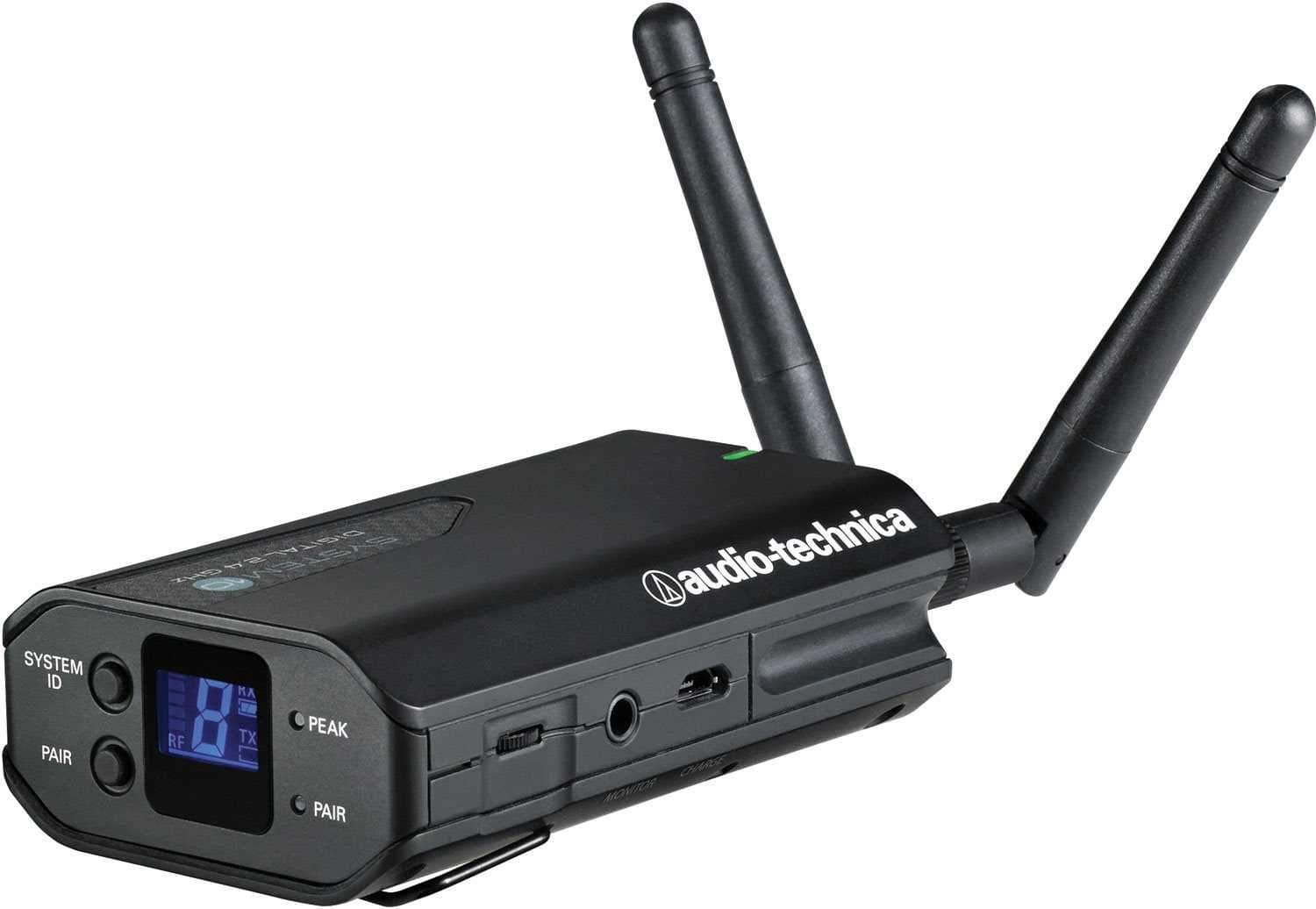

- Receiver Specifications:
- Receiving system: naversity (frequency/time/space)
- Maximum output level: 3.5 mm (1/8'), TRS balanced: +6 dBV Dual mono, unbalanced: 0 dBV
- Power supply: 100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply
- Batteryinternal battery: 3.7V rechargeable Li-ion battery
- Battery rating: 5.5 Wh 1,460 mAh
- Battery life: 12 hours, depending on environmental conditions
- Battery charging time: 4 hours 30 minutes, depending on environmental conditions
- Charging temperature range: 5°C to +35°C / 41°F to 95°F
- Dimensions: 2.20' x 3.60' x 1.09' / 56mm x 91.4mm x 27.8mm (W x H x D)
- Net weight:105 grams / 3.7 oz
- Accessories included: (2) antennas, camera shoe mount, AC adapter (USB-type), USB cable, 3.5mm (1/8') stereo cable

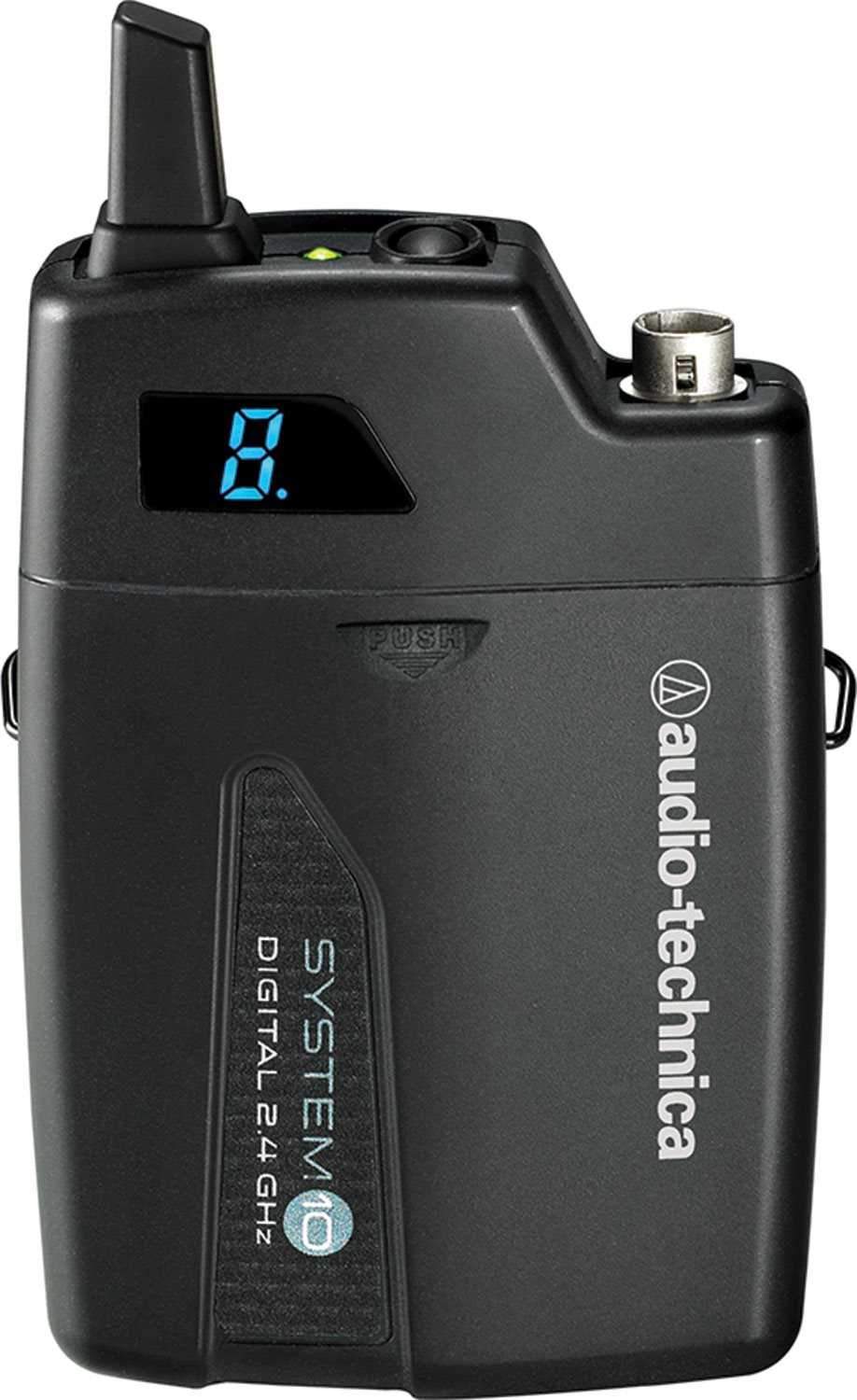

- Body Pack Transmitter Specifications:
- RF power output: 10 mW
- Spurious emissions: following federal and national regulations
- Input connections: four-pin locking connector
- Pin 1: GND
- Pin 2: Inst. input
- Pin 3: Mic input
- Pin 4: DC bias +9V
- Batteries: (2) 1.5V AA (not included)
- Battery life: >7 hours (alkaline, depending on battery type and use pattern)
- Dimensions: 2.76' x 4.21' x.98' / 70.2mm x 107.0mm x 24.9mm (W x D x H)
- Net Weight: 100 grams / 3.5 oz (without batteries)
The Audio Technica ATW-1701 System 10 Wireless Camera Mount Set is perfect for videographers, journalists, and content creators on the go. With its compact and portable design, you can easily capture high-quality audio wherever you are. The receiver has multiple mounting options and can be used with a variety of cameras and recording devices. The set includes the ATW-R1700 receiver and ATW-T1001 UniPak transmitter. Select a Wireless Essentials microphone or cable to complete the system. The receiver features digital 24-bit/48 kHz wireless operation for amazing sound quality and reliable performance. It operates in the 2.4 GHz range, so you don't have to worry about TV interference. The receiver has a rechargeable battery that lasts up to 12 hours, and it also has a separate headphone port and volume control for local audio monitoring. The multi-pairing function allows you to link a single receiver with up to eight body-pack or handheld transmitters. The receiver measures 2.20' x 3.60' x 1.09' (56mm x 91.4mm x 27.8mm) and weighs 105 grams (3.7 oz). It comes with (2) antennas, camera shoe mount, AC adapter (USB-type), USB cable, and 3.5mm (1/8') stereo cable.
