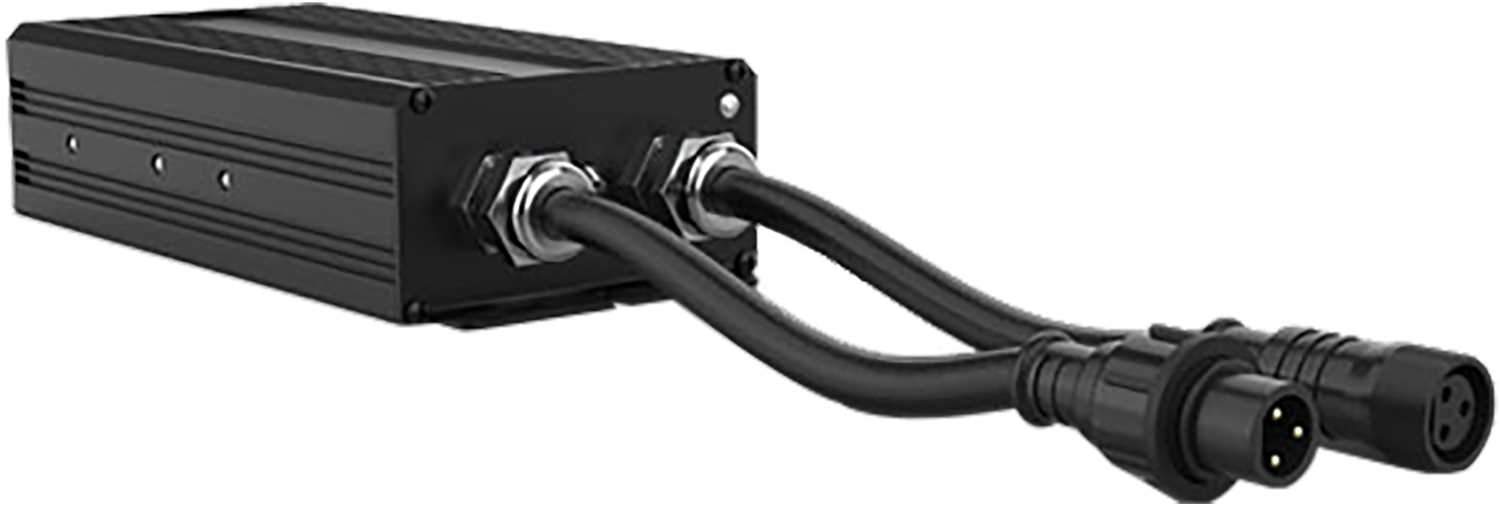

Chauvet Epix Flex Boost 24V Inline Voltage Booster
Revolutionize your lighting system with the Epix Flex Boost! This 24V in-line voltage booster doubles the capacity of each output on the Epix Flex Drive and the number of Epix Flex 20 it controls. Enjoy hassle-free setup with its plug-and-play operation.
Key Features:
- • Boosts the capacity of Epix Flex 20 outputs
- • Easy plug-and-play installation
- • IP65 rated for outdoor use
Technical Specifications:
- Dimensions: 8.13 x 3.56 x 1.83 in (206.5 x 46.5 x 90.5 mm)
- Weight: 4.4 lb (2 kg)
- Exterior Color: Black Housing
- Material: Aluminum
Connections:
- Connection: Edison (Local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Device inputs: (1) 3-pin male IP Flex
- Device Outputs: (1) 3-pin female IP Flex
- Physical Linking: 2 inline ¡pix Flex 20
- Cable Length (signal): 1.16 ft (0.355 m)
- Cable Length (power): 5 ft (1.5 m)
Electrical:
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 200 W, 1.6 A @ 120 V, 60 Hz
- Power and Current: 200 W, 0.87 A @ 230 V, 50 Hz
Certifications / Qualifications:
- CE, MET
- IP Rating: IP65, outdoor/wet, with pressure equalizing M14 Gore valve
- Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)
What's Included:
- Epix Flex Boost
- Seetronic Powerkon power cord
Required Accessories:
- Accessories (required): Epix Flex Drive
- Compatible Mounting Options: M12 Bolt/Clamp
Optional Accessories:
- Clamps
- IP Flex Cables
- Seetronic Powerkon cables
- DMX Cables
The Chauvet EPIX Flex Boost 24V Inline Voltage Booster is perfect for lighting professionals and enthusiasts looking to enhance their lighting setups. Whether you're setting up a stage, a venue, or an outdoor event, this voltage booster can handle it. With its compact size of 8.13 x 3.56 x 1.83 in (206.5 x 46.5 x 90.5 mm) and lightweight of 4.4 lb (2 kg), it's easy to install and transport. The black aluminum housing not only looks sleek but also provides durability. It features an IP65 rating, making it suitable for outdoor use, so you don't have to worry about the elements. Connect it to the outputs of the Epix Flex Driver using the Edison (Local) plug to Seetronic Powerkon IP65 connection. It has a 3-pin male IP Flex input and a 3-pin female IP Flex output, along with specific cable lengths for signal and power. The input voltage ranges from 100 to 240 VAC, 50/60 Hz (auto-ranging). It comes with the Epix Flex Boost and a Seetronic Powerkon power cord. You'll need an Epix Flex Drive as a required accessory, and it's compatible with M12 Bolt/Clamp mounting options. Optional accessories like clamps, IP Flex Cables, Seetronic Powerkon cables, and DMX Cables are also available to further customize your setup.
