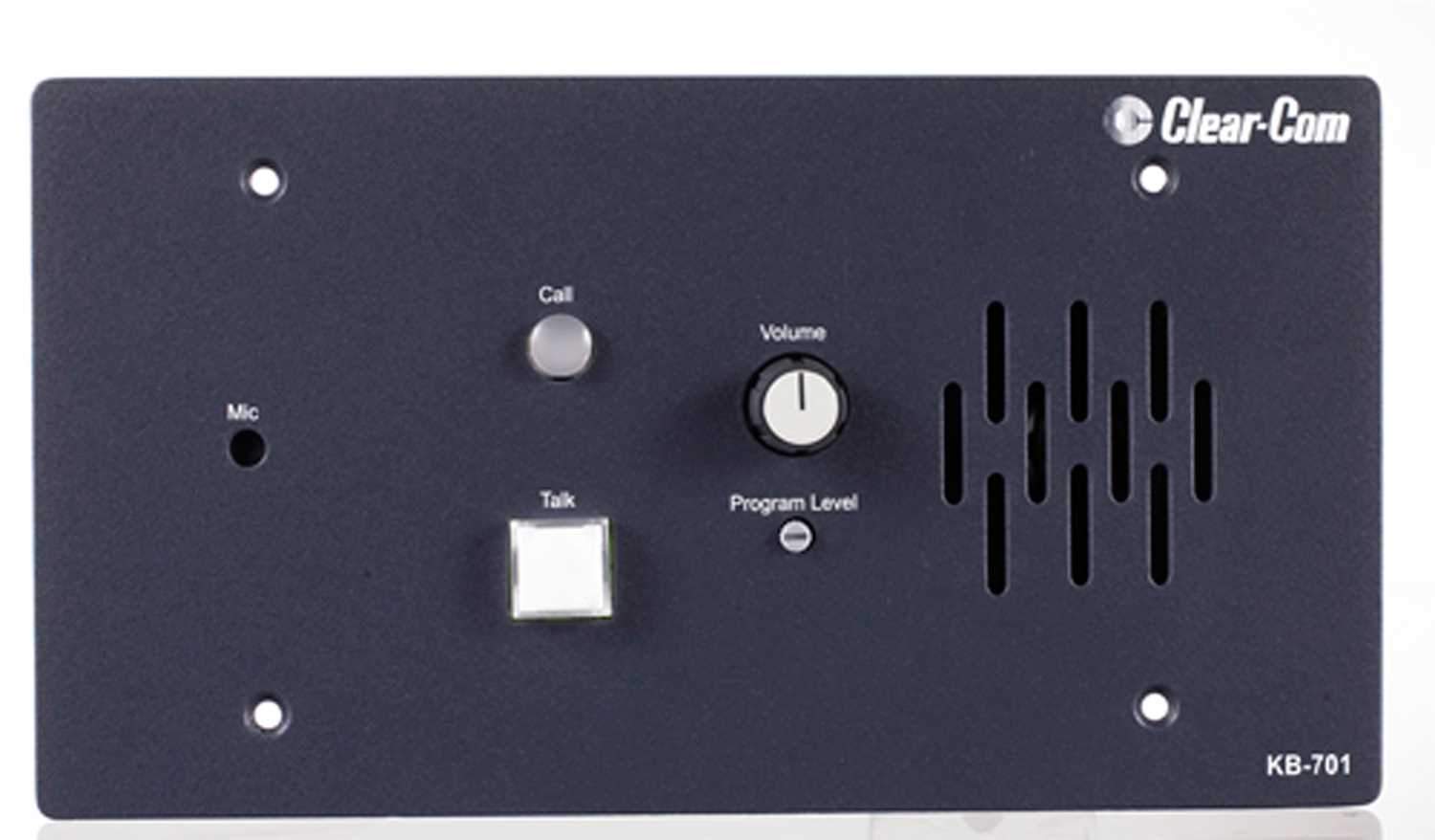

Clear-Com One-Channel Flush-Mount Speaker Station
Upgrade your communication experience with this amazing speaker station! • It mounts easily in the V-Box, HelixNet S-Mount, or console. • Connects to a single channel of party-line intercom and operates in half-duplex mode. • Features an integral speaker, a flush mount electrets microphone with mic limiter, and a push-to-talk button for crystal-clear communication.
Specifications:
- Program Line Input: Maximum Level before Clipping: >= 20dBu, Input Impedance: >= 5K
- Speaker Output: Load Impedance: >= 4 , Max Output Level before 1% Distortion: 20dBu ± 2dBu
- Party-line Output: Off Noise: < -74dBu, Output Impedance: >10K
- Party-line Input: Crosstalk: < -60dB, Max level before Clipping: >= 12dBu
- Frequency Response: Program Input - Speaker Out: 200 - 18KHz ± 3dB, Party-line - Speaker Out: 200 - 18KHz ± 3dB
- Max Distortion: Program Input - Speaker Out: <= 0.5%, Party-line - Speaker Out: <= 0.5%
- Noise: Program Input - Speaker Out: < -60dBu, Party-line - Speaker Out: < -50dBu
- Max Gain: Program Input - Speaker Out: >= 24dB, Party-line - Speaker Out: >= 40dB
- Power: Input Voltage Range: 20-30 VDC, Input Current (Idle): <= 90mA, Input Current (Max): <=110mA
- Internal Connectors and Jumpers: Intercom: Line Five terminal connector, Program Input: Three terminal connector, Option Switches: Three DIP switches
- Front Panel Controls & Indicators: (1) Program level control, (1) Intercom level control, (1) Talk button, (1) Call button, (1) Integral microphone
- Environmental: 32 - 122o F (0 - 50o C)
- Dimensions: 8.5 in. W x 4.5 in. H x 1.75 in. D(210 mm x 114 mm x 44 mm)
- Weight: 1.04 lbs. (0.47 Kg)
This Clear-Com 1-Channel Flush-Mount Speaker Station is perfect for professionals who need reliable communication solutions. Ideal for use in events, conferences, or any situation where clear audio is crucial. With dimensions of 8.5 in. W x 4.5 in. H x 1.75 in. D (210 mm x 114 mm x 44 mm) and weighing 1.04 lbs. (0.47 Kg), it's compact and easy to install. Connects to a single channel of party-line intercom and operates in half-duplex mode for seamless communication.
