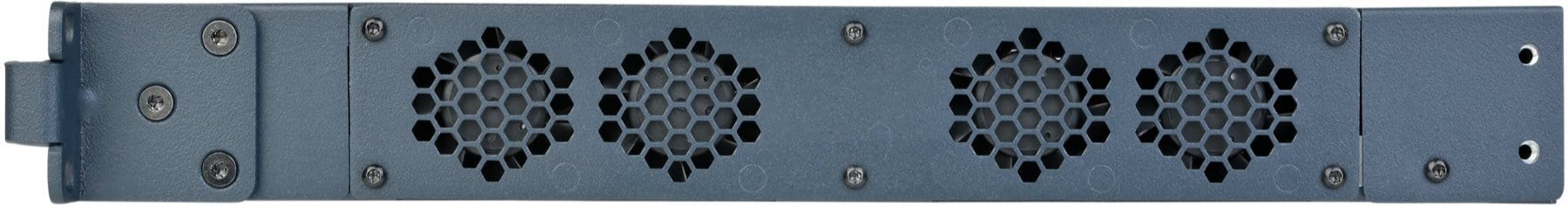

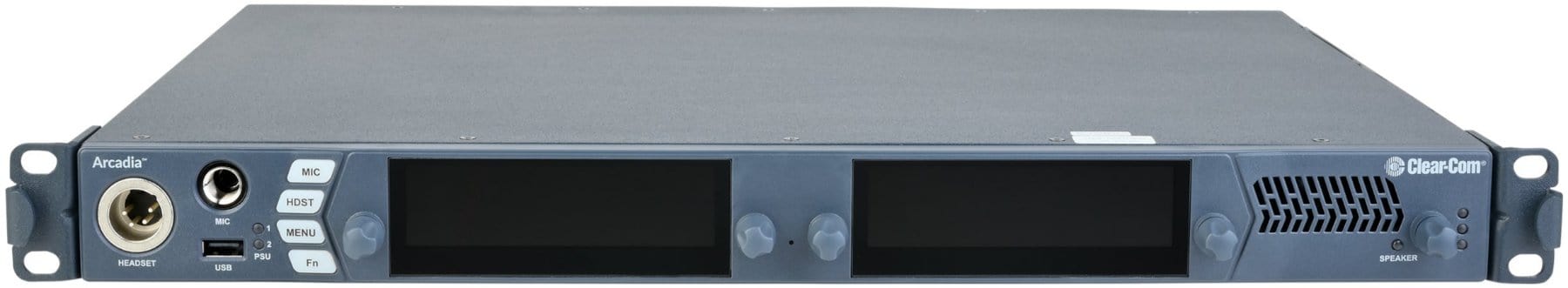

Clear-Com Arcadia Central Station: 112 Licensed Ports, 1RU, with HelixNet 4-Wire/2-Wire and Dante

Unleash seamless communication with the Arcadia Central Station! It's the heart of a powerful IP networked intercom platform, perfect for various setups. Whether you're in a bustling event venue or a large corporate office, this station keeps everyone connected.

Key Features:

• • Effortless wired and wireless intercom integration
• • Flexible Dante and Analog Interfacing for diverse audio needs
• • Easy setup via CCM browser configuration

Specifications:

Capacity:

• FreeSpeak Wireless Intercom:
• (10) E1 Transceivers (1.9*, 2.4 GHz)
• (16) IP Transceivers (1.9*, 5GHz)
• (40) Beltpacks** (1.9, 2.4, 5GHz)
• HelixNet Wired Intercom:
• (24) Enabled Channels**
• (64) Endpoints (HRM, HKB, HXIIBP)
• Dante Audio Network Interfaces:
• (64) Dante Ports**
• Configuration:
• (128) Licensed Ports**
• FreeSpeak Beltpack, HelixNet Enabled Channel, Dante Port:
• (100) Channels
• (100) Groups
• (200) Roles for FreeSpeak & HelixNet

Licenses

• Delivery: License Ticket, may include multiple licenses
• License Host: Arcadia
• Activation: Via CCM, online (recommended) or Offline
• Transferable: No, fixed to Arcadia
• Recovery: Yes, by Clear-Com Support or Service Center

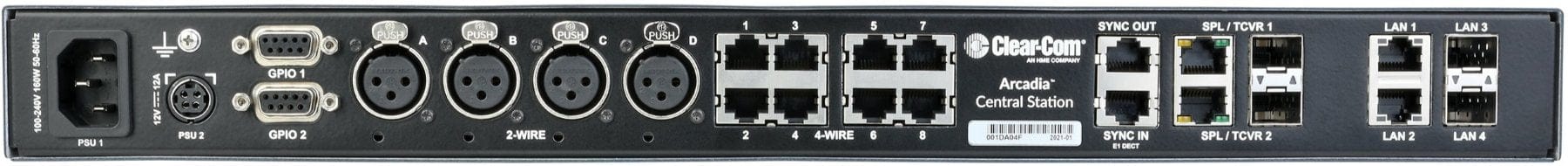

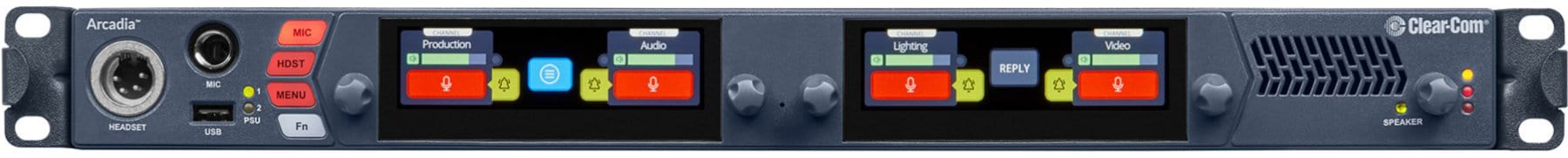

Connectors

• Headset: 4-pin XLR-M (X4), 5-pin XLR-F (X5)
• Gooseneck Microphone: ” TRS Threaded
• 2-Wire I/O: (4) XLR-3F
• 4-Wire I/O: (8) RJ45
• Audio Crossover Mode: Software selectable
• Program input/Stage output: XLR-3F, XLR-3M
• GPIO: (2) DB9F
• FreeSpeakII E1 TCVR/SPL Ports: 2 x RJ45, 2 x SFP (RJ45 or SFP)
• FSII DECT Synchronization: 2 x RJ45 (Input and Output)
• LAN: 2 x RJ45, 2 x SFP (Function assignable)
• AC Power Connector: IEC-C14
• DC Power Connector: KPJX-4S-S
• Grounding Screw: Terminal

Microphone Input

• Input Type: Dynamic/Electret - Selectable
• Headset Mic Voltage: 5V
• Input Level (nominal): -45dBu
• Input Level (max): -10dBu
• Frequency Response: 200Hz to 12kHz ±3dB
• Mic Limiter Threshold: -35dBu ±3dB
• Mic Limiter Range: >= 20dB

Loudspeaker and Amplifier

• Speaker: 1.6 x 2.8”
• Load: 4 OHMS
• Max Speaker Level: 87dB ± 2dB SPL A at 3ft/1m
• Frequency Response: 100Hz - 10kHz
• Max Output Level before 1% Distortion: 18dBu ± 2dB
• Total Harmonic Distortion (THD): < 0.5% THD at 1kHz

4-Wire Line Level Interfaces

• Transformer Balanced Input and Output
• Input:
• Nominal Level: 0dBu (selectable)
• Maximum Level: +18dBu
• Frequency Response: 80Hz to 20kHz ±3dB
• Impedance: >= 10K OHMS
• Output:
• Nominal Level: 0dBu (selectable)
• Maximum Level: +18dBu
• Frequency Response: 80Hz to 20kHz ±3dB
• Impedance: 200 OHMS + 10%

2-Wire Partyline Interfaces

• Unbalanced High-Impedance Bridging
• Compatibility: Clear-Com, RTS-TW with Call and Remote Mic Kill
• Termination: Optional per pair (A/B or C/D)
• Nulling: User initiated Auto-Calibration
• Null Depth: >60dB at 1kHz
• Nominal Level: -18dBu (CC), -12dBu (RTS-TW)
• Headroom: 18dB
• Frequency Response: 200Hz to 12kHz. ±3dB
• Impedance: >= 10K OHMS bridging
• Total Harmonic Distortion (THD): < 0.1% THD @ 1 kHz
• Power: 560mA optional per pair (A/B or C/D)
• Voltage: 25-28V DC

Logic Inputs - GPI

• Assignable to activation of audio crosspoints
• Input: 2
• Style: Optically isolated
• Input Voltage Range: 4 - 30V DC or AC
• Input Current: >=1.2mA required

Logic Outputs - GPO/Relay

• Assignable to talk, call keys, and audio crosspoints
• Outputs: 4
• Style: SPDT / Power Relay
• Normalized:

The Clear-Com Arcadia Central Station is designed for use in various communication setups such as event venues and corporate offices. It's suitable for professionals who need a reliable intercom solution. It has a 1RU form factor. The capacity includes multiple components like FreeSpeak Wireless Intercom with specific transceiver and Beltpack quantities, HelixNet Wired Intercom with enabled channels and endpoints, and Dante Audio Network Interfaces with a certain number of ports. Licensing details include how the license is delivered, hosted, activated, and recovered. The station has a variety of connectors for different types of input and output, along with specifications for microphone input, loudspeaker and amplifier, 4-Wire and 2-Wire interfaces, and logic inputs/outputs.
