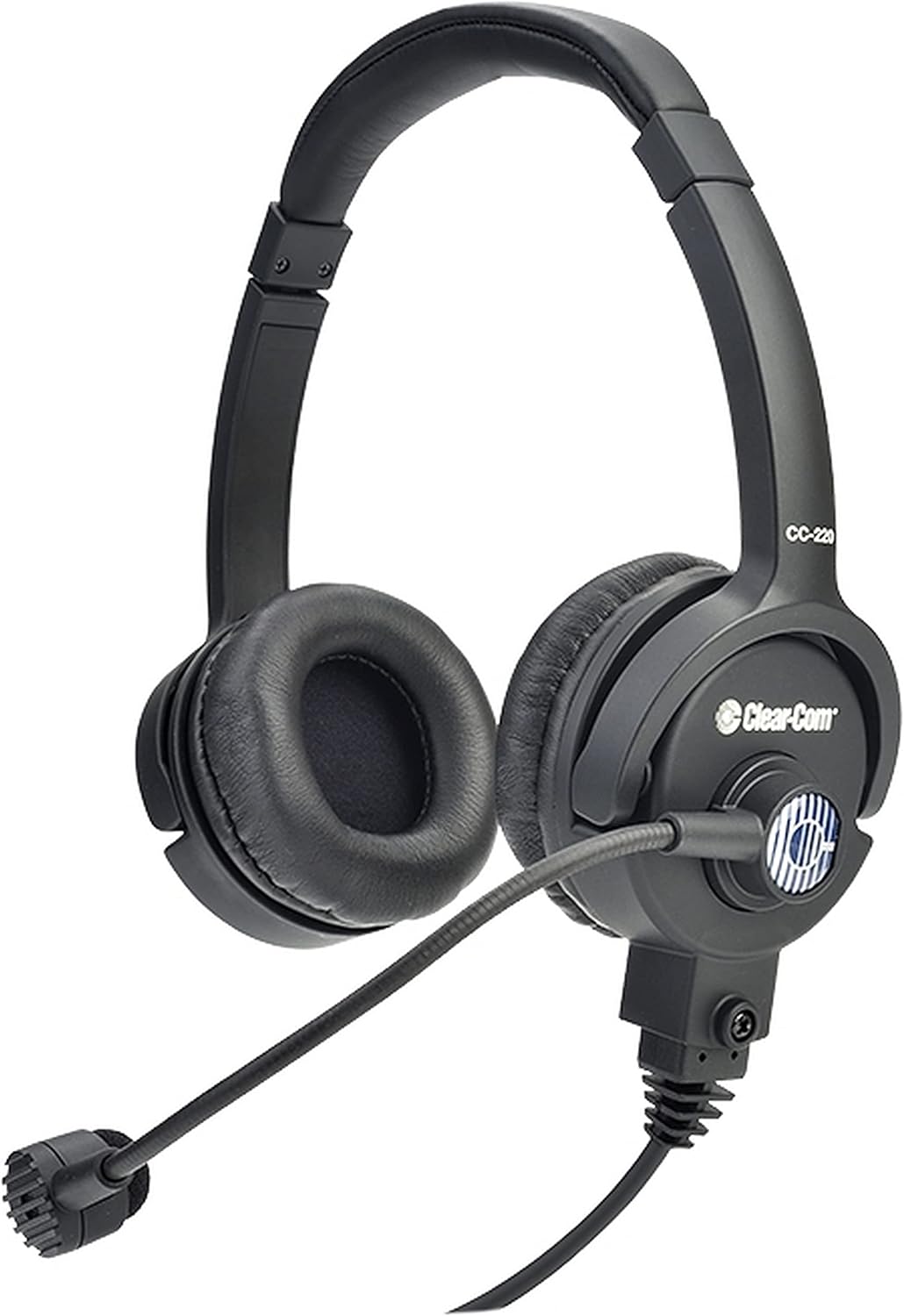

Clear-Com CC-220-MD4 Superb Double Headset with Dynamic Mic
Clear-Com's CC-220-MD4 is a premium, versatile, lightweight headset that delivers outstanding audio quality. It's perfect for a variety of communication needs. • Exceptional Audio: Enjoy crystal-clear sound with a 20Hz - 20KHz frequency response. • Comfortable Fit: Choose between leatherette or foam earpads for a personalized, comfortable experience. • Easy to Use: Adjust the microphone boom 300 ° and flexible gooseneck for optimal positioning. This -MD4 model features a 4-pin Male DIN Connector.
Features:
- High quality dynamic cardioid microphone
- 20Hz -20KHz frequency response

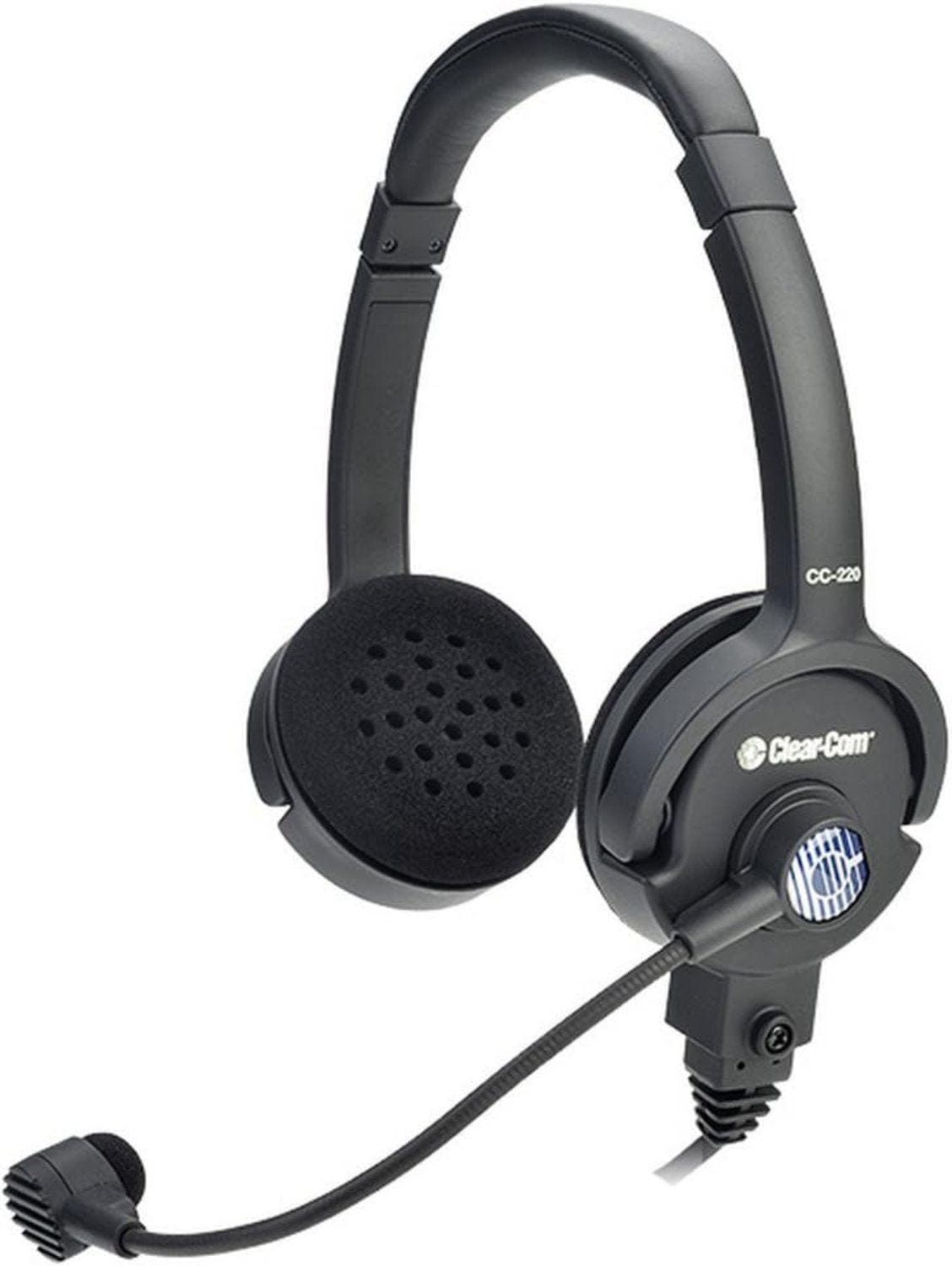

- Choice of earpads: leatherette or foam
- Flexible gooseneck microphone positioning
- Boom rotation ON/OFF switch for quick microphone muting
- Interchangable cabling for easy connector change and repair
- Fully serviceable headset
- Rugged design
Specifications:
- Headphone:
- Type: Closed-back
- Driver: 36mm diameter, neodymium magnet, copper-clad aluminum wire voice coil
- Frequency Response: 20Hz - 20kHz
- Impedance:
- CC-110: 400Ω ±30% at 1kHz typical
- CC-220: 200Ω ±30% at 1kHz typical
- Microphone:
- Element: Dynamic
- Driver: 15mm, neodymium magnet
- Polar Pattern: Cardioid
- Frequency Response: 250Hz - 20kHz
- Impedance: 200Ω ±30% at 1kHz typical (for both CC-110 and CC-220)
- Power: 500mW Maximum
- Sensitivity:
- Microphone Open Circuit Sensitivity: -64dB ±3.5dB (0dB=1V/1Pa, at 1kHz typical)
- Headphone Sensitivity:
- CC-110: 99dB ±3dB (SPL) / 1mW, at 1kHz typical
- CC-220: 96dB ±3dB (SPL) / 1mW, at 1kHz typical
- Connector: Cable: 5ft (1.55m) long with 4-pin connector at headset end; 4-pin Male DIN Connector
- Dimensions:
- Packaging for CC-110 and CC-220: 6.7 x 8 x 3.5in (WxHxD), (170 x 205 x 90mm)
- Weight:
- CC-110: 5.1oz (145g) without 8-pin cable assembly and M3*18mm SCREW
- CC-220: 6.8oz (195g) without 8-pin cable assembly and M3*18mm SCREW
This Clear-Com CC-220-MD4 double headset is perfect for a range of communication applications. It's great for professionals who need to stay connected during meetings, broadcasts, or events. With its comfortable design and easy adjustability, it suits users of all types. The headset has a 5ft (1.55m) long cable with a 4-pin connector at the headset end and weighs 6.8oz (195g) without the 8-pin cable assembly and M3*18mm SCREW. Its packaging measures 6.7 x 8 x 3.5in (WxHxD), (170 x 205 x 90mm).
