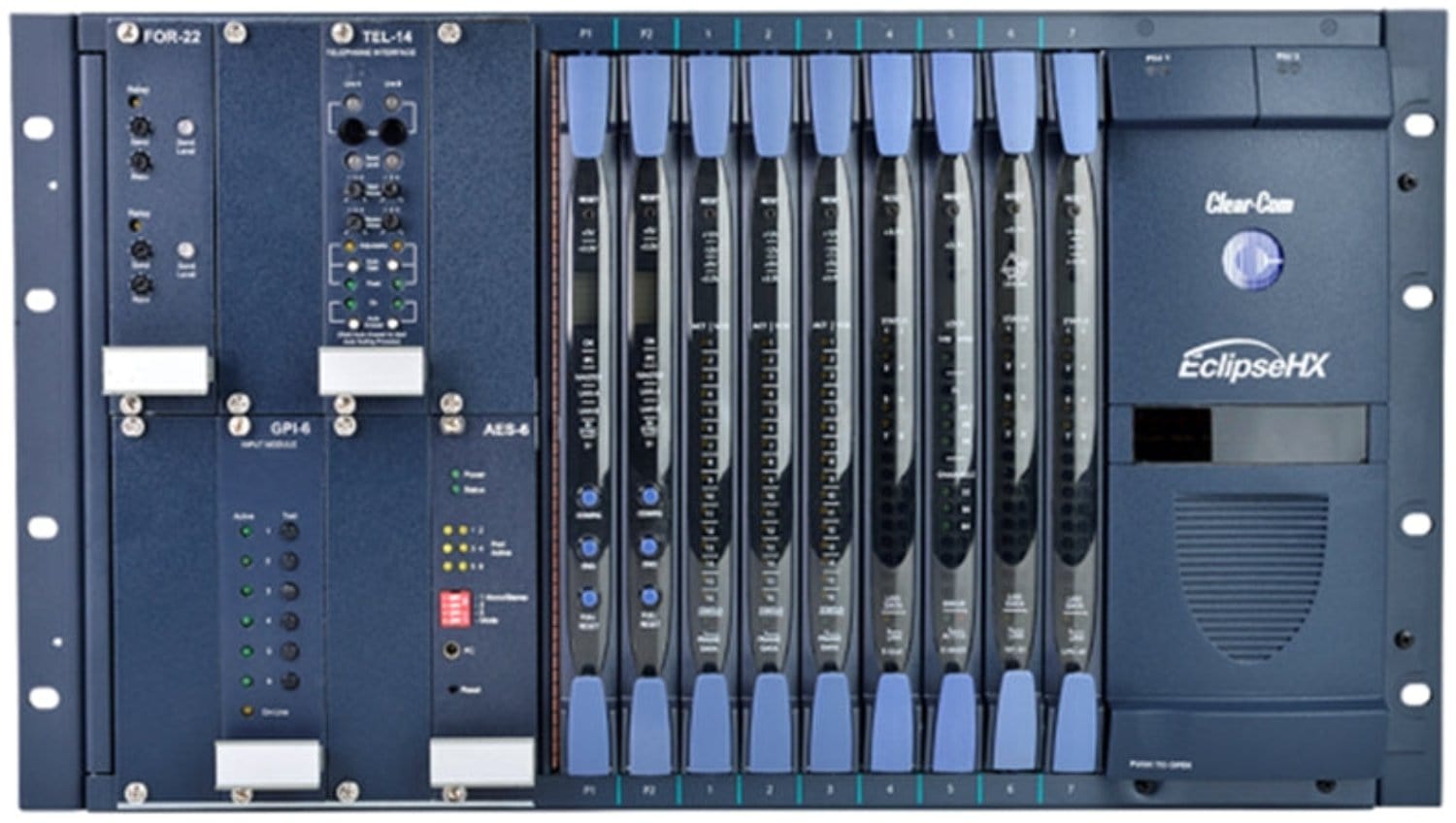

Clear-Com Eclipse HX-MEDIAN-0P Intercom Frame - Blank

Clear-Com Eclipse HX-MEDIAN-0P Intercom Frame - The Ultimate Solution for Medium to Large Productions

The Clear-Com Eclipse HX-MEDIAN-0P is a game-changer for medium to large productions! It's a highly scalable and flexible digital matrix intercom frame that offers reliable and high-quality communication across multiple locations.

Why Choose Clear-Com Eclipse HX-MEDIAN-0P?

• • Superior Audio Quality: Thanks to the innovative HX architecture, it delivers crystal-clear sound.
• • Advanced Networking: Connect seamlessly with IP-based systems for smooth communication.
• • Compact Design: Fits into a 3RU chassis, saving space without sacrificing performance.

Key Features:

• Slots for 2 CPU cards, 7 interface cards and 8 interface modules
• Up to 448 internal ports
• Dual-redundant CPU-HX processors fitted as standard
• Dual-redundant power supplies fitted as standard
• Alarms: Frame temperature, PSU failure
• 8 general purpose inputs and 8 relays
• Expandable to become a multi-frame system with redundant non-blocking fiber
• Intelligent trunking between systems over telecom lines (E1/T1), IP (LAN, WAN or Internet), Analog or MADI
• Seamless integration with FreeSpeak II and FreeSpeak Edge
• Fully-compatible with Clear-Com V-Series Iris and I-Series panels
• Supports EHX Software (Eclipse HX Configuration)

Specifications:

• 0 dBu is referenced to 0.775 volts RMS
• Matrix Capabilities:
  • Maximum Expansion Cards: 7
  • Maximum CPU Cards: 2 (included)
  • Maximum Power Supply Units: 2 (included)
  • Maximum Fiber Expansion Cards: 2
  • Ports per MVX Port Card: 16
  • Included MVX Port Cards: 0
  • Maximum MVX Port Cards: 7
  • Maximum E-IPA, E-QUE, LMC-64 Port Cards: 4
  • Maximum E-DANTE64, E-MADI64 Port Cards: 7
  • Maximum RJ45 Ports per Matrix: 112
  • Maximum Timeslots: 512
• Matrix Performance:
  • Sample Rate: 48 kHz
  • Resolution: 24 bit
  • Frequency Response: at 48 kHz sampling: 30 Hz - 22 kHz ± 3 dBu
  • Crosstalk (adjacent channel): <-70 dBu
  • Nominal Level: 0 dBu
  • Matrix headroom: +18 dBu
  • Distortion: <0.05 %, @ 0 dBu, 300 Hz to 10 kHz; <0.1 %, @ 0 dBu, 100 Hz to 20 kHz
  • Off Noise: <-70 dBu (20 Hz - 22 kHz)
  • On Noise: <-65 dBu (20 Hz - 22 kHz)
  • Key Response, Intra-System: <40 ms for audio route
  • Linked Systems: <60 ms for audio between matrices
• Environmental:
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -67°F - 158°F (-55°C - 70°C)
  • Humidity: 90% non-condensing
• Dimensions:
  • 19 x 10.6 x 16 in (WxHxD)
  • (482 x 264 x 410 mm)
• Weight:
  • 44 lbs - 77 lbs (20 kg - 35 kg)

*Note: Product appearance may vary based on expansion cards included.

The Clear-Com Eclipse HX-MEDIAN-0P Intercom Frame is perfect for medium to large productions that need reliable communication across multiple locations. It comes in a compact 3RU chassis, measuring 19 x 10.6 x 16 in (WxHxD) and weighing 44 lbs - 77 lbs (20 kg - 35 kg). With its innovative features, it's a great choice for any production looking for high-quality audio and seamless integration.
