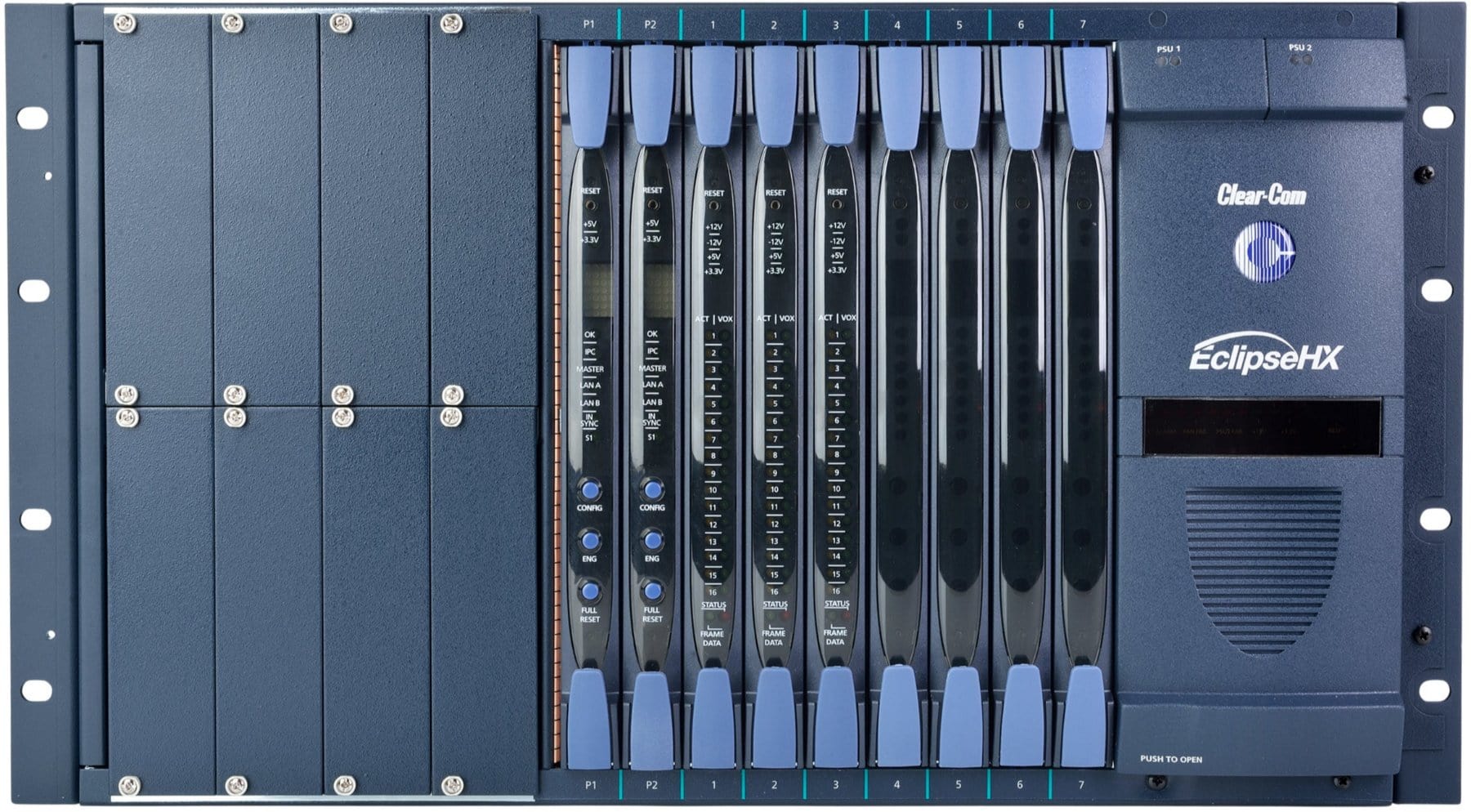

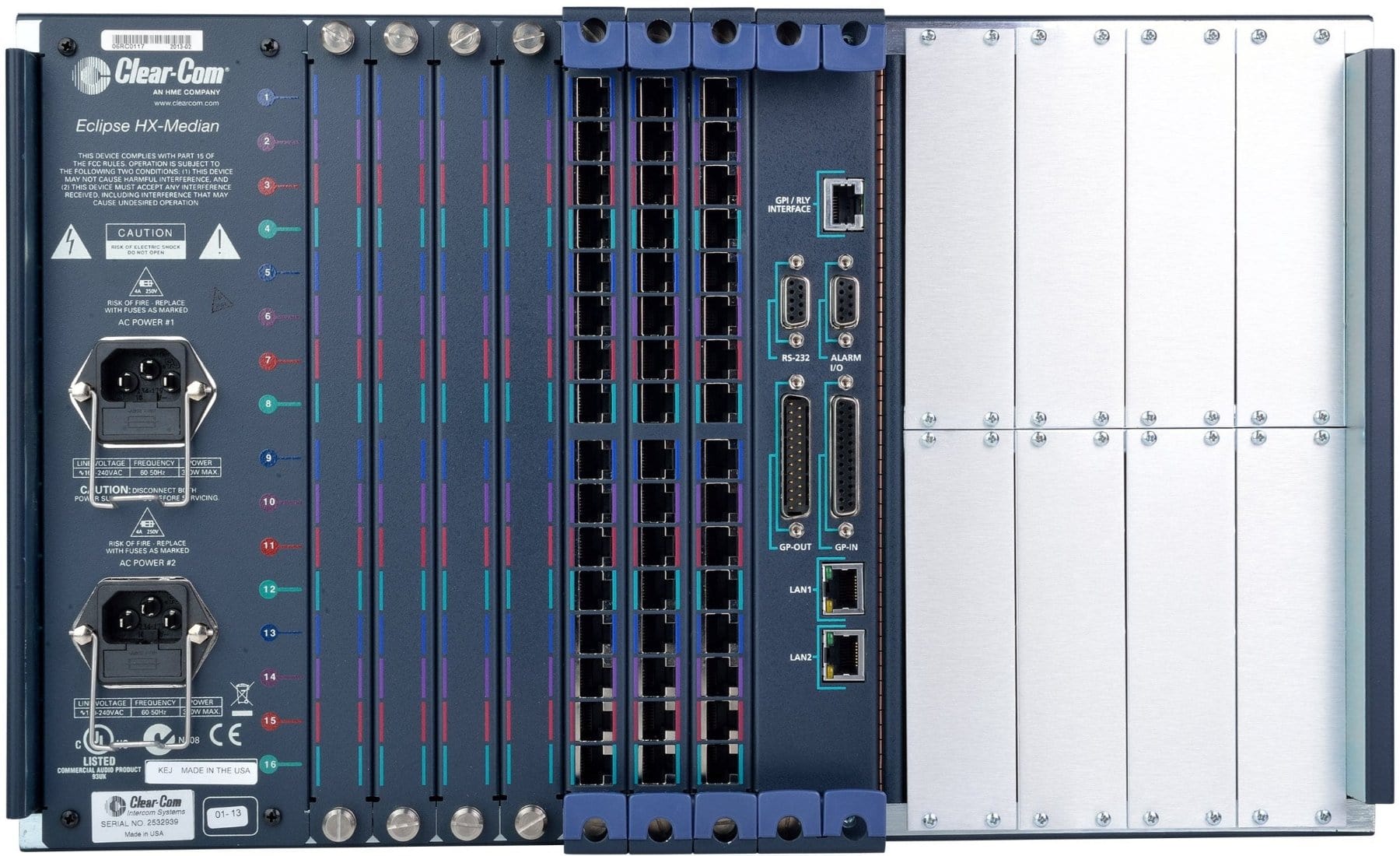

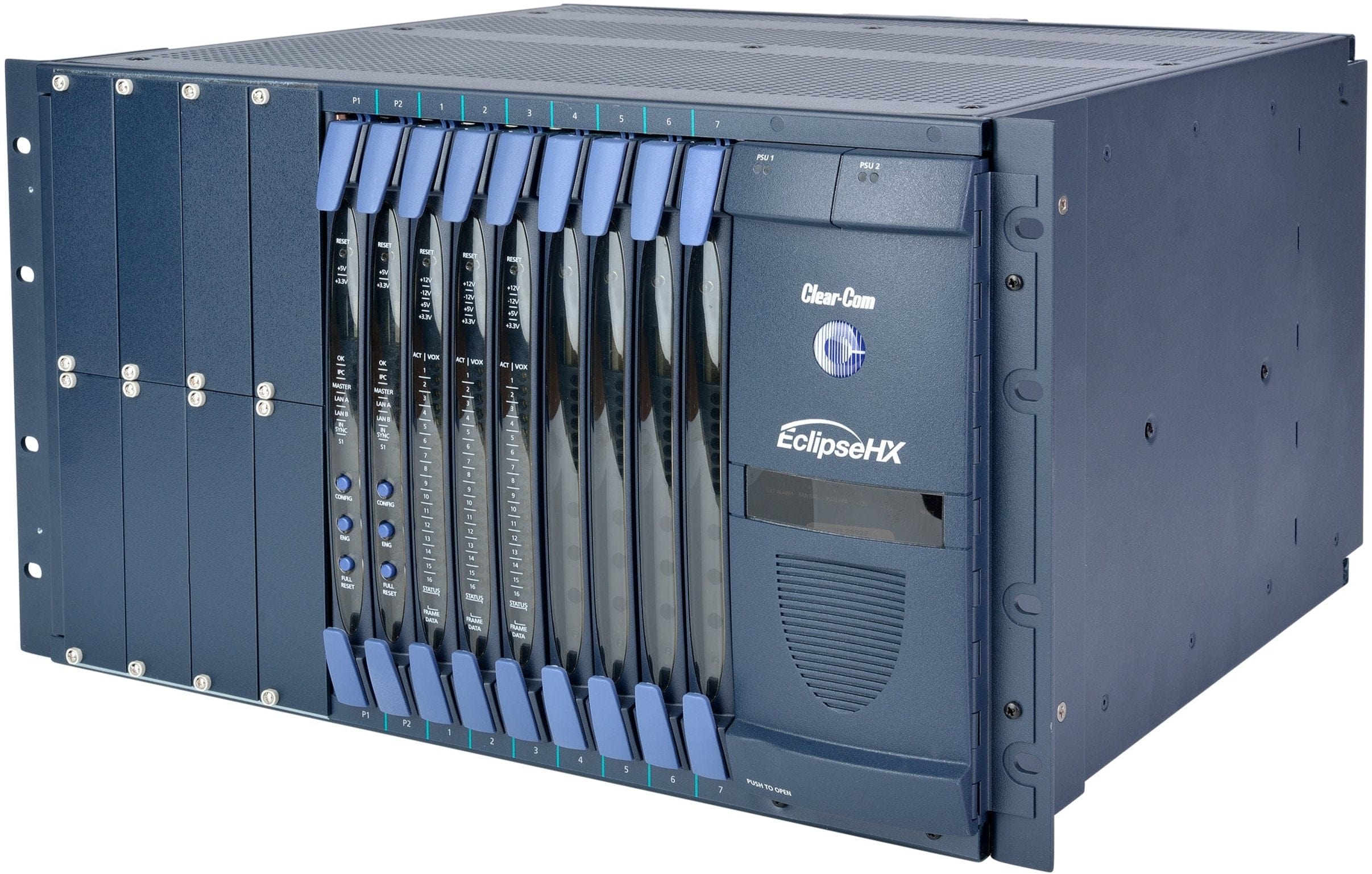

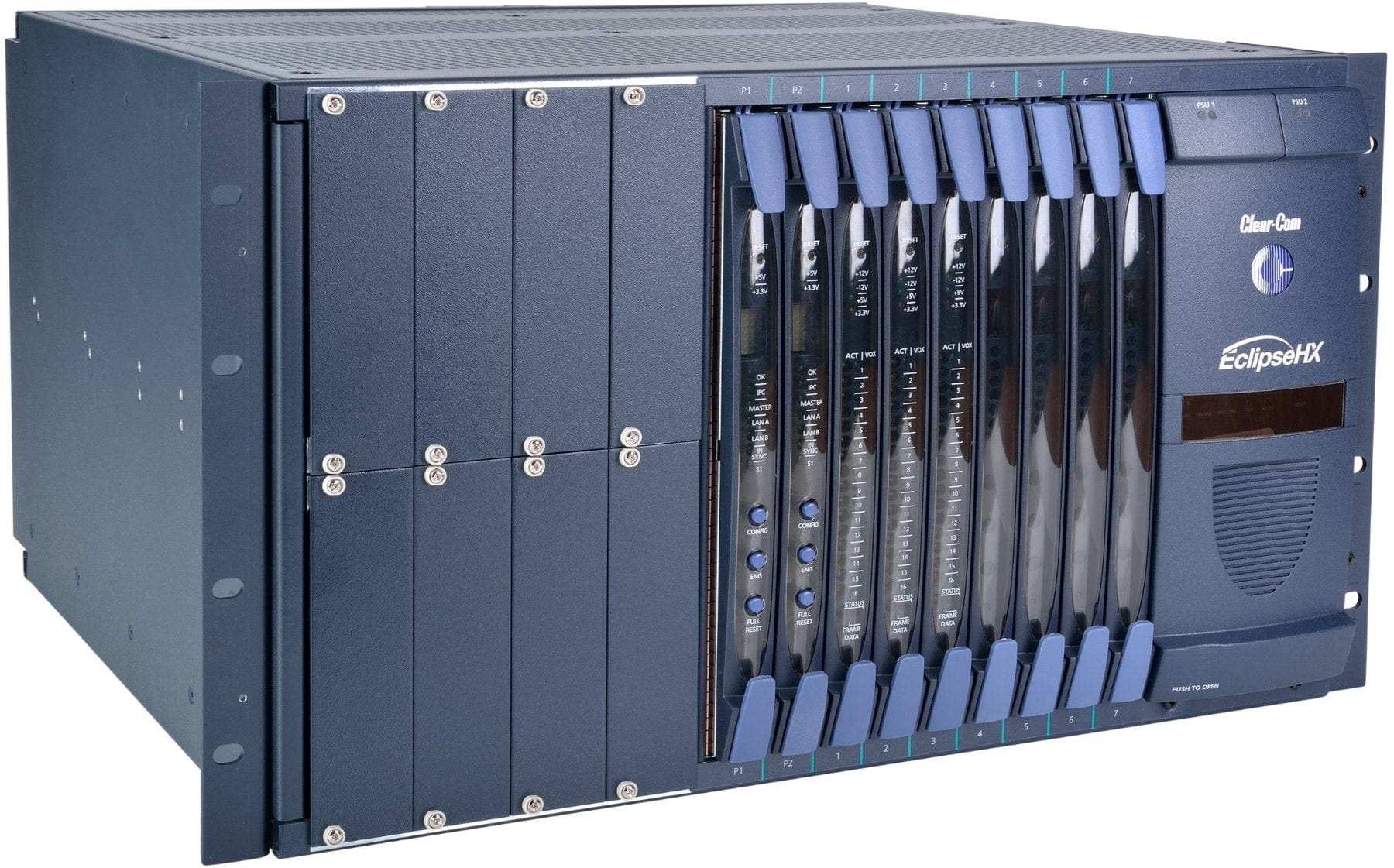

Clear-Com Eclipse HX-MEDIAN-16P Intercom Frame with 16 Ports

Clear-Com Eclipse HX-MEDIAN-16P High-Performance 16-Port Intercom Frame

The Clear-Com Eclipse HX-MEDIAN-16P is a must-have for medium to large productions seeking reliable and top-quality communication across multiple locations. It's a highly scalable and flexible digital matrix intercom frame in a compact 3RU chassis, expandable to 448 ports with extra cards. With its innovative HX architecture, enjoy superior audio, advanced networking, and seamless IP system integration.

Key Features:

• • Compact Design for Easy Installation •
• • Superior Audio Quality for Clear Communication •
• • Advanced Networking for Seamless Connectivity •

Technical Details:

• Slots for 2 CPU cards, 7 interface cards, and 8 interface modules
• Up to 448 internal ports after full expansion
• Dual-redundant CPU-HX processors and power supplies
• Alarms for frame temperature and PSU failure
• 8 general-purpose inputs and 8 relays
• Expandable to multi-frame with redundant non-blocking fiber
• Intelligent trunking over various lines
• Seamless integration with FreeSpeak II and FreeSpeak Edge
• Fully compatible with Clear-Com V-Series Iris and I-Series panels
• Supports EHX Software

Specifications:

• 0 dBu is referenced to 0.775 volts RMS
• Matrix Capabilities: Maximum Expansion Cards: 7, etc.
• Matrix Performance: Sample Rate: 48 kHz, etc.
• Environmental: Operating Temperature: 32 °F - 104 °F (0 °C - 40 °C), etc.
• Dimensions: 19 x 10.6 x 16 in (482 x 264 x 410 mm)
• Weight: 44lbs - 77lbs (20kg - 35kg)

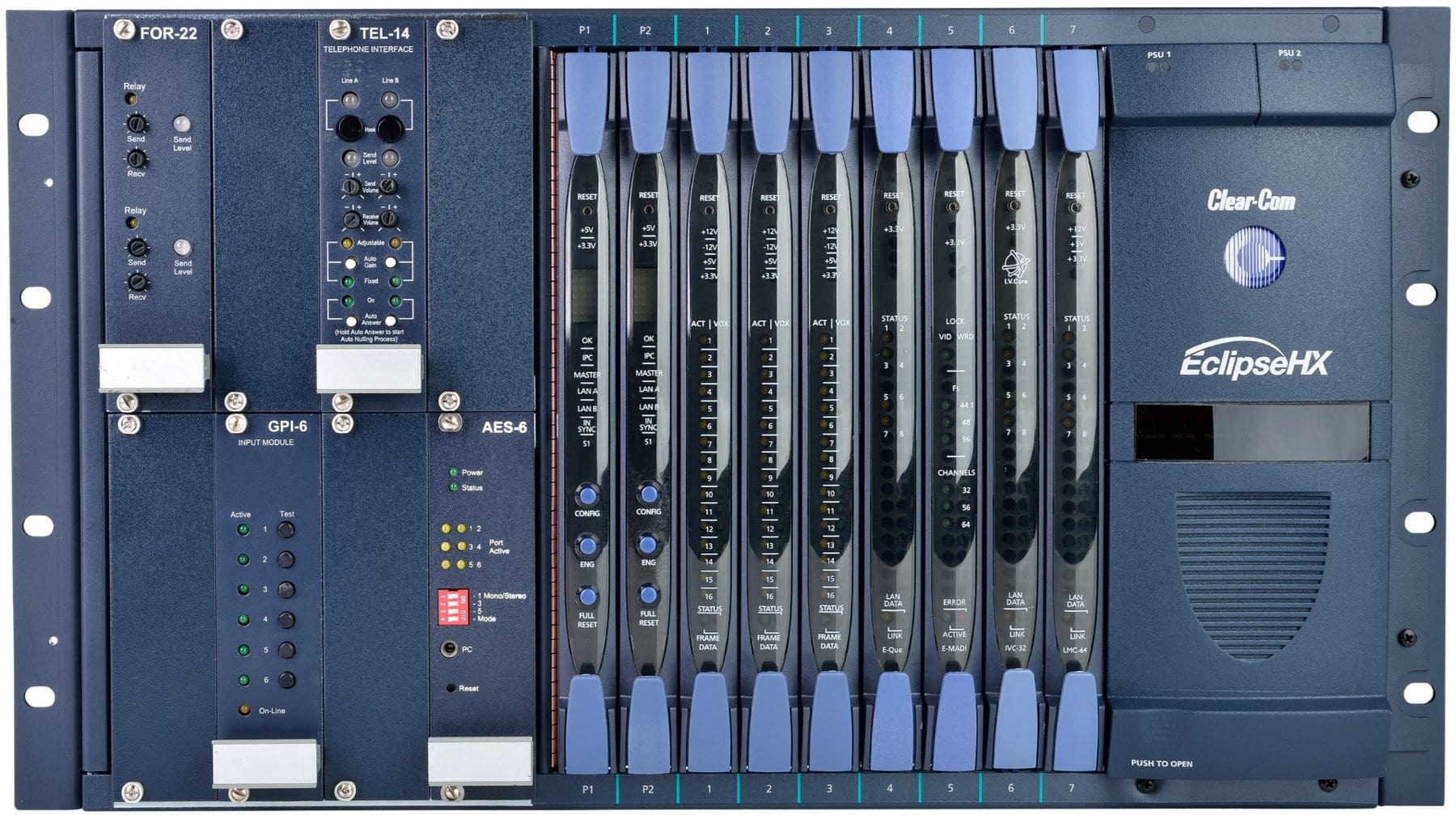

*Note: Product appearance may vary based on expansion cards installed.

This Clear-Com Eclipse HX-MEDIAN-16P intercom frame is perfect for medium to large productions. It has a compact 3RU chassis, expandable to 448 ports. Ideal for those who need reliable communication across multiple locations. Technical specs include dimensions of 19 x 10.6 x 16 in (482 x 264 x 410 mm) and weight between 44lbs - 77lbs (20kg - 35kg).
