Clear-Com Eclipse HX-OMEGA 48P Frame - Your Ultimate Solution for Large-Scale Intercom
Are you in need of a reliable and powerful intercom system for your large-scale operations? Look no further! The Clear-Com Eclipse HX-Omega is here to meet all your communication needs.
This amazing product offers:
- • High Reliability for Mission-Critical Applications
- • Expandability to 490 Ports for Growing Demands
- • Seamless Integration with Other Systems
The Clear-Com Eclipse HX-Omega is a 15-slot, 48-port matrix frame. It comes with dual-redundant CPUs, dual-redundant power supplies, and 3 MVX-A16-HX port cards for seamless communication. EHX configuration software is required for optimal setup and operation.
Features:
- Slots for 2 CPU cards and 15 interface cards
- Up to 490 audio ports
- Dual-redundant CPU-HX processors fitted as standard
- Dual-redundant power supplies fitted as standard
- 8 general-purpose inputs and 8 relays
- Expandable to become a multi-frame system with redundant non-blocking fiber
- Intelligent trunking between systems over Telecom (E1/T1), IP (LAN, WAN, or Internet), DANTE, AoIP (AES67 & SMPTE 2110-30), Analog or MADI
- Seamless integration with FreeSpeak II and FreeSpeak Edge
- Fully-compatible with Clear-Com V-Series Iris and I-Series panels
- Supports EHX software (Eclipse HX Configuration software)
Specifications:
- 0 dBu is referenced to 0.775 volts RMS
- Matrix Capabilities:
- Maximum Expansion Cards: 15
- Maximum CPU Cards: 2 (included)
- Maximum Power Supply Units: 2 (included)
- Maximum Fiber Expansion Cards: 2
- Ports per MVX Port Card: 16
- Included MVX Port Cards: 3
- Maximum MVX Port Cards: 15
- Maximum E-IPA Port Cards: 5
- Maximum E-QUE, IVC-32 Port Cards: 6
- Maximum E-DANTE64, E-MADI64 Port Cards: 7
- Maximum RJ45 Ports per Matrix: 240
- Maximum Timeslots: 512
- Matrix Performance:
- Sample Rate: 48 kHz
- Resolution: 24 bit
- Frequency Response (at 48 kHz sampling): 30 Hz - 22 kHz ± 3 dBu
- Crosstalk (adjacent channel): <-70 dBu
- Nominal Level: 0 dBu
- Matrix Headroom: +18 dBu
- Distortion: <0.05 %, @ 0 dBu, 300 Hz to 10 kHz; <0.1 %, @ 0 dBu, 100 Hz to 20 kHz
- Off Noise: <-70 dBu (20 Hz - 22 kHz)
- On Noise: <-65 dBu (20 Hz - 22 kHz)
- Key Response, Intra-System: <40 ms for audio route
- Linked Systems: <60 ms for audio between matrices
- Environmental:
- Operating Temperature: 32°F - 104°F (0°C - 40°C)
- Storage Temperature: -67°F - 158°F (-55°C - 70°C)
- Humidity: 90% non-condensing
- Dimensions:
- 19 x 10.6 x 16 in (WxHxD)
- (482 x 267 x 410 mm)
- Weight: 44 - 77 lbs (20-35 kg)

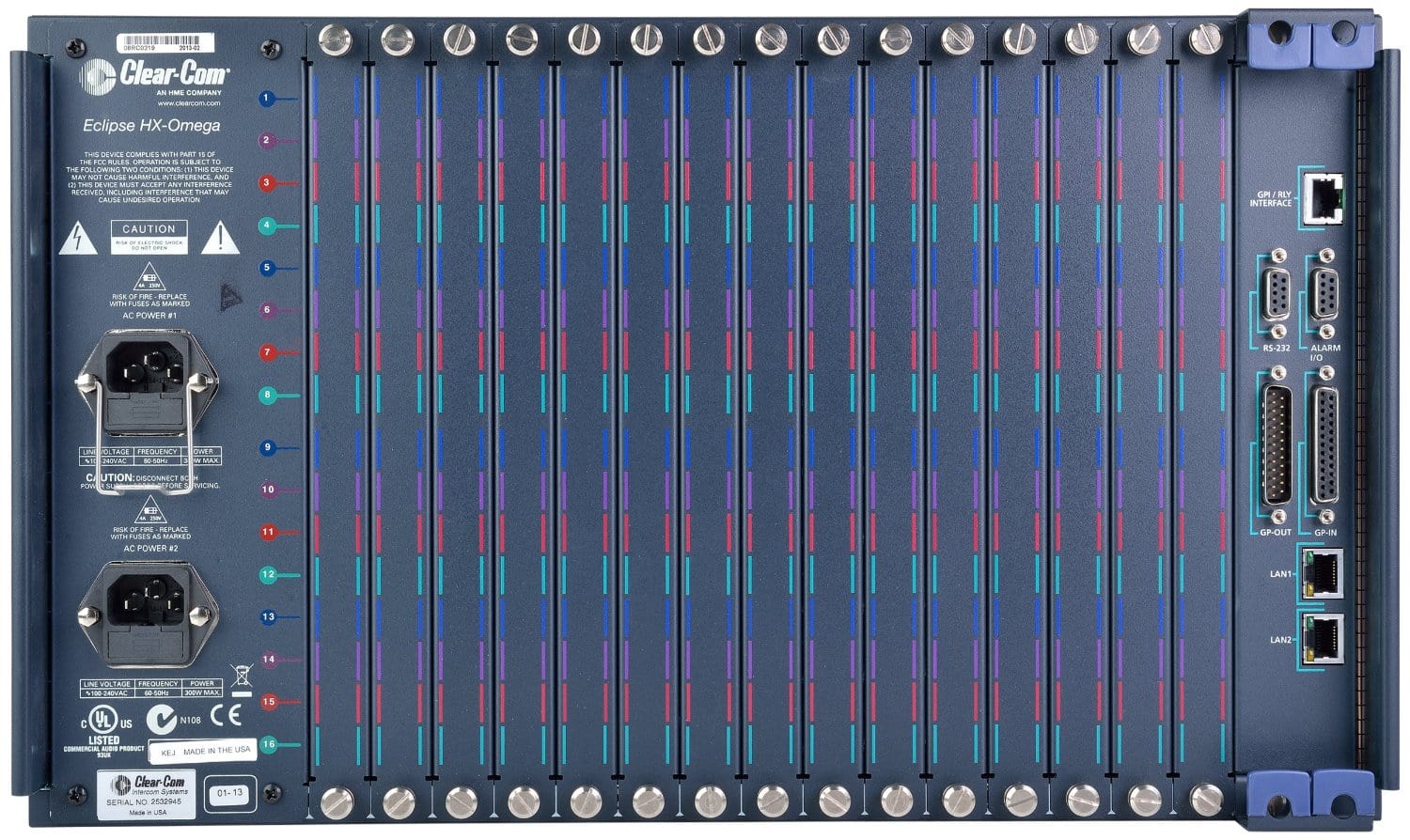

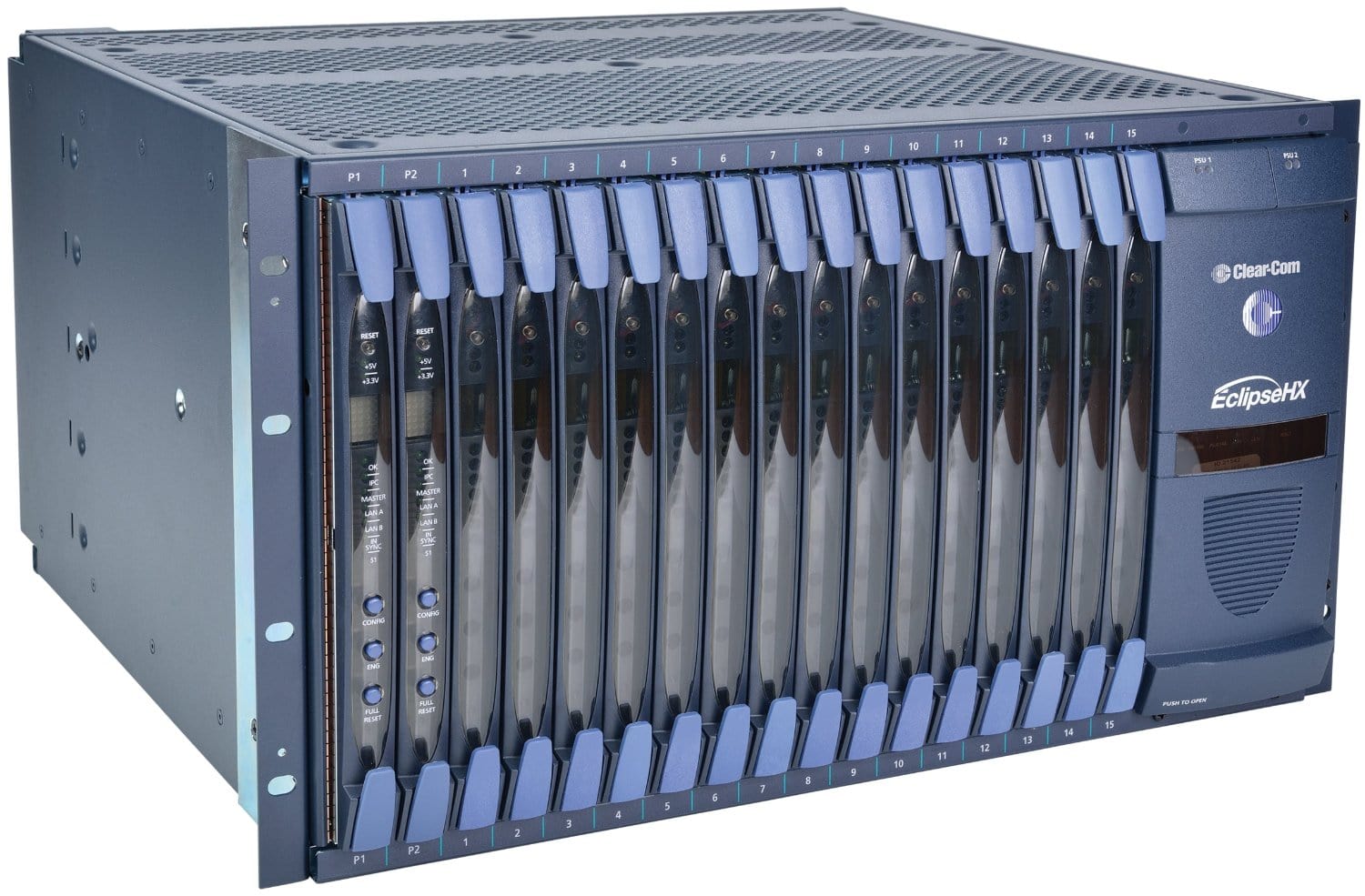

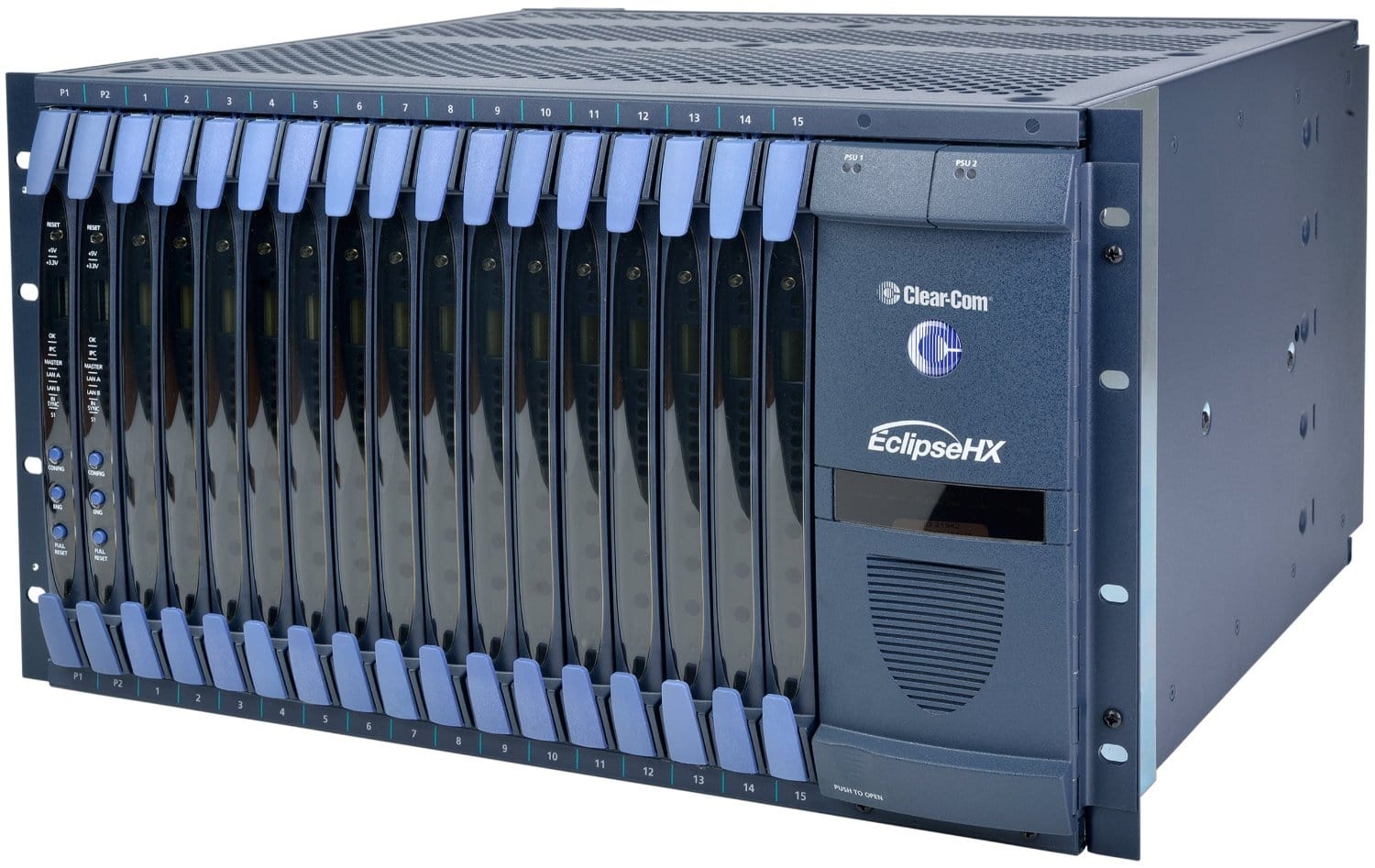

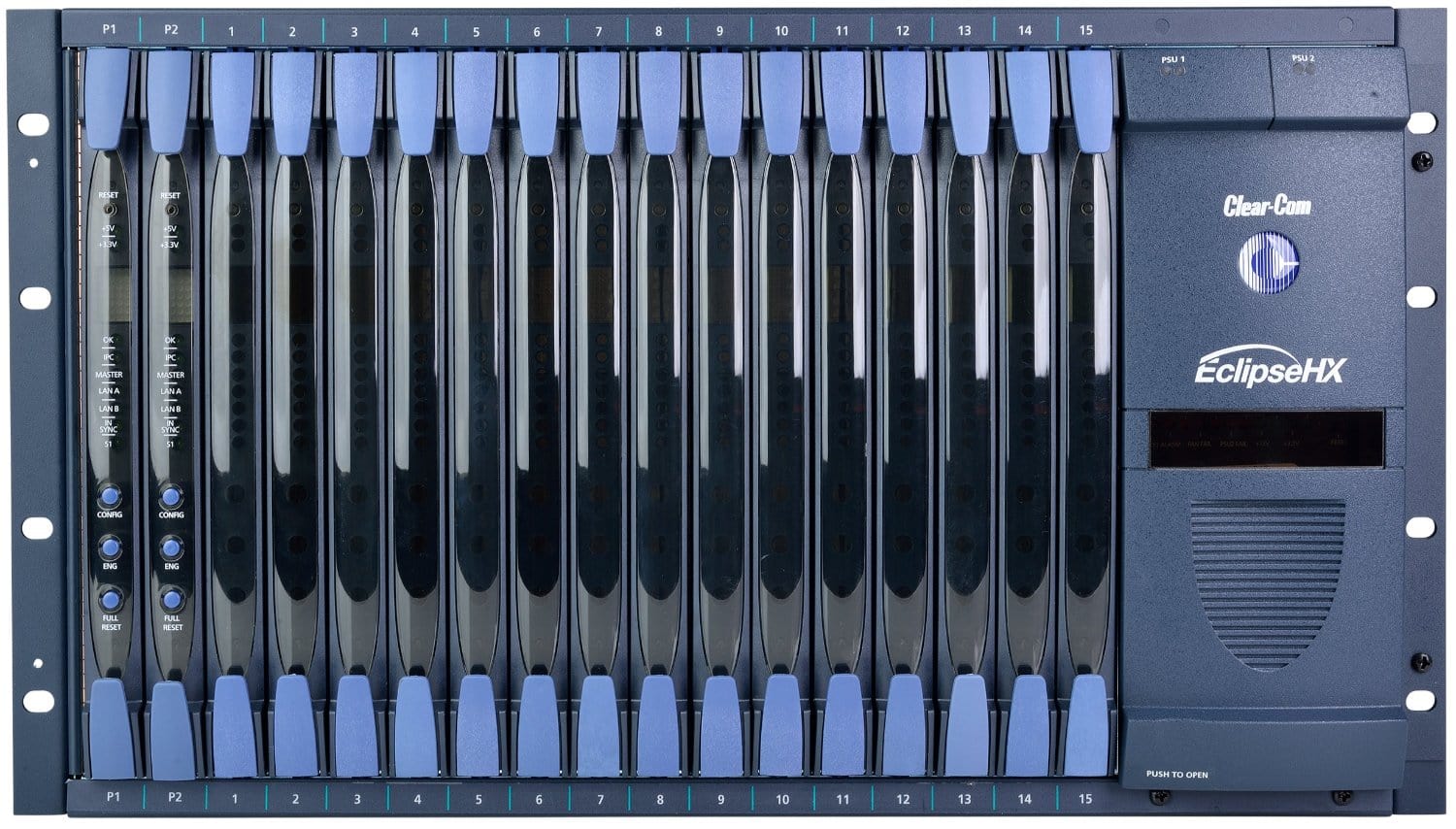

*Note: Product may differ from image based on interface cards installed.
The Clear-Com Eclipse HX-OMEGA 48P Frame is designed for large-scale intercom systems. Ideal for professionals in need of a reliable communication solution. It has a 19 x 10.6 x 16 in (WxHxD) dimension and weighs 44 - 77 lbs (20-35 kg). With features like high reliability, expandability to 490 ports, and seamless integration, it's perfect for mission-critical applications where communication is key.
