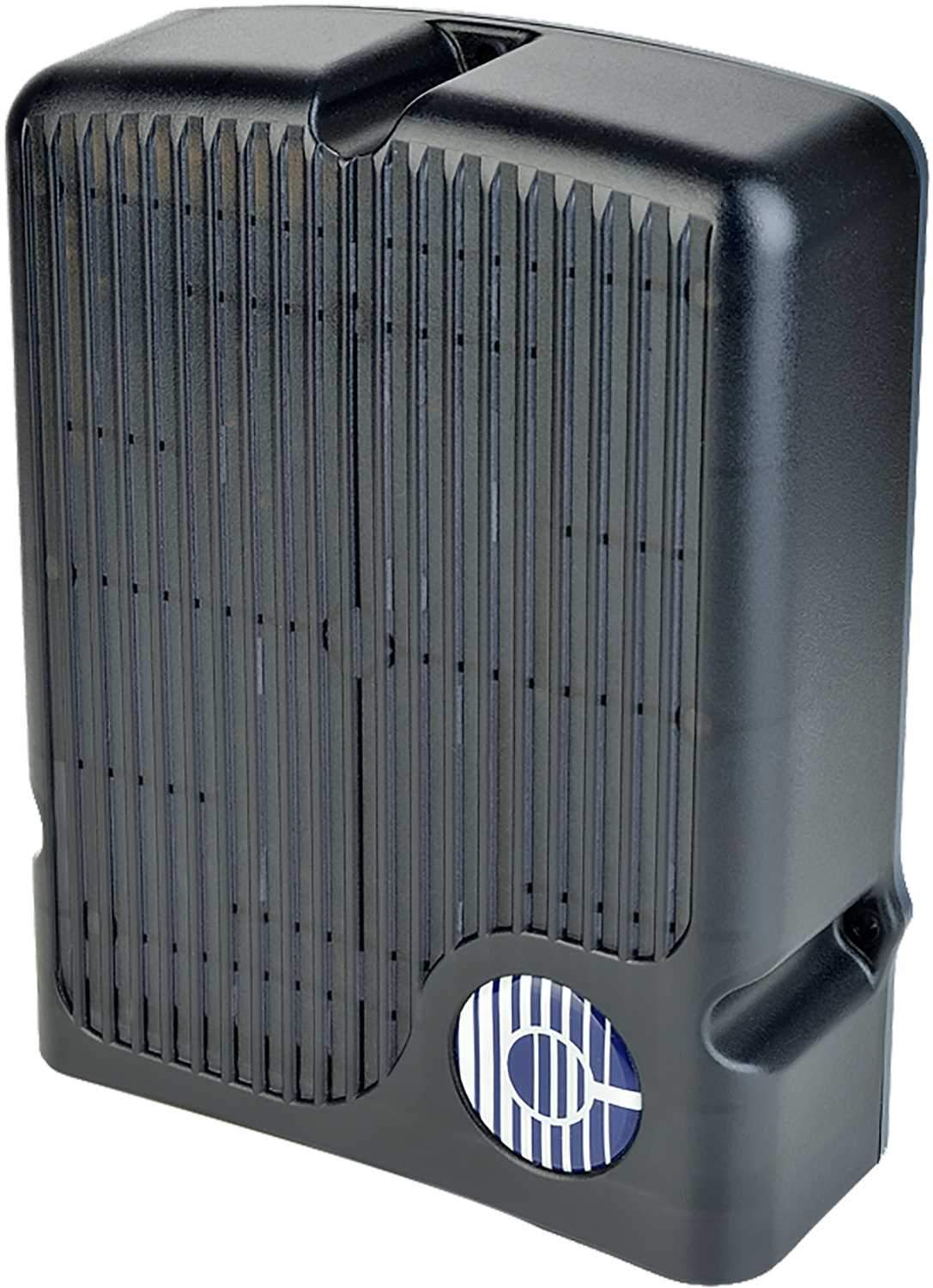

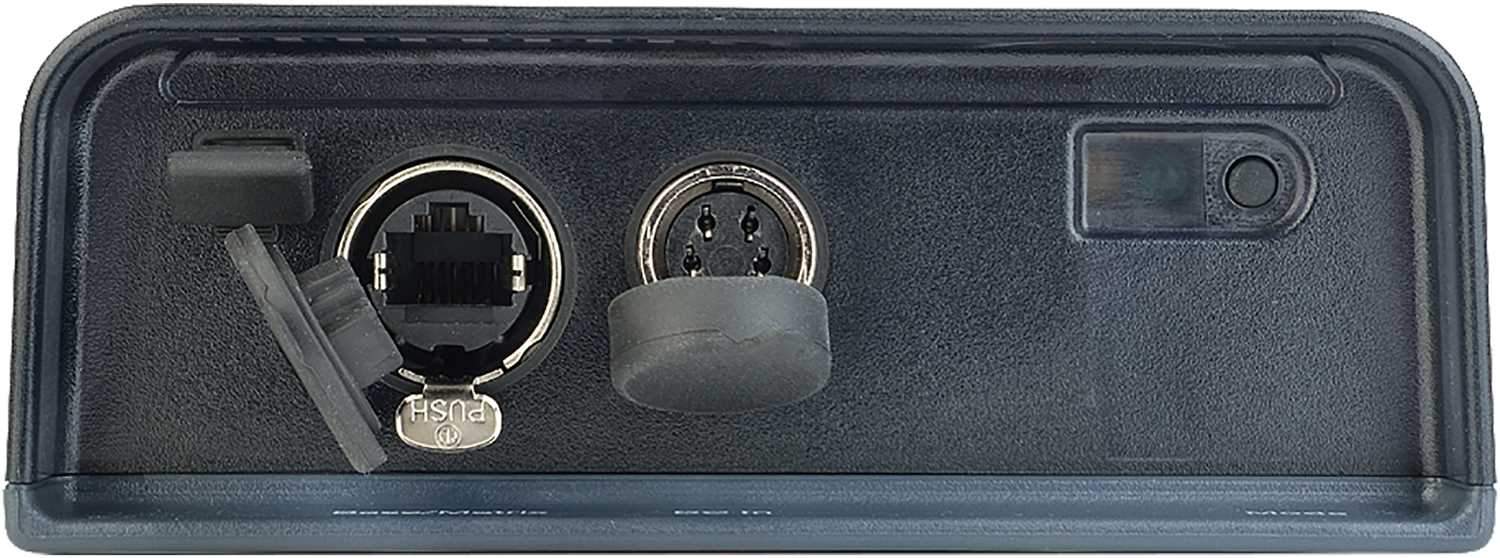

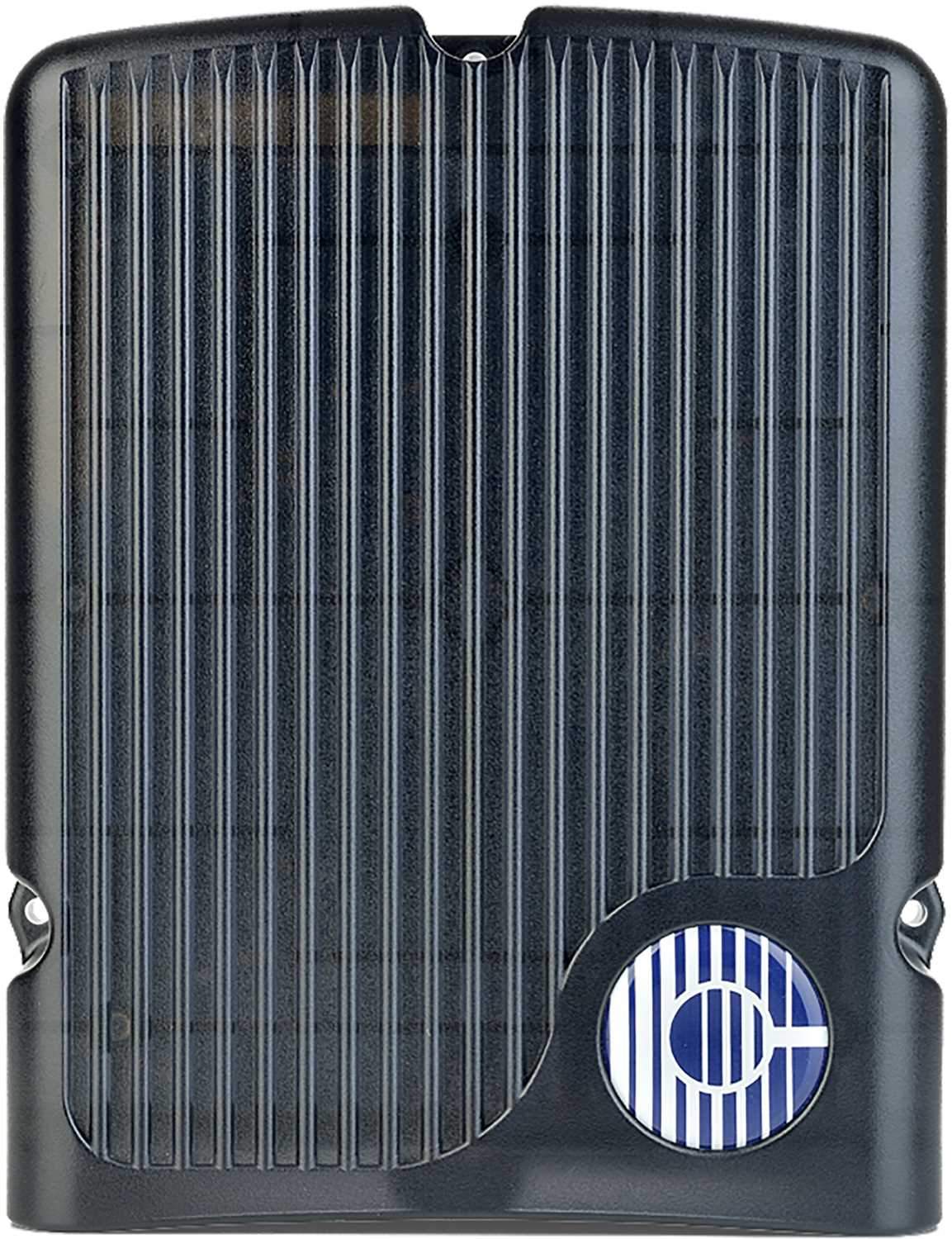

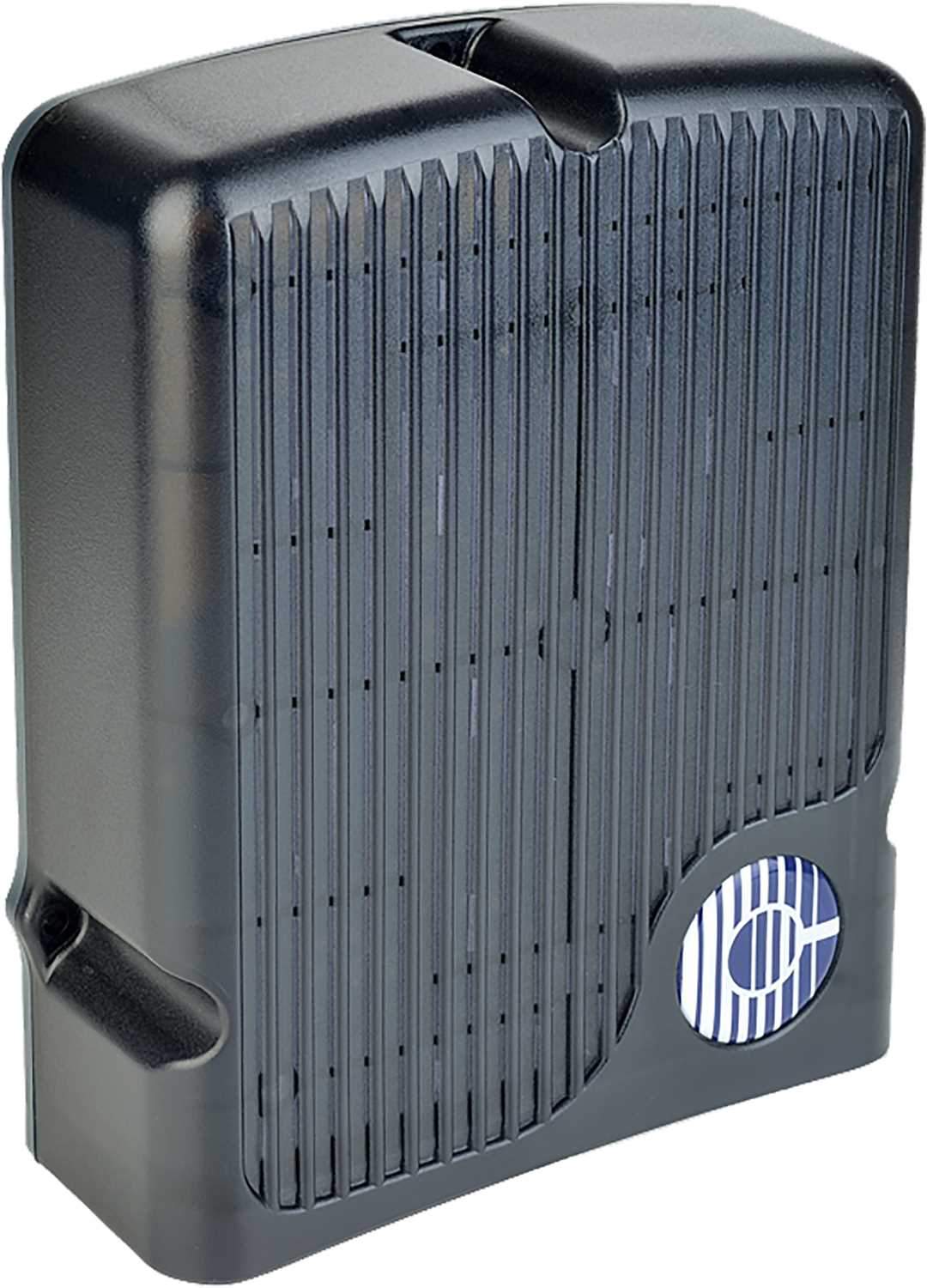

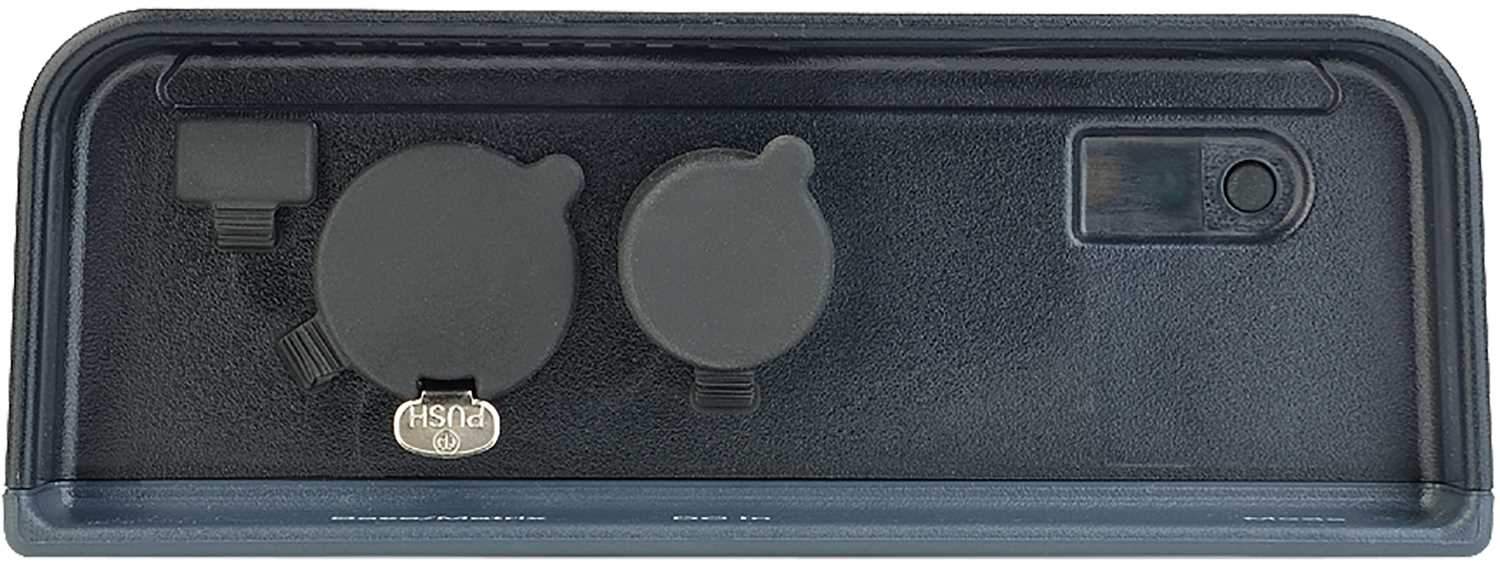

Clear-com FreeSpeak II Active Transceiver
Roam Free Anywhere
With cellular roaming between distributed transceivers, FreeSpeak II wireless beltpack users can effortlessly roam inside or outside a facility, staying constantly connected. When using a FreeSpeak II base station, up to 25 1.9GHz or 2.4GHz beltpacks can be connected to a transceiver. In an integrated Eclipse HX system via the E-QUE-HX card, you can use even more beltpacks depending on the region.
Built to Last
IP-65 rated, these transceivers are perfect for outdoor productions, enduring wet weather and dusty conditions.
Expand Your System
Unique to the FreeSpeak II system, 1.9GHz and 2.4GHz beltpacks and transceiver modules can work together on the same system, increasing user quantity and cell roaming area.
Item part number:
- FSII-TCVR-19-US for use in US and Canada
- FSII-TCVR-19-EU for use in European countries; Australia; New Zealand; Hong Kong; Singapore
- FSII-TCVR-19-J for use in Japan
- FSII-TCVR-19-LA for use in Argentina
- FSII-TCVR-19-B for use in Brazil
Features:
- FreeSpeak II 1.9GHz Transceiver
- Works with FSII base station, E-QUE-HX cards and FSII splitters
- Supports up to 5 FSII 1.9GHz beltpacks per transceiver, or more when mixed with FSII 2.4GHz transceivers
- Up to 10 Transceivers can be connected to one FreeSpeak II base station
- 1.9GHz transceivers can cooperate with 2.4GHz transceivers on the same system
- IP-65 rated for water and dust resistance
- Locally powered or powered via the FreeSpeak II base station or matrix

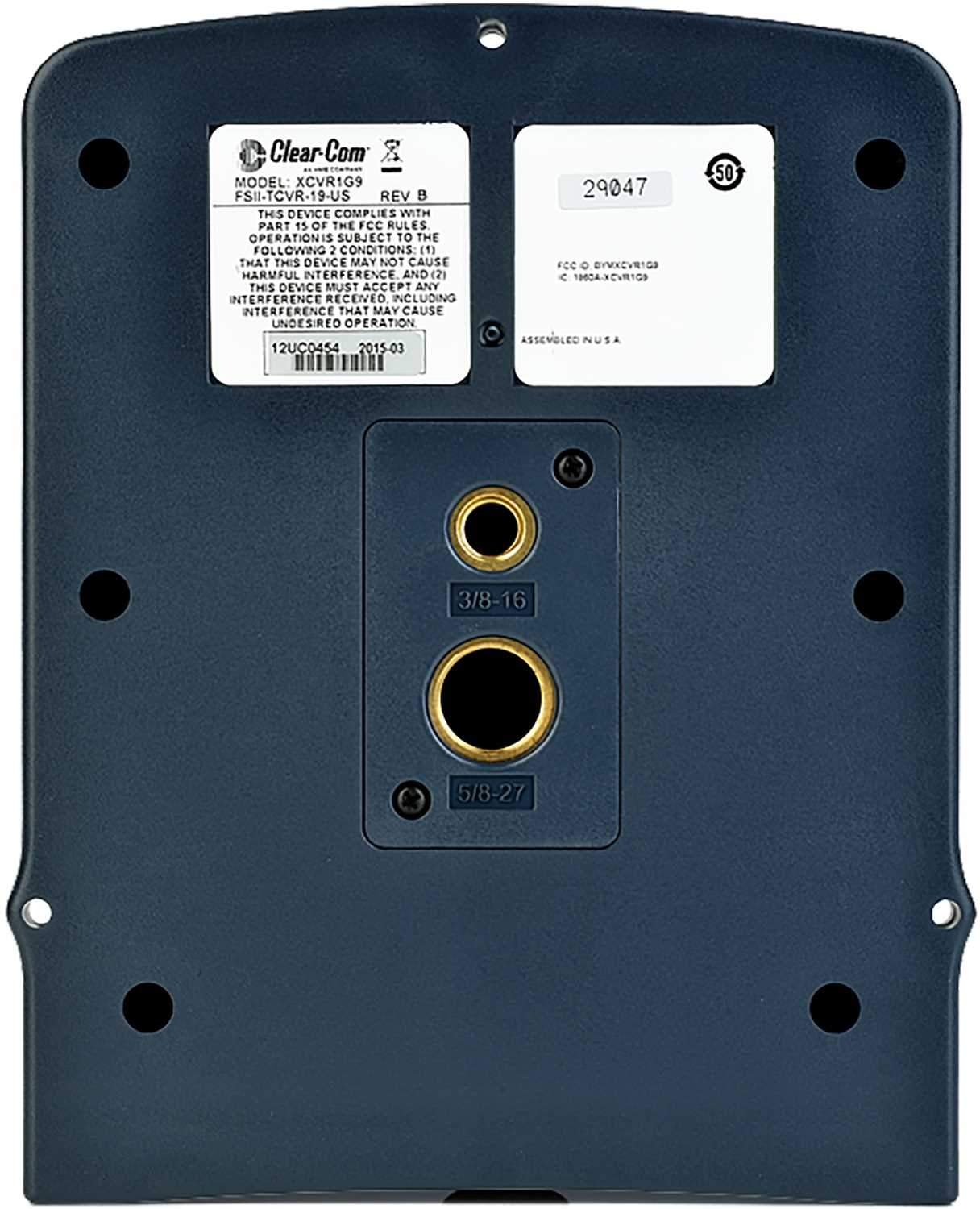

- Microphone stand mounting
Specifications:
- Frequency Spectrum: 1.88-1.93MHz for EU and US Cellular auto roaming technology
- Modulation: GFSK, TDMA frame 10ms Full and Long slot
- Output power (EU): 18-22dBm, (US): 18-20dBm
Environmental
- Operating: 32o-125oF (0o-50oC)
- Storage: 32o-150oF (0o-70oC)
- Humidity: Between 20% and 90%, Non-Condensing
Dimensions
- 6.75 x 5.5 x 2 in (HxWxD)
- (173 x 134 x 52 mm)
- Weight: 7.0 oz (0.19kg)
Use it for seamless communication during outdoor productions or facility-wide operations. Ideal for professionals who need reliable connectivity on the go. Dimensions are 6.75 x 5.5 x 2 in (HxWxD) (173 x 134 x 52 mm), and it weighs 7.0 oz (0.19kg).
