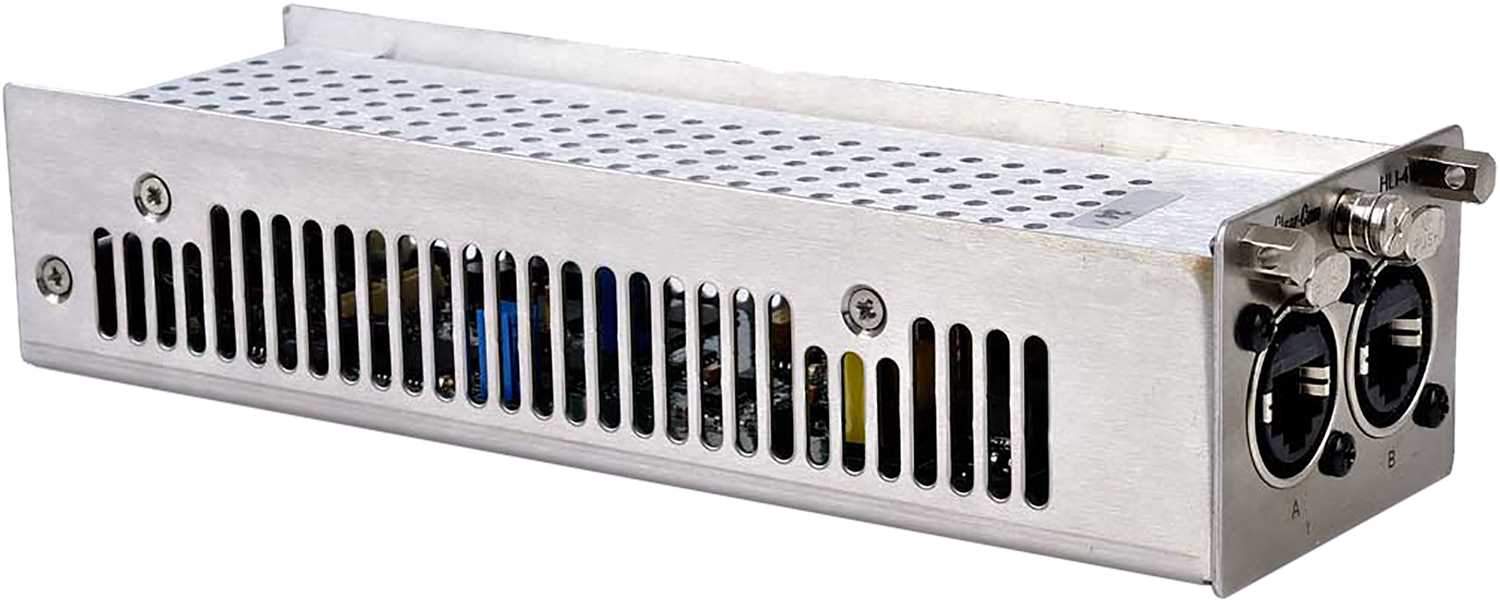

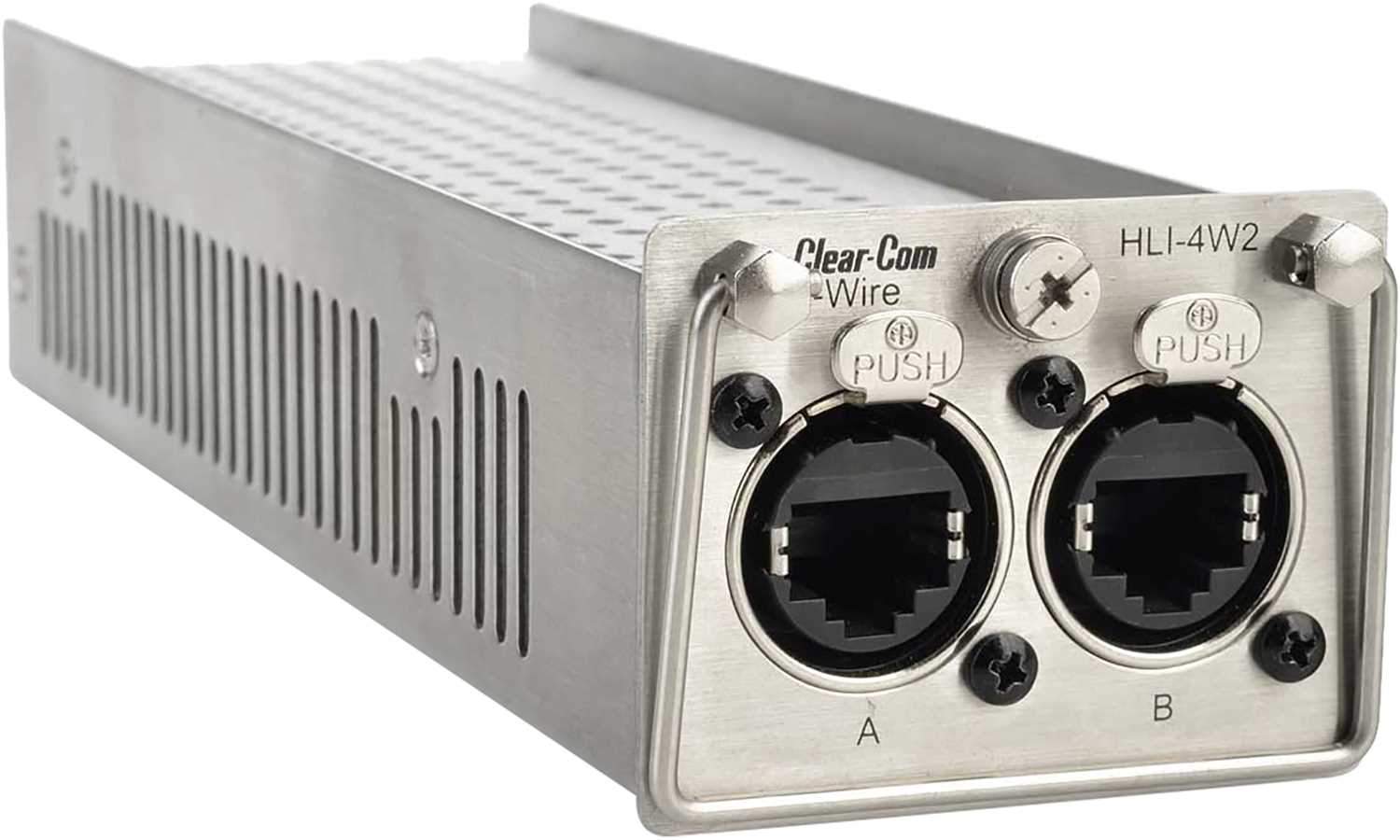

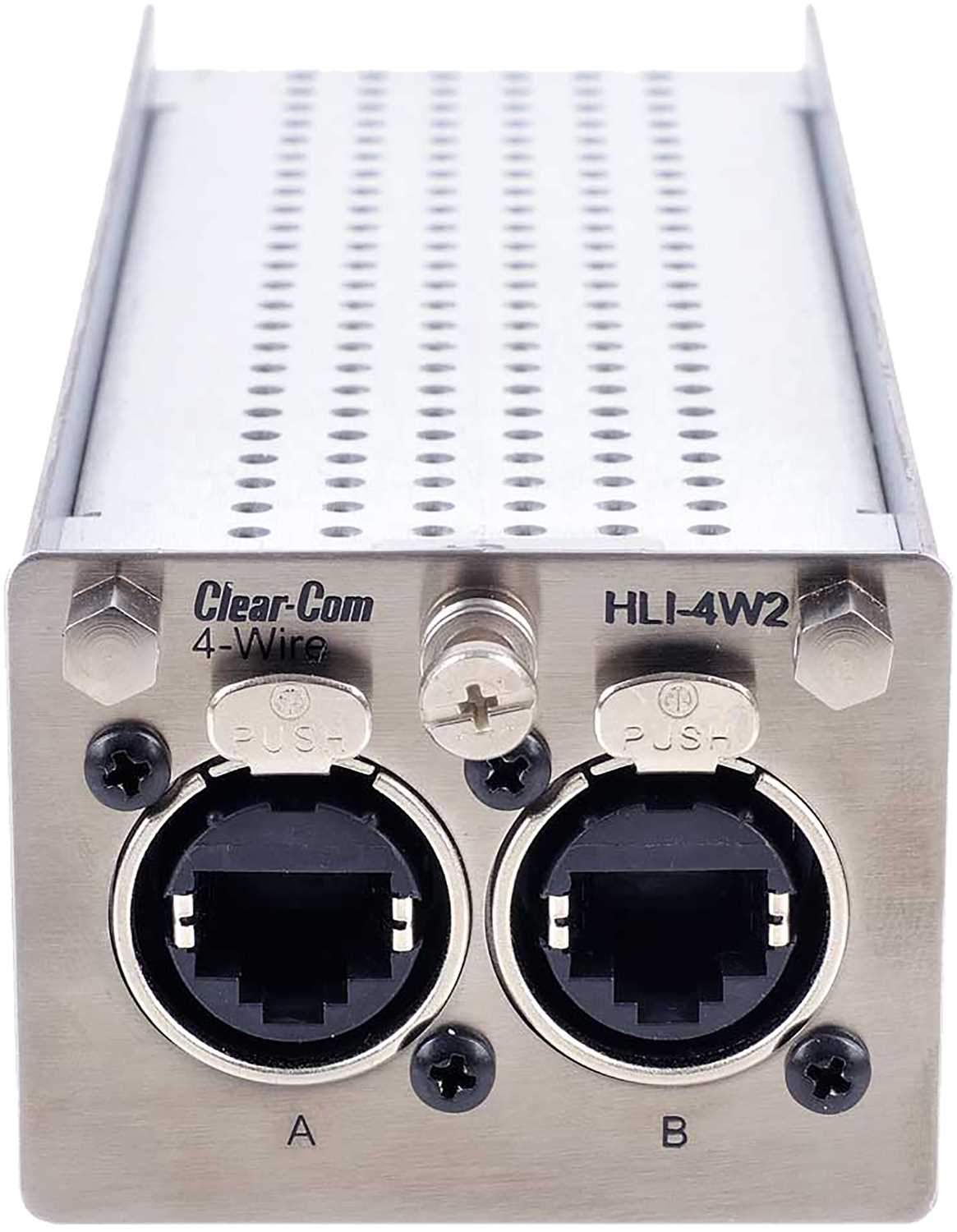

Clear-Com HLI-4W2 Helixnet 4-Wire Module

Clear-Com HLI-4W2 Helixnet 4-Wire Module

Features:

• Versatile Connectivity: Connects effortlessly with Eclipse digital matrix system, cameras, telephone hybrids, announcer boxes, and public address systems.
• Two RJ45 Connectors: Each module comes with two RJ45 connectors for easy setup.
• 4-Wire Interoperability: Enables seamless 4-wire connections between HelixNet systems and other audio sources.

Specifications:

• Connectors
• Intercom Line: (2) RJ-45 (Ethercon)

  4-wire Option Module Inputs

• Maximum Level Before Clipping: 18dBu
• Nominal Input Level: 0dBu (selectable)
• Input Impedance: >= 10K
• The following specified for a route to four-wire input at 0dBu in:
• Frequency Response: 20 Hz †10 kHz ±3dB
• Distortion: <0.2% THD @ 1kHz
• Noise:
• 4-wire Option Module Inputs
• Maximum Level Before Clipping: 18dBu
• Nominal Input Level: 0dBu (selectable)
• Input Impedance: <= 100
• The following specified for a route to four-wire input at 0dBu in:
• Frequency Response: 300 Hz †12 kHz ±3dB
• Distortion: <0.1% THD @ 1kHz
• Noise:

  Dimensions

• 2.24 x 7.36 x 1.54 in (HxWxD)
• (57 x 187 x 39 mm)

Weight

• 13 oz (0.38 kg)

The Clear-Com HLI-4W2 Helixnet 4-Wire Module is perfect for professionals in the audio connectivity field, such as event organizers, stage technicians, and broadcast engineers. It offers seamless connectivity between various audio sources like the Eclipse digital matrix system, cameras, and telephone hybrids. With two RJ45 connectors, it's easy to set up. Measuring 2.24 x 7.36 x 1.54 in (HxWxD) and weighing 13 oz (0.38 kg), it's compact and lightweight. Ideal for creating reliable audio connections in live events, broadcasts, and more.
