Clear-Com MS-704 4-Channel Intercom Main Station

Clear-Com MS-704 Professional 4-Channel Intercom Main Station

Powerful 4-Channel Headset/Speaker Main Station with Built-in 2-amp Power Supply, Rack Mount (2RU)

• Four programmable intercom channels for seamless communication.
• High-capacity power supply supports up to 40 RS-701 beltpacks, 10 speaker stations, or 12 headset stations.
• 3 IFB channels, announce button/relay, channel-linking button, and Remote Mic Kill switch for enhanced functionality.

Other Features Include:

• All Channel linking for unified communication
• Program input with individual channel level controls for customized settings
• Remote Mic Kill switch for privacy protection
• Stage Announce for clear announcements

Specifications:

• Panel Microphone Input: Input Type: Electret, Input Impedance: >=2K, Mic Limiter Threshold: 0dBu ±3dB, Mic Limiter Range: >= 20dB
• Headset Microphone Input: Input Type: Dynamic, Input Impedance: >= 1K, Mic Limiter Threshold: 0dBu ±3dB, Mic Limiter Range: >= 17dB
• Program Line Input: Maximum Level before Clipping: >= 20dBu, Input Impedance: >= 5K
• Headset Output: Load Impedance: >= 8, Output Impedance: <=2 5, Output Limiter Threshold: +5dBu ± 3dB, Maximum Output Level before, Distortion:>= 17dBu
• Speaker Output: Load Impedance: >= 4, Max Output Level before, 1% Distortion: 20dBu ± 2dBu
• Partyline Output: Off Noise: <= -74dBu, Output Impedance:>10K
• Partyline Input: Crosstalk: <= -60dB, Max level before Clipping:>= 12dBu, Sidetone Null Capability: > 25dB
• Stage Announce/Balanced Line Out: Type: Balanced, Output Impedance: >= 200, Load Impedance: >= 600
• IFB/Hot Mic: Type: Unbalanced, Output Impedance: 150, Load Impedance: >= 600
• Frequency Response: Panel Mic - Partyline: 600 - 10KHz ± 3dB, Headset Mic - Partyline: 200 - 12KHz ± 3dB, Headset Mic - Line Out: 200 - 12KHz ± 3dB, Program Input - Partyline: 100 - 17KHz ± 3dB, Program Input - Headset Out: 200 - 10KHz ± 3dB, Program Input - Speaker Out: 300 - 10KHz ± 3dB, Partyline - Headset Out: 200 - 10KHz ± 3dB, Partyline - Speaker Out: 300 - 10KHz ± 3dB
• Max Distortion: Panel Mic - Partyline: <=0.5%, Headset Mic - Partyline: <=0.5%, Headset Mic - Line Out: <=0.5%, Program Input - Partyline: <=0.2%, Program Input - Headset Out: <=0.2%, Program Input - Speaker Out: <=0.5%, Partyline - Headset Out: <=0.2%, Partyline - Speaker Out: <=0.5%
• Noise: Panel Mic - Partyline: <= -65dBu, Headset Mic - Partyline: <= -70dBu, Headset Mic - Line Out: <= -55dBu, Program Input - Partyline: <= -85dBu, Program Input - Headset Out: <= -60dBu, Program Input - Speaker Out: <= -60dBu, Partyline - Headset Out: <= -50dBu, Partyline - Speaker Out: <= -50dBu
• Max Gain: Panel Mic - Partyline: >= 37dB, Headset Mic - Partyline: 41dB ± 2dB, Headset Mic - Hot Mic Out: 55dB ± 3dB, Headset Mic - Announce Out: 55dB ± 3dB, Program Input - Partyline: >= -16dB, Program Input - Headset Out: >= 18dB, Program Input - Speaker Out: >= 24dB, Partyline - Headset Out: >= 34dB, Partyline - Speaker Out: >= 40dB
• Min Gain: Panel Mic - Partyline: <=2 5dB
• Mains Power : Input Voltage Range: 100 - 240 VAC, Input Frequency Range: 50 - 60 Hz, Input Power: <=6 0 VAC, Output Voltage: 30 VDC ± 0.5V, Output Current per Channel (Continuous): 1.2 A, Output Current per Channel (Peak): 2 A (Do not exceed the 1.2A rating for more than 2 seconds per 1 minute period), Short Circuit Recovery Time (1st short): <=0.5 sec, Short Circuit Recovery Time>= 20 shorts in 20sec): <=2 0 sec
• Station Capacity: Up to 40 RS-601 beltpacks or 10 speaker stations or 12 headset stations distributed over all channels

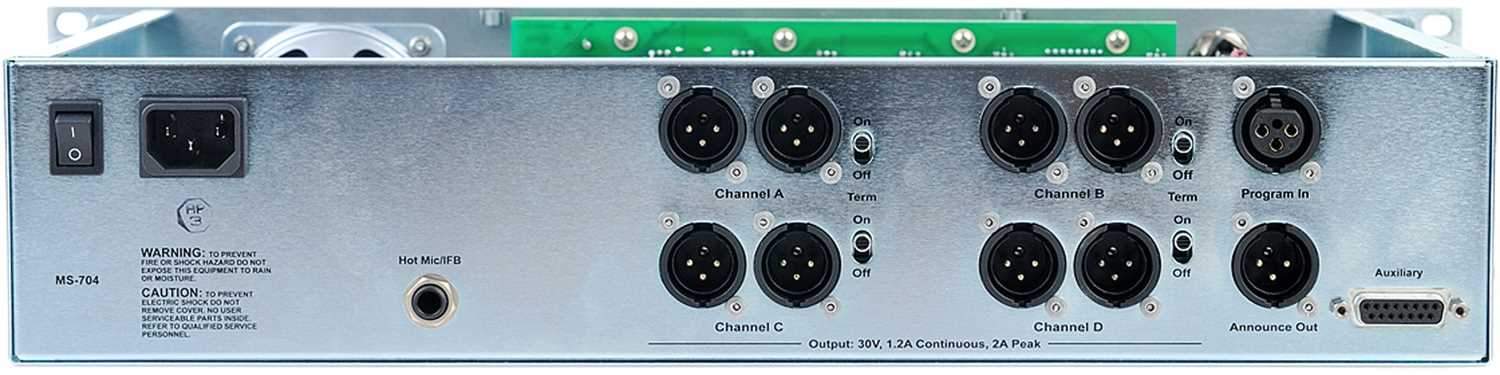

• Rear Panel Connectors: Intercom: XLR-3M (2 per channel), Announce Out: XLR-3M (audio), Program: (1) XLR-3F, Hot Mic / IFB Interface: (1) 1/4 in. (0.64 cm) phone jack, Accessory: (1) DB-15F, AC Power: IEC 320 connector
• Rear Panel Controls: (1) Power switch

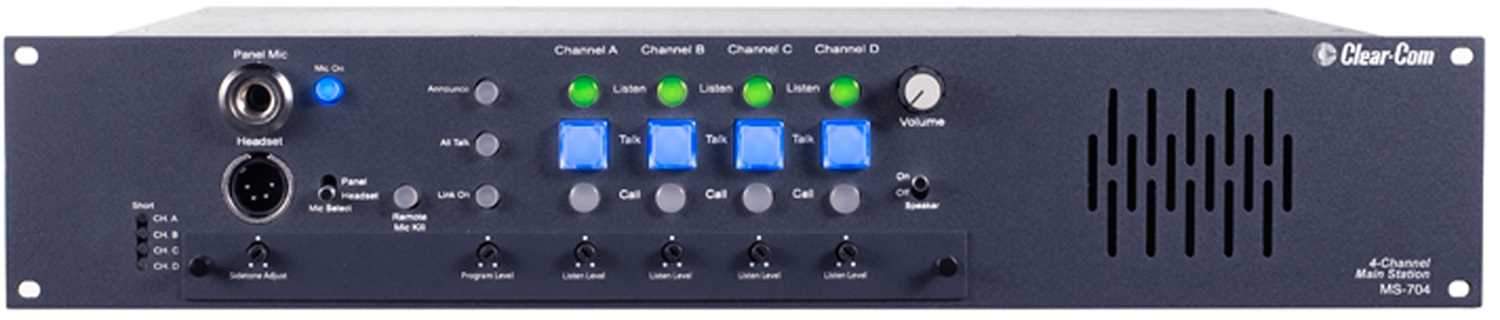

• Front Panel Connectors: Panel Mic: (1) 1/4 in. (0.64 cm) panel mounting jack, Headset: (1) XLR-4M

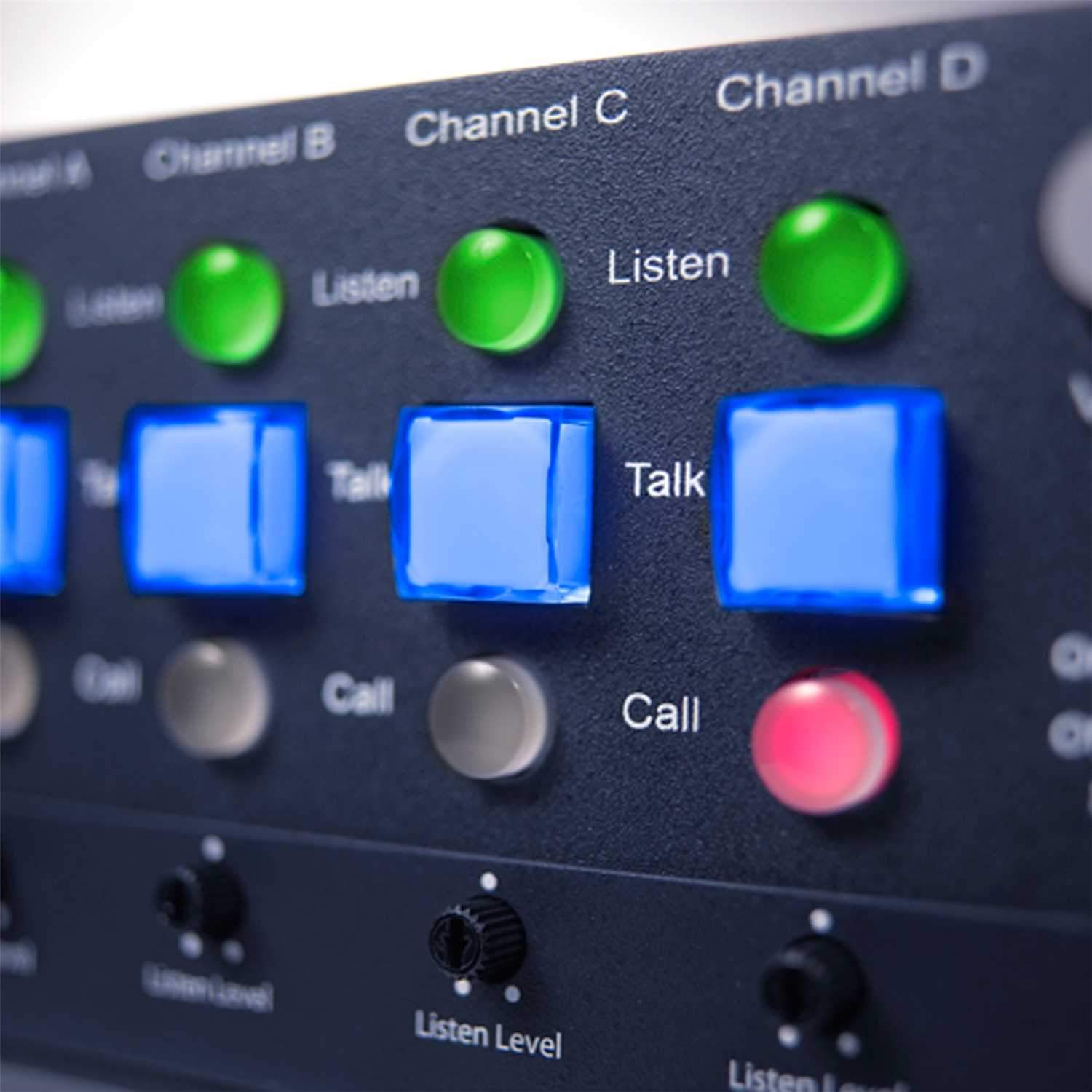

• Front Panel Controls & Indicators: (1) Panel / headset mic switch, (1) Mic on button, (1) All talk button, (1) Announce button, (1) Partyline link button, (4) Program ON-OFF-INTERRUPT DIP switches, (1) Program level control, (4) Listen adjust controls, (4) Channel null adjust controls, (4) Channel program feed adjust controls, (4) Talk buttons, (4) Call buttons, (4) Listen buttons, (1) RMK button, (1) Speaker ON-OFF switch, (1) Speaker volume control, (4) Short LEDs, (1) Panel mic gain control, (1) Sidetone adjust control, (1) Headset audio limiter DIP switch, (3) Interrupt enable DIP switches, (4) Auto-call DIP switches, (4) Auto-talk/listen DIP switches, (4) Talk latch disable DIP switches, (4) Line length DIP switches
• Environmental: 32 - 122 F (0 - 50 C)
• Dimensions: 19 in. W x 3.5 in. H x 10.5 in. D(483 mm x 88 mm x 267 mm)
• Weight: 10.86lbs. (4.94 kg)

This Clear-Com MS-704 is a professional 4-channel intercom main station designed for seamless communication in various scenarios. Ideal for event organizers, production teams, and communication professionals. It features a built-in 2-amp power supply, rack mountable (2RU), with dimensions of 19 in. W x 3.5 in. H x 10.5 in. D (483 mm x 88 mm x 267 mm) and weighs 10.86 lbs. (4.94 kg). The high-capacity power supply supports up to 40 RS-701 beltpacks, 10 speaker stations, or 12 headset stations, distributed over all channels. With four programmable intercom channels, 3 IFB channels, and additional features like all channel linking, individual channel level controls, and a Remote Mic Kill switch, it offers enhanced functionality for clear and efficient communication.
