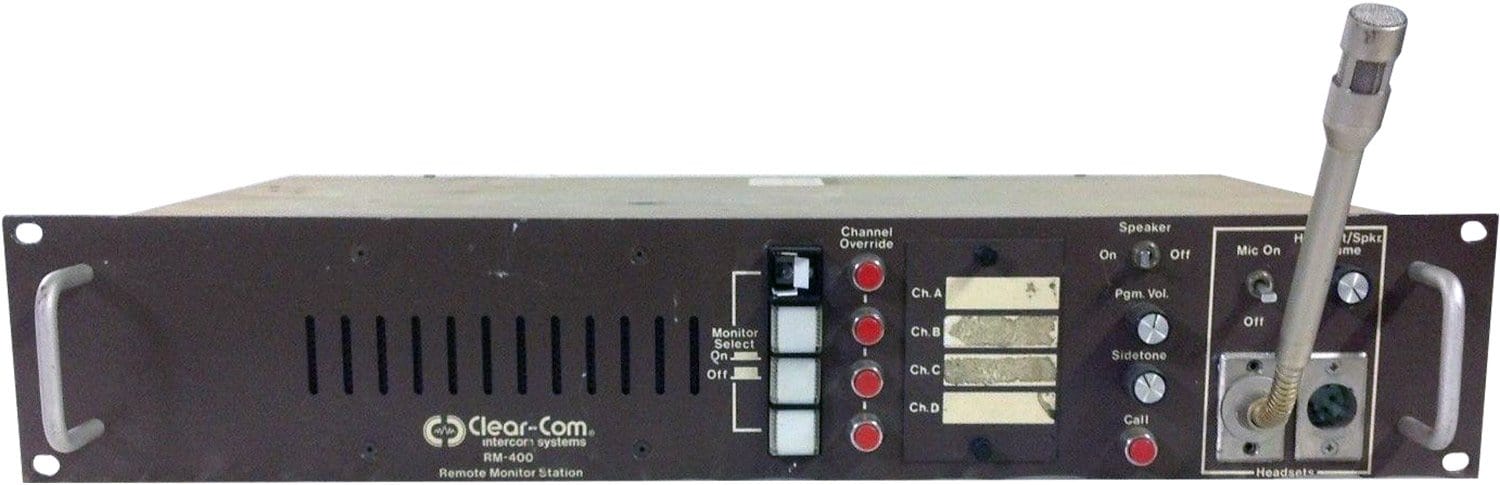

Clear-Com RM400 4-Channel Communication Remote Station
The RM-400 is a game-changer in the world of communication remote stations! With its versatile channel-monitoring system, it delivers outstanding speech intelligibility and consistent high performance. Whether you're in a bustling event, a live production, or a professional setting, this station ensures seamless communication.
Why Choose the RM-400?
- • Unmatched Versatility: Selectable 4-channel monitoring system for maximum flexibility.
- • Customizable Functionality: Programmable talk/listen functions for each channel to suit your needs.
- • Superior Sound Quality: Wide frequency response speaker with on/off switch for crisp, clear sound even in noisy environments.
Technical Marvels
- • It contains a mic preamp and a four-watt power amp, driving two dynamic headsets, the built-in speaker, or an external speaker with ease.
- • Drives a standard Clear-Com headset to levels greater than 110 dB SPL, ensuring your message is heard loud and clear.
- • Features balanced program input, assignable to any or all channels, separate Intercom, program, and sidetone level controls, and an external speaker Jack.
- • Comes with a gooseneck mic, length-adjustable from 1' to 12', for convenient use.
Specifications
- Amplifier Design: IC amplifier with solid state switching and signaling circuits, current limited and short circuit protected.
- Microphone Pre-amp: High-quality input for 200 nominal dynamic types, maximum input before clipping at -20dBV, frequency response from 250Hz - 12kHz for enhanced voice intelligibility.
- Headphone Amplifier: Output impedance range of 8 - 2,000, 4 watts output into 8, distortion <0.5% THD at 1kHz, amplifier gain of 35dB, frequency response of 150 - 18kHz (±)2dB.
- Program Amplifier: Frequency response from 150 - 18,000Hz, 100k balanced input, input level of -15dBV nominal; +10dBV max.
- Channel Separation: >dBV nominal, Signal to Noise: 55dB, Side Tone: Adjustable from 25dB null to full on.
- Operating Conditions: Programmable channel monitoring, channel override, all page, call light monitoring, system termination, and system level controls.
- Signaling: Call light sensitivity of 4vdc, signaling voltage of 11vdc.
- Connectors: Headset input connector of 8 (2 for each channel for loop-through), Auxiliary Input: Switchcraft D3F, External Speaker Jack: Disconnects internal speaker.
- Dimensions: 19'L x 3.5'H x 9'D (483mmL x 89mmH x 229mmD), Environmental Temperature Range: 0 - 50°C (32 - 122°F)
The Clear-Com RM400 4-Channel Communication Remote Station is perfect for professionals in live events, production studios, and other settings where clear communication is crucial. It features a 4-channel monitoring system, allowing you to stay connected across different channels. With a wide frequency response speaker and adjustable controls, it provides excellent sound quality. Measuring 19'L x 3.5'H x 9'D (483mmL x 89mmH x 229mmD), it's compact yet powerful, and can operate in temperatures from 0 - 50°C (32 - 122°F). Whether you need to communicate with headsets or an external speaker, the RM400 has you covered.
