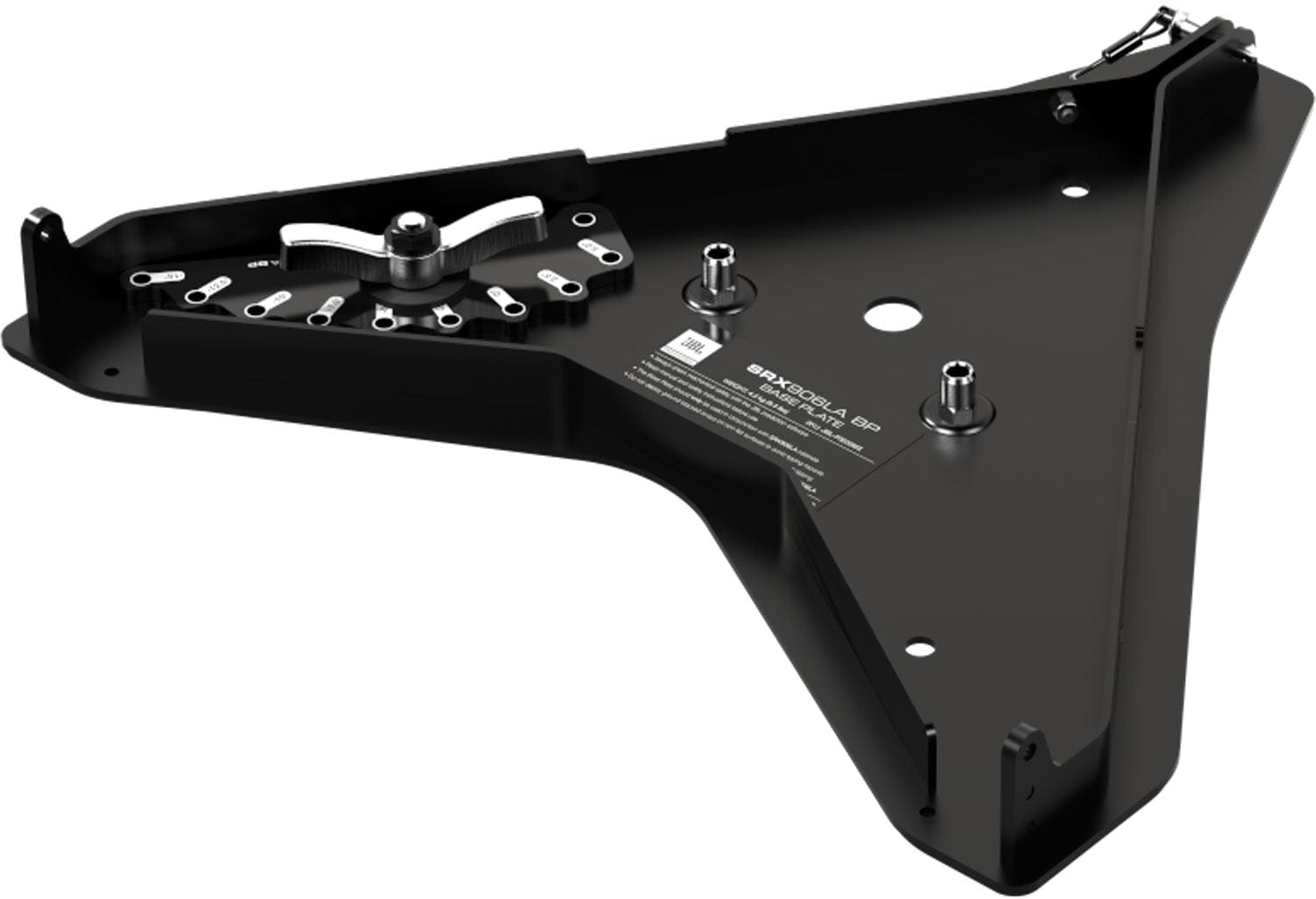

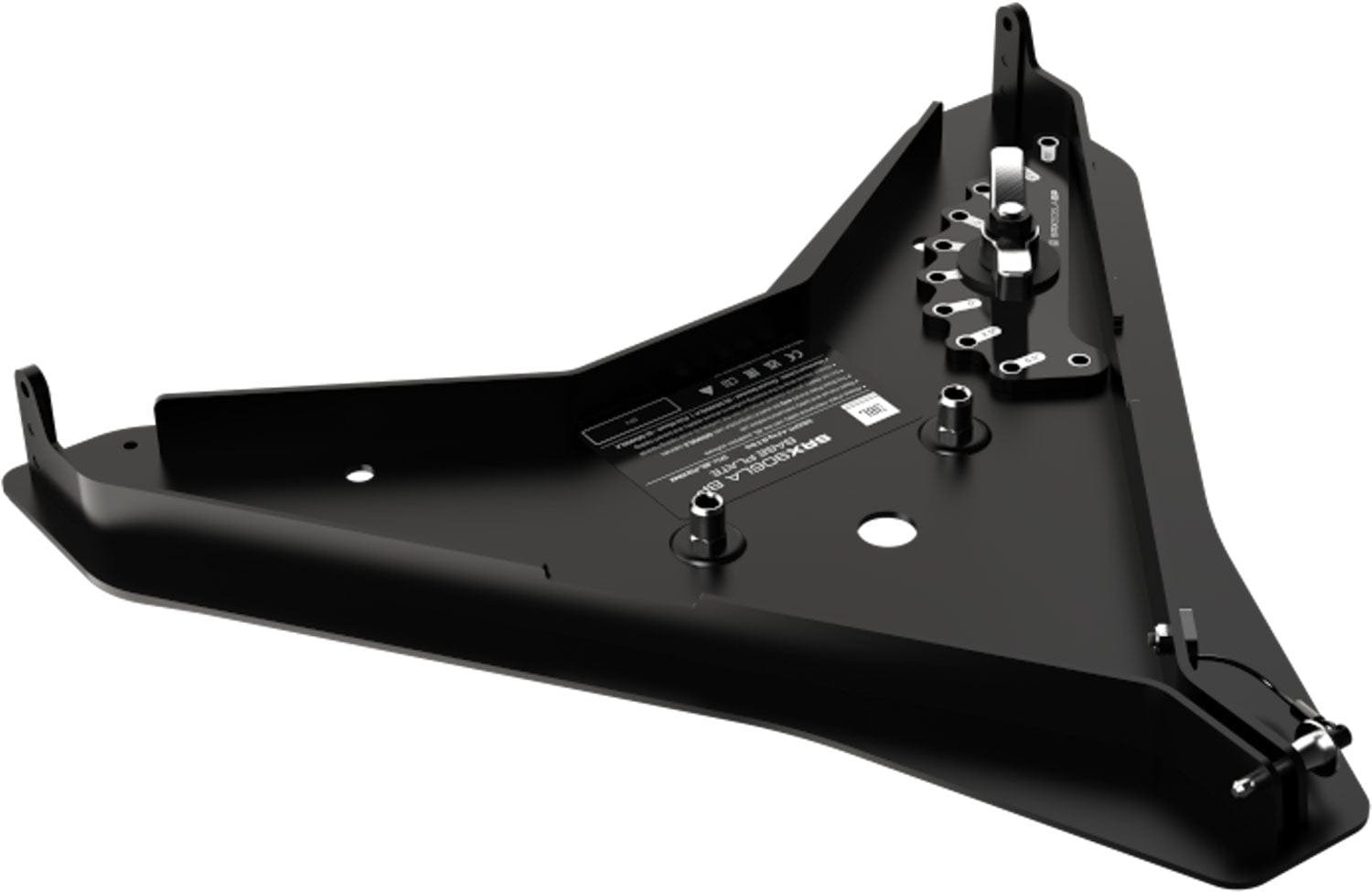

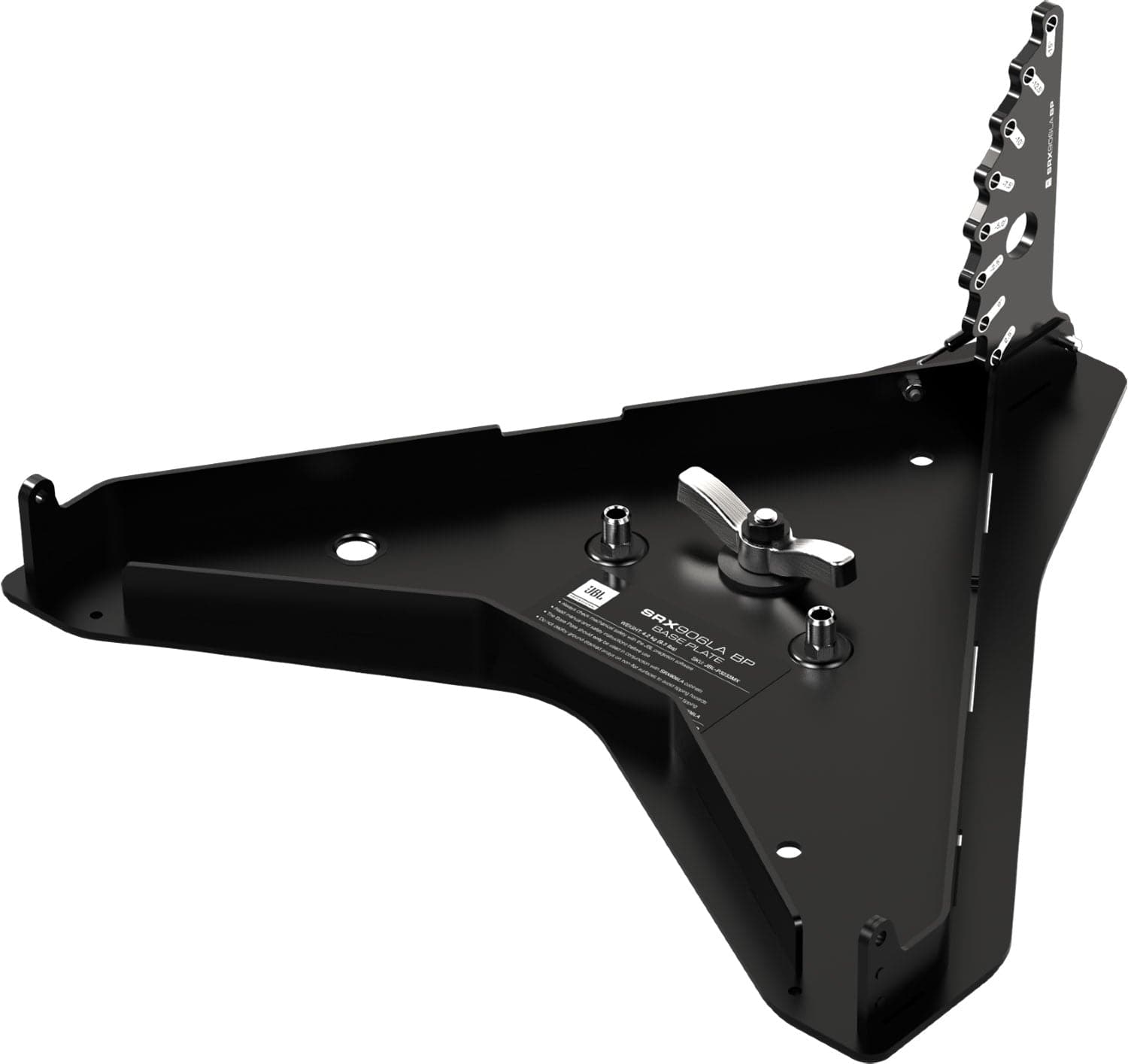

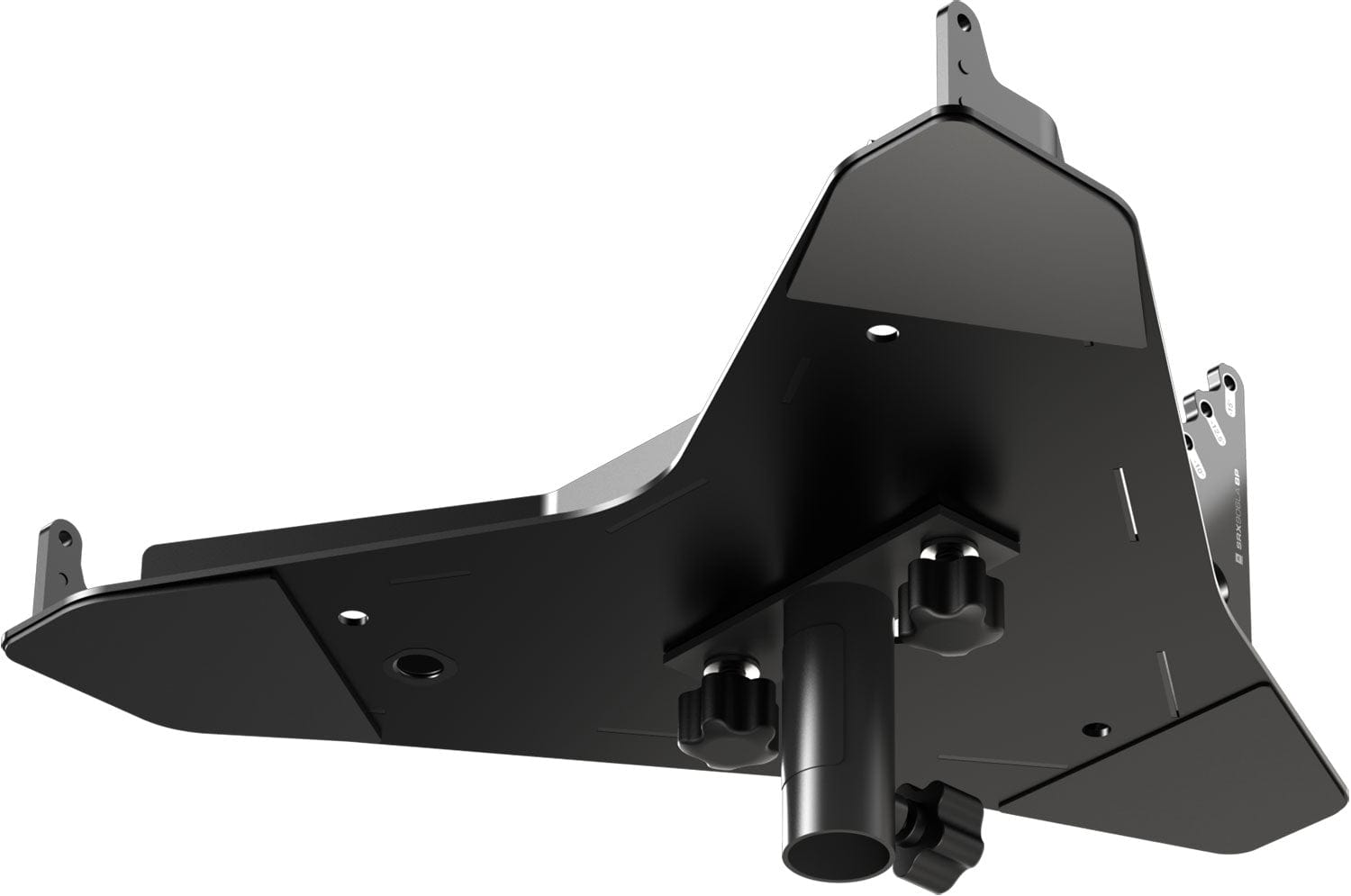

JBL SRX906LA - BP: The Ultimate Base Plate for SRX906LA Arrays
The SRX906LA Base Plate is a must - have for anyone looking to enhance their audio setup. Here's why:
- • Universal Compatibility: Connects easily to compatible subwoofers like SRX918S or SRX928S with an M20 screw, enabling ground stacking on subwoofers or support structures such as stages, scaffolding, or carts.
- • Adjustable Angles: The rear angle selection bar allows for angles ranging from - 15 to +5 degrees, giving you the flexibility to customize your sound projection.
- • Multiple Attachment Options: Three included M10 through - holes let you permanently attach the SRX906LA array to other support structures. Can also be used with the Pole Mount (JBL - P3312MX) adapter for pole mounting up to two SRX906LA cabinets.
You can get configurations and load conditions using JBL Line Array Calculator 3 prediction software. This base plate is a game - changer for audio professionals and enthusiasts alike.
Features:
- Enables ground stacking SRX906LA arrays
- Allows attaching arrays to subwoofers
- Universal M20 threaded pole mount
- Angle range: - 15 degrees to +5 degrees
- Compatible with VTX PM pole mount adapter
- Support for up to (6) SRX906LA
Specifications:
- Construction: High - grade steel with anti - corrosion coating
- Finish: Black powder coat
- Mechanical Limits:
- Safe Limit: (2) SRX906LA
- Maximum Limit: (6) SRX906LA
- Dimensions (H x W x D):
- 55 mm x 490 mm x 445 mm
- (2.2 in x 19.3 in x 17.5 in)
- Net Weight: 4.2 kg (9.3 lbs)
- Shipping Weight: 6.3 kg (14 lbs)
The JBL SRX906LA - BP Base Plate is designed for audio professionals and enthusiasts. It's a universal adapter frame that allows you to ground stack SRX906LA arrays on top of compatible subwoofers (like SRX918S or SRX928S) or support structures such as stages, scaffolding, or carts. With an M20 screw, it connects easily. The rear angle selection bar gives an angle range of - 15 to +5 degrees. It has three M10 through - holes for additional attachment options. The base plate is made of high - grade steel with anti - corrosion coating and has a black powder coat finish. Dimensions are 55 mm x 490 mm x 445 mm (2.2 in x 19.3 in x 17.5 in), net weight is 4.2 kg (9.3 lbs), and shipping weight is 6.3 kg (14 lbs).
