JBL VTX-A12-VT-GND Ground Stack Accessory for A12 and B28

JBL VTX-A12-VT-GND Ground Stack Accessory: Enhance Your Sound Setup with Ease

Elevate your audio experience with the JBL VTX-A12-VT-GND Ground Stack Accessory. This innovative accessory works seamlessly with compatible Vertical Transporter carts to boost stability in ground stack configurations. • Effortless Attachment: Attach the GND to a VT cart without removing speakers, saving you time and effort. • Precise Angle Adjustment: Use the included quick-release pins to connect the outriggers, and the innovative spring-based angle-set hinges to adjust the overall aiming with ease. • Optimal Weight Support: Depending on the array geometry, support the weight of up to six A12 cabinets, ensuring a stable and powerful sound setup. Ground stack parameters and mechanical safety of arrays are calculated using JBL's LAC-3 software. This accessory is also compatible with the VTX B28 VT.

Features:

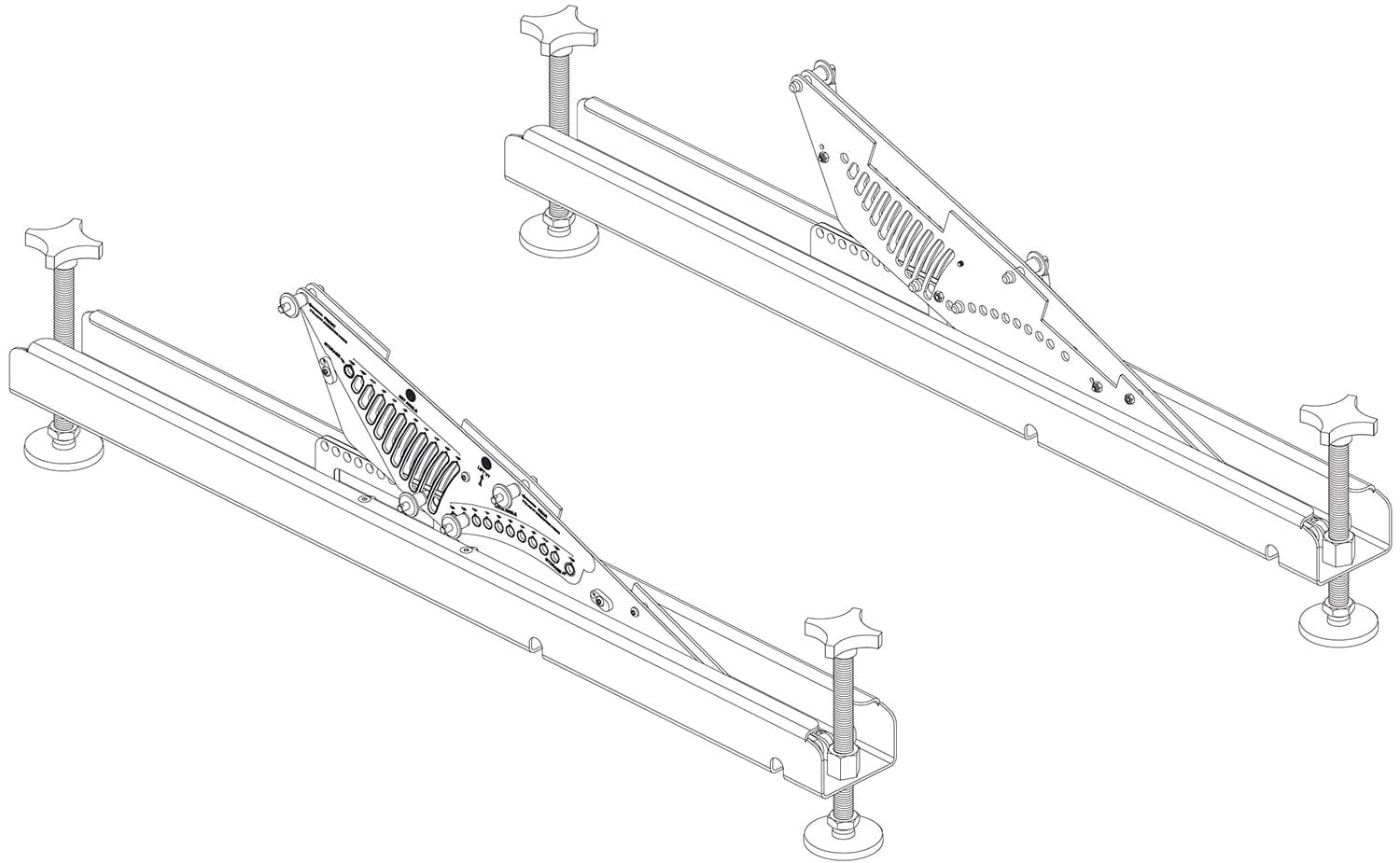

• Outrigger system for VTX A12 VT, VTX B28 VT and other compatible Vertical Transporters
• Four screw jacks included for height adjustment
• Innovative spring-based angle-set mechanism
• Compact and lightweight design
• Range: -15 to +5 degree
• Vertical Transporter not included

Specifications:

• Construction: High-grade steel with anti-corrosion coating
• Finish: Black powder coat
• Mechanical Limits:
  • Maximum: (6) VTX A12 or (4) VTX B28
  • Safe Limit: (4) VTX A12 or (3) VTX B28
• Dimensions (H x W x D): 239 mm x 1234 mm x 1105 mm (9.4 in x 48.6 in x 43.5 in)
• Net Weight: 25.6 kg (56.4 lbs)

This ground stack accessory is designed for audio professionals and enthusiasts who want to enhance their sound setup. It works with compatible Vertical Transporter carts to improve stability in ground stack configurations. The accessory features an outrigger system, four screw jacks for height adjustment, and an innovative spring-based angle-set mechanism. It has a compact and lightweight design, with dimensions of 239 mm x 1234 mm x 1105 mm (9.4 in x 48.6 in x 43.5 in) and a net weight of 25.6 kg (56.4 lbs). The GND is compatible with the VTX A12 VT and VTX B28 VT, and can support the weight of up to six A12 cabinets depending on the array geometry. Ground stack parameters and mechanical safety of arrays are calculated using JBL's LAC-3 software.
