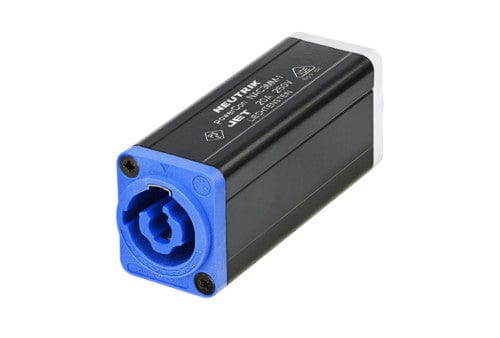

Neutrik NAC3MM-1 PowerCON Coupler: Connect NAC3MPXXA to NAC3MPXXB Securely
• Connects powerCON NAC3MPXXA (power in) to powerCON NAC3MPXXB (power out), perfect for linking power cables with NAC3FXXA/B.
• Offers a rugged and locking solution for a safe power connection.
• Ideal for applications where a reliable power link is crucial.
The powerCON is a locking 3 conductor equipment AC connector with breaking capacity using contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
| Contact resistance | ¡Ü 3 mΩ |
| Dielectric strength | 4 kVdc |
| Insulation resistance | > 0.1 GΩ (after damp heat test IEC 68-2-30) |
| Rated current per contact | 16 A rms |
| Rated voltage | 250 V ac |
This Neutrik NAC3MM-1 PowerCON coupler is designed for professionals in the audio, lighting, and power distribution industries. It connects NAC3MPXXA (power in) to NAC3MPXXB (power out), allowing for easy linking of power cables with NAC3FXXA/B. The coupler offers a rugged and locking solution to ensure a safe power connection. Technical specs include contact resistance of ≤ 3 mΩ, dielectric strength of 4 kVdc, insulation resistance of > 0.1 GΩ (after damp heat test IEC 68-2-30), rated current per contact of 16 A rms, and rated voltage of 250 V ac.
