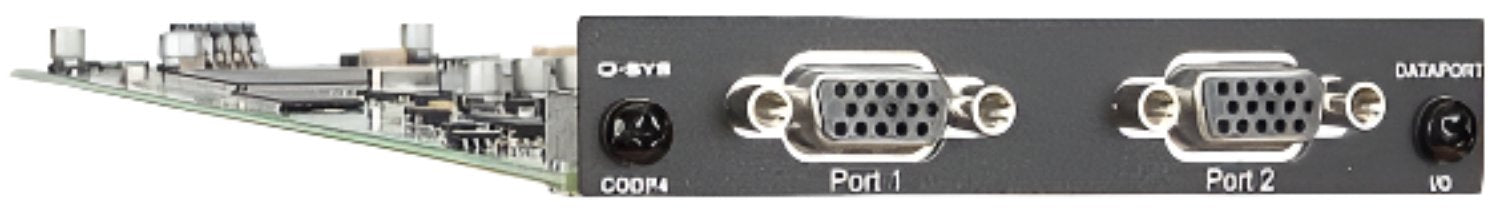

Q-SYS CODP4 4-Channel DataPort Output Card - Enhance Your Audio Setup
Upgrade your audio system with the Q-SYS CODP4 4-Channel DataPort Output Card! This card offers seamless connectivity and reliable performance for an immersive audio experience. • Four audio output channels for powerful sound. • Two DataPort connectors for easy connection to QSC amplifiers. • Seamless integration for audio, status monitoring, and control.
Features:
- 4 audio output channels
- 2 DataPort connectors for connection to QSC amplifiers
- Seamless integration with DataPort-equipped amplifiers for audio, status monitoring, and control
Specifications:
- Dynamic Range:
- Un-weighted: >114 dB
- A-weighted: >117 dB
- Distortion (20Hz - 20 kHz):
- +4 dBu (max): â /li>
- 2 dB below clip (max): < 0.04% THD+N
- Crosstalk (20 Hz - 20 kHz):
- Inter-channel (max): > 95 dB
- Inter-channel (typ): > 100 dB
- Intra-channel (max): > 100 dB
- Intra-channel (typ): > 110 dB
- Frequency Response:
- 20Hz - 20 kHz (max): ± 0.5 dB
- 20Hz - 20 kHz (typ): ± 0.2 dB
- Mute:
- Electro-mechanical relays with infinite attenuation
- Audio Converters:
- Group Delay (at 48 kHz): Analog to Digital Conversion (ADCs): â /li>
- Digital to Analog Conversion (DACs): 24-bit delta-sigma at 48 or 96 kHz sample rate
- Output: 0.25 ms
- Connectors:
- Two DE-15 (female 15-pin high-density D shell) connectors
- User-configurable Options (software enabled):
- Amplifier Standby: Set or clear amplifier in standby mode
- Mute: Set or clear innavidual channel mutes
- Enable Meters: Enable data collection of meters for each channel
- Audio Output Levels: Adjust innavidual audio channel levels
- Amplifier Model Support:
- CX, PowerLightâ 3 Series, DCA, and legacy V1 models
The Q-SYS CODP4 4-Channel DataPort Output Card is designed for audio enthusiasts and professionals looking to enhance their audio setups. It provides four audio output channels through two DataPort connectors, allowing for seamless connection to QSC amplifiers. This enables a powerful and immersive audio experience. The card's specifications ensure high-quality sound, with a dynamic range of over 114 dB un-weighted and 117 dB A-weighted. Distortion is low, and crosstalk is minimized. It features a frequency response of ±0.5 dB at 20Hz - 20 kHz (max) and ±0.2 dB (typ). The mute function uses electro-mechanical relays with infinite attenuation. Audio converters include 24-bit delta-sigma DACs at 48 or 96 kHz sample rate. With two DE-15 connectors, it's easy to install. User-configurable options allow you to control amplifier standby, channel mutes, meter data collection, and audio output levels. It supports CX, PowerLight 3 Series, DCA, and legacy V1 amplifier models.
