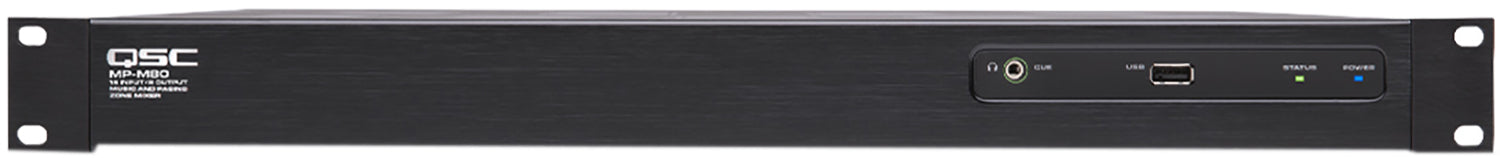

Q-SYS MP-M80 Digital Mixer: Your All-in-One Solution for Business Music and Paging
The QSC MP-M mixers are a game-changer! They offer top-notch capabilities and are a breeze to configure and operate. Ideal for retail and hospitality, they let you route high-quality audio from various sources to multiple zones. Plus, they support live mixing for entertainment, presentations, or conferences.
Features:
- • Easy Setup: The MP Install app gives you a great graphic user experience with an easy workflow and controls for effortless input and output management.
- • Workflow Wizard: Helps installers stay on top of tasks and navigate the mixer with ease.
- • QSC Voicings: Maximize system performance and value by applying Intrinsic Correction to QSC loudspeakers.
- • Custom Control: Fine-tune controls according to your installation needs on available MP-M Series control peripherals.
- • Wired/Wireless Options: Control zone source selection, output levels, input levels, and scene recall with optional MP-MFC wall-mounted controllers or the MP Manage app. Facility staff can be restricted to authorized controls.
- • Complimentary Aesthetics: The MP-M Series mixers match the look of the QSC MP-A Series amplifiers for a great-looking and great-sounding installation.
Specifications:
- Inputs:
- Total: 16
- Mic/Line: 8 (Euroblock)
- RCA: 8 (mono-summed RCA pairs)
- Outputs:
- Total: 10
- Line: 8 (Euroblock, balanced)
- Music on Hold: 1 (Euroblock, transformer balanced)
- Cue (phones): 1 (3.5 mm, stereo)
- Input Processing:
- EQ: 4-band parametric EQ with high/low shelving option, variable 24/octave HPF and LPF
- Dynamics: Gate, choice of Auto Gain Control (AGC) or Compressor
- Output Processing:
- EQ: 1/3 octave GEQ
- Anti-feedback Filters: 12-band variable notch filters
- Dynamics: Comp/limiter, ducker, loudness
- Delay: 100 msec
- Loudspeaker tunings:
- Factory: Intrinsic Correction voicing for QSC loudspeakers
- User: 6-band parametric EQ, HPF & LPF (Linkwitz-Riley or Butterworth; 12, 18 or 24 dB/octave)
- Effects & RTA:
- Effects: 1 multi-effects processor
- RTA: 1/3 octave RTA
- Control Accessories:
- MP-MFC: Optional wall controller
- MP Install app: For configuration/design functions (for iOS/Android tablets, Windows and Mac OS PCs)
- MP Manage app: For end user control functions (for iOS/Android tablets and smartphones)

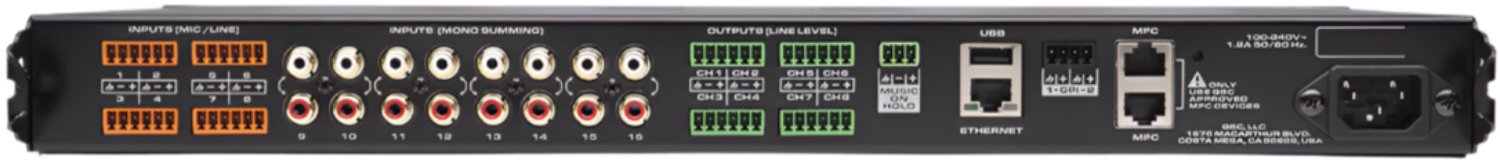

- Other Connections:
- Ethernet: 1 × RJ45 for connection to Wi-Fi router (user supplied)
- MP-MFC ports: 2 × RJ45
- GPI: 2 Inputs (Euroblock)
- Net Dimensions (HWD):
- 45 × 483 × 356 mm
- 1.75 × 19 × 14 in
- Weight:
- Shipping: 5.0 kg / 11 lb
- Net: 3.2 kg / 7 lb
- Phantom Power:
- All microphone inputs (+12 volts)
- Power Requirements:
- TBD W, 100-240 VAC, 50-60 Hz, universal supply, IEC inlet
- Indicators:
- Blue POWER LED
- Blue STATUS LED
This Q-SYS MP-M80 digital mixer is perfect for retail and hospitality settings. It's designed to route high-quality audio from multiple sources to various zones. Whether it's playing background music or handling paging needs, it's a great choice. With dimensions of 45 × 483 × 356 mm (1.75 × 19 × 14 in) and a shipping weight of 5.0 kg (11 lb), it's easy to install and manage. Ideal for installers and facility staff looking for a reliable audio solution.
