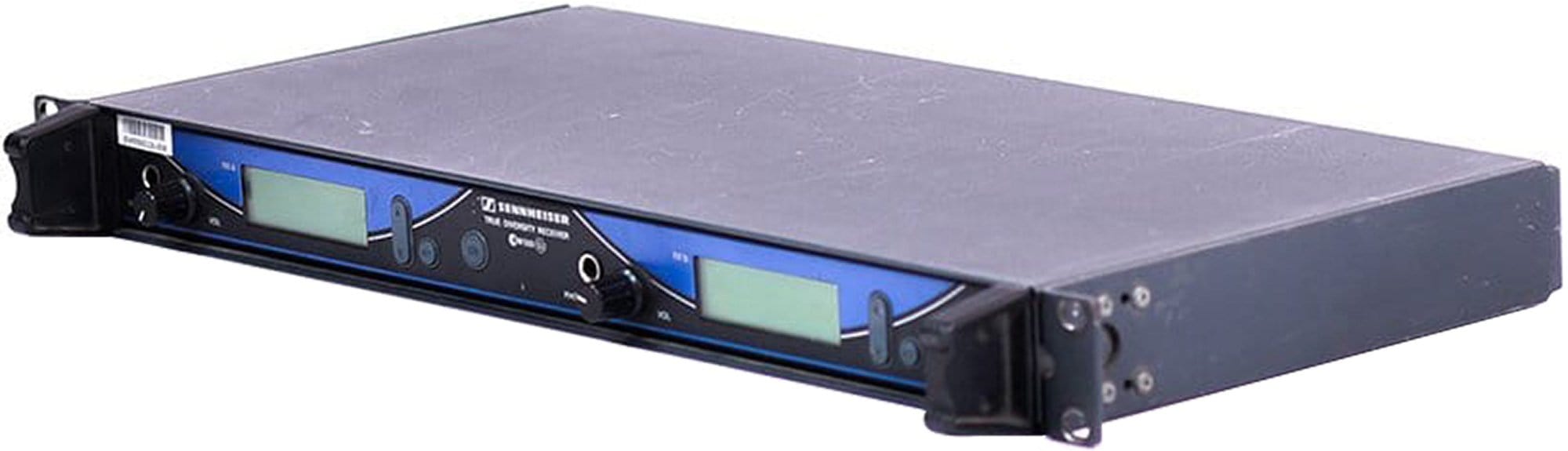

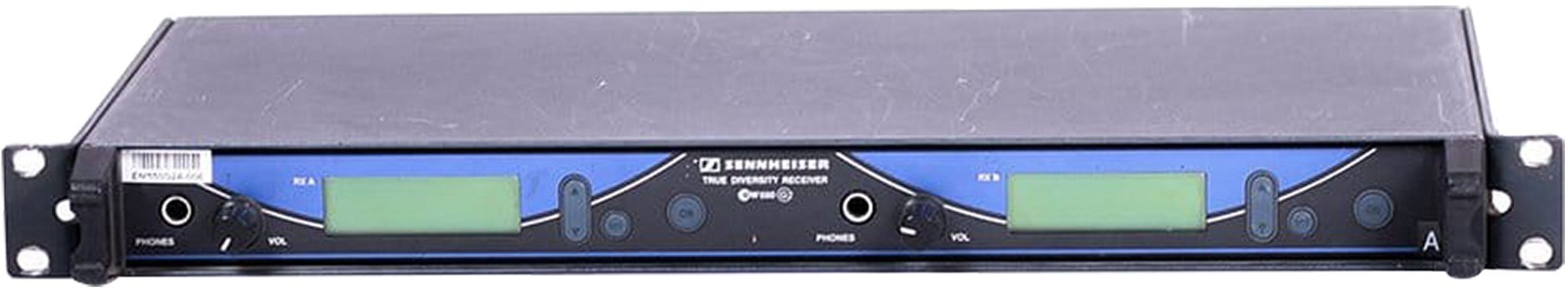

Sennheiser EM 550 G2 A Dual Receiver: High - Quality RF Transmission for Professionals
Only available as part of a complete wireless system.
• Dual receivers in one 19” rack housing for easy setup. Each receiver can work independently.
• Integrated antenna splitter allows daisy - chaining up to eight twin receivers, expanding your system.
• Combines seamlessly with ew 500 G2 series transmitters for top - notch RF transmission in professional settings.
Specifications:
- RF characteristics
- Modulation: wideband FM
- Frequency ranges: 518–554, 626–662, 740–776, 786–822, 830–866 MHz
- Receiving frequencies:
- 8 channel banks with up to 20 factory - preset channels each
- 1 channel bank with up to 20 freely selectable channels(1,440 frequencies, tunable in steps of 25 kHz)
- Switching bandwidth: 36 MHz
- Nominal/peak deviation: ± 24 kHz / ± 48 kHz
- Frequency stability: ≤ ± 15 ppm
- Receiver principle: true naversity
- Sensitivity (with HDX, peak deviation): typ. 1.5 μV at 52 dBArms S/N ratio
- Adjacent channel rejection: ≥ 70 dB
- Intermodulation attenuation: ≥ 70 dB
- Blocking: ≥ 80 dB
- Squelch:
- 4 steps: Off
- Low: 5 dBμV
- Mid: 15 dBμV
- High: 25 dBμV
- Pilot tone squelch: can be switched off
- Antenna inputs: 2 BNC sockets (50 Ω)
- Cascading outputs:
- 2 BNC sockets (50 Ω)
- gain: 0 dB ±2 dB (related to antenna inputs)
- AF characteristics
- Noise reduction system: Sennheiser HDX
- EQ presets (switchable, effect the line and monitor outputs):
- Preset 1: “Flat“
- AF frequency: response 40–18,000 Hz
- Preset 2: “Low Cut“
- Cut: approx. - 3 dB at 200 Hz
- Preset 3: “HiBoost“
- Boost: approx. + 6 dB at 10,000 Hz
- Preset 4: “Low Cut & Hi Boost“
- Cut: approx. - 3 dB at 200 Hz
- Boost: approx. + 6 dB at 10,000 Hz
- S/N ratio (at 1 mV and peak deviation): ≥ 115 dB(A) (AF OUT)
- THD (at nominal deviation and 1 kHz): ≤ 0.9 %
- AF output voltage (at peak deviation 1 kHzAF): +18 dBu to –22 dBu, adjustable in steps of 2 dB(transformer balanced)
- AF outputs: 2 XLR - 3M sockets
- Overall unit
- Temperature range: – 10 °C to + 55 °C
- Power supply: 100–240 V AC, 50/60 Hz
- Power consumption: max. 0.4 A
- Mains connector: 3 - pin; protection class I
- Booster supply voltage: 11 V DC, cannot be switched off
- Max. booster current: ≤ 150 mA (limited per antenna socket)
- Power consumption: 40 VA
- Dimensions [mm]: 436 x 215 x 43
- Weight: approx. 3,500 g
This Sennheiser EM 550 G2 A Dual Receiver is perfect for professionals in need of high - quality RF transmission. It comes in a 19” rack housing with dual receivers that can work separately. With an integrated antenna splitter, you can expand your system by daisy - chaining up to eight twin receivers. It pairs well with ew 500 G2 series transmitters. The unit has a temperature range of – 10 °C to + 55 °C, runs on 100–240 V AC power (50/60 Hz), and weighs approximately 3,500 g with dimensions of 436 x 215 x 43 mm.
