Sennheiser ew 300 G4-BASE Handheld Wireless Mic Set - Your Ultimate Audio Solution
• Effortless Setup: Get started in no time!
• Ideal for Business & Education: The top choice for professionals and educators.
• High - Bandwidth Performance: With up to 88 MHz switching bandwidth.
What's in the box:- EM 300-500 G4 true naversity receiver
- SKM 300 G4-S handheld transmitter
- GA 3 rackmount set
- MZQ 1 microphone clamp
- power supply
- 2 AA batteries
- 2 rod antennas
- quick guide
- safety guide
- manufacturer declaration sheet
Features:
- • Easy Setup: Save time with quick and hassle - free operation.
• Integrated Control: Manage, monitor, and set up via software.
• Versatile Usage: Works well in any environment with a wide range of accessories.
• High Bandwidth: Up to 88 MHz bandwidth for up to 32 channels.
• Adjustable Power: RF output power of 10/30/50 mW.
• Long Transmission: Up to 100 meters / 330 feet range.
• Compatibility: Works with wireless speaker system LSP 500 Pro.
• RC Option: Available for bodypack transmitter.
Specifications:

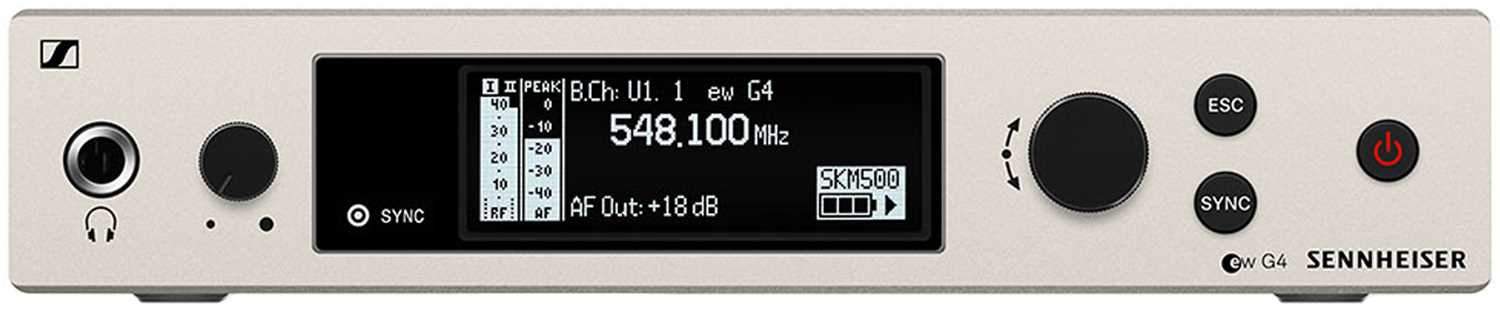

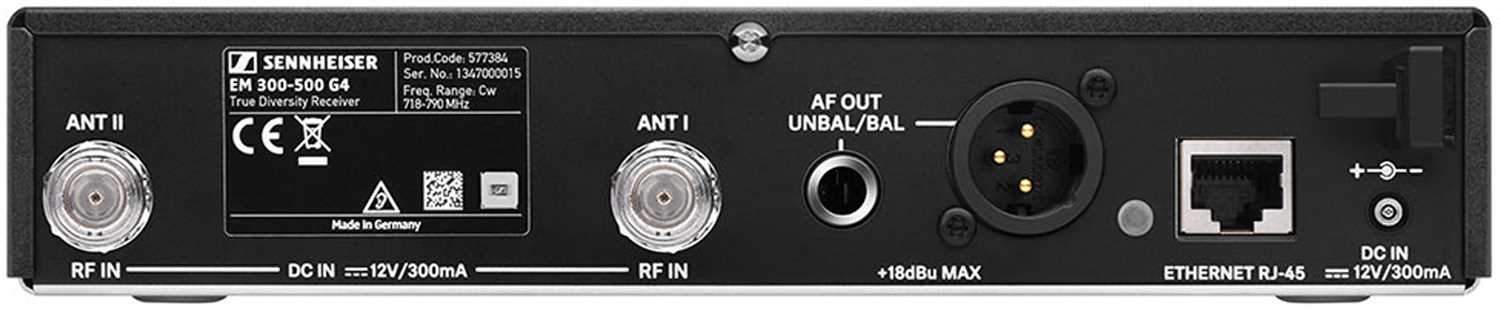

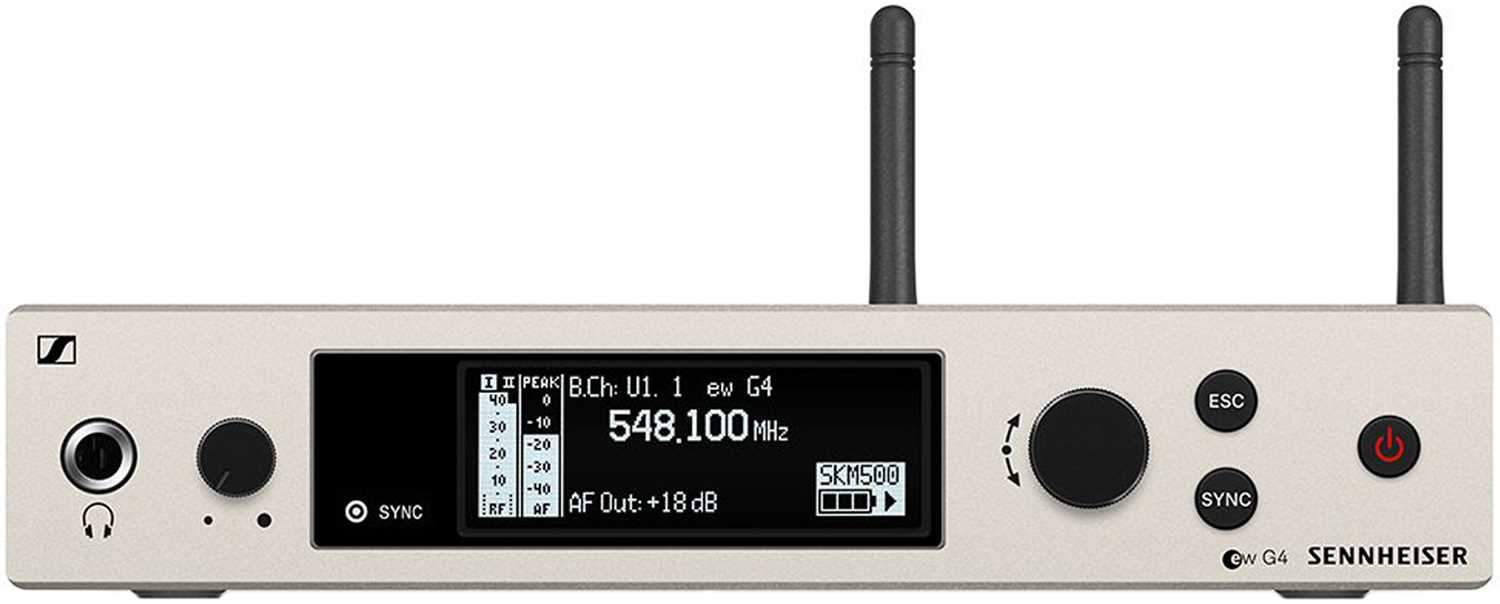

EM 300-500 G4
- Frequency range: 470 - 558 MHz
- Dimensions: About 202 x 212 x 43 mm
- Compander: Sennheiser HDX
- THD: 0.9 %
- Weight: About 980 g
- Audio output: 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu
- Signal - to - noise ratio: 115 dBA
- Switching bandwidth: up to 88 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Modulation: Wideband FM
- Power supply: 12 V DC
- Antenna connector: 2 BNC sockets
- Current consumption: 350 mA
- Adjacent channel rejection: Typically 75 dB
- Intermodulation attenuation: Typically 70 dB
- Receiving frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory - preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- RF sensitivity: < 2.5 V for 52 dBA eff S/N
- Squelch: 5 to 25 dB V in steps of 2 dB
- Equalizer
- Preset 1: Flat
- Preset 2: Low Cut (-3 dB at 180 Hz)
- Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
- Preset 4: High Boost (+6 dB at 10 kHz)
- Temperature Range -10 °C to +55 °C
- Receiver Principle True naversity
- Blocking 75 dB
SKM 300 G4
- Dimensions: About 50 x 265 mm
- Compander: Sennheiser HDX
- THD: 0.9 %
- Weight: (incl. batteries) about 450 g
- Signal - to - noise ratio: 115 dBA
- RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
- Switching bandwidth: up to 88 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Operating time: Typically 8 h
- Modulation: Wideband FM
- Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: 25 μA
- Powering: 3 V battery / 2.4 V rechargeable battery
- Transmission frequency: Max. 3520 transmission frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory - preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- AF frequency response: 80 – 18,000 Hz
- Temperature Range: -10 °C to +55 °C
- Frequency stability: ±15 ppm
This Sennheiser ew 300 G4 - BASE Handheld Wireless Mic Set is perfect for business presentations and educational lectures. It's easy to use and set up quickly. The receiver is about 202 x 212 x 43 mm in size and weighs around 980 g, while the handheld transmitter is approximately 50 x 265 mm and weighs about 450 g (including batteries). With features like high - bandwidth performance and long transmission range, it's a great choice for various audio needs.
