Sennheiser ew 300 G4-BASE SK-RC Bodypack Base AW+
Effortless operation and lightning-fast setup. This is a game-changer for your business and a top pick in education.
The G4 300 Series offers an increased switching bandwidth of up to 88 MHz, allowing for reliable multi-channel setups with dozens of channels. Ideal for those seeking a bodypack transmitter with maximum flexibility. This base set includes a stationary receiver and a bodypack transmitter. Just add your favorite clip-on or headset microphone.
What's in the box:- EM 300-500 G4 true naversity receiver
- SKM 300 G4
- GA 3 rackmount set
- power supply
- 2 AA batteries
- 2 rod antennas
- quick guide
- safety guide
- manufacturer declaration sheet
Features:
- • Effortless to use and quick setup time
- • Integrated network port for control, monitoring, and setup via Sennheiser Control Cockpit and WSM Software
- • Wide range of products and accessories for any environment
- • Up to 88 MHz bandwidth, up to 32 channels
- • Increased RF output power (10/30/50 mW)
- • Transmission Range: up to 100 meters / 330 feet
- • Compatible with wireless speaker system LSP 500 PRO
- • RC (remote control) switch available for the bodypack transmitter
Specifications:

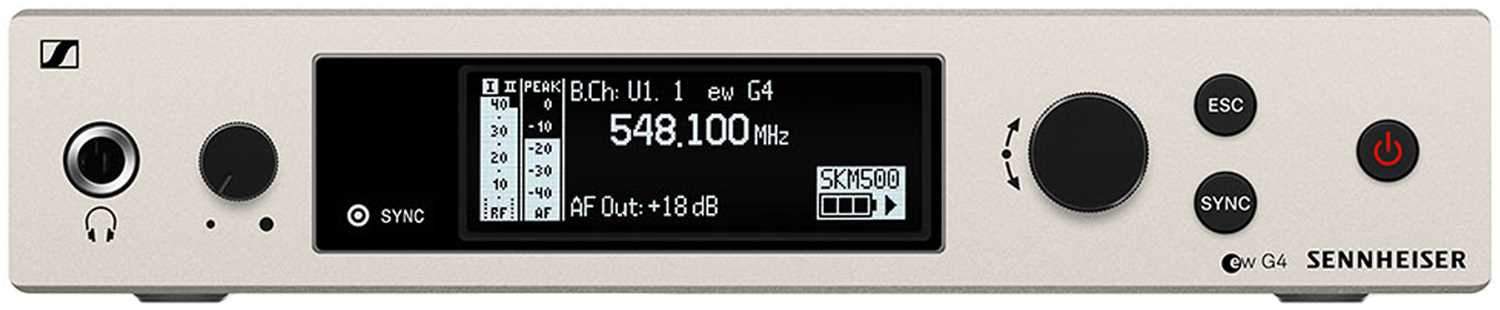

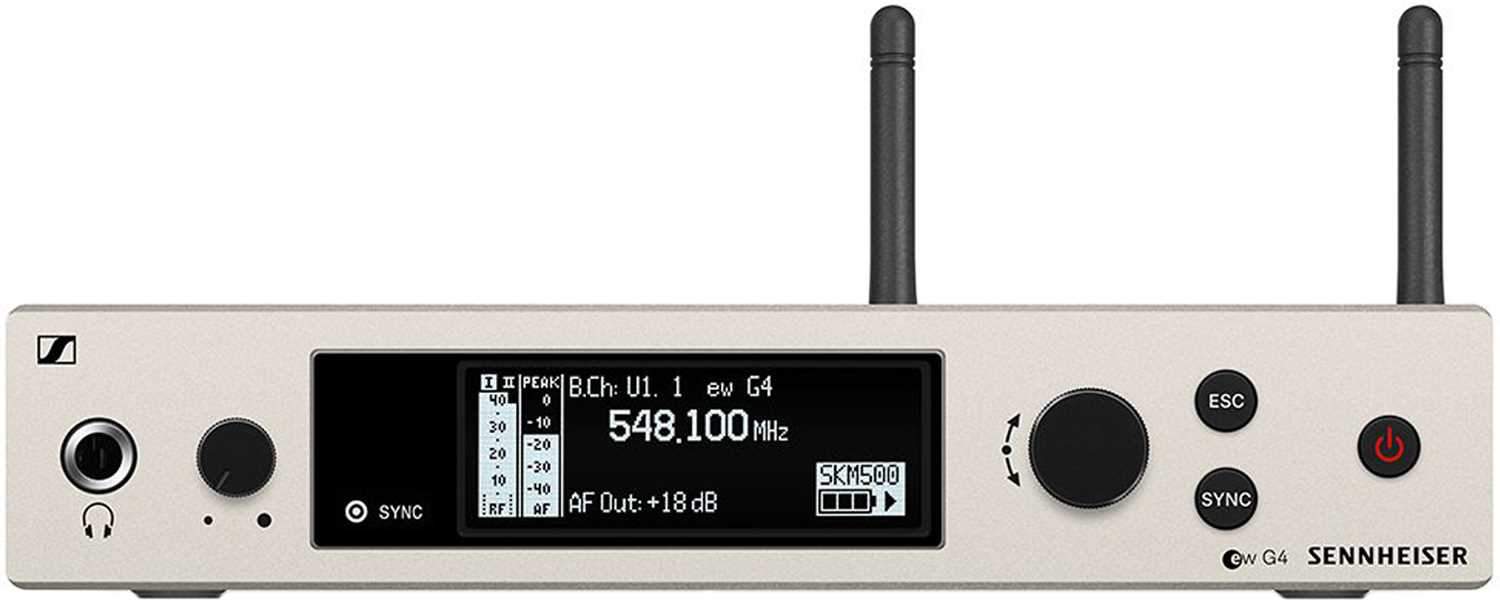

EM 300-500 G4
- Frequency range: 470 - 558 MHz
- Dimensions: Approx. 202 x 212 x 43 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: 0.9 %
- Weight: Approx. 980 g
- Audio output: 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu
- Signal-to-noise ratio: 115 dBA
- Switching bandwidth: up to 88 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Modulation: Wideband FM
- Power supply: 12 V DC
- Antenna connector: 2 BNC sockets
- Current consumption: 350 mA
- Adjacent channel rejection: Typically 75 dB
- Intermodulation attenuation: Typically 70 dB
- Receiving frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- RF sensitivity: < 2.5 V for 52 dBA eff S/N
- Squelch: 5 to 25 dB V in steps of 2 dB
- Equalizer
- Preset 1: Flat
- Preset 2: Low Cut (-3 dB at 180 Hz)
- Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
- Preset 4: High Boost (+6 dB at 10 kHz)
- Temperature Range -10 °C to +55 °C
- Receiver Principle True naversity
- Blocking 75 dB

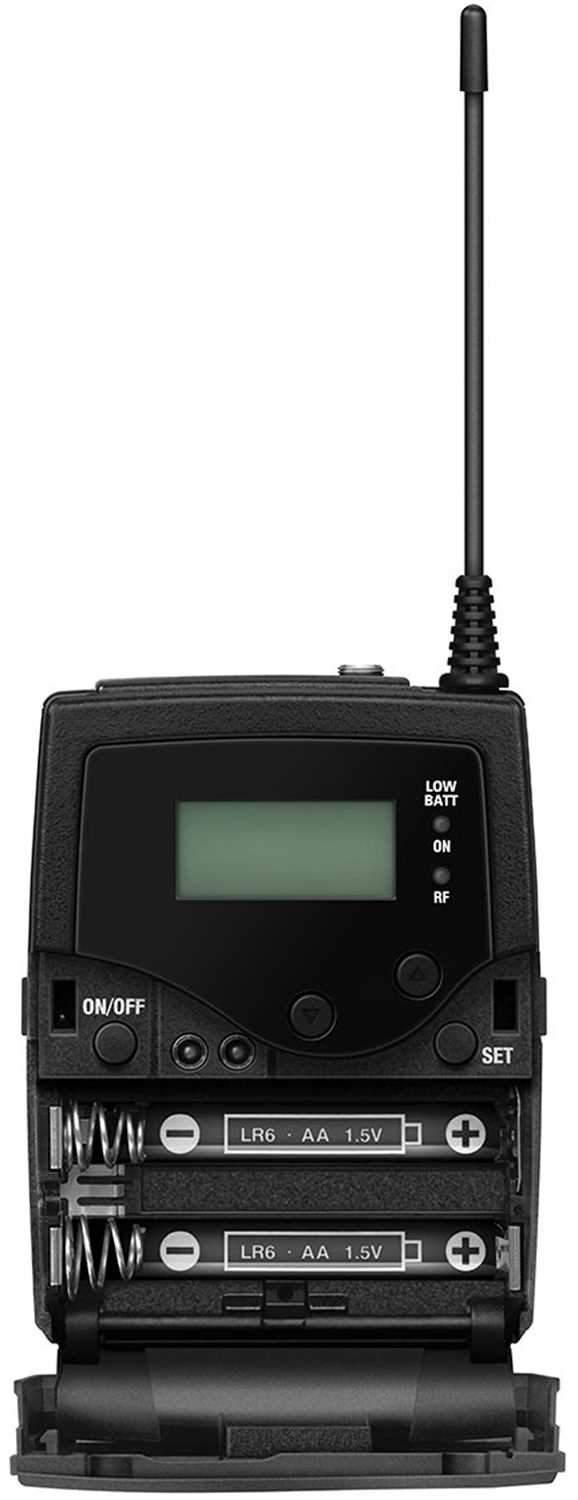

SK 300 G4
- Dimensions: Approx. 82 x 64 x 24 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: 0.9 %
- Weight: (incl. batteries) approx. 160 g
- Signal-to-noise ratio: 115 dBA
- RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
- Switching bandwidth: up to 88 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Operating time: Typically 8 h
- Modulation: Wideband FM
- Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: 25 μA
- Input impedance: 40 k, unbalanced / 1 M
- Max. Input voltage: 3 Veff
- Powering: 3 V battery / 2.4 V rechargeable battery
- Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- AF frequency response Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
- Temperature Range -10 °C to +55 °C
- Frequency stability ±15 ppm
This Sennheiser ew 300 G4-BASE SK-RC Bodypack Base Wireless Set is perfect for businesses and educational institutions. The EM 300-500 G4 receiver has dimensions of approximately 202 x 212 x 43 mm and weighs around 980 g. The SKM 300 G4 bodypack transmitter with batteries weighs about 160 g and has dimensions of approximately 82 x 64 x 24 mm. It offers features like easy setup, a wide range of accessories, and high RF output power for reliable wireless communication.
