Sennheiser ew 500 G4-MKE2 Evolution Wireless G4 Lavalier AW Plus

Sennheiser ew 500 G4-MKE2 Wireless Lavalier AW+

Get crystal-clear audio with this professional wireless lavalier microphone system. The full-metal housing and intuitive OLED display make it easy to control. It's a favorite among sound engineers for its flexibility in multi-channel setups.

Why Choose Sennheiser ew 500 G4-MKE2?

• • Professional-Grade Sound: Delivers outstanding audio quality for presentations, live stages, and more.
• • Easy Setup: Synchronize transmitter and receiver via infrared for hassle-free operation.
• • Wide Compatibility: Up to 32 compatible channels and 88 MHz bandwidth with 3520 selectable frequencies.

What's in the box:

• EM 300-500 G4 true naversity receiver
• SK 500 G4 bodypack transmitter
• MKE 2 clip-on microphone
• GA 3 rackmount set
• 2 AA batteries
• 2 rod antennas
• power supply
• quick guide
• safety guide
• manufacturer declaration sheet

Features:

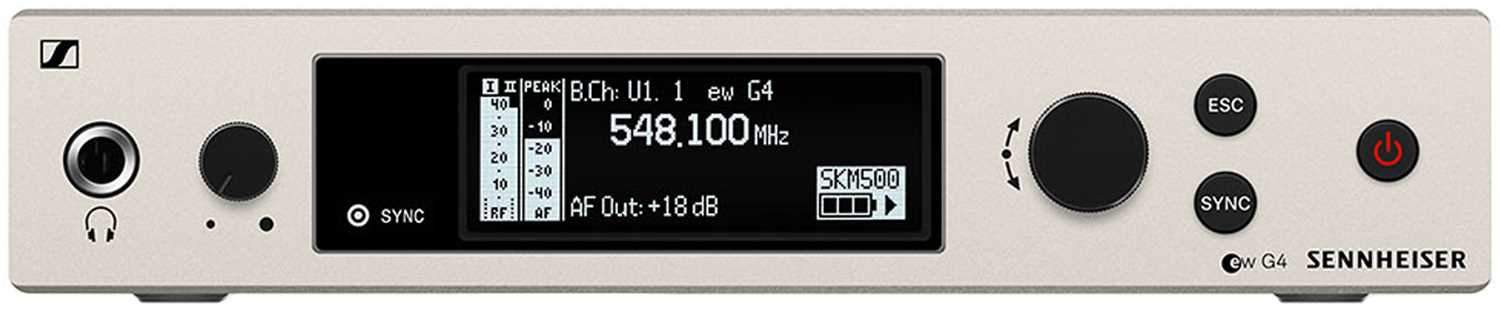

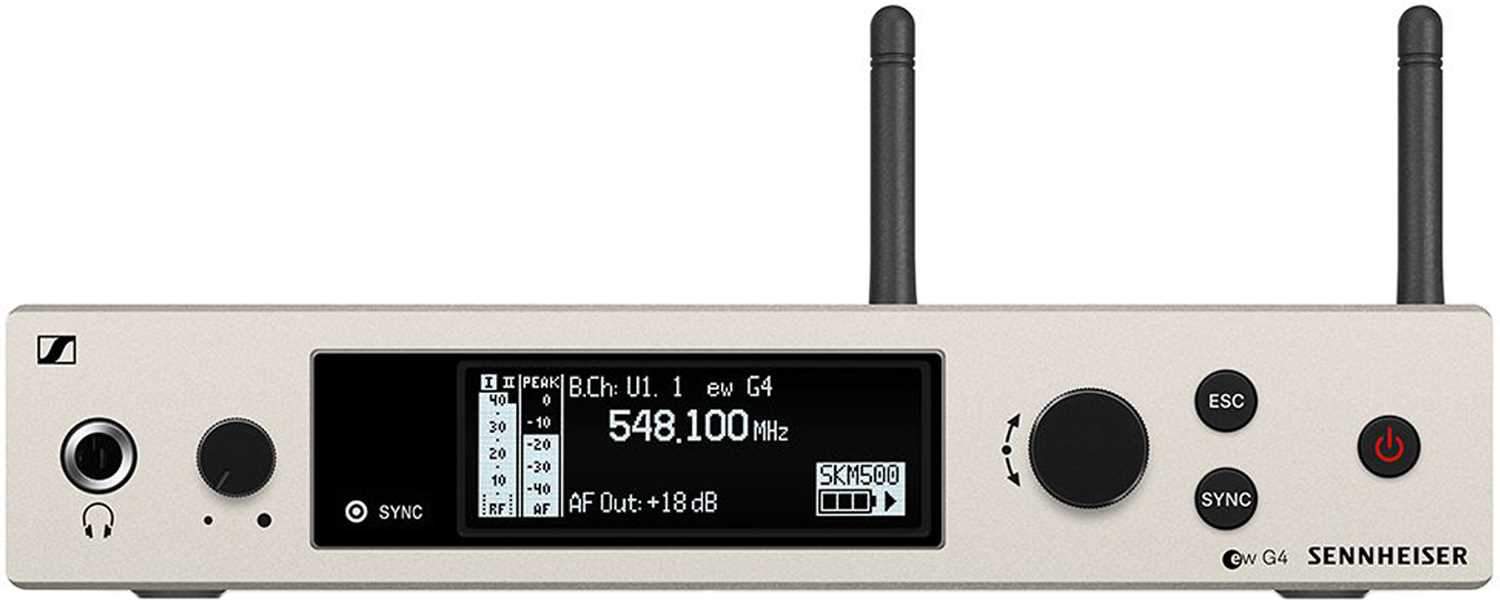

• • True naversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
• • Easy and flexible wireless synchronization between transmitter and receiver via infrared
• • Up to 32 compatible channels
• • Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
• • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
• • High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

Specifications:

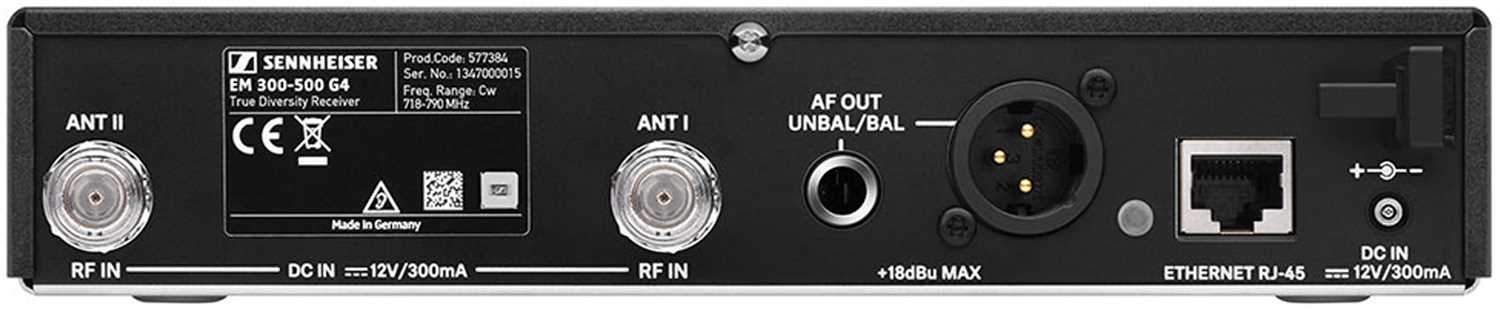

EM 300-500 G4

• Frequency range: 470 - 558 MHz
• Dimensions: Approx. 202 x 212 x 43 mm
• Weight: Approx. 980 g
• Audio output: 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu
• Signal-to-noise ratio: 115 dBA
• Switching bandwidth: up to 88 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Modulation: Wideband FM
• Power supply: 12 V DC
• Antenna connector: 2 BNC sockets
• Current consumption: 350 mA
• Adjacent channel rejection: Typically 75 dB
• Intermodulation attenuation: Typically 70 dB
• Receiving frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
• RF sensitivity: < 2.5 V for 52 dBA eff S/N
• Squelch: 5 to 25 dB V in steps of 2 dB
• Equalizer
  • Preset 1: Flat
  • Preset 2: Low Cut (-3 dB at 180 Hz)
  • Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
  • Preset 4: High Boost (+6 dB at 10 kHz)
• Temperature Range -10 °C to +55 °C
• Receiver Principle True naversity
• Blocking 75 dB

SK 500 G4

• Dimensions: Approx. 82 x 64 x 24 mm
• Weight: (incl. batteries) approx. 160 g
• Signal-to-noise ratio: 115 dBA
• RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
• Switching bandwidth: up to 88 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: 25 μA
• Input impedance: 40 k, unbalanced / 1 M
• Max. Input voltage: 3 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
• AF frequency response: Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
• Temperature Range: -10 °C to +55 °C
• Frequency stability: ±15 ppm

MKE 2

• Connector: 3.5 mm jack
• Frequency response: 20 to 20.000 Hz ± 3 dB
• Max. sound pressure level: 142 dB
• Cable length: approx. 1.60 m
• Transducer principle: pre-polarized condensor microphone
• Pick-up pattern: omni-directional
• Sensitivity in free field, no load (1kHz): 5 mV/Pa, ± 3 dB
• Equivalent noise level: 26 dB
• Equivalent noise level weighted as per CCIR 468-3: 39 dB

This Sennheiser ew 500 G4-MKE2 Evolution Wireless G4 Lavalier AW Plus is a professional wireless microphone system. It's perfect for presenters, musicians, and anyone who needs high-quality audio on the go. The system includes a receiver, transmitter, microphone, and accessories. The receiver has a full-metal housing and an intuitive OLED display. It offers up to 32 compatible channels and 88 MHz bandwidth with 3520 selectable frequencies. The transmitter is compact and lightweight, with a battery life of up to 8 hours. The microphone is omni-directional and offers excellent sound quality. The system is easy to set up and use, and it comes with a variety of accessories to meet your needs.
