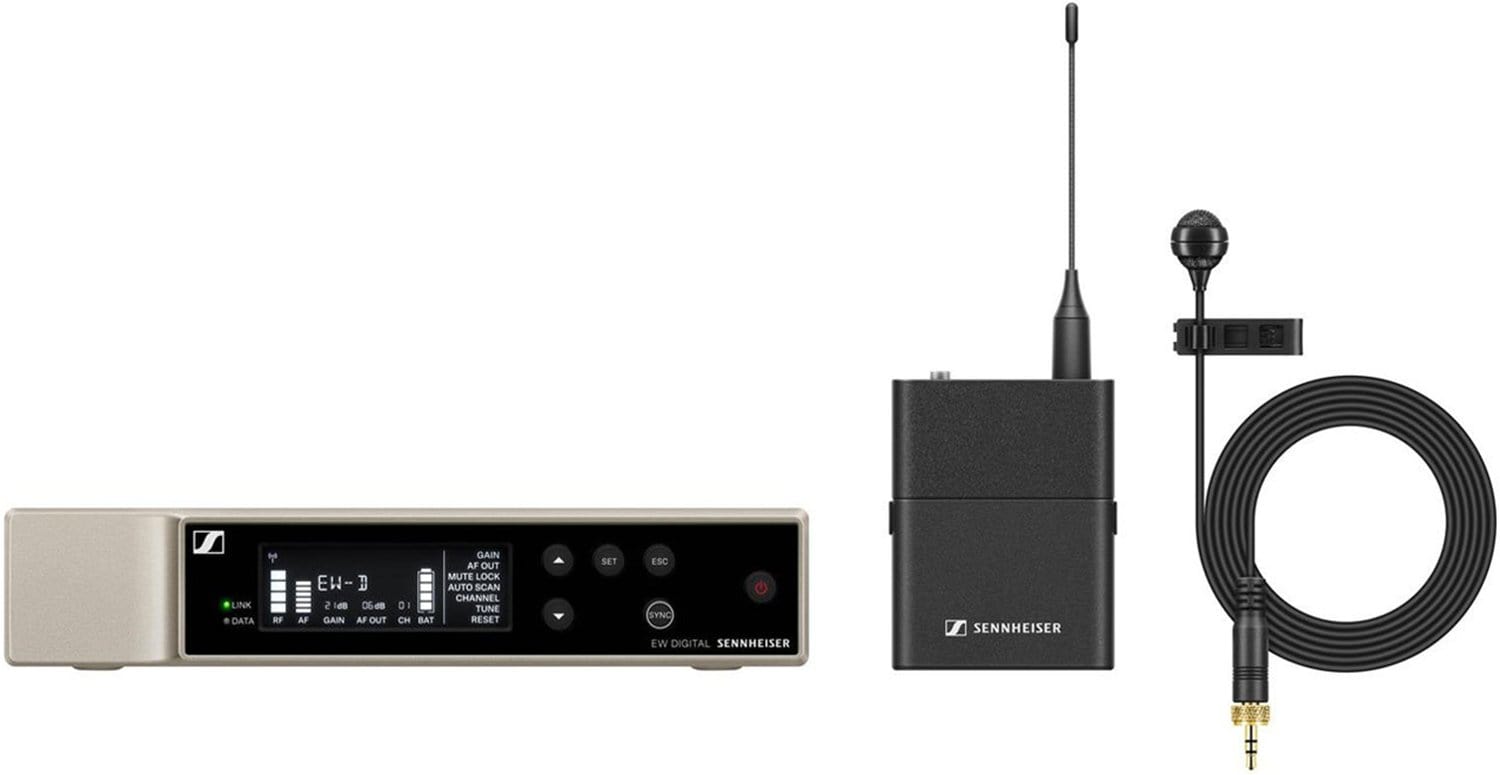

Sennheiser EW-D ME4 SET Digital Wireless Lavalier System (Q1-6)

Sennheiser EW-D ME4 Digital Lavalier System Q1

Unleash your potential with this versatile and feature-rich digital wireless system! Ideal for speakers and presenters, it enables seamless product pairing and management via the EW-D Smart Assist App. The robust bodypack transmitter with a metal housing and the unobtrusive clip-on microphone ME 4 (cardioid) offer high speech intelligibility, perfect for daily stage use.

Features:

• • Enhanced Range: Digital transmission in the UHF spectrum boosts range, reliability, and scalability
• • Easy Setup: Connect via Bluetooth Low Energy with the Smart Assist App for a hassle-free experience
• • Auto Scan: Creates reliable connections quickly and effortlessly

Specifications:

• Frequency range: 470.2 - 526 MHz
• THD, total harmonic distortion: ≠-60 dB for 1 kHz @ -3 dBfs input level
• Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
• Operating relative humidity: 5 - 95 % (non-condensing)
• Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs

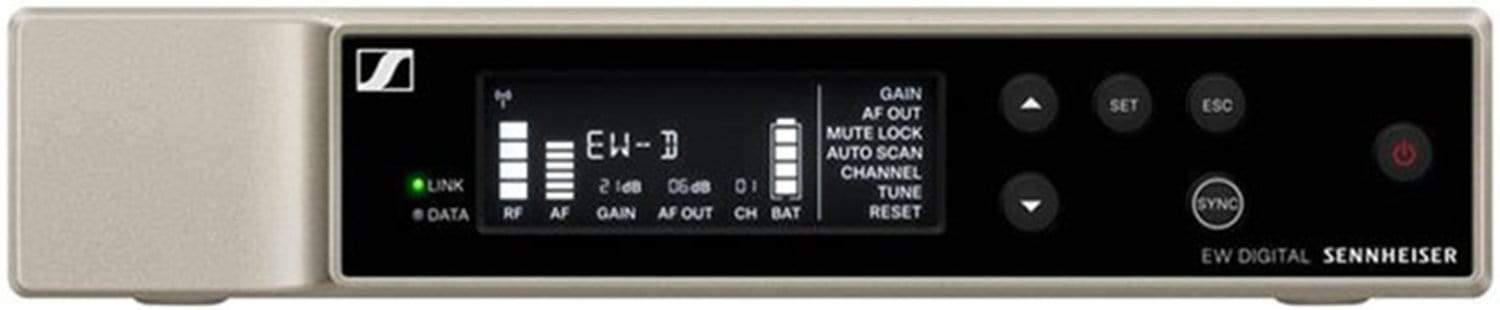

• EW-D EM:
  • Dimensions: 212 x 44 x 189 mm
  • Weight: approx. 1000 g (without antennas and power supply)
  • Current consumption: ≠300 mA
  • Input voltage range: 11 - 13 V
  • Audio output level: 18 dBu max.
  • Transmission power: BLE: max. 10 mW EIRP

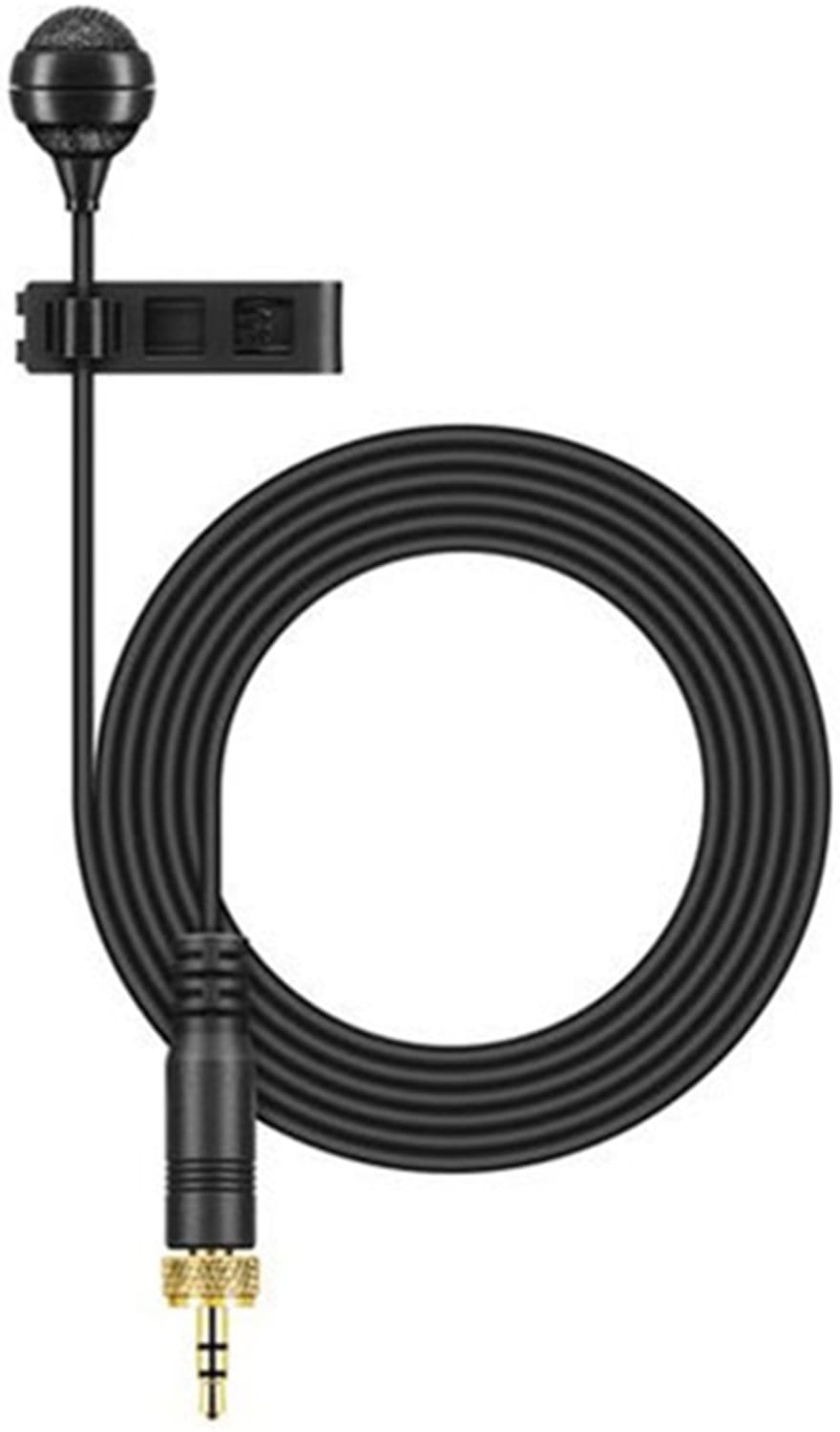

• ME 4:
  • Connector: 3.5 mm jack
  • Frequency response: 50 to 18,000 Hz
  • Max. sound pressure level: 150 dB
  • Cable length: approx. 1.60 m
  • Pick-up pattern: cardioid
  • Sensitivity in free field, no load (1kHz): 40 mV/Pa
  • Transducer principle: pre-polarized condensor microphone
  • Equivalent noise level: 31 dB
  • Power supply: 7.5 V

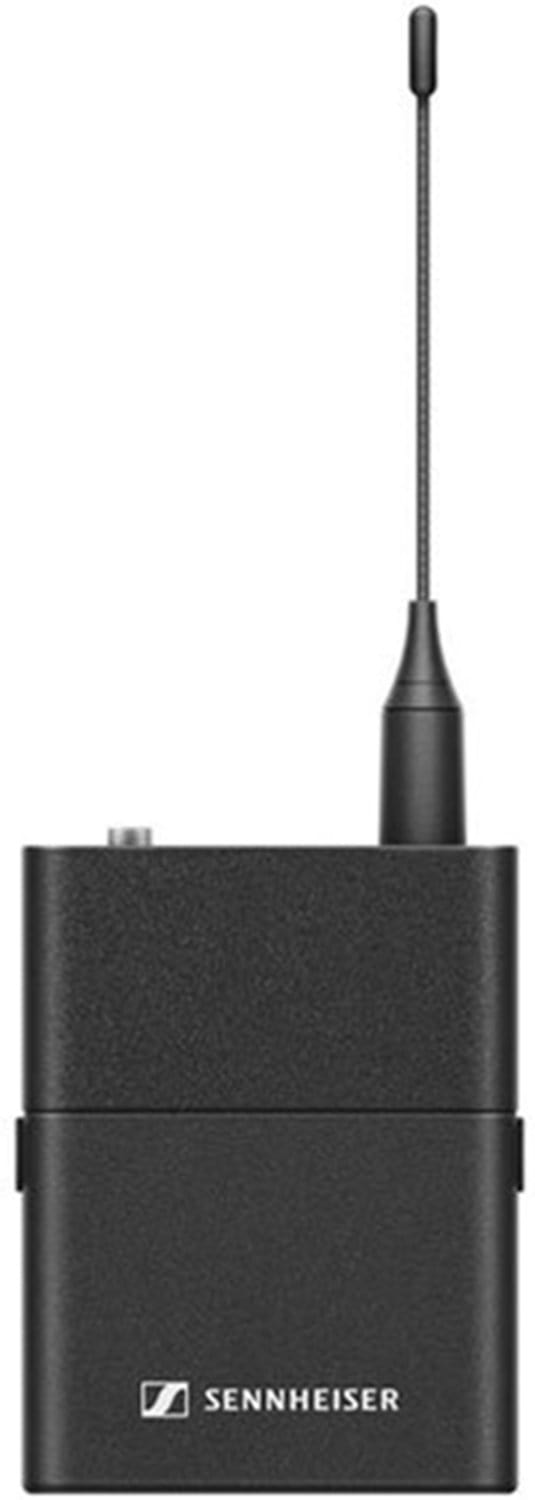

• EW-D SKM-S:
  • Dimensions: 63 x 80 x 20 mm (without antenna)
  • Power supply: 2 AA batteries 1.5 V (alkaline manganese) or BA 70 rechargeable battery pack
  • Current consumption: < 300 mA
  • Input voltage range: 2.0 - 4.35 V
  • Transmission power:
    • Audio link: 10 mW
    • ERP (Range Y1-3: 12 mW ERP)
    • BLE: max. 10 mW EIRP
  • Weight: approx. 120 g

This Sennheiser EW-D ME4 Digital Wireless Lavalier System is perfect for speakers and presenters. It features a metal housing bodypack transmitter and a clip-on microphone. The system offers great audio quality with high speech intelligibility. The dimensions of the EW-D EM are 212 x 44 x 189 mm and it weighs approximately 1000 g (without antennas and power supply). The ME 4 has a cable length of about 1.60 m. It operates within a frequency range of 470.2 - 526 MHz, with various other technical specifications for optimal performance.
