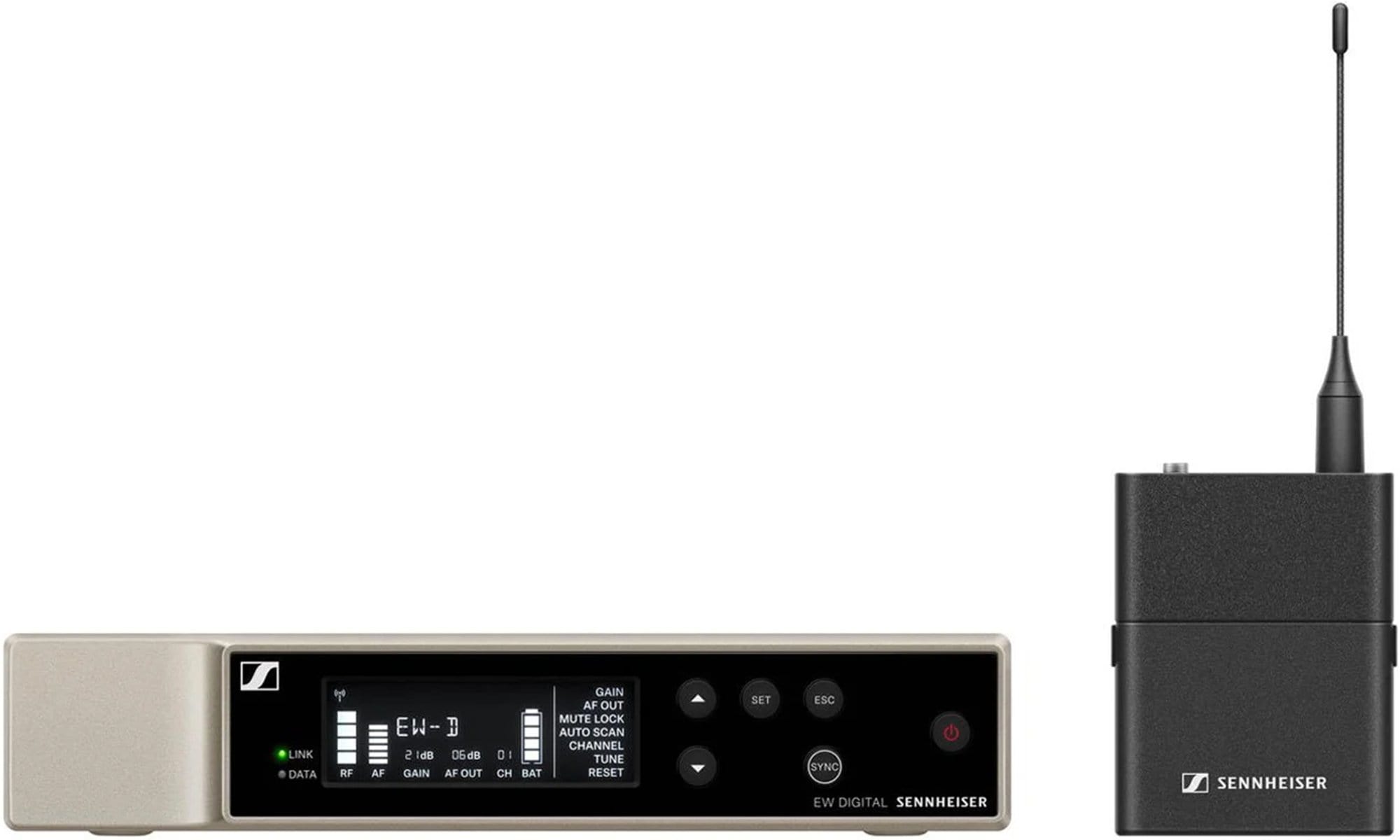

Sennheiser EW-D SK BASE SET Digital System R4
Transform your audio experience with this base set for digital wireless applications. It features a stationary receiver and bodypack transmitter, perfect for a wide range of Evolution Wireless Digital microphones.
Key Features:
- • Enhanced Range: Digital transmission in the UHF spectrum delivers extended range, reliability, and scalability.
- • Smart Connectivity: The Smart Assist App connects via Bluetooth Low Energy for easy setup and remote operation.
- • Auto Scan: Effortlessly create reliable connections with auto scan.
Technical Highlights:
- • 134 dB Audio Input Dynamic Range: Preserve every audio detail without sensitivity adjustments.
- • Intermodulation Elimination: Place channels in an equidistant tuning grid for interference-free performance.
- • Wide Tuning Bandwidth: 56 MHz of tuning bandwidth and equidistant spacing enable up to 90 channels.
Specifications:
- Frequency range: 552 - 607.8 MHz
- THD, total harmonic distortion: ≤ -60 dB for 1 kHz @ -3 dBfs input level
- Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
- Operating relative humidity: 5 - 95 % (non-condensing)
- Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
- EW-D EM:
- Dimensions: 212 x 44 x 189 mm
- Weight: approx. 1000 g (without antennas and power supply)
- Current consumption: ≤ 300 mA
- Input voltage range: 11 - 13 V
- Audio output level: 18 dBu max.
- Transmission power: BLE: max. 10 mW EIRP
>- EW-D SK:
- Weight: approx. 120 g
- Power supply: 2 AA batteries 1.5 V (alkaline manganese) or BA 70 rechargeable battery pack
- Current consumption: < 300 mA
- Input voltage range: 2.0 - 4.35 V
- Transmission power:
- Audio link: 10 mW
- ERP (Range Y1-3): 12 mW ERP
- BLE: max. 10 mW EIRP
- Dimensions: 63 x 80 x 20 mm (without antenna)

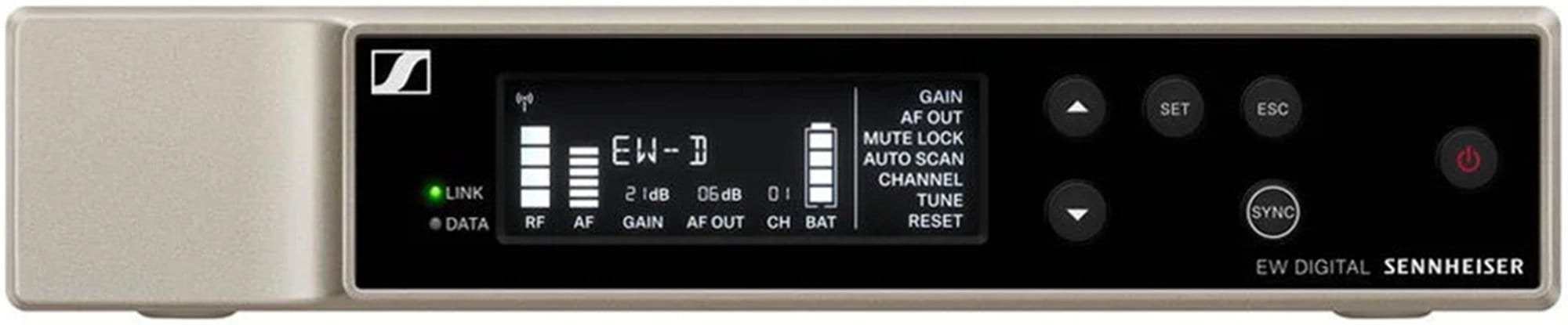

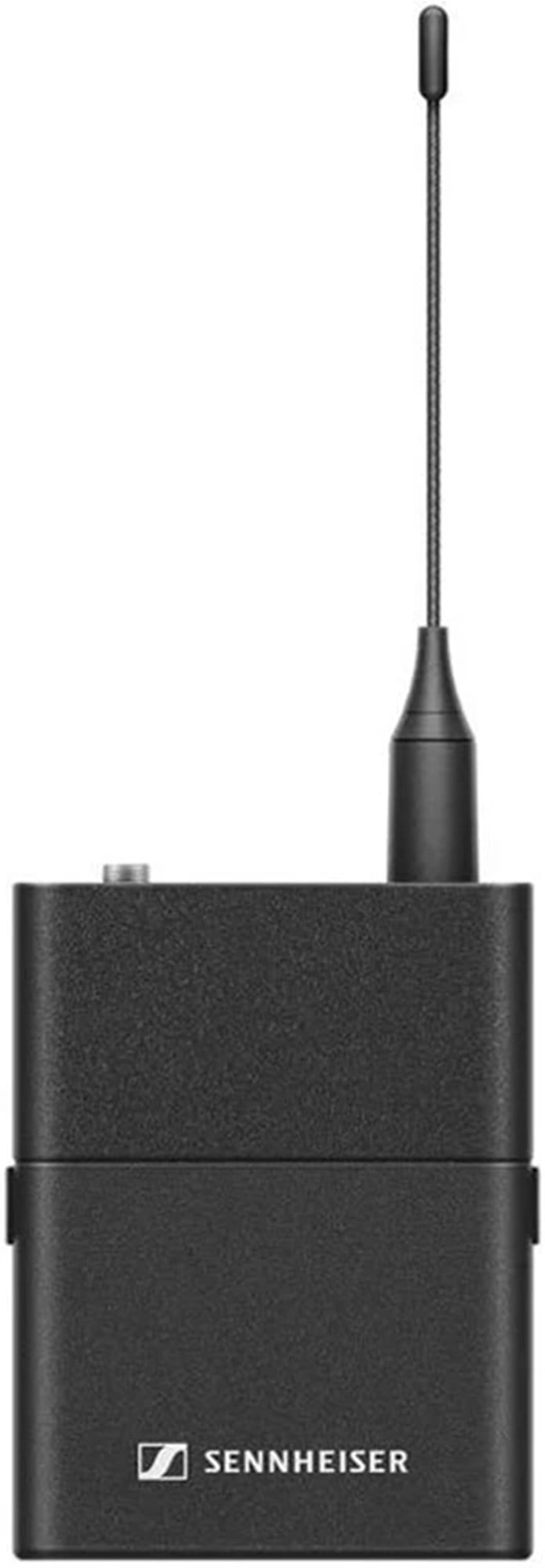

This Sennheiser EW-D SK BASE SET Digital Wireless System is perfect for anyone seeking high-quality audio transmission. Ideal for live events, presentations, and recording studios, it offers a reliable and flexible solution. The stationary receiver and bodypack transmitter are easy to use. The receiver measures 212 x 44 x 189 mm and weighs approximately 1000 g (without antennas and power supply). The bodypack transmitter is 63 x 80 x 20 mm (without antenna) and weighs around 120 g. It can be powered by 2 AA batteries 1.5 V (alkaline manganese) or a BA 70 rechargeable battery pack.
