Sennheiser EW-DX MKE 2 Digital Wireless Lavalier/Handheld Set - Unleash Your Audio Potential
This amazing wireless lavalier microphone set includes 2 x EW-DX SK (wireless bodypack transmitters), 2 x MKE 2 (omni-directional clip-on lavalier microphones), 1 x EW-DX EM 2 rackmount receiver (2 channels), and 2 x BA 70 rechargeable batteries.
• Simplifies professional workflows with advanced technologies for easy scaling. Ideal for classrooms, corporate campuses, and live productions.
• Features like 134 dB input dynamic range, AutoScan, and network enablement for seamless integration and remote control.
• Offers up to 12 hours of operation, various charging options, and worldwide usage (subject to local RF regulations).
Features:
- 134 dB input dynamic range - thanks to Sennheiser's SePAC codec, no need to set gain on transmitters
- AutoScan - quickly scans environment and deploys frequencies evenly
- Network enabled - for remote control with Sennheiser tools and 3rd party systems
- Remote control via Smart Assist App over Bluetooth Low Energy up to 25 meters
- Secure AES 256 encryption for confidential content

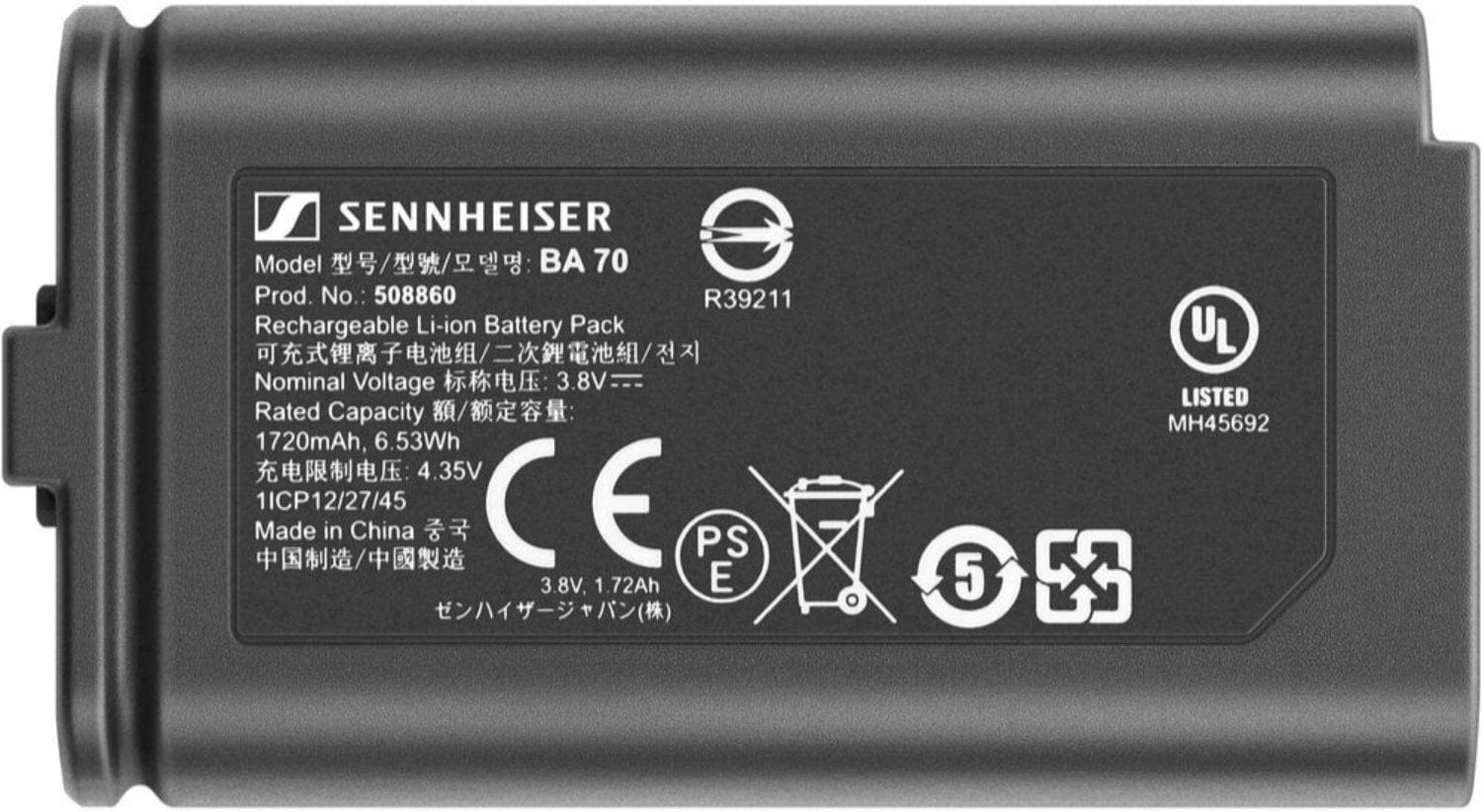

- 12 hours of operation with included BA 70 battery
- Function buttons for direct transmitter control
- Persistent E-Ink display for always-on info
- Equidistant channel spacing for intermodulation-free channels
- 88 MHz switching bandwidth
- 1.9 ms low latency wireless transmission with SePAC
- Digital audio trim
- Charging contacts for in-device charging with separate charger
- Compatible with various Sennheiser microphones
- Versatile charging options
- Worldwide usage
Specifications:
- System:
- Audio Link Frequency Range: 470.2 - 550 MHz
- Bluetooth Low Energy (BLE) Frequency Range: 2402 - 2480 MHz
- Audio Frequency Response: 20 Hz - 20 kHz (-3 dB)
- Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level
- Dynamic Range: 134 dB
- System Latency: 1.9 ms
- Operating Temperature: -10 °C - +55 °C (14 °F - 131 °F)
- Relative Humidity: 5 - 95 % (non-condensing)

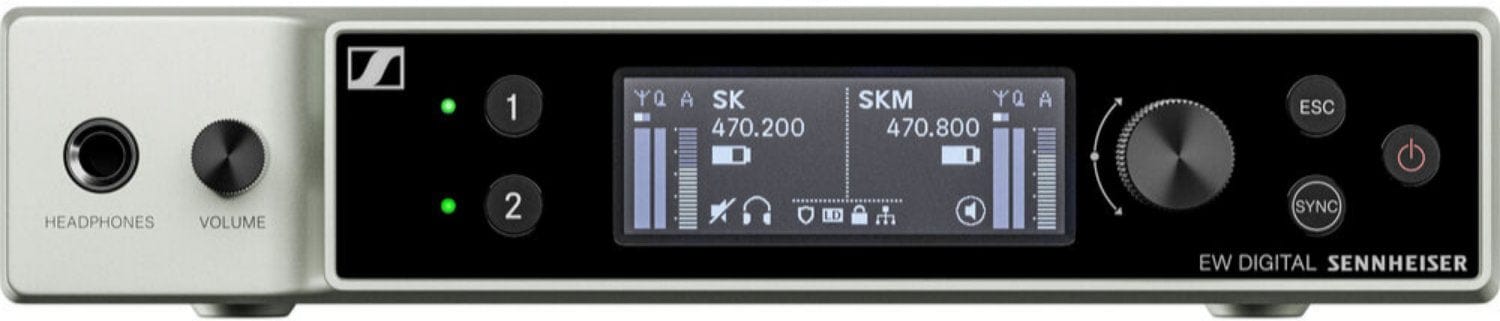

- EW-DX EM 2 (Rack Receiver):
- Input Voltage: 11 - 13 V or PoE IEEE 802.3af Class 0 (CAT5e or higher)
- Input Current: ≤ 1 A
- Transmit Power (Radiated): BLE: max. 10 mW EIRP
- Audio Output Power: 18 dBu max.
- Headphone Output: 2x 70 mW @ 32
- Ethernet:
- RJ-45 socket, IEEE802.3
- 100Base-TX (half+full duplex)
- 10Base-T (half+full duplex)
- (CAT5e or higher)
- Dimensions: 212 x 44 x 189 mm (8.35' x 1.73' x 7.44')
- Weight: approx. 1000 g (2.2 lbs) without antennas and power supply

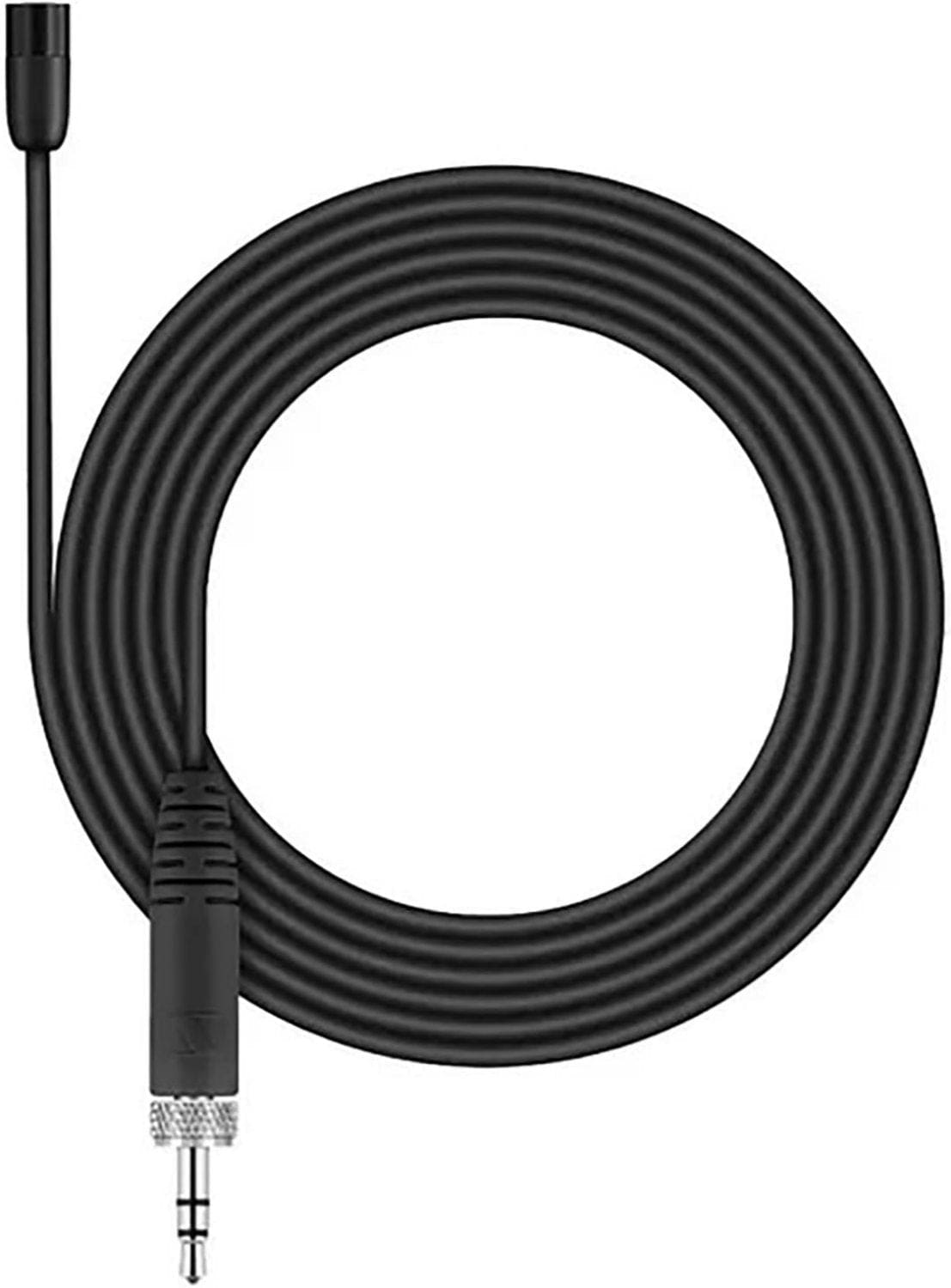

- MKE 2 (Lavalier Microphone):
- Transducer Principle: Pre-polarized condenser microphone
- Pick-up Pattern: Omni-directional
- Sensitivity (Free Field, No Load) (1 kHz): 5 mV/Pa ± 3 dB
- Max. SPL at 1 kHz: 142 dB
- Frequency Response: 20 to 20,000 Hz
- Equivalent Noise Level (A-weighted): 26 dB
- Connector: 3.5 mm jack
- Cable Length: Approx. 1.60 m
- Supply Voltage: 7.5 V

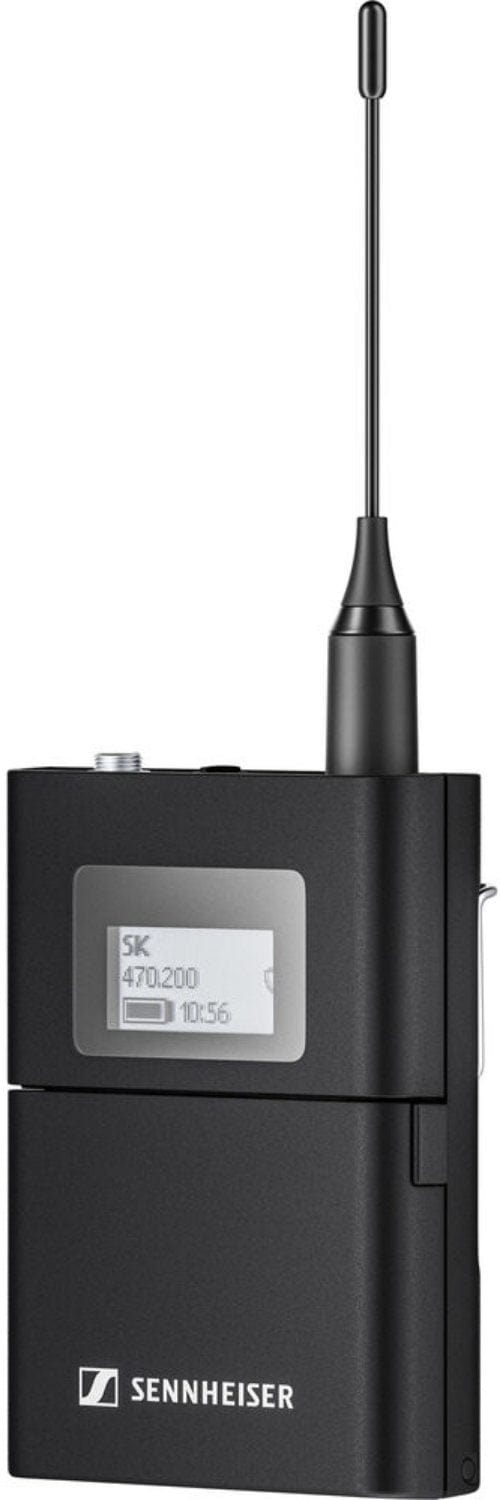

- EW-DX SK (Bodypack Transmitter):
- Input Voltage: 2.0 - 4.35 V
- Input Current: < 300 mA
- Power Supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
- Occupied Bandwidth: 200 kHz
- Transmit Power (Radiated): Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP), LD mode: 10 mW ERP, BLE: max. 10 mW EIRP
- Dimensions (without antenna): 63.5 x 85 x 20 mm (2.5' x 3.35' x 0.79')
- Weight (without batteries): Approx. 115-120 g (0.26-0.27 lbs)
This Sennheiser EW-DX MKE 2 set is perfect for professionals in live events, classrooms, and corporate presentations. It comes with 2 bodypack transmitters, 2 clip-on lavalier mics, a rackmount receiver, and 2 rechargeable batteries. The system simplifies workflows with advanced tech. The rack receiver is 212 x 44 x 189 mm, weighs about 1000 g without antennas and power supply. The bodypack transmitter is 63.5 x 85 x 20 mm, weighs 115 - 120 g without batteries. Ideal for those seeking high-quality audio solutions for their events or presentations.
