Sennheiser EW-DX SK / SKM-S BASE SET (V5-7) Digital Wireless Base Set

Sennheiser EW-DX Digital Wireless Base Set - Your Ultimate Audio Solution

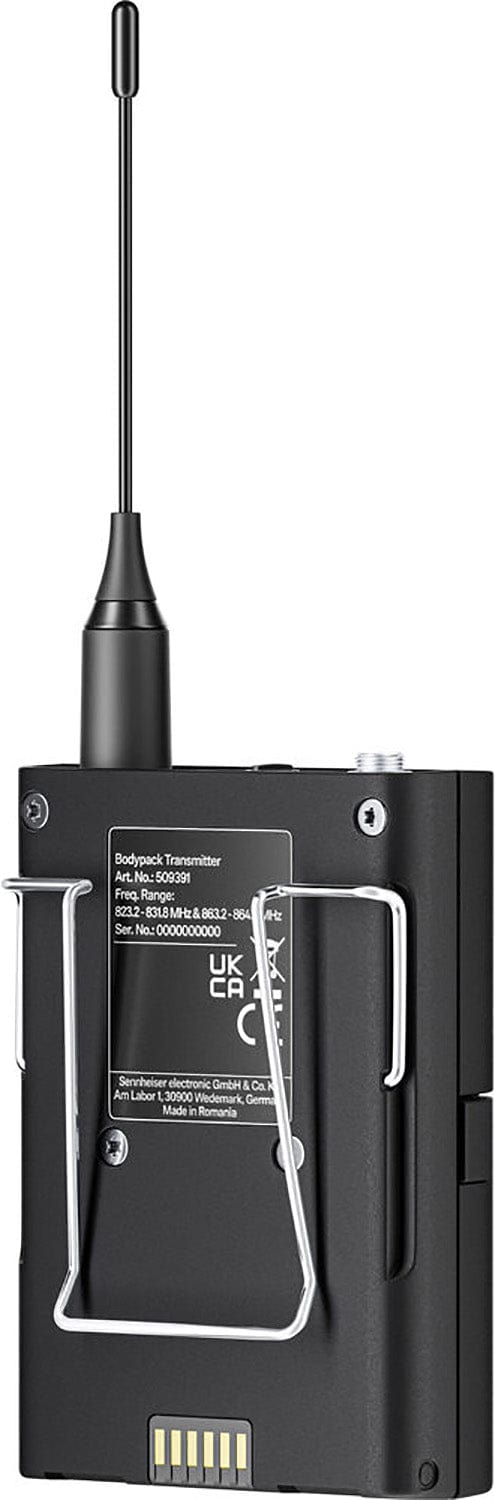

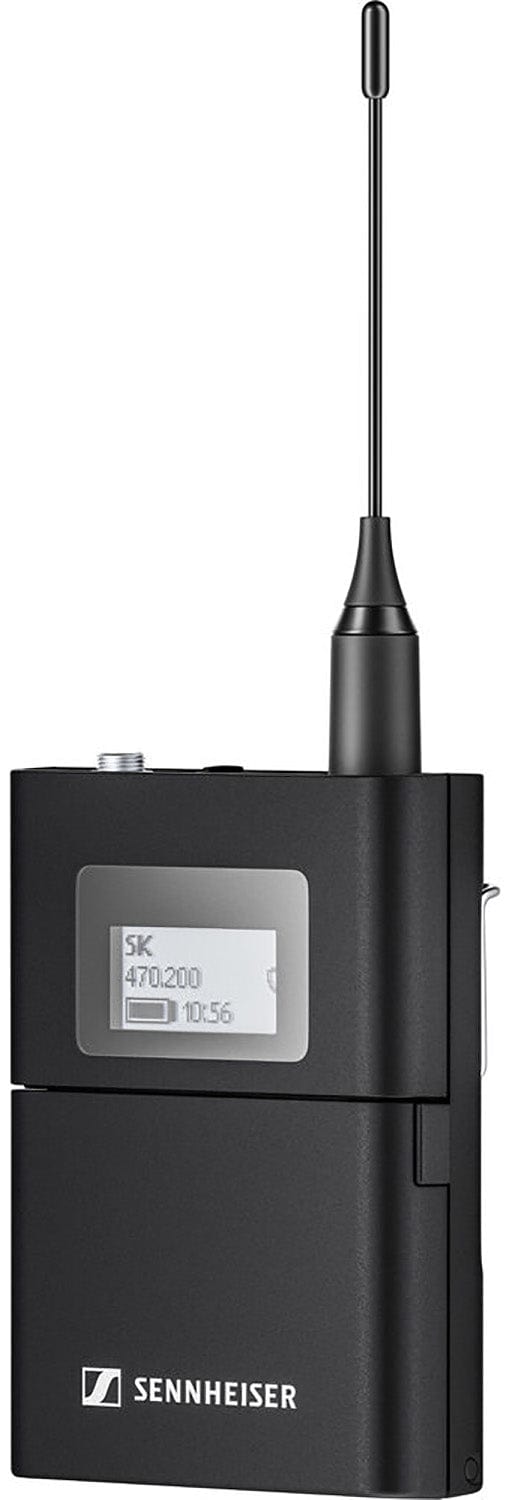

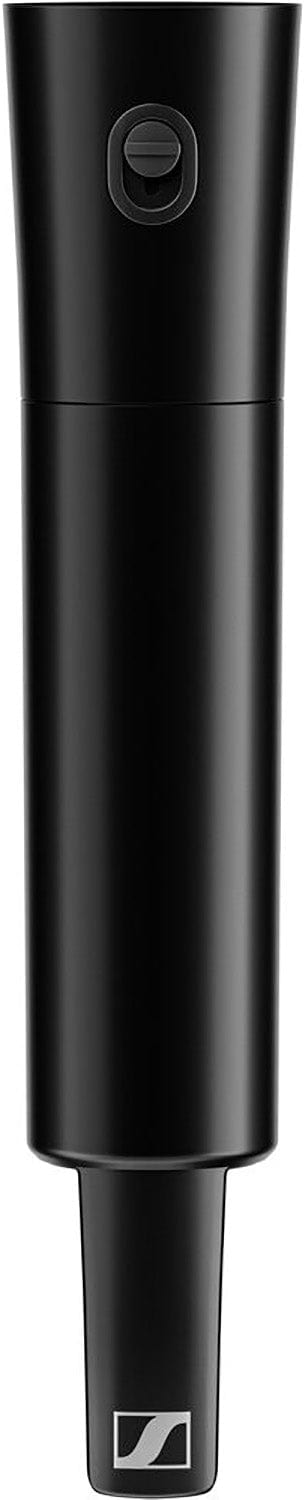

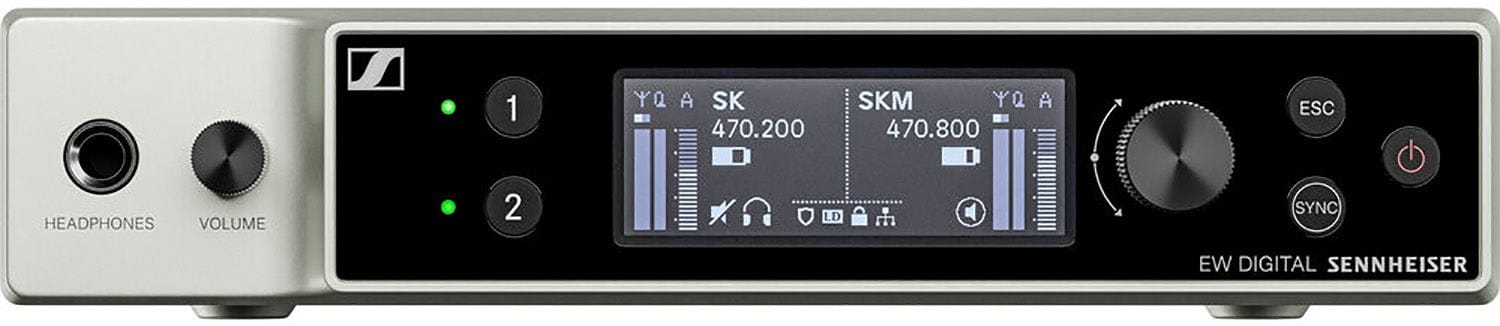

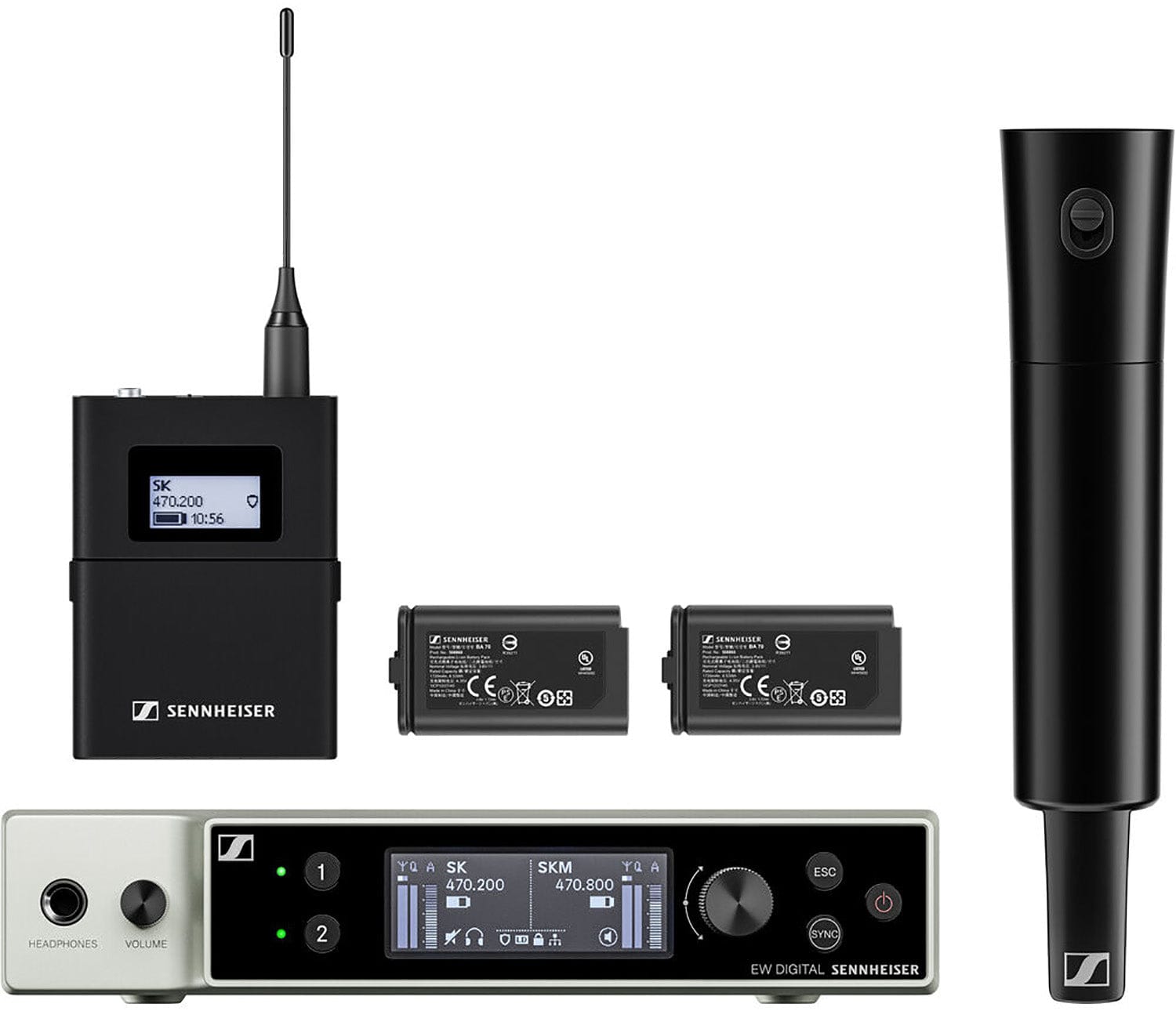

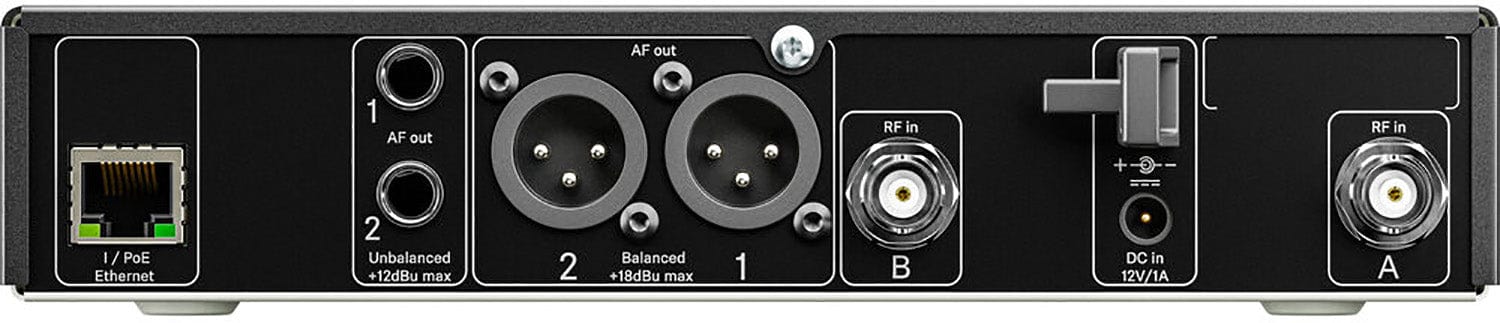

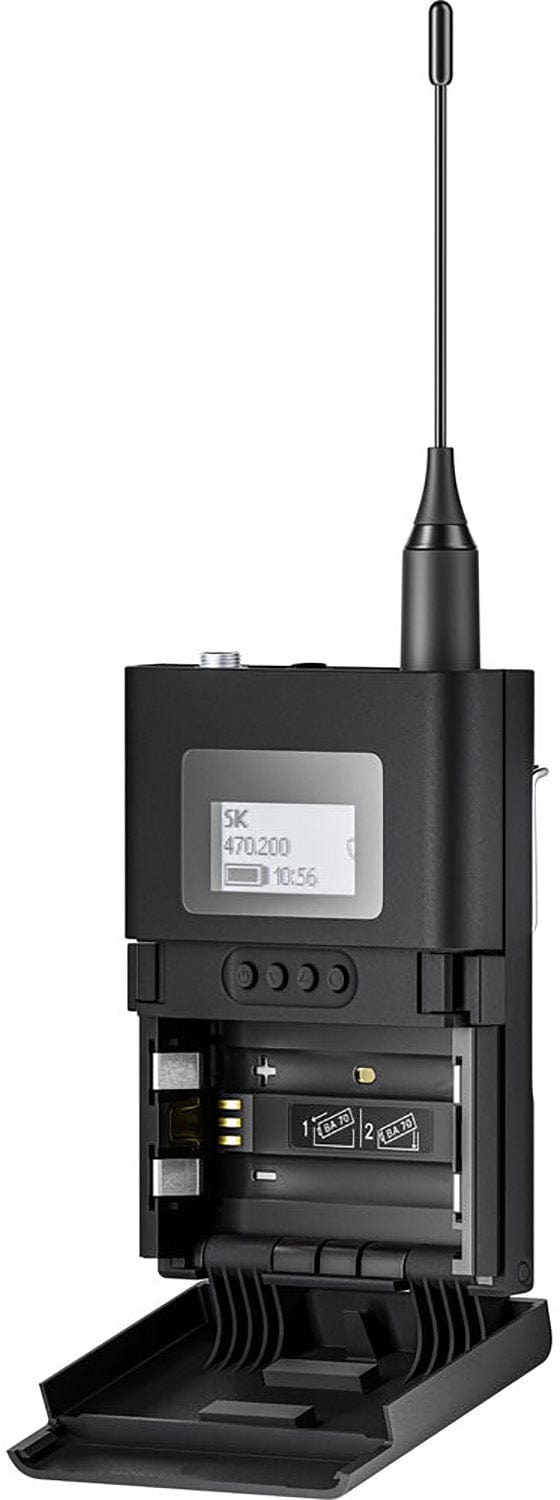

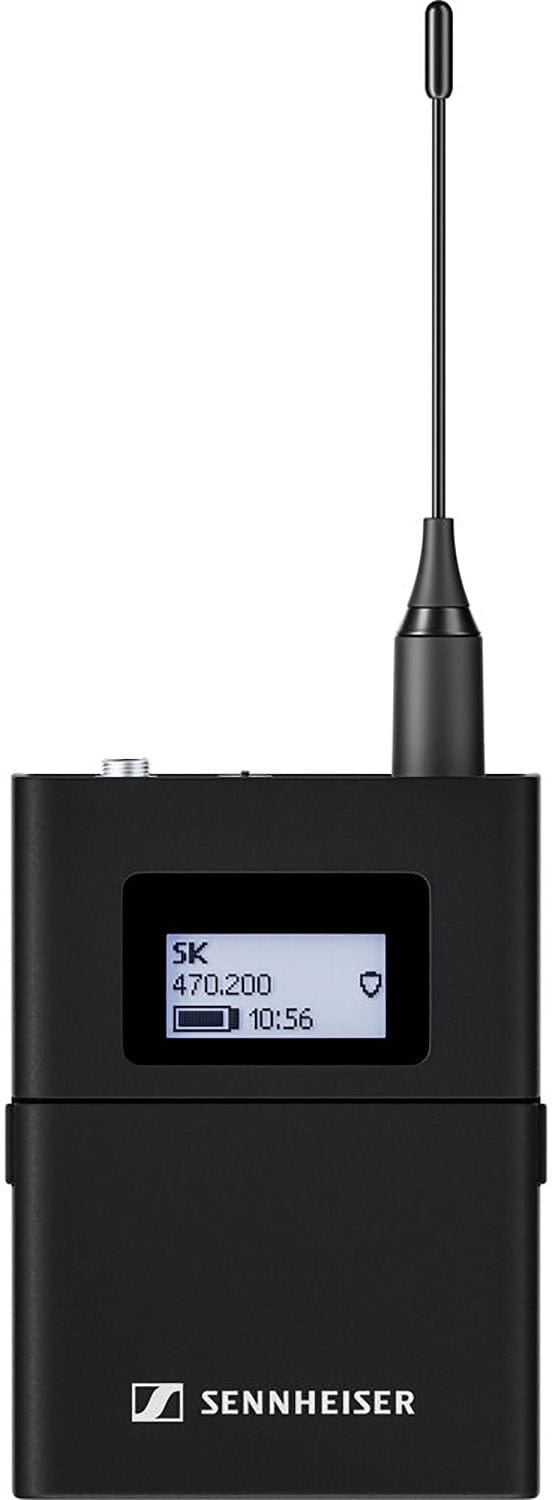

Get the Sennheiser EW-DX base set, featuring 1 x EW-DX SKM-S (handheld with mute switch), 1 x EW-DX SK (wireless bodypack transmitter), 1 x EW-DX EM 2 rackmount receiver (2 channels), and 2 x BA 70 rechargeable batteries. Microphone capsules are sold separately.

• Seamless Scalability: Effortlessly scale your digital UHF system with Sennheiser's refined technologies and decades of research. Ideal for classrooms, corporate campuses, and live productions.• Advanced Features: Enjoy features like AutoScan, network-enabled remote control, and AES 256 encryption.• Customizable: Choose the capsule that best meets your needs with the Sennheiser Standard Capsule Interface. The Sennheiser EW-DX simplifies your professional workflow. With its advanced features and hardware options, it's a network-ready system designed to integrate seamlessly. The system quickly assesses your environment and deploys frequencies with equidistant channel spacing. Tools like Sennheiser's Control Cockpit, Wireless Systems Manager, and Smart Assist App allow you to monitor your system remotely. In-device charging, 12-hour battery operation, and 88 MHz switching bandwidth make it the perfect tool for the job.

Features:

• 134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
• AutoScan-feature quickly scans your environment and deploys frequencies with equidistant channel spacing - even without RF knowledge
• Network enabled for expanded remote control with Sennheiser Control Cockpit, Wireless System Manager (WSM - Available in mid-2023) and 3rd party media control systems via plug-in
• Remote control via Smart Assist App over Bluetooth Low Energy (BLE) at distances up to 25 meters (Available in late 2023)
• Secure transmission of confidential content using AES 256 encryption

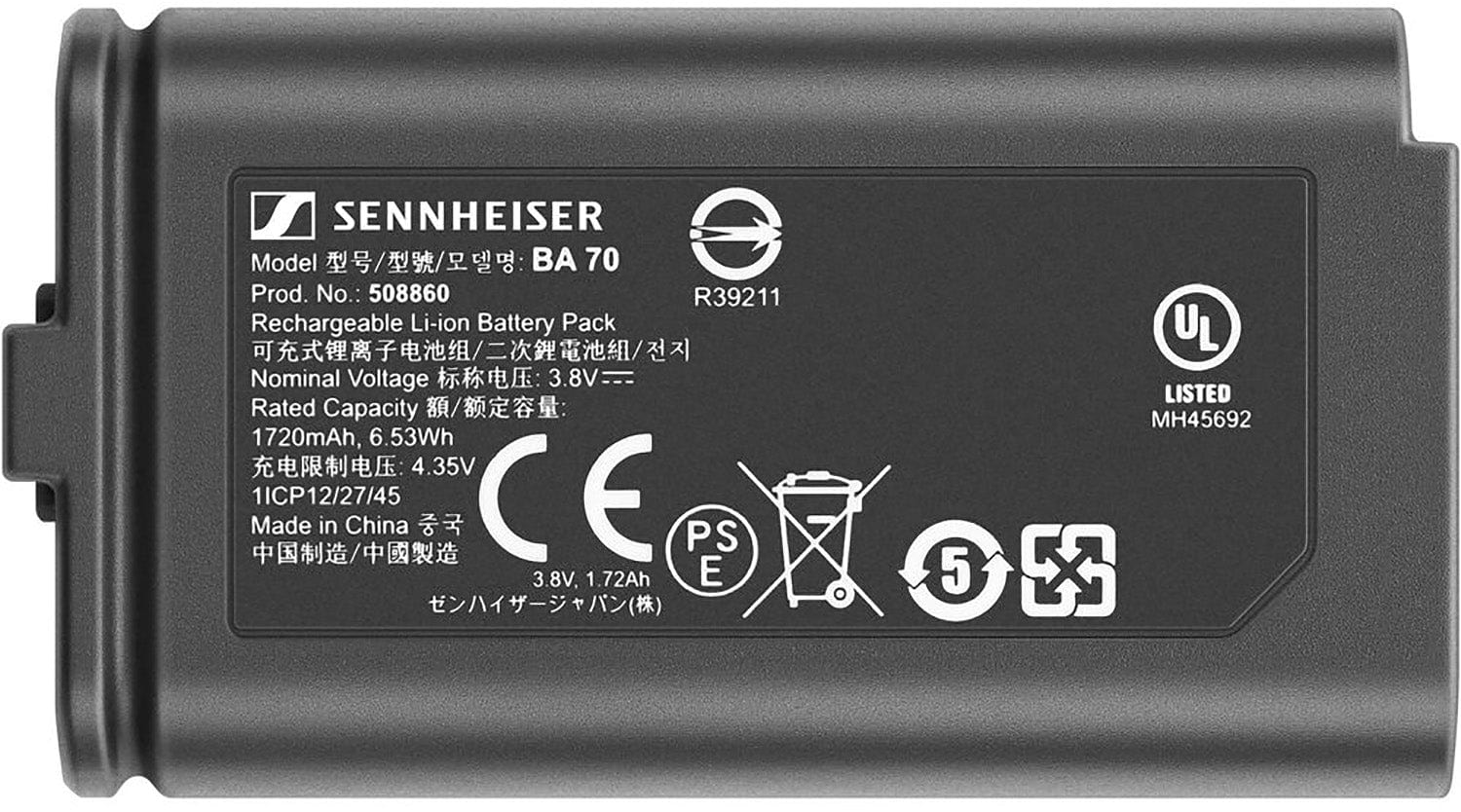

• Up to 12 hours of operation time with rechargeable lithium ion battery BA 70 (included)
• Function buttons - control all the transmitter settings directly from the handheld and bodypack including button lock function
• Persistent E-Ink display for 'always on' information - parameters visible on screen even when taking out batteries
• Equidistant channel spacing to easily allocate intermodulation-free channels: Standard Mode with 600 kHz spacing for up to 146 channels; Link Density (LD) Mode with 300 kHz spacing for up to 293 channels
• Up to 88 MHz switching bandwidth
• Low latency of 1.9 ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
• Digital audio trim
• Transmitters with charging contacts for in-device charging with CHG 70N charger (sold separately)
• Sennheiser Standard Capsule Interface - compatible with a wide range of Sennheiser and Neumann capsules (sold separately)
• Compatible with a wide range of Sennheiser lavalier and headset microphones with 3.5 mm jack plug connection (sold separately)
• Versatile charging options optionally available: CHG 70 N, L 70 USB, LM 6070 Module for L 6000 full rack charging station (Availability in 2023)
• Worldwide usage (specific frequencies subject to local RF regulations)

Specifications:

• Product:
  • Total Harmonic Distortion: ¡Ü -60 dB for 1 kHz @ -3 dBfs input level
• Frequency Specifications:
  • Audio Frequency Response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
• Acoustic Properties:
  • Dynamic Range: 134 dB
• Ambient Conditions:
  • Operating Relative Humidity: 5 - 95 % (non-condensing)
  • Operating Temperature: -10 °C - +55 °C (14 °F - 131 °F)
• Electrical Properties:
  • Input Voltage: 2.0 - 4.35 V
• Dimensions:
  • Dimensions: 212 x 44 x 189 mm
  • Height (mm): 73
  • Length (mm): 405
  • Master Carton Height (mm): 258
  • Master Carton Length (mm): 420
  • Master Carton Weight (g): 661.558
  • Master Carton Width (mm): 435
  • Weight (g): approx. 1000 g (2.2 lbs) (without antennas and power supply)
  • Width (mm): 350
  • Package Depth: 350
  • Package Height: 73
  • Package Weight: 3140
  • Package Width: 405

The Sennheiser EW-DX Digital Wireless Base Set is perfect for professionals in classrooms, corporate campuses, and live productions. It includes 1 handheld, 1 bodypack transmitter, a 2-channel receiver, and 2 rechargeable batteries. The set offers seamless scalability, advanced features, and customizable options. With dimensions of 212 x 44 x 189 mm and a weight of approx. 1000 g (without antennas and power supply), it's a great choice for your audio needs.
