Sennheiser SKM 100 G4-S Mic Transmitter w Switch G
Choose from Sennheiser's renowned e 835, e 845, e 865, e 935, e 945 capsules for top-notch audio quality.

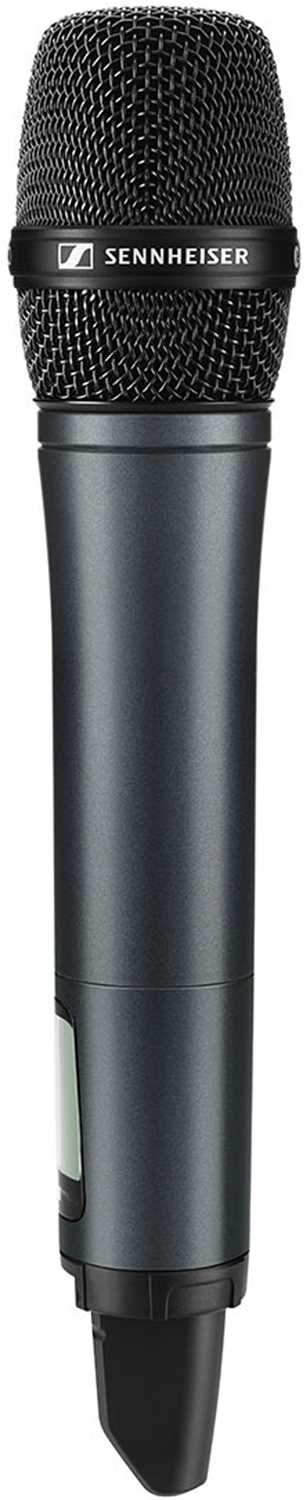

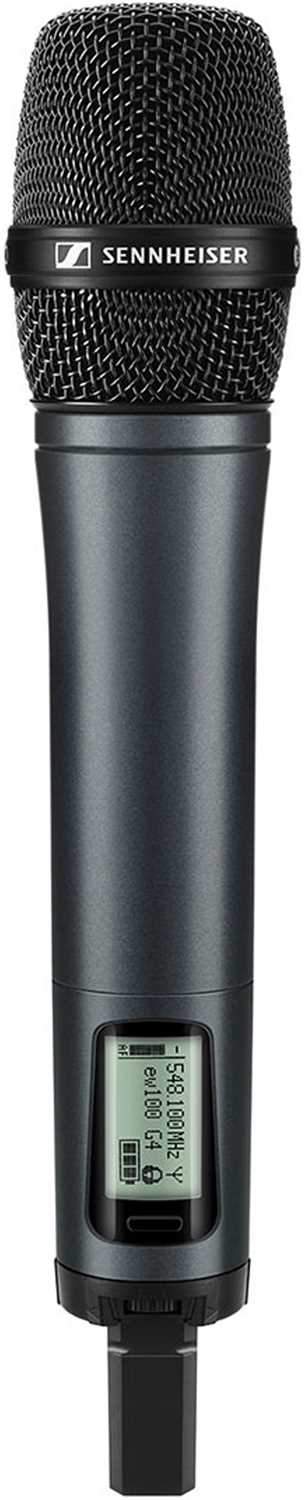

This powerful handheld transmitter features a lightweight aluminum housing and an integrated mute switch for the evolution wireless G4 100 Series systems.
What's in the box
- SKM 100 G4-S handheld transmitter
- MZQ 1 microphone clamp
- 2 AA batteries
- quick guide
- safety guide
- manufacturer declaration sheet
Features:
- • Choose from Sennheiser's renowned capsules for exceptional sound
- • Easy infrared wireless synchronization between transmitter and receiver
- • Fast frequency allocation for up to 12 receivers
Specifications:
- Frequency range: G: 566 - 608 MHz
- Dimensions: Approx. 50 x 265 mm
- Compander:Sennheiser HDX
- THD, total harmonic distortion: 0.9 %
- Weight: (incl. batteries) approx. 450 g
- Signal-to-noise ratio: 110 dBA
- RF output power: Max. 30 mW
- Switching bandwidth: up to 42 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Operating time: Typically 8 h
- Modulation: Wideband FM
- Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: 25 A
- Input impedance: 40 k
- Max. Input voltage: 3 Veff
- Powering: 3 V battery / 2.4 V rechargeable battery
- Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
- AF frequency response: 80 – 18,000 Hz
- Temperature Range: -10 °C to +55 °C
- Frequency stability: ±15 ppm
This Sennheiser SKM 100 G4-S Handheld Mic Transmitter is perfect for live performances, public speaking, and presentations. It's designed for anyone who needs a reliable and high-quality microphone transmitter. With a lightweight aluminum housing and an integrated mute switch, it's easy to use and transport. The transmitter is compatible with Sennheiser's evolution wireless G4 100 Series systems and offers a range of features, including easy infrared wireless synchronization between transmitter and receiver, fast frequency allocation for up to 12 receivers, and a choice of Sennheiser's renowned capsules for exceptional sound. The transmitter has a frequency range of G: 566 - 608 MHz, dimensions of Approx. 50 x 265 mm, and a weight of (incl. batteries) approx. 450 g.
