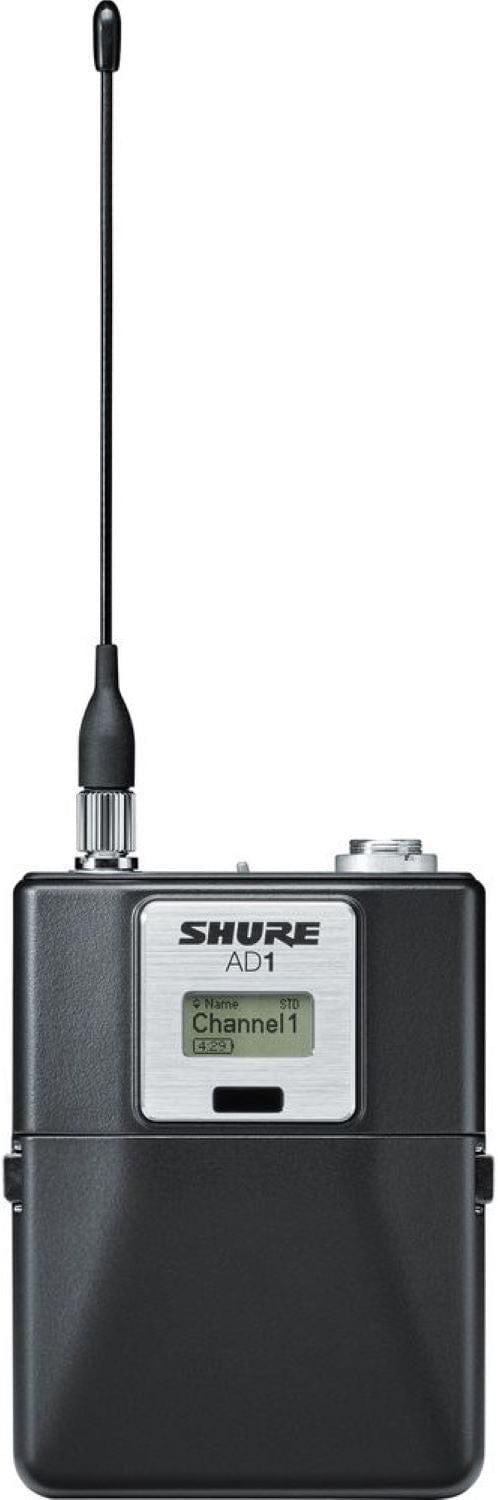

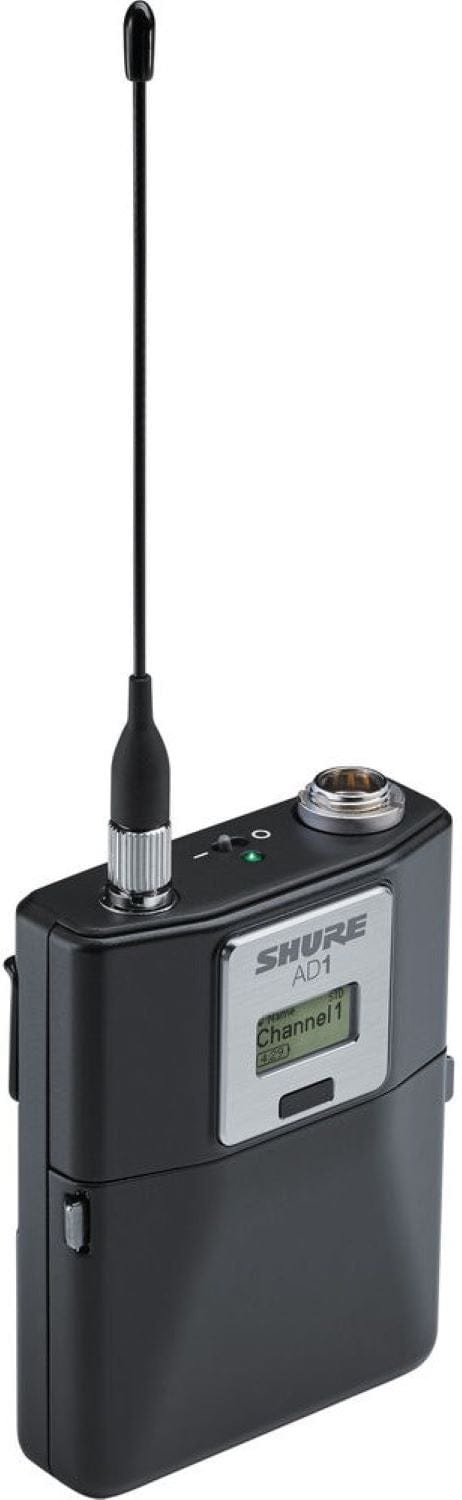

Shure Axient AD1 Bodypack Transmitter - The Ultimate in Professional Wireless Audio
Get ready to experience top-notch audio quality and outstanding RF performance! The AD1 offers wide-tuning, High Density mode, and encryption for flawless sound. Its durable metal build, optional rechargeable power with dockable charging, and TA4 and LEMO3 connector options make it a must-have.
This wireless bodypack transmitter is compatible with Axient Digital Wireless Systems. With breakthrough RF performance and a wide tuning range up to 184 MHz, professional-quality wireless digital audio is now within your reach.
Features:
- • Two transmission modes for optimal coverage or maximum channel count
- • Encryption for secure transmission
- • Two connector options for flexibility
Specifications:
- System:
- Wireless Transmission: Digital UHF
- RF Frequency Band: 470 to 616 MHz
- RF Bandwidth: 146 MHz
- Frequency Step Size: 25 kHz
- Max Operating Range: 328.1' / 100 m (Line of Sight)
- Latency: 2 to 2.9 ms (Selectable)
- Encryption: AES 256
- Modulation: Proprietary
- Transmitter:
- Form Factor: Bodypack
- RF Output Power: 2 / 10 / 35 mW

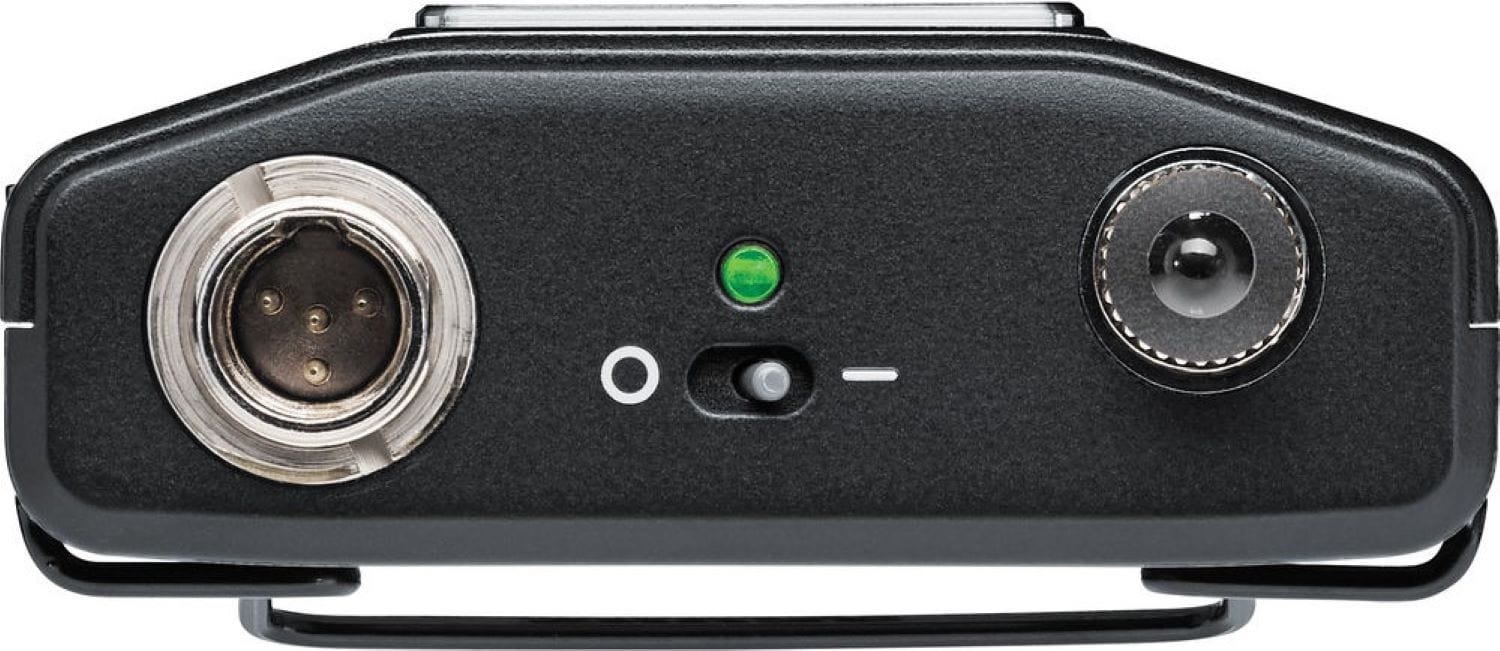

- Audio I/O: 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
- Pad: 12 dB
- Muting: Off/On Switch
- Audio Input Level:
- 8.5 dBV / 7.5 Vpp (Pad Off)
- 20.5 dBV / 30 Vpp (Pad On)
- Gain Range: -12 to +21 dB (1 dB Steps)
- Sync Method: IR
- Antenna: 1 x 1/4 Wave Flexible Whip, Detachable (Beltpack)
- Power Requirements: Battery
- Battery Type:
- 2 x AA (Included, Replaceable)
- 1 x Rechargeable (Not Included, Replaceable)
- Approx. Battery Life:
- 8 Hours (Alkaline)
- 9 Hours (Lithium Rechargeable)
- Display & Indicators: 1 x Back-Lit LCD (Battery Status, Channel, Group, Signal Strength)
- Housing: Aluminum
- Operating Temperature: 0 to 122°F / -17 to 50°C
- Storage Temperature: -20 to 165°F / -28 to 73°C
- Dimensions: 2.6 x 3.4 x 0.9' / 66.0 x 86.0 x 23.0 mm (without Antennas)
- Weight: 5.5 oz / 155.0 g (without Batteries)
- Packaging Info:
- Package Weight: 1.085 lb
- Box Dimensions (LxWxH): 12.7 x 4.9 x 3.35'
The Shure Axient AD1 Bodypack Transmitter is perfect for professionals on the go. Whether you're a musician performing live, a videographer shooting on location, or a presenter giving a speech, this transmitter provides high-quality wireless audio. It has a compact bodypack design, measuring 2.6 x 3.4 x 0.9' and weighing 5.5 oz without batteries. With features like two transmission modes, encryption, and multiple connector options, it offers great flexibility. It operates within a frequency band of 470 to 616 MHz and has a max operating range of 328.1' in line of sight. The battery life is approximately 8 hours with alkaline batteries and 9 hours with lithium rechargeable batteries.
