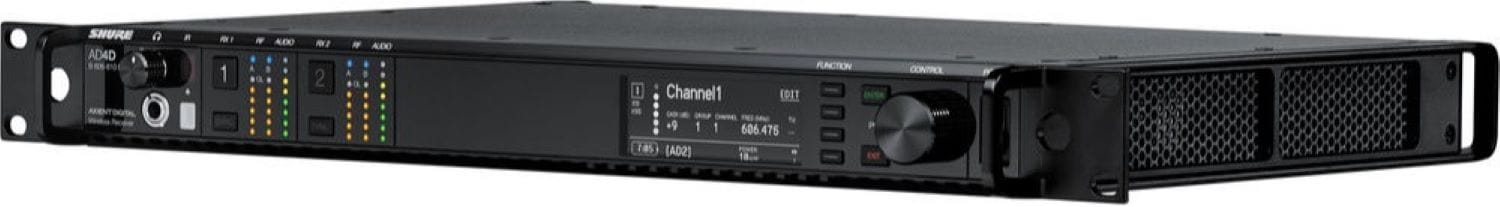

Shure Axient AD4DNP Two-Channel Digital Wireless Receiver - B Band

Shure Axient AD4DNP B Band Two-Channel Digital Wireless Receiver - Unleash Exceptional Audio

The AD4D Axient Digital Dual Receiver revolutionizes digital audio with groundbreaking features. It offers a new standard in transparent digital audio and maximum spectral efficiency. Here's why it stands out:

• Superior Performance: Enjoy wide tuning, low latency, and High Density (HD) mode for reliable performance even in tough RF environments.
• Flexible Control: Networked control and signal routing options bring a new level of management and flexibility to your workflow. Compatible with all Axient Digital transmitters.

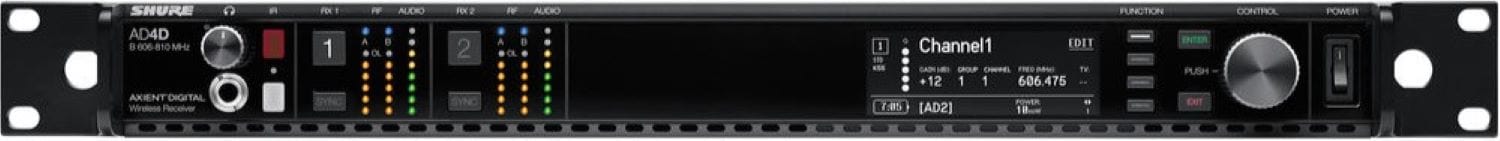

• User-Friendly Design: With features like a front panel headphone jack for Dante Cue and Dante Browse monitoring, and a configurable Ethernet switch for redundant Dante digital output, it's easy to use.

Get ready to experience audio like never before with the Shure Axient AD4DNP B Band Two-Channel Digital Wireless Receiver.

Features:

• Wide tuning range up to 184MHz
• True digital naversity reception per channel for drop-out resistance
• Networked control with Wireless Workbench ® and ShurePlus℠Channels app
• Front panel headphone jack enables Dante Cue and Dante Browse monitoring
• Configurable Ethernet switch for redundant Dante digital output
• AES3 output
• Channel Quality meter displays RF signal-to-noise
• Locking AC connectors
• Optional DC module available to support redundant power

Specifications:

• Dimensions: 44 mm × 483 mm × 333 mm (1.7 in. × 19.0 in. × 13.1 in.), H × W × D
• Weight: 4.6 kg (10.1 lbs), without antennas
• Housing: Steel; Extruded aluminum
• Power Requirements: 100 to 240 V AC, 50†0 Hz; 0.26 A max.
• Thermal Dissipation:
  • Maximum: 23 W (78 BTU/hr)
  • Idle: 15 W (52 BTU/hr)

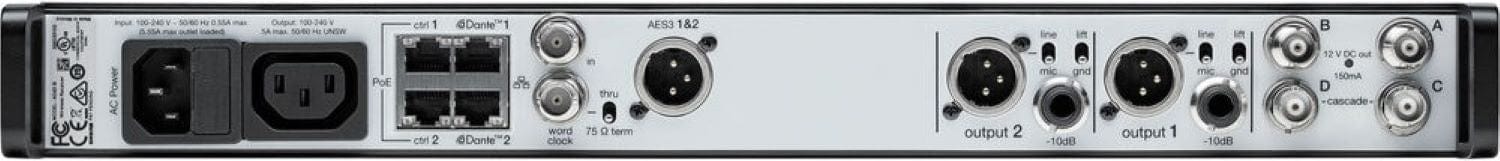

• Audio Output:
  • Gain Adjustment Range: †8 to +42 dB in 1 dB steps (plus Mute setting)
  • Configuration:
    • 1/4' (6.35 mm): Transformer-coupled Balanced (Tip=audio, Ring=no audio, Sleeve=ground)
    • XLR: Transformer-coupled Balanced (1=ground, 2=audio +, 3=audio -)
  • Impedance (Typical, XLR Line out): 100Ω
  • Full Scale Output (200 kΩ load):
    • 1/4' (6.35 mm): +8 dBV
    • XLR: LINE setting= +18 dBV, MIC setting= †2 dBV
  • Mic/Line Switch: 30 dB pad
  • Phantom Power Protection: Yes
• Networking:
  • Network Interface: 10/100 Mbps, 1 Gbps, Dante Digital Audio
  • Network Addressing Capability: DHCP or Manual IP address
  • Maximum Ethernet Cable Length: 100 m (328 ft)
• Cascade output:
  • Connector Type: BNC
  • Configuration: Unbalanced, passive
  • Impedance: 50 Ω
  • Insertion Loss: 0 dB, typical
• RF Input:
  • Spurious Rejection: >80 dB, typical
  • Connector Type: BNC
  • Impedance: 50 Ω
  • Bias Voltage: 12†3.5 V DC, 150 mA maximum, per antenna, switchable on/off
• RF Carrier Frequency Range: B: 606†10 MHz

The Shure Axient AD4DNP B Band Two-Channel Digital Wireless Receiver is perfect for professionals in the audio industry. Whether you're in a live event, studio recording, or broadcast setting, this receiver delivers exceptional audio quality. With its wide tuning range, it can adapt to various RF environments. Measuring 44 mm x 483 mm x 333 mm (1.7 in. x 19.0 in. x 13.1 in.) and weighing 4.6 kg (10.1 lbs) without antennas, it's compact and lightweight for easy setup and portability. Its advanced features ensure reliable performance and seamless integration into your workflow.
