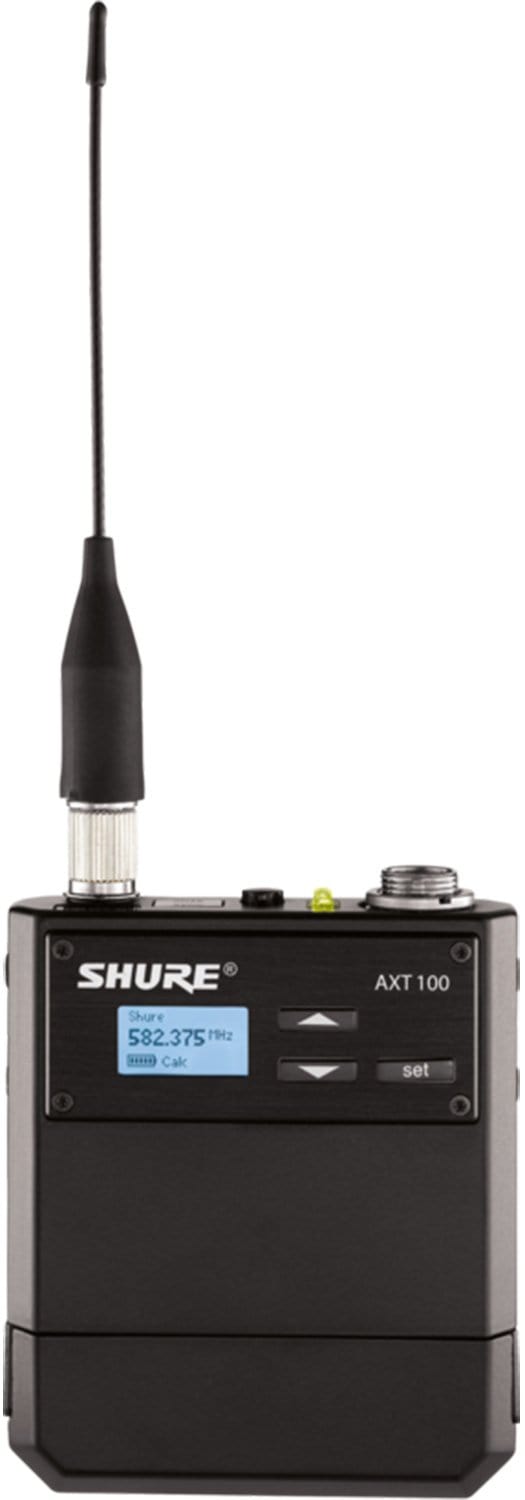

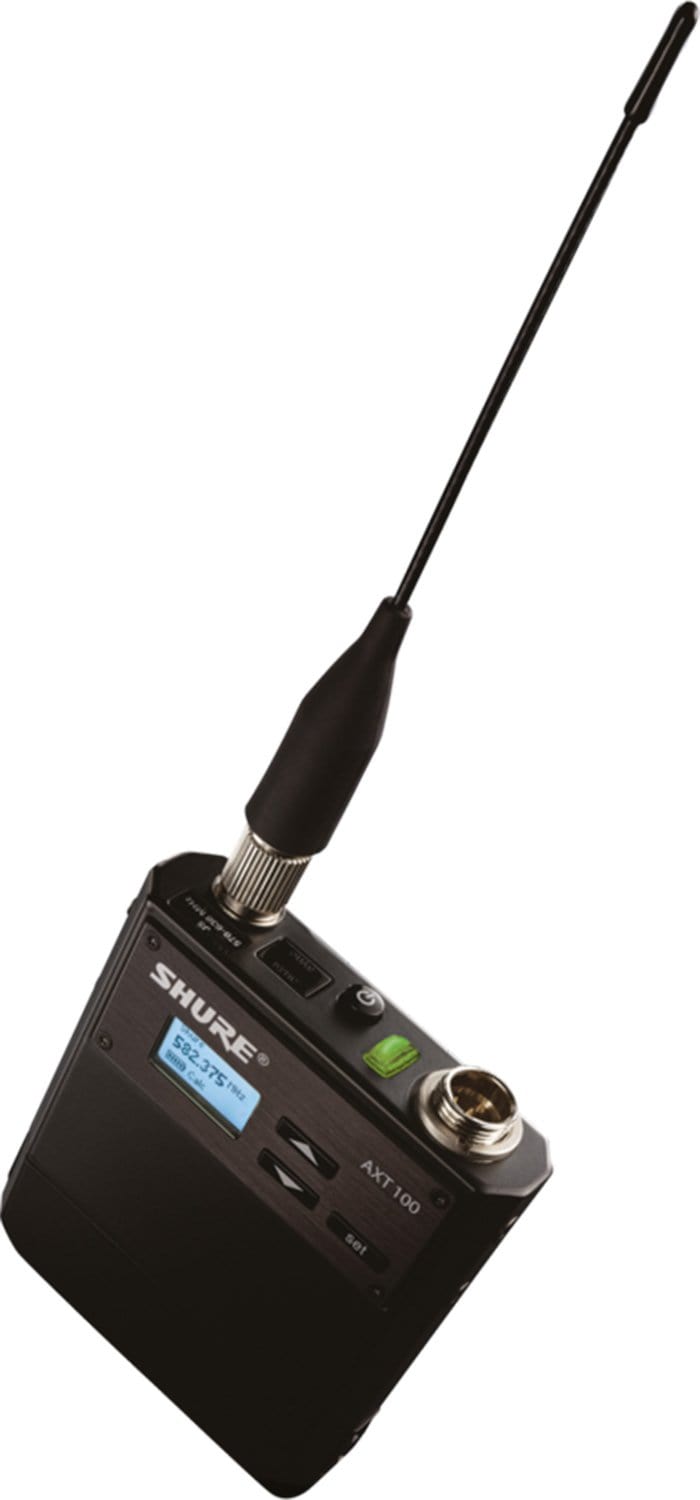

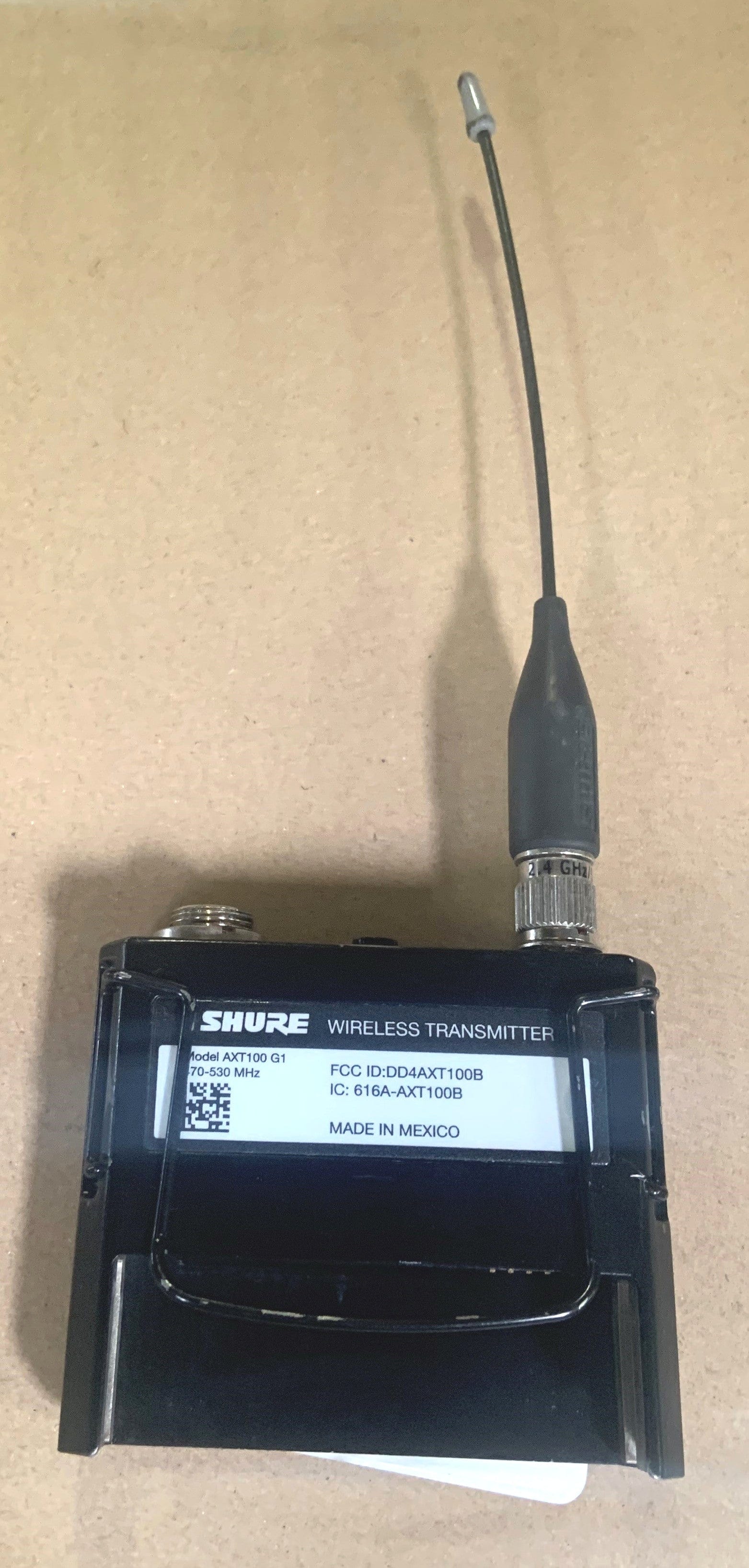

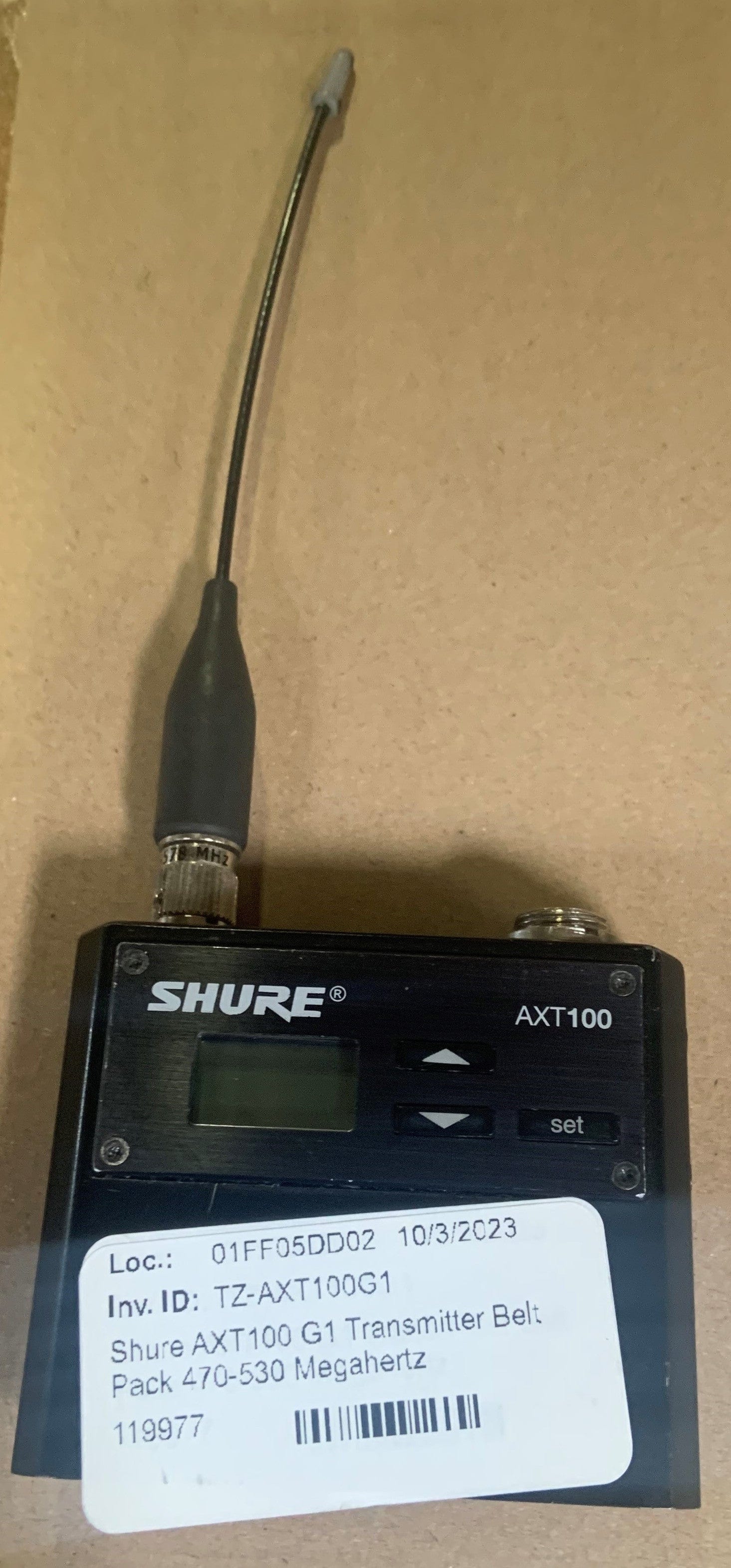

Shure AXT100 G1 Transmitter Belt Pack: Superior Audio on the Go
BATTERY NOT INCLUDED
Get superior audio performance in a compact, lightweight package. Maximize channels in crowded RF environments with efficient RF performance. Enjoy extended battery life and accurate status metering with advanced power management. Control all transmitter parameters in real-time with ShowLink Remote Control.
Features:
- • Ultra-linear RF performance for more channels
- • IR Sync function for automatic tuning
- • Real-time remote control of all parameters
- • Up to 8 hours of runtime from a single charge
- • Advanced control menu for frequency and audio adjustments
- • 50 dB of adjustable gain for optimal audio
- • Lockable user interface to prevent accidental changes
- • Talk Switch mode for remote audio routing
- • Compatible with Shure wireless microphones with TA4F connector
- • LEMO connector version available for LEMO microphones
Specifications
- • RF Carrier Frequency Range: 470-530 MHz
- • Working Range: Up to 150 m (500 ft) under typical conditions, 500 m (1600 ft) line of sight outdoors for a single system
- • Audio Frequency Response: 40 Hz – 18 kHz (+1, -3 dB)
- • RF Tuning Step Size: 25 kHz
- • Modulation: 45 kHz max. deviation, FM with companding
- • Signal-to-Noise Ratio: >113 dB
- • Total Harmonic Distortion: <0.3%, A-weighted, typical
- • System Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2
- • Gain Adjustment Range: -10 to +40 dB (in 1 dB steps)
- • Battery Type: Shure AXT910 (Rechargeable Li-Ion) (Not Included)
- • Battery Life: Up to 8 hours (low power mode)
- • Dimensions: 77 mm x 66 mm x 17 mm (3.0 in. x 2.6 in. x 0.7 in.) H x W x D, with AXT910 battery
- • Weight: 146.6 g (5.2 oz.), with batteries
- • Housing: Cast aluminum
- • Operating Temperature Range: -18°C (0°F) to 63°C (145°F)
- • Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
- • Audio Input: 4-Pin male mini connector (TA4M) / 3-Pin male mini connector (LEMO), Unbalanced, 1 MΩ impedance
This Shure AXT100 G1 Transmitter Belt Pack is perfect for on-the-go audio needs. Ideal for professionals in the audio industry such as sound engineers, event organizers, and broadcasters. It offers superior audio performance in a compact size. With dimensions of 77 mm x 66 mm x 17 mm (3.0 in. x 2.6 in. x 0.7 in.) H x W x D and weighing 146.6 g (5.2 oz.) with batteries, it's easy to carry around. It operates within the temperature range of -18°C (0°F) to 63°C (145°F) and can be stored between -29°C (-20°F) to 74°C (165°F). The RF Carrier Frequency Range is 470-530 MHz, providing a reliable connection for your audio needs.
