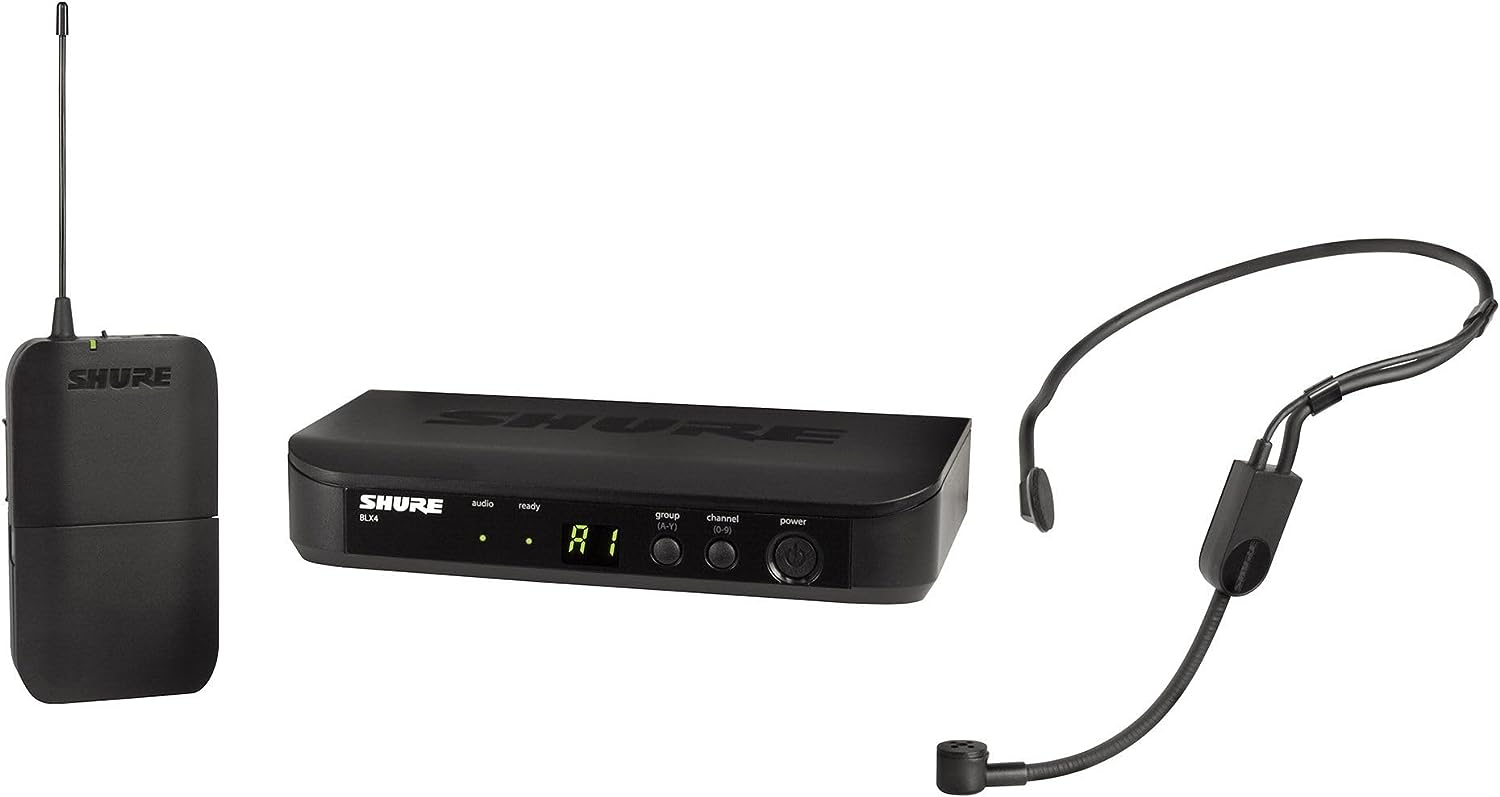

Shure BLX14 Professional Wireless Headset System with PGA31 Headset - H11 Band
Get ready to deliver outstanding audio performances with the Shure BLX14 Wireless Headset System. This system combines professional-grade sound, easy setup, and up to 14 hours of battery life, so you can focus on your performance without any worries.
Key Features:
- • Professional Sound Quality: Enjoy superior audio for confident performances.
- • Easy Setup: Spend less time on setup and more time on stage.
- • Long Battery Life: Keep going with 14 hours of power.
Specifications:
- System:
- Wireless Technology: Analog UHF
- Number of RF Channel Frequencies: 123
- Included Transmitters: 1 x Bodypack
- Diversity: Antenna Diversity
- RF Frequency Band: H11(572-596 MHz)
- RF Bandwidth: 24 MHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 300' / 91.4 m (Line of Sight)
- Max Transmitters per Band: 12
- Dynamic Range: 100 dBA

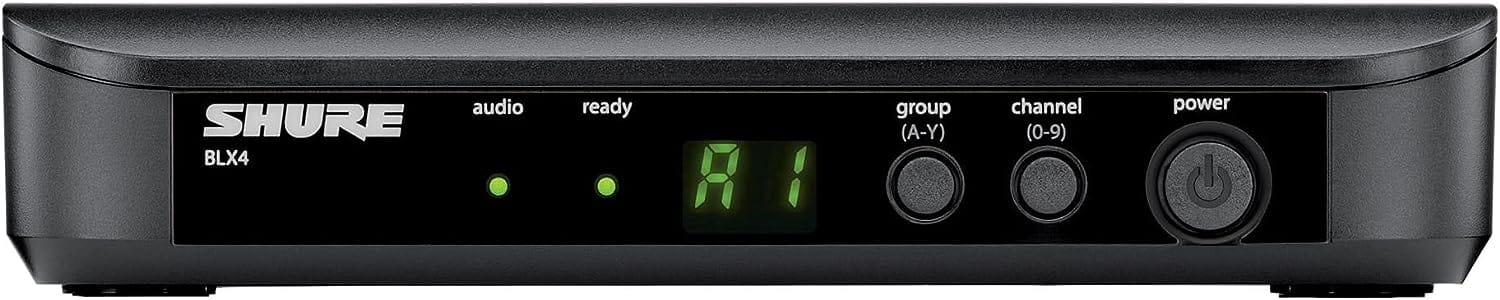

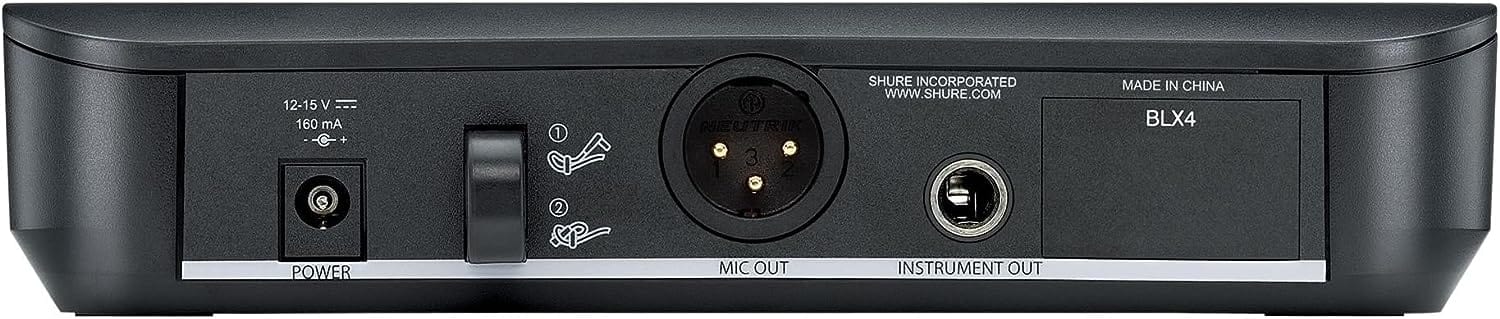

- Receiver:
- Receiver Type: Tabletop
- Antenna: 2 x Internal, Fixed
- Number of Audio Channels: 1
- Audio I/O:
- 1 x XLR 3-Pin Male Balanced Output
- 1 x 1/4' TS Female Unbalanced Output
- Audio Output Level:
- XLR Outputs: -27 dBV (Mic Level)
- 1/4' Outputs: -13 dBV (Instrument Level)
- Frequency Response: 50 Hz to 15 kHz (Dependent on Mic)
- Impedance:
- XLR Outputs: 200 Ohms
- 1/4' Outputs: 50 Ohms
- Power Requirements: AC/DC Power Adapter
- AC/DC Power Adapter: 12 to 15 VDC at 160 mA, Center-Positive (Included)
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz at 150 mA
- Display & Indicators:
- 1 x Multi-Segment LED (Channel, Group)
- 2 x LED (AF Level, Sync)
- Housing: ABS
- Operating Temperature: 0 to 135 °F / -17 to 57 °C
- Dimensions: 7.4 x 1.6 x 4.1' / 188 x 40 x 103 mm
- Weight: 8.5 oz / 241 g

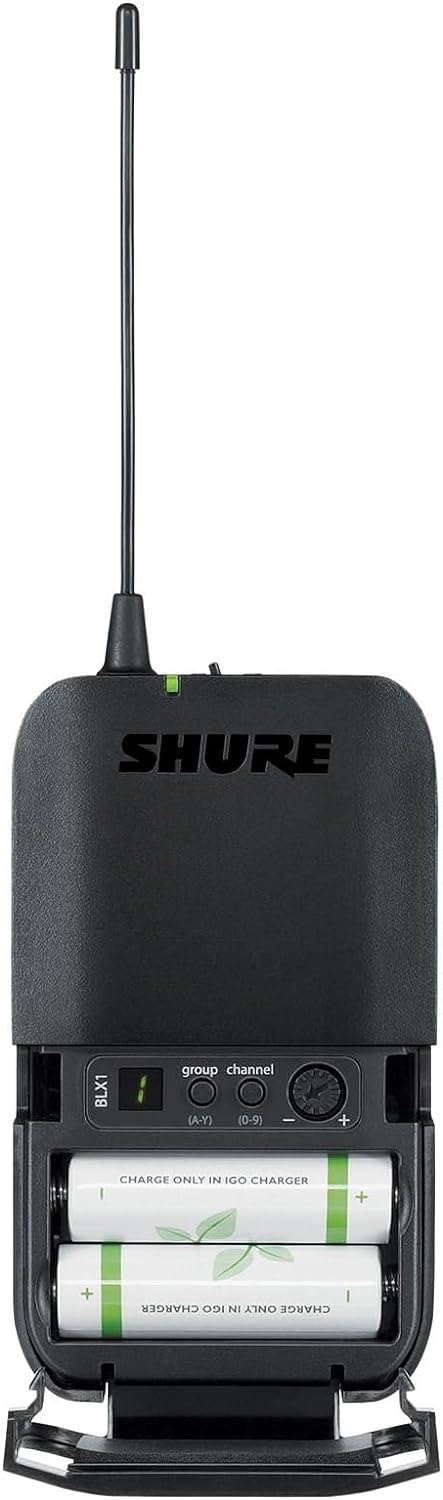

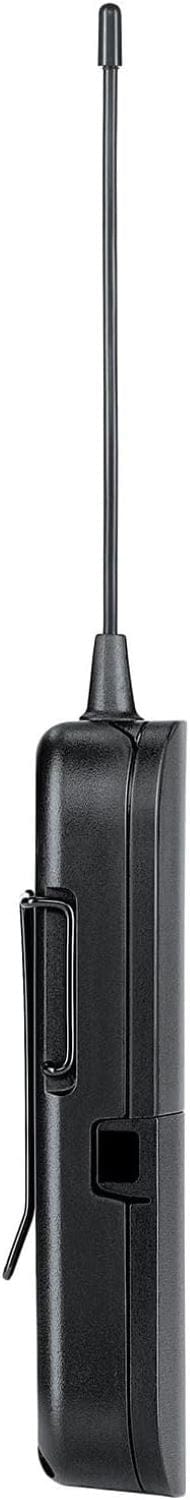

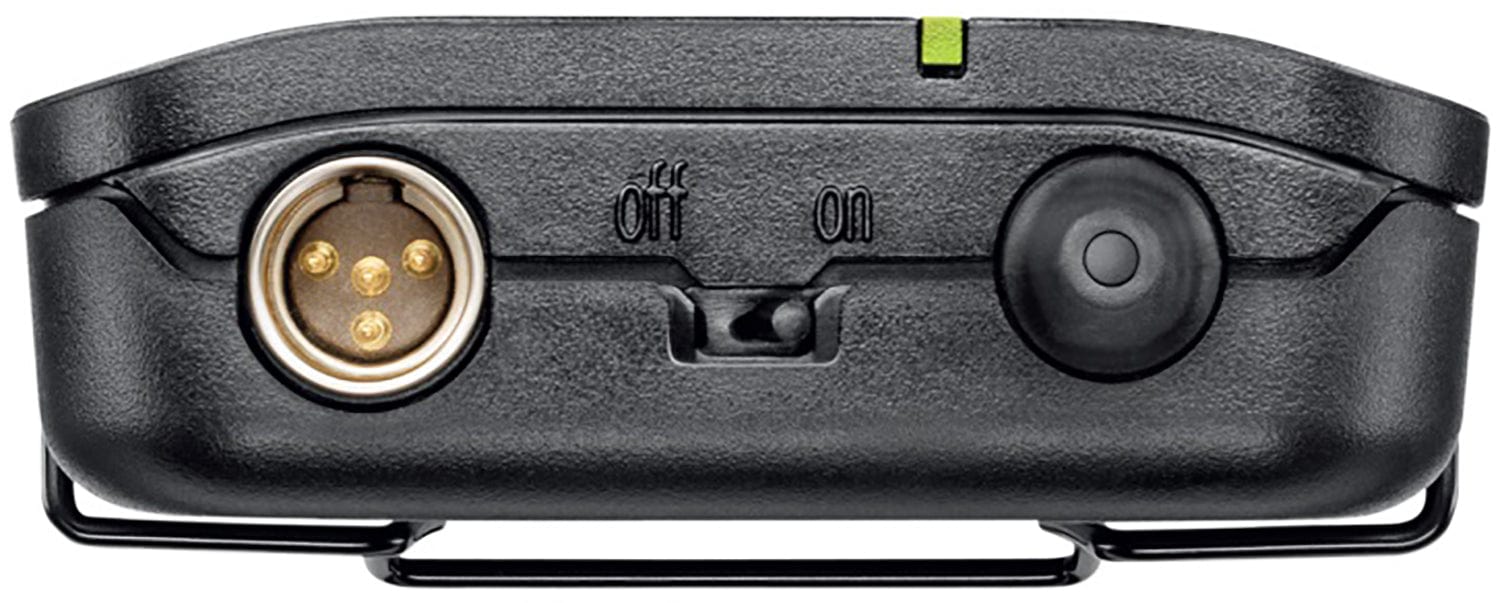

- Transmitter:
- Transmitter Type: Bodypack
- RF Output Power: 10 mW
- Audio I/O: 1 x TA4/Mini XLR 4-Pin Male Input (Lockable)
- Muting: Off/On Switch
- Auto-Level Control: No
- Gain Range: -16 to +10 dB
- Sync Method: Manual
- Antenna: 1 x Flexible Whip, Fixed (Beltpack)
- Power Requirements: Battery
- Battery Type: 2 x AA (Included)
- Approx. Battery Life: 14 Hours (Alkaline)
- Display & Indicators:
- 1 x Multi-Segment LED (Channel, Group)
- 1 x LED (Battery Status, Power)
- Housing: ABS
- Dimensions: 2.5 x 4.3 x 0.8' / 64 x 110 x 21 mm
- Weight: 2.6 oz / 75 g (without Batteries)

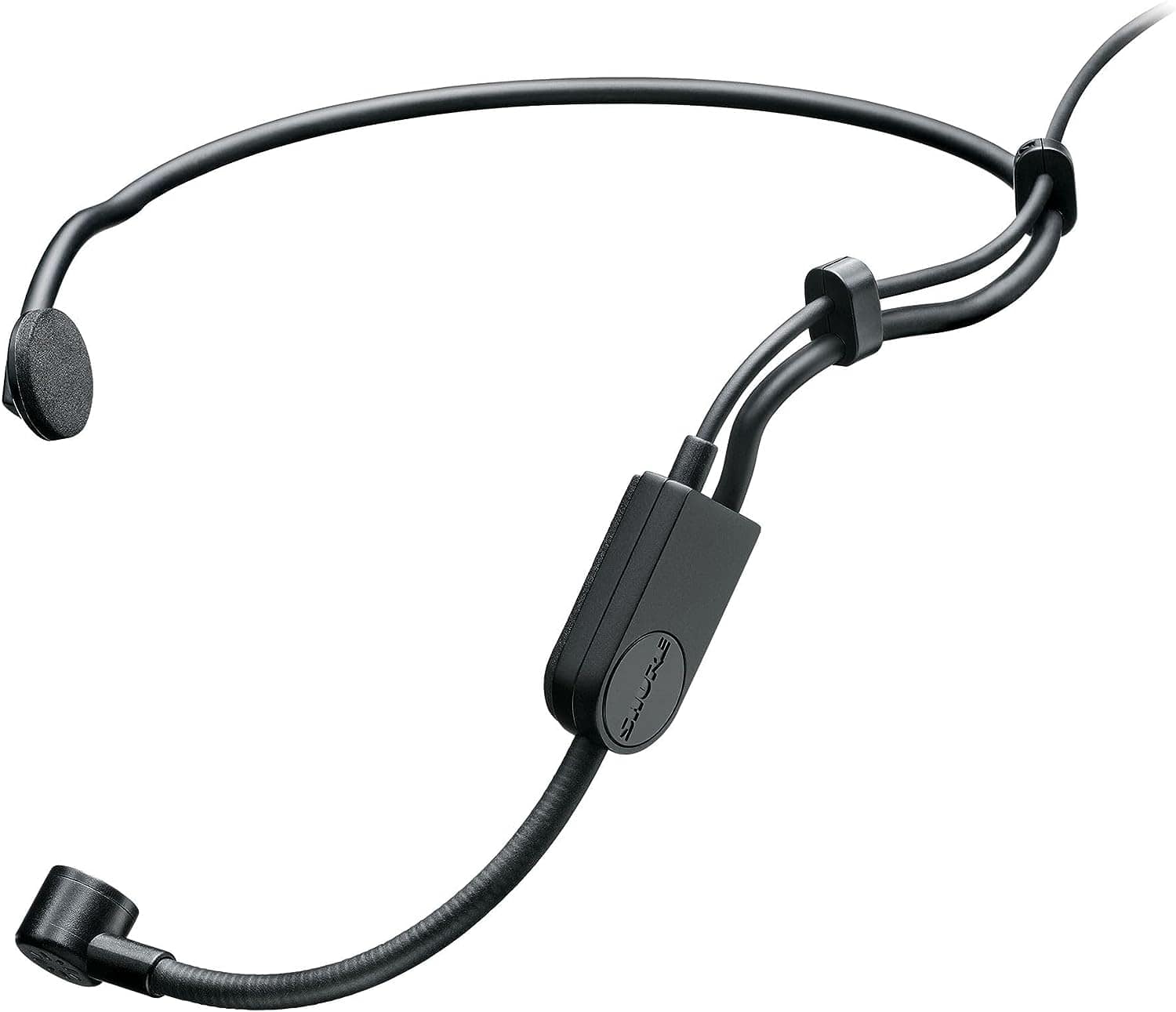

- Microphone:
- Microphone Type: Headset
- Color: Black
- Sound Field: Mono
- Capsule: Electret Condenser
- Polar Pattern: Cardioid
- Frequency Range: 60 Hz to 20 kHz
- SNR: 66 dB
- Maximum SPL: 145 dB SPL
- Impedance: 600 Ohms
- Dynamic Range: 117 dB
- Output Connector: 1 x TA4F/Mini XLR 4-Pin Female (Lockable)
- Cable Length: 4.27' / 1.3 m
- Operating Voltage: 5 V
- Weight: 1.59 oz / 45 g
- Packaging Info:
- Package Weight: 2.81 lb
- Box Dimensions (LxWxH): 13.55 x 11.8 x 4.1'
The Shure BLX14 Wireless Headset System is perfect for performers and presenters who need high-quality audio on the go. With its professional sound, easy setup, and long battery life, it's ideal for live events, conferences, and presentations. The system includes a BLX4 tabletop single-channel receiver, a PGA31 headset microphone with a BLX1 bodypack transmitter, a clothing clip, a power supply, 2 AA batteries, windscreens, and a user guide. The receiver measures 7.4 x 1.6 x 4.1' / 188 x 40 x 103 mm and weighs 8.5 oz / 241 g. The transmitter measures 2.5 x 4.3 x 0.8' / 64 x 110 x 21 mm and weighs 2.6 oz / 75 g (without batteries). The microphone weighs 1.59 oz / 45 g.
