Shure BLX14R Wireless Rack-mount Presenter System - The Ultimate Sound Solution for Presentations
Get ready to captivate your audience with crystal-clear sound! The Shure BLX14R Wireless Rack-mount Presenter System is here to revolutionize your presentations. With its professional-quality sound, simple setup, and up to 14 hours of battery life, you'll be delivering legendary audio performance right out of the box.
Key Features:
- • Superior Audio: Perform with unwavering confidence, knowing your voice will be heard loud and clear.
- • Reliable Signal: Extend your range without worry, ensuring a stable connection throughout your event.
- • Easy Setup: Own the stage effortlessly with a setup process that's quick and straightforward.
Specifications:
- System: Runs on Analog UHF technology, with 123 RF channel frequencies. Includes 1 bodypack transmitter, offers antenna diversity, operates on J11 band (596 - 616 MHz) with 24 MHz bandwidth, has auto-scan RF channel scanning, a max operating range of 300' / 91.4 m (line of sight), can support up to 12 transmitters per band, and a dynamic range of 100 dBA.

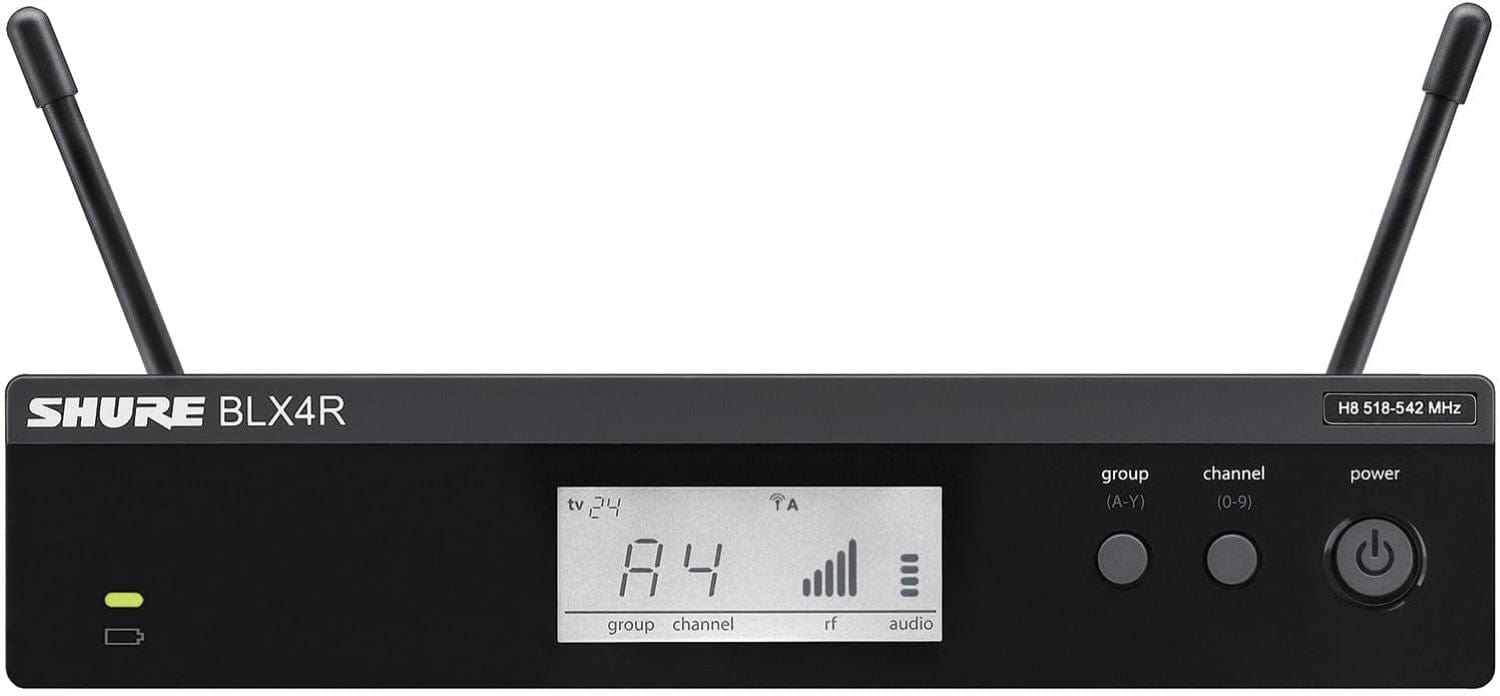

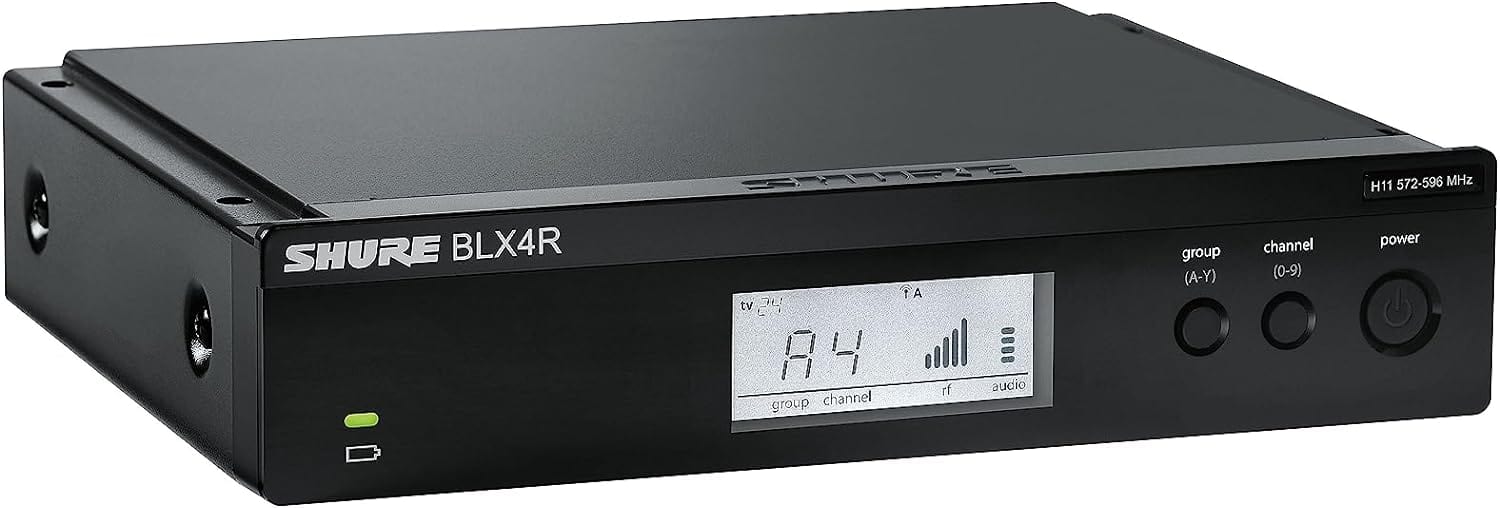

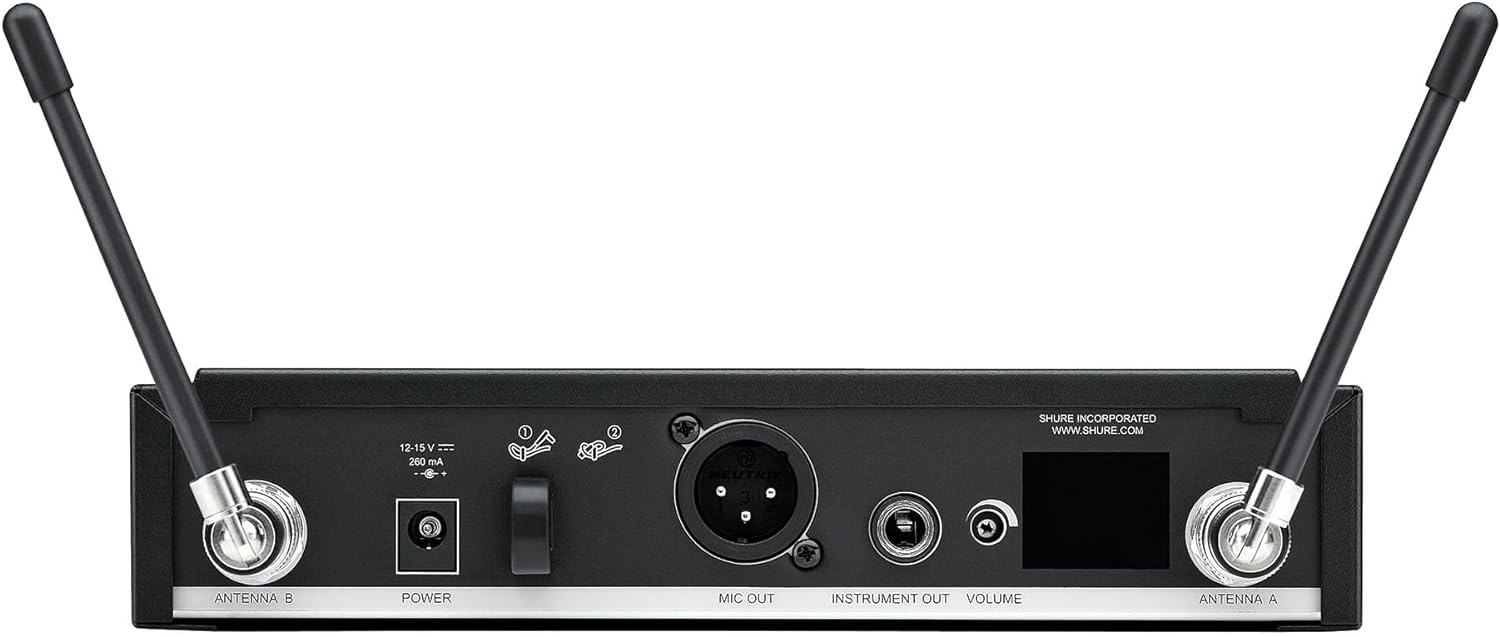

- Receiver: Is a tabletop/rackmount type with rackmount size of 1 RU (1/2 rack). It has 2 x 1/4 wave external, detachable rear-mount antennas, 1 audio channel, XLR 3-pin male balanced output and 1/4' TS female unbalanced output. Audio output levels are -27 dBV (mic level) for XLR outputs and -13 dBV (instrument level) for 1/4' outputs. Frequency response is 50 Hz to 15 kHz (depends on mic), impedance is 200 Ohms for XLR outputs and 50 Ohms for 1/4' outputs, adjacent channel isolation is >50 dB, runs on AC/DC power adapter (12 to 15 VDC at 160 mA, center-positive, included), has a backlit LCD and LED indicators, a steel housing, dimensions of 7.8 x 2 x 6.4' / 198 x 50 x 163 mm (without mounting hardware, antennas), and weighs 35.2 oz / 998 g.

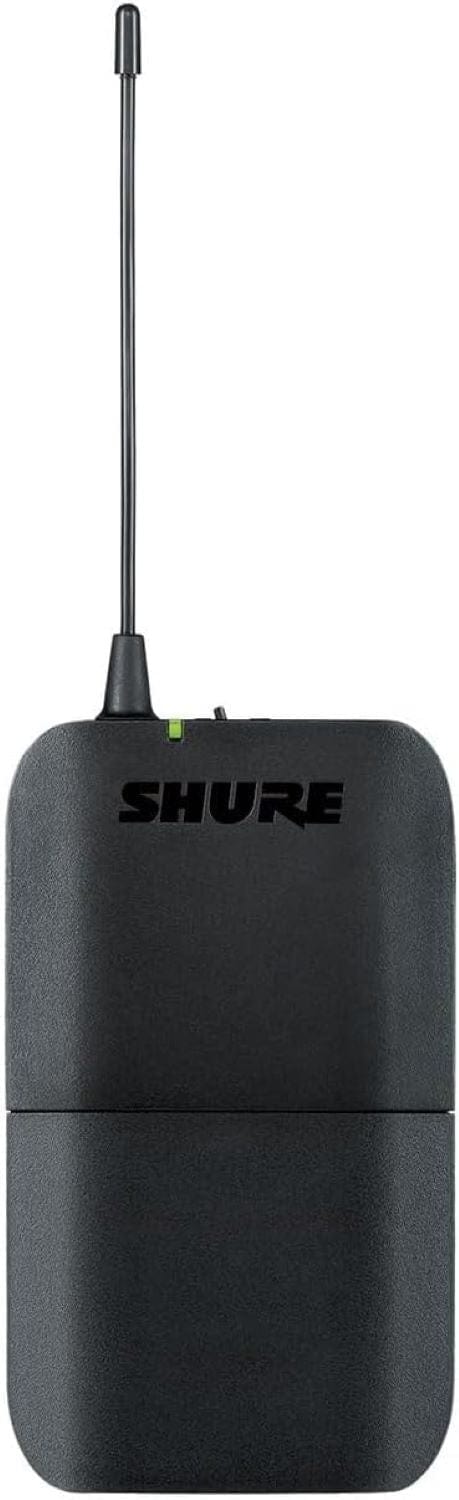

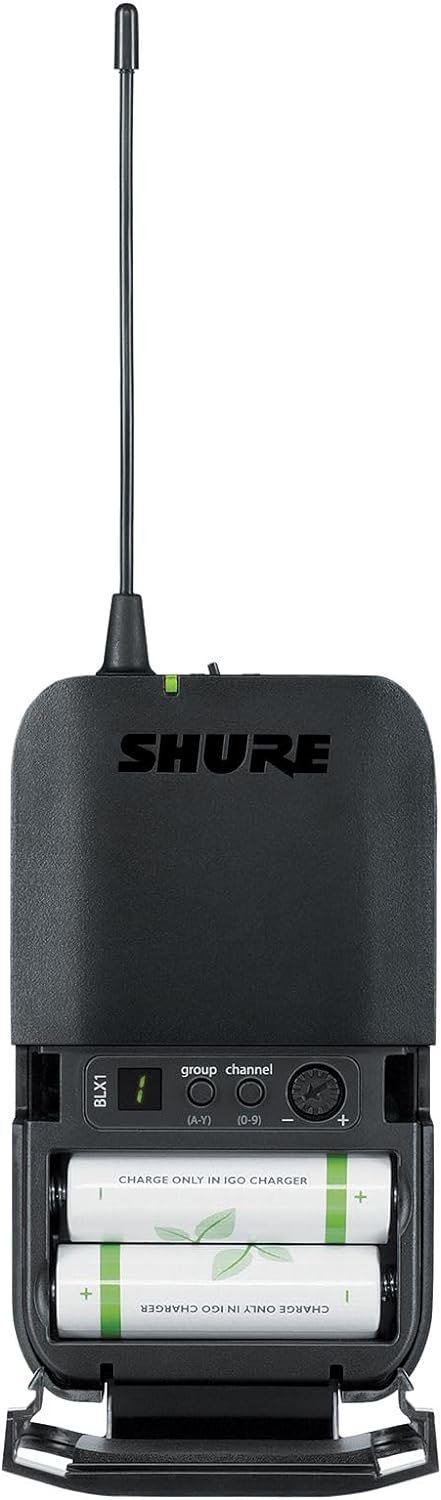

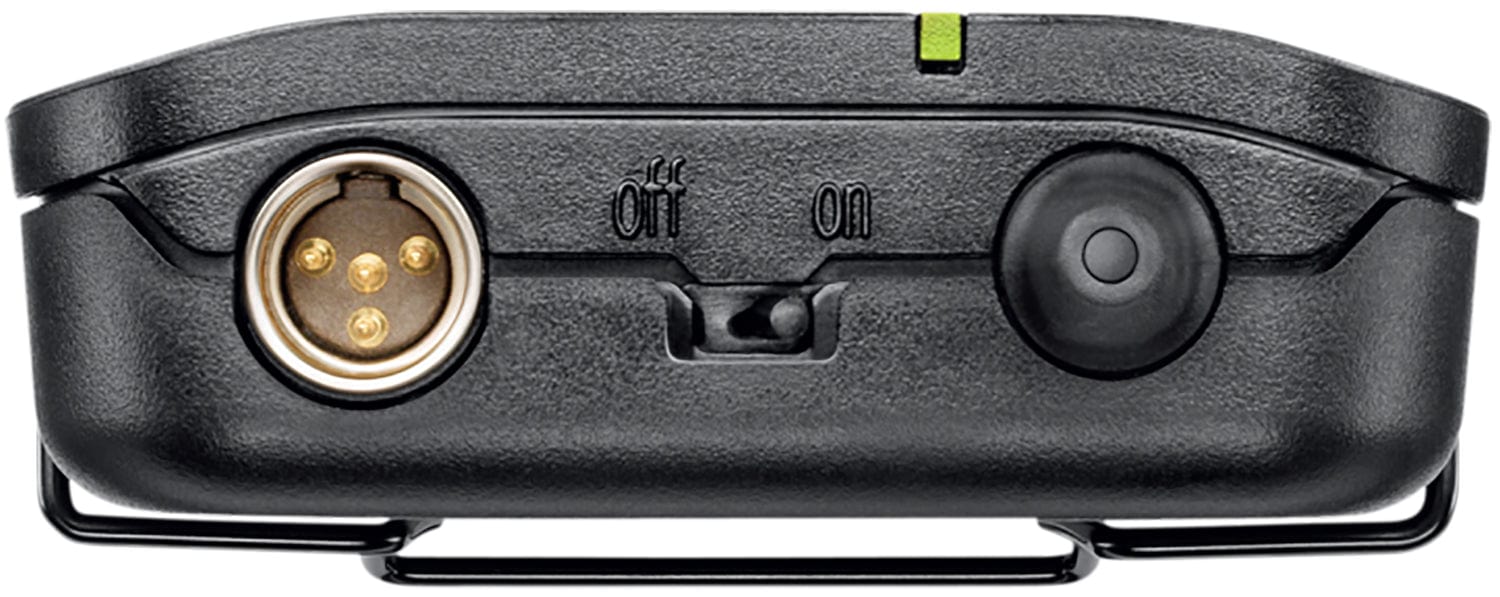

- Transmitter: Is a bodypack type with 10 mW RF output power, TA4/mini XLR 4-pin male input (lockable), 1/4' TS included cable connector, off/on switch for muting, no auto-level control, gain range of -16 to +10 dB, manual sync method, 1 flexible whip, fixed antenna (beltpack), runs on 2 x AA batteries (included), has an approx. battery life of 14 hours (alkaline), multi-segment LED and LED indicators, an ABS housing, dimensions of 2.5 x 4.3 x 0.8' / 64 x 110 x 21 mm, and weighs 2.6 oz / 75 g (without batteries).

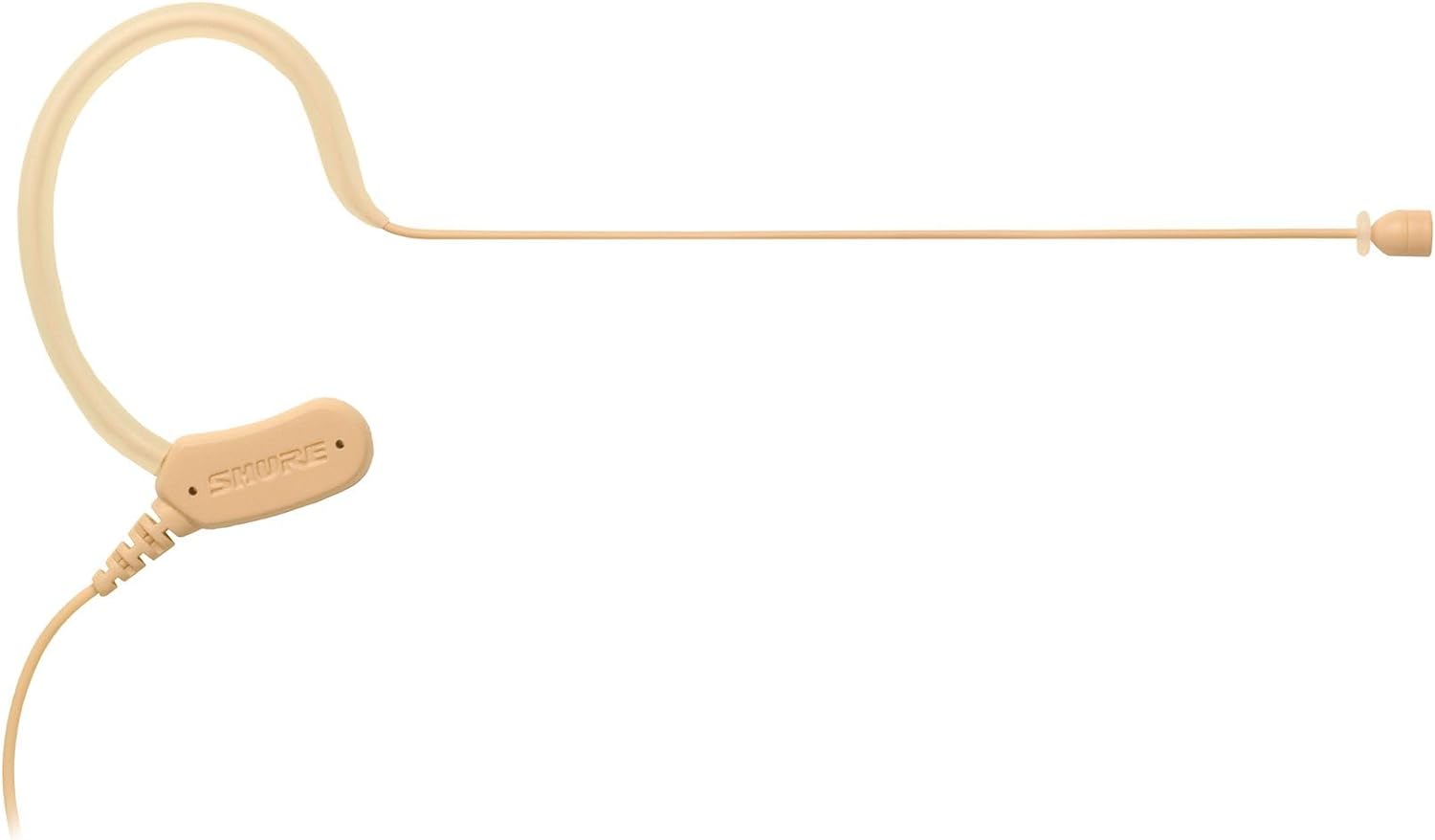

- Microphone: Is an earset type with mono sound field, electret condenser capsule, omnidirectional polar pattern, frequency range of 20 Hz to 20 kHz, SNR of 60 dB, equivalent noise level of 34 dB, maximum SPL of 107 dB SPL, sensitivity of -41 dBV/Pa, dynamic range of 73 dB, 1 x TA4F/mini XLR 4-pin female (lockable) output connector, 4' / 1.22 m cable length, operating voltage of 1 to 5 V, and weighs 0.7 oz / 19.76 g.
- Package Info: Package weight is 7.11 lb and box dimensions are 18.5 x 14.8 x 4'.

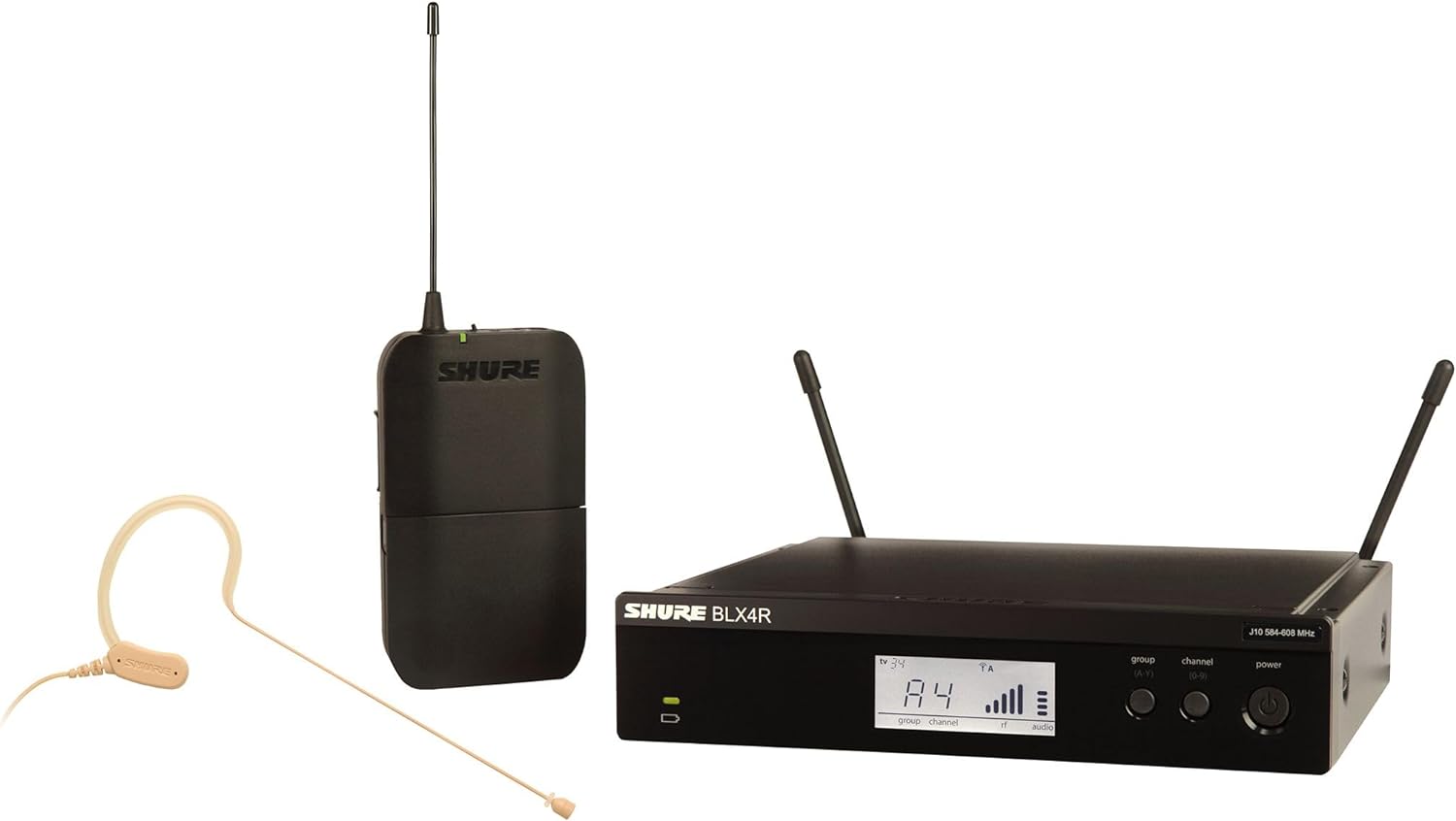

This Shure BLX14R Wireless Rack-mount Presenter System is perfect for presenters who want to deliver top-notch audio. It's great for business meetings, conferences, and events where clear communication is key. The system comes with a BLX4R half-rack single-channel receiver, MX153 subminiature earset microphone with BLX1 bodypack transmitter, lavalier clip, power supply, 2 AA batteries, windscreens, rackmount kit, 2 1/4 wave antennas, zipper bag, and user guide. The receiver can be rackmounted with included hardware, has dimensions of 7.8 x 2 x 6.4' / 198 x 50 x 163 mm (without mounting hardware, antennas) and weighs 35.2 oz / 998 g. The bodypack transmitter has dimensions of 2.5 x 4.3 x 0.8' / 64 x 110 x 21 mm and weighs 2.6 oz / 75 g (without batteries). The earset microphone weighs 0.7 oz / 19.76 g.
