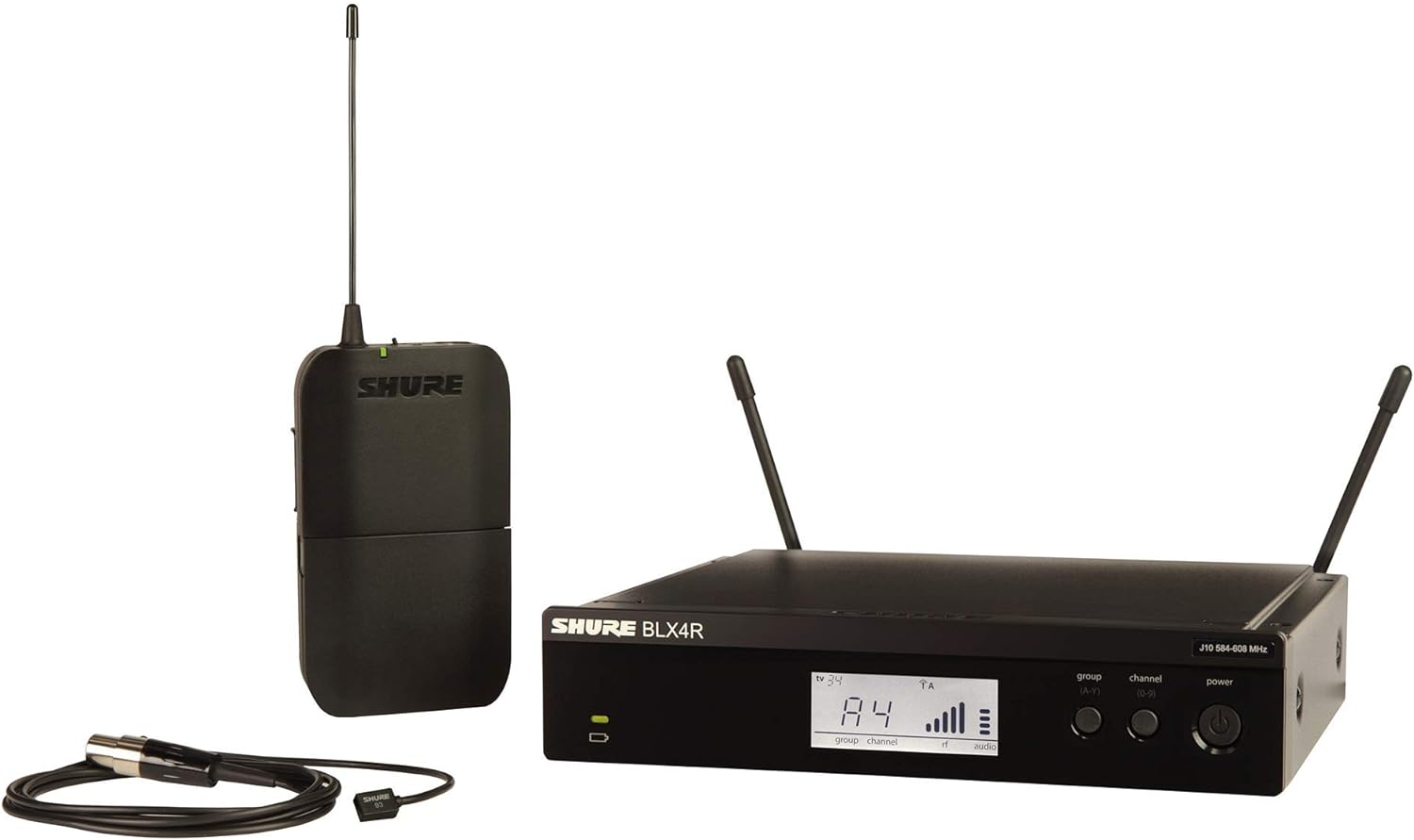

Shure BLX14R Wireless Rack-mount Presenter System - J11 Band with WL93 Miniature Lavalier Microphone
Get ready to captivate your audience with crystal-clear sound! The Shure BLX14R/W93 Wireless Rack-mount Presenter System combines professional-quality audio with effortless setup and up to 14 hours of battery life. It's perfect for presenters, performers, and anyone who needs reliable wireless audio.
Key Features:
- • Superior Audio: Deliver your message with confidence
- • Reliable Signal: Enjoy extended range and interference-free performance
- • Easy Setup: Take the stage with ease
Specifications:
- System:
- Wireless Technology: Analog UHF
- Number of RF Channel Frequencies: 123
- Included Transmitters: 1 x Bodypack
- Diversity: Antenna Diversity
- RF Frequency Band: J11 (596-616 MHz)
- RF Bandwidth: 24 MHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 300' / 91.4 m (Line of Sight)
- Max Transmitters per Band: 12
- Dynamic Range: 100 dBA

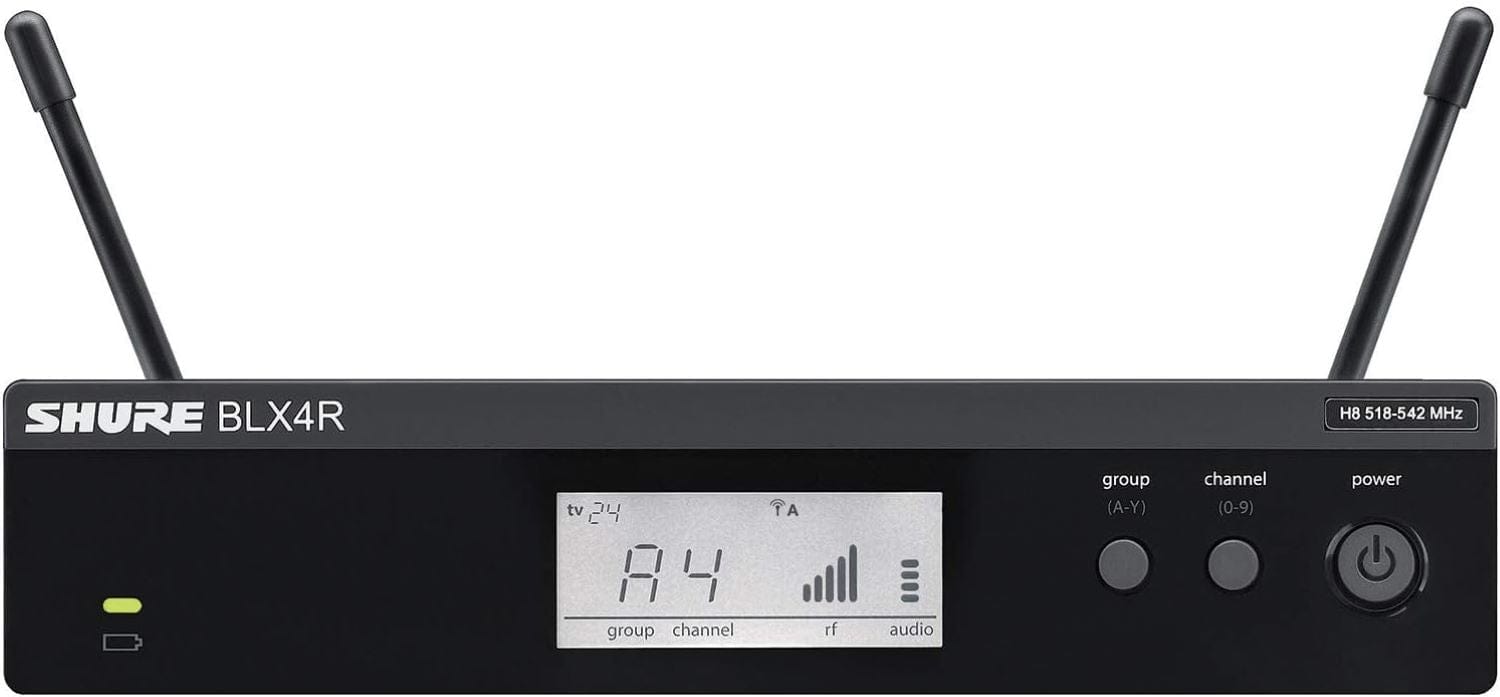

- Receiver:
- Receiver Type: Tabletop
- Mounting Options: Rackmount (with Included Hardware)
- Rackmount Size: 1 RU (1/2 Rack)
- Antenna: 2 x 1/4 Wave External, Detachable (Rear-Mount)
- Number of Audio Channels: 1
- Audio I/O:
- 1 x XLR 3-Pin Male Balanced Output
- 1 x 1/4' TS Female Unbalanced Output
- Audio Output Level:
- XLR Outputs: -27 dBV (Mic Level)
- 1/4' Outputs: -13 dBV (Instrument Level)
- Frequency Response: 50 Hz to 15 kHz (Dependent on Mic)
- Impedance:
- XLR Outputs: 200 Ohms
- 1/4' Outputs: 50 Ohms
- Adjacent Channel Isolation: >50 dB
- Power Requirements: AC/DC Power Adapter
- AC/DC Power Adapter: 12 to 15 VDC at 160 mA, Center-Positive (Included)
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz at 150 mA
- Display & Indicators:
- 1 x Backlit LCD (AF Level, Channel, Group, Metering, RF Level)
- 1 x LED (Transmitter Battery Status)
- Housing: Steel
- Dimensions: 7.8 x 2 x 6.4' / 198 x 50 x 163 mm (without Mounting Hardware, Antennas)
- Weight: 35.2 oz / 998 g

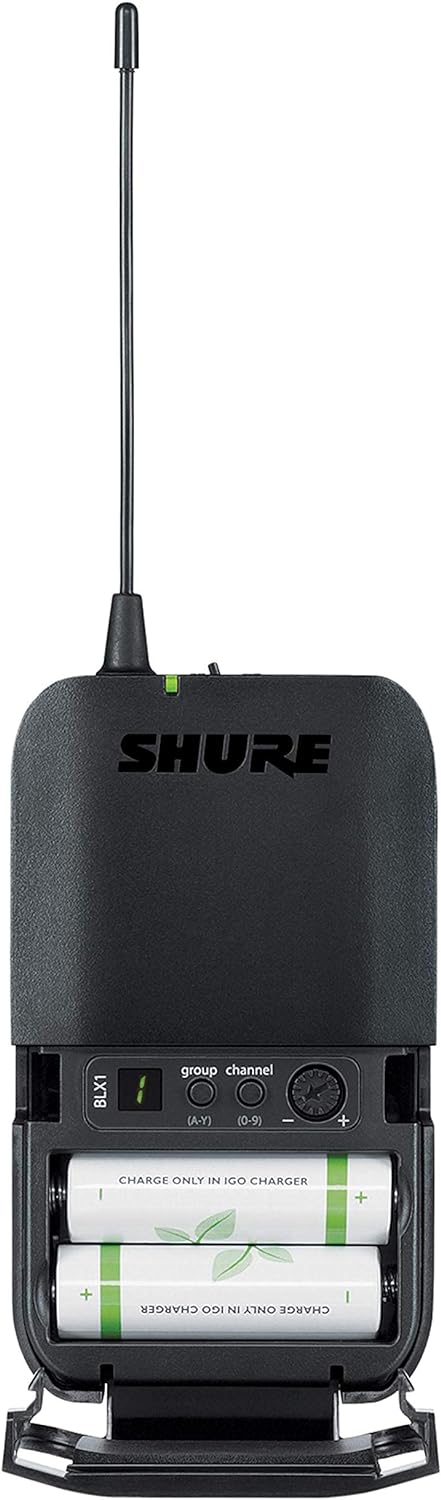

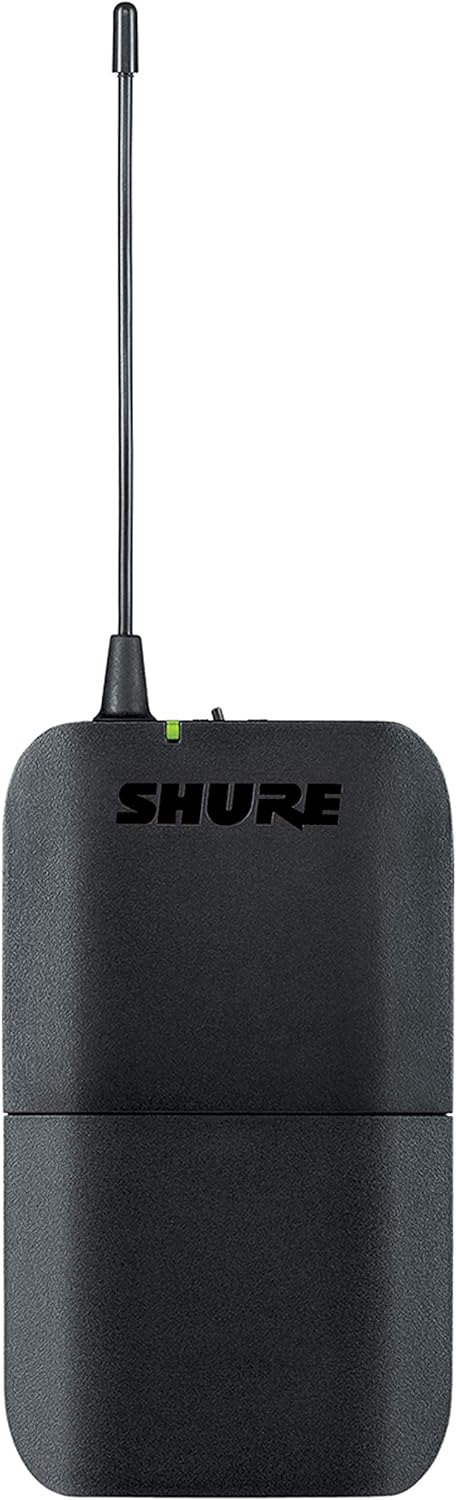

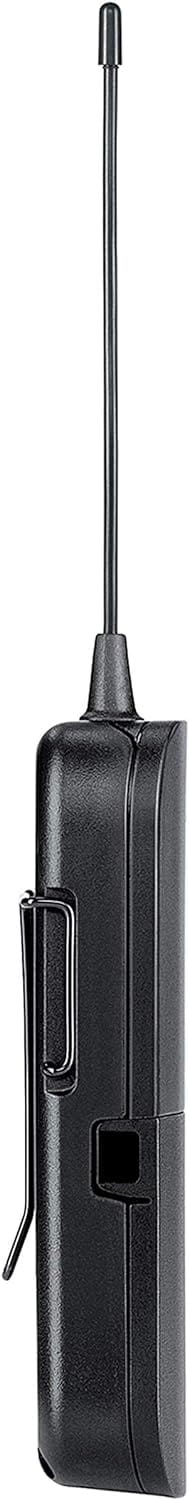

- Transmitter:
- Transmitter Type: Bodypack
- RF Output Power: 10 mW

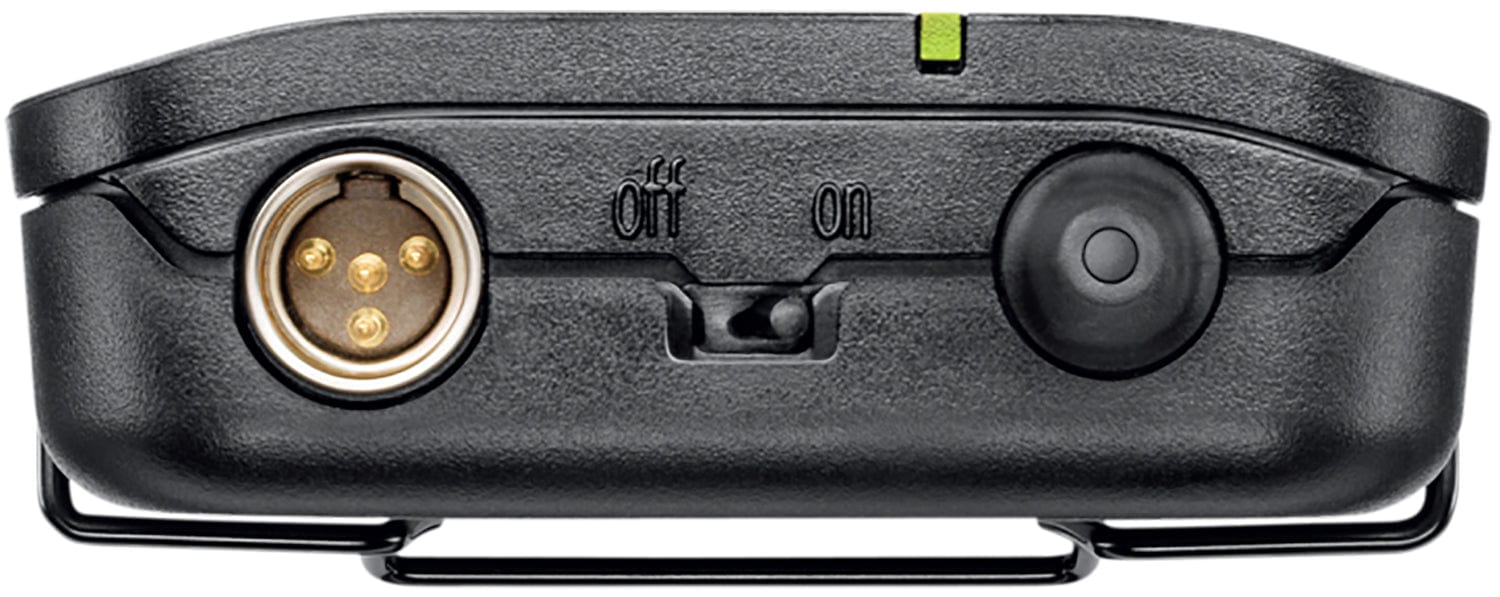

- Audio I/O: 1 x TA4/Mini XLR 4-Pin Male Input (Lockable)
- Included Cable Connector: 1/4' TS
- Muting: Off/On Switch
- Auto-Level Control: No
- Gain Range: -16 to +10 dB
- Sync Method: Manual
- Antenna: 1 x Flexible Whip, Fixed (Beltpack)
- Power Requirements: Battery
- Battery Type: 2 x AA (Included)
- Approx. Battery Life: 14 Hours (Alkaline)
- Display & Indicators:
- 1 x Multi-Segment LED (Channel, Group)
- 1 x LED (Battery Status, Power)
- Housing: ABS
- Dimensions: 2.5 x 4.3 x 0.8' / 64 x 110 x 21 mm
- Weight: 2.6 oz / 75 g (without Batteries)
- Microphone:
- Microphone Type: Lavalier
- Sound Field: Mono
- Capsule: Electret Condenser
- Polar Pattern: Omnidirectional
- Frequency Range: 50 Hz to 20 kHz
- SNR: 76 dB
- Equivalent Noise Level: 28 dB
- Maximum SPL: 120 dB SPL
- Sensitivity: -38 dBV/Pa
- Dynamic Range: 102 dB
- Output Connector: 1 x TA4/Mini XLR 4-Pin Female (Lockable)
- Cable Length: 4.17' / 1.27 m
- Operating Voltage: 2 to 10 V
- Weight: 0.56 oz / 16 g
- Packaging Info:
- Package Weight: 6.885 lb
- Box Dimensions (LxWxH): 18.4 x 15.4 x 4'

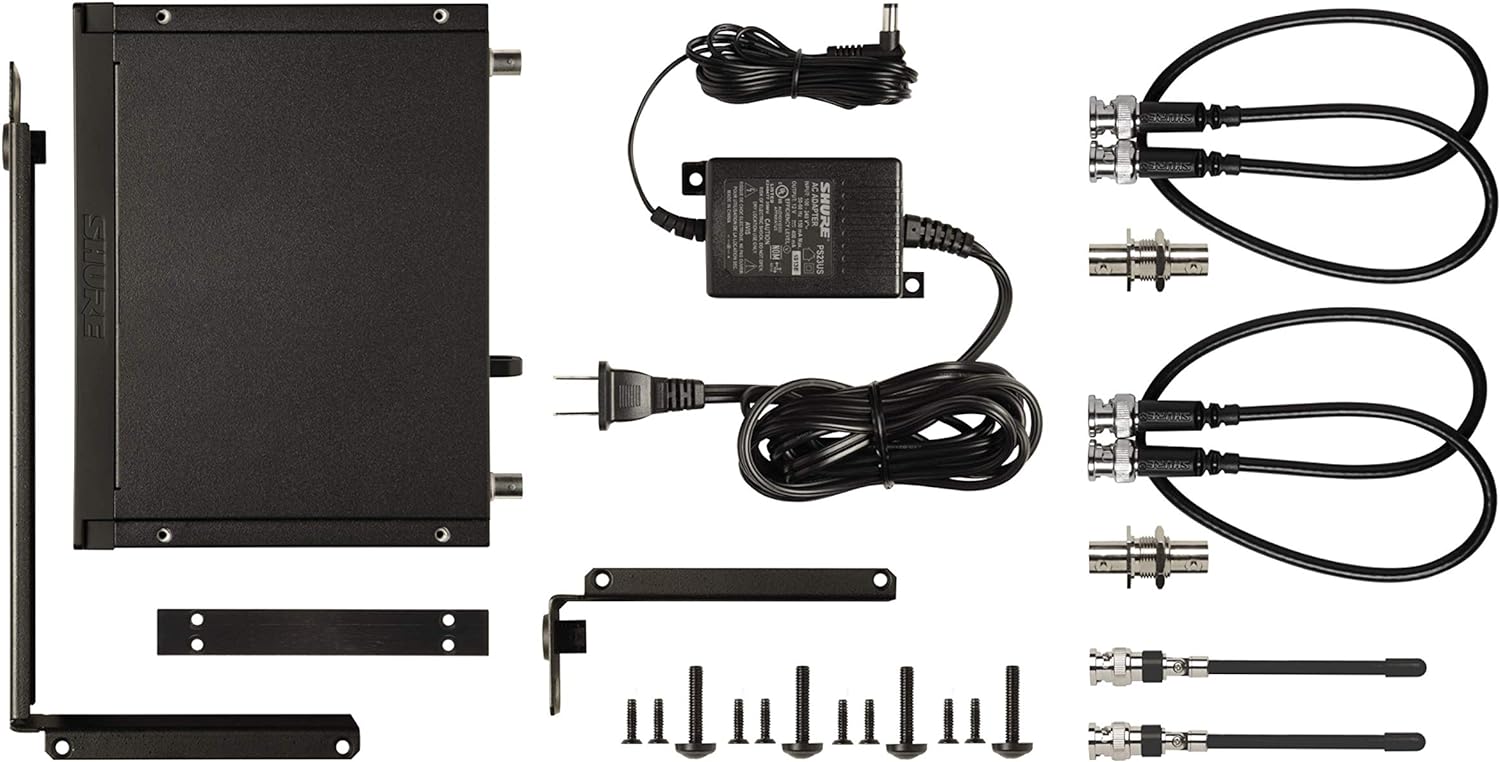

The Shure BLX14R Wireless Rack-mount Presenter System is perfect for presenters, performers, and anyone who needs reliable wireless audio. It features professional-quality sound, easy setup, and up to 14 hours of battery life. The system includes a BLX4R half-rack single-channel receiver, WL93 lavalier microphone with BLX1 bodypack transmitter, lavalier clip, power supply, 2 AA batteries, windscreens, rackmount kit, 2 1/4 wave antennas, and user guide. The receiver is tabletop and rackmountable, with a 1 RU size. It has 2 detachable 1/4 wave external antennas and 1 XLR 3-Pin male balanced output and 1 1/4' TS female unbalanced output. The transmitter is a bodypack with a flexible whip antenna and runs on 2 AA batteries for up to 14 hours. The microphone is a lavalier with omnidirectional polar pattern. The system has a maximum operating range of 300' / 91.4 m (Line of Sight) and can run up to 12 channels per frequency band. The package weighs 6.885 lb and has box dimensions of 18.4 x 15.4 x 4'.
