Shure MXA310AL Aluminum Table Array Microphone - The Ultimate in Clear Audio
• 4 Separate Polar Patterns: Offers steerable coverage, plus a new toroid polar pattern that rejects overhead noise. • Intuitive Interface: Easy configuration of presets, templates, and polar patterns. • Sleek Design: Blends seamlessly into boardrooms, huddle rooms, and multipurpose areas.

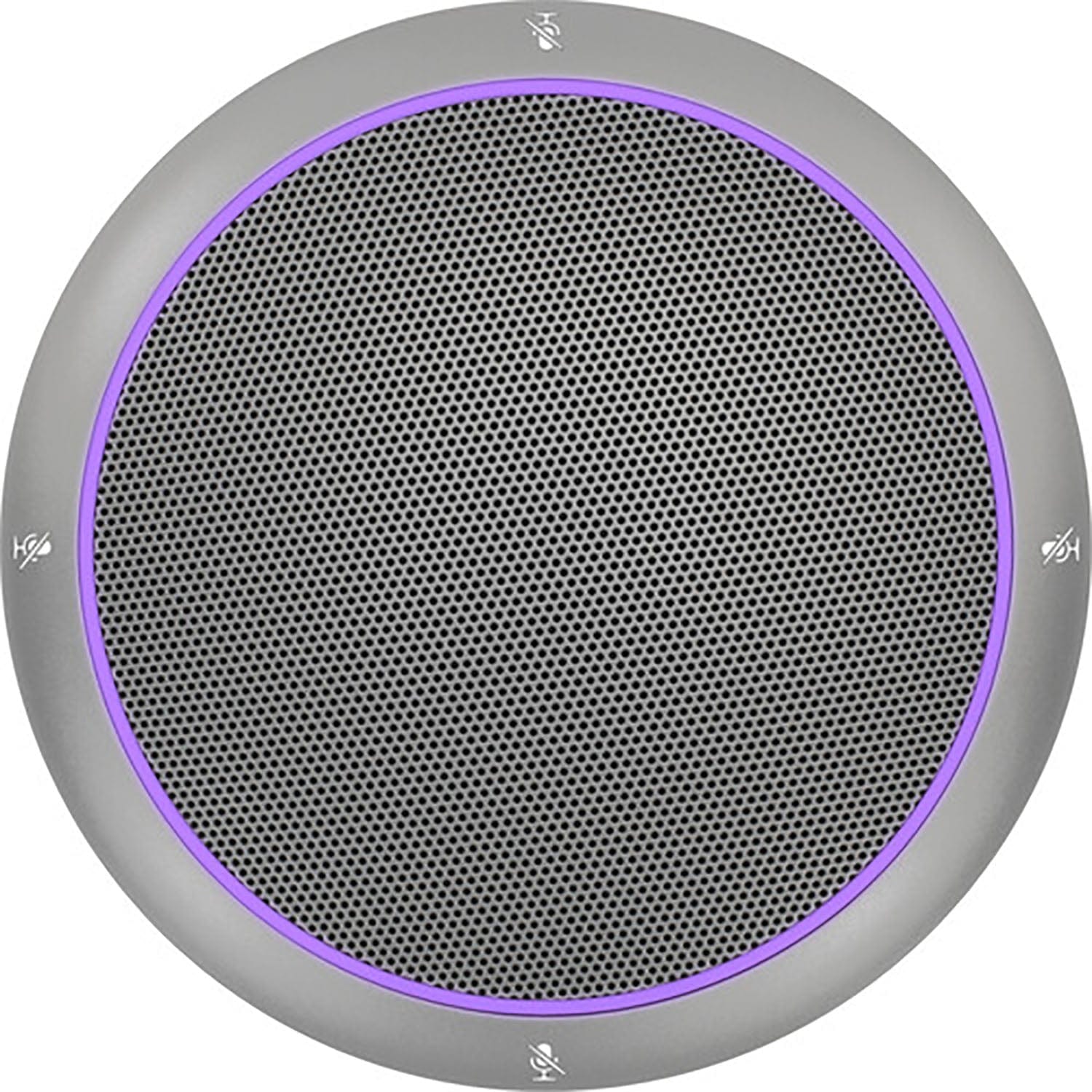

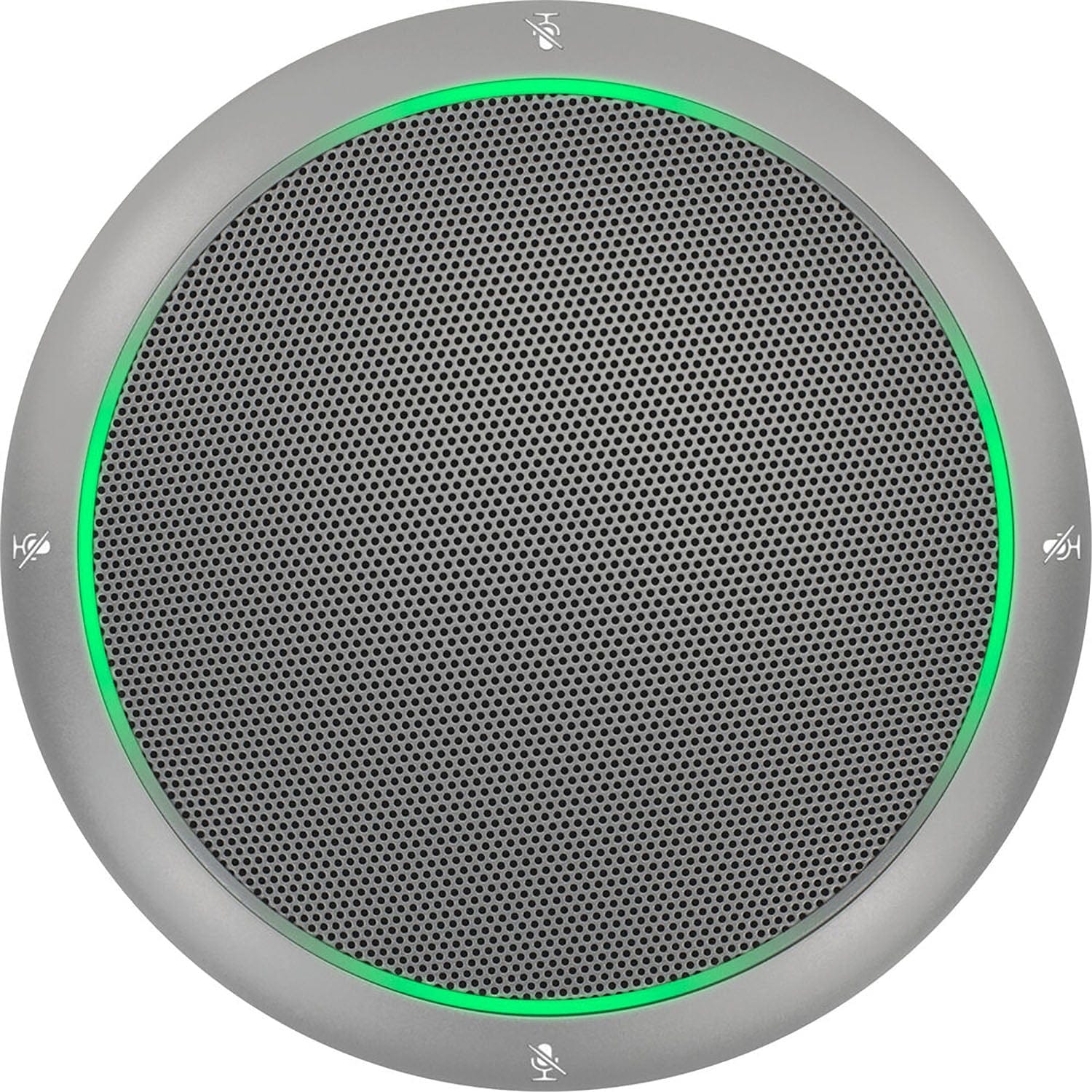

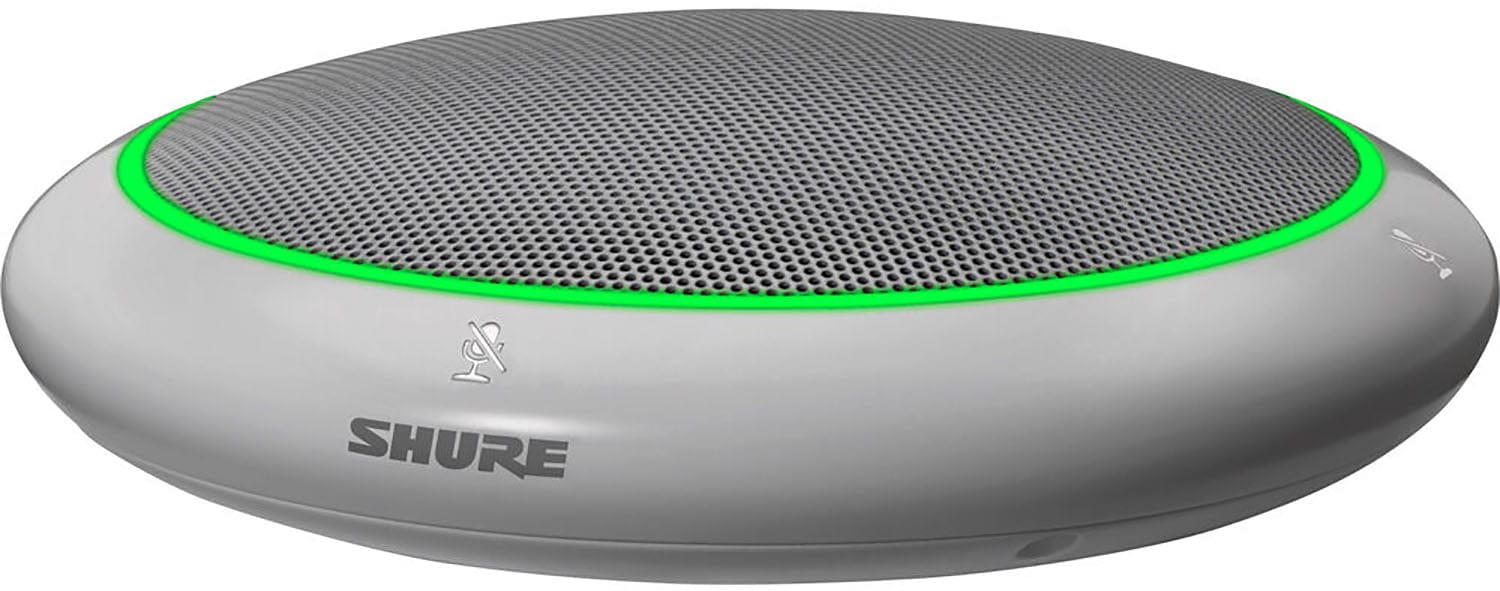

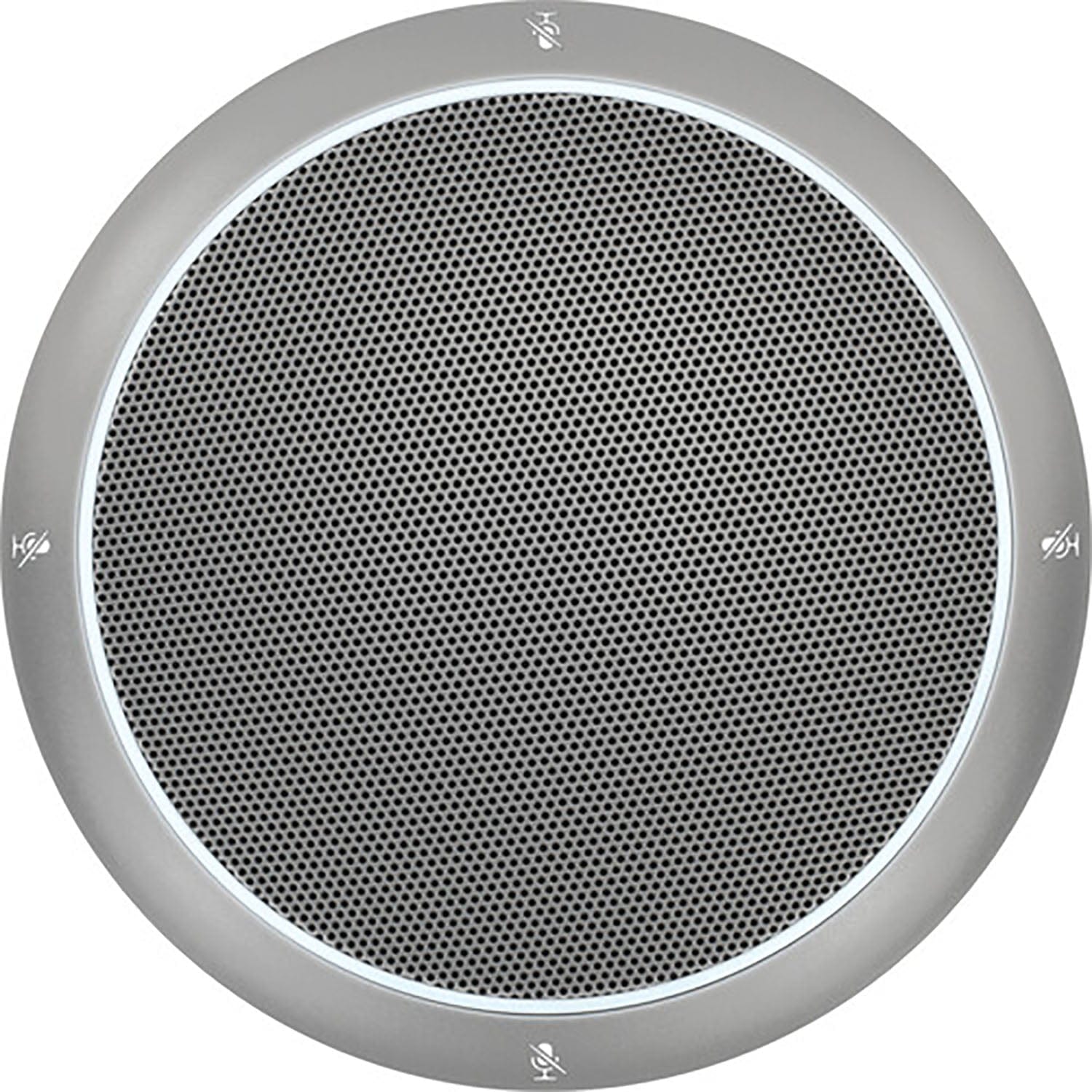

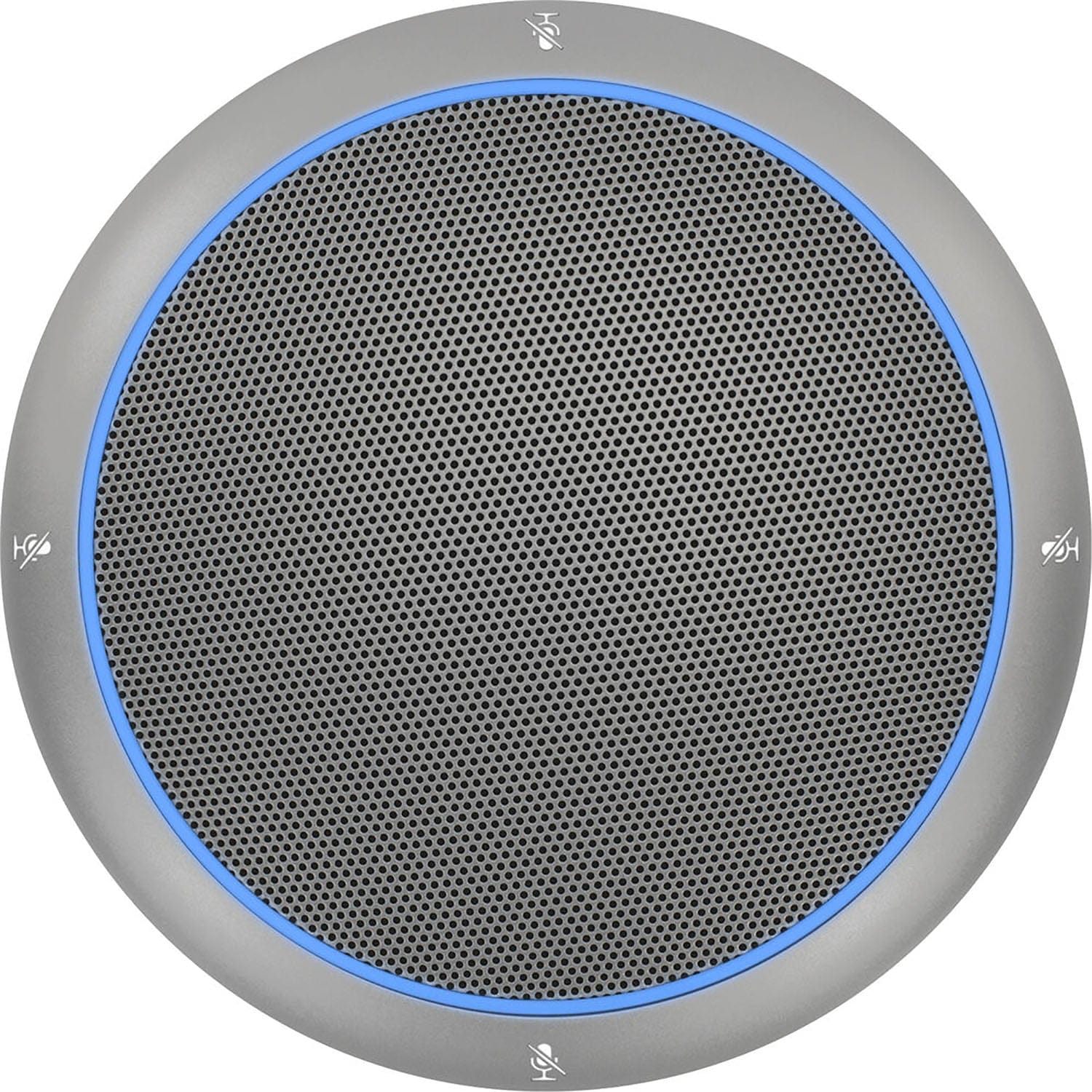

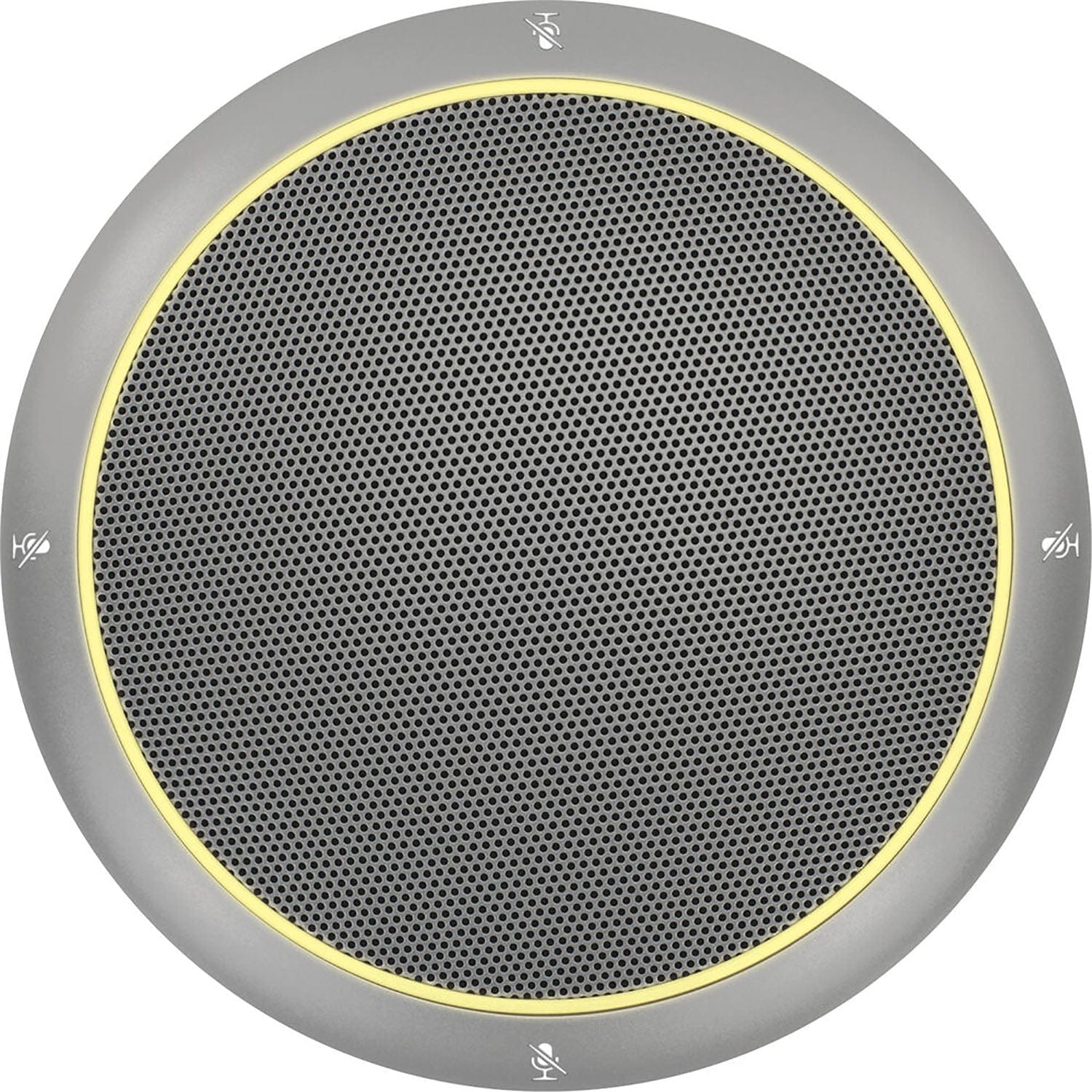

The Shure MXA310AL is a tabletop array microphone with a sleek aluminum finish. It's perfect for conference or meeting environments. Its features like steerable coverage, multiple pickup patterns, and auto-mixing ensure clear speech capture. The configurable color LED indicator shows mute and channel statuses. It has a low-profile design, requires just one cable, and offers two mounting options.
Features:
- Send two channels of audio wirelessly to performers onstage
- 24-bit digital audio provides clear, detailed sound
- Patented Audio Reference Companding sounds more like wired
- Up to 90 dB signal-to-noise ratio
- Exceptionally wide stereo separation
- Solid analog RF connection over a 300 ft (90 m) range
- Create a personal mix from the bodypack with MixMode technology or stereo mode
- Frequency scan and IR sync quickly finds and assigns a clean channel
- Half-rack, single channel transmitter with included rack mount kit
- P3R bodypack systems available with SE112 Sound Isolating Earphones
- P3RA professional bodypack systems available with SE215 Sound Isolating Earphones
Specifications:
- Polar Pattern: Cardioid, Hypercardioid, Supercardioid, Toroid, Omnidirectional, Bidirectional
- Connector Type: RJ45
- Power Requirements: Power over Ethernet (PoE), Class 0
- Power Consumption: 4W, maximum
- Weight: 362 g (0.8 lbs)
- Dimensions H x W x D: 3.6 x 13.4 x 13.4 cm (1.4 x 5.3 x 5.3 in.)
- Control Application: HTML5 Browser-based
- Operating Temperature Range: 6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range: 29°C (-20°F) to 74°C (165°F)
- Audio:
- Frequency Response: 100 to 20,000 Hz
- Dante Digital Output:
- Channel Count: 5 total channels (4 independent transmit channels, 1 Automatic mixing transmit channel)
- Sampling Rate: 48 kHz
- Bit Depth: 24
- Sensitivity: -21 dBFS/Pa
- Maximum SPL: 115.2 dB SPL
- Signal-To-Noise Ratio:
- Cardioid: 75 dB
- Toroid: 67 dB
- Latency: <1 ms
- Self Noise:
- Cardioid: 19.2 dB SPL-A
- Toroid: 26.8 dB SPL-A
- Dynamic Range:
- Cardioid: 96 dB
- Toroid: 90 dB SPL
- Built-in Digital Signal Processing:
- Per Channel Equalizer (4-band Parametric), Mute, Gain (140 dB range)
- System Automatic mixing, Low-Cut Filter (-12 dB/octave @150 Hz)
- Networking:
- Cable Requirements: Cat 5e or higher (shielded cable recommended)
The Shure MXA310AL Aluminum Table Array Microphone is designed for conference and meeting environments like boardrooms, huddle rooms, and multipurpose areas. It's perfect for those who need clear audio during meetings. This microphone has a sleek aluminum finish and weighs 362 g (0.8 lbs). Its dimensions are 3.6 x 13.4 x 13.4 cm (1.4 x 5.3 x 5.3 in.).
