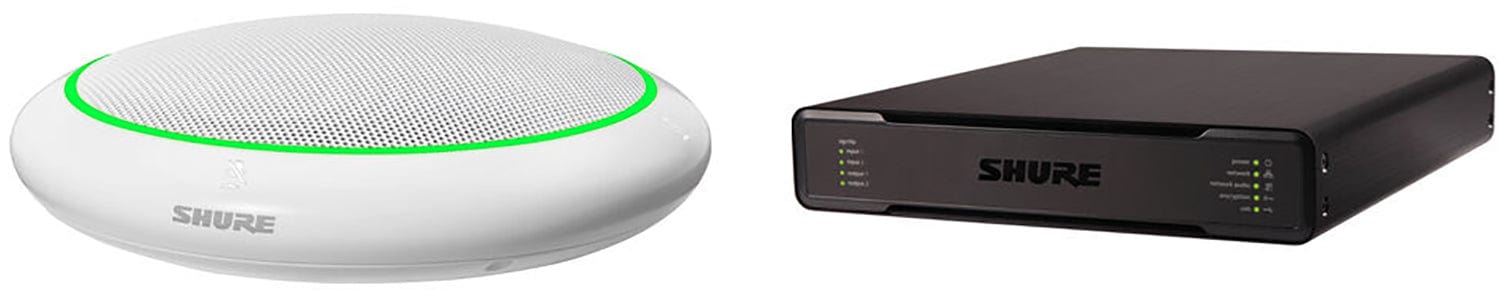

Shure MXA310W-P300-P Conference Bundle - White
Upgrade your audio conferencing experience with the Shure MXA310W-P300-P Conference Bundle. This powerful combination of the Microflex Advance MXA310 Table Array Microphone and the IntelliMix P300-IMX Audio Conferencing Processor delivers natural voice quality and excellent speech intelligibility, making it perfect for any audio/video conferencing setup.
Shure MXA310W
• Steerable Coverage: With 4 separate polar patterns and a new toroid polar pattern, the MXA310W rejects overhead HVAC and fan noise, ensuring crystal clear audio from table level.
• Intuitive User Interface: Easily configure presets, templates, and polar patterns with the intuitive user interface.
• Versatile Connectivity: Connect to any room video system via Dante Audio Networking, standard PoE (class 0), or control strings for third-party preset controllers.
P300-IMX
• Simplified Setup: The IntelliMix P300 Audio Conferencing Processor offers a predefined matrix and presets, reducing commissioning time and making setup a breeze.
• Discrete Installation: The unobtrusive form factor allows for discrete installations, making it compatible with a wide variety of meeting rooms.
• Versatile Connectivity: Choose from a variety of connectivity options, including soft codec, laptops, and mobile devices, for seamless integration with any room video system.
Features:
- Shure MXA310W:
- Audio Capture / DSP:
- Up to four simultaneous polar patterns including the innovative “toroid” pattern, capturing audio from table level while rejecting unwanted overhead artifacts (additional patterns include Omnidirectional, Cardioid, Supercardioid, Hypercardioid, and Bidirectional all steerable to any angle in 15 degree increments)
- Shure DSP Utilities:
- Steerable Coverage Technology
- Automatic Mixing
- 4 Band C/S PEQ assignable to any one channel at a time
- Software Control:
- Browser-based control software that features a simple yet smart interface showing templates and varying polar patterns for all device parameters
- Stores 10 presets
- Connectivity:
- Dante Audio Networking, standard PoE (class 0), and Control carried on single Ethernet cable
- Control strings for third-party preset controllers including Crestron and AMX
- Hardware / Installation:

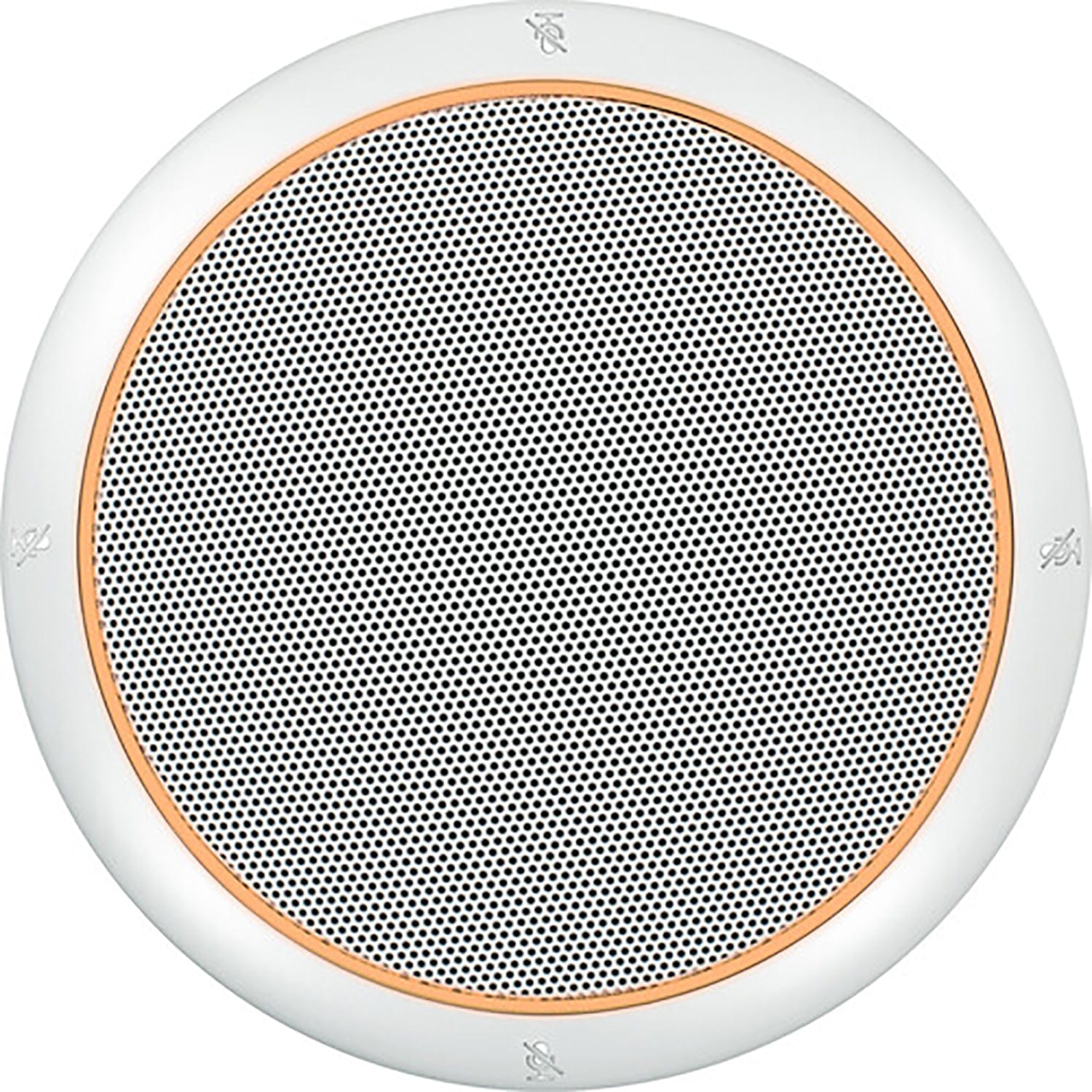

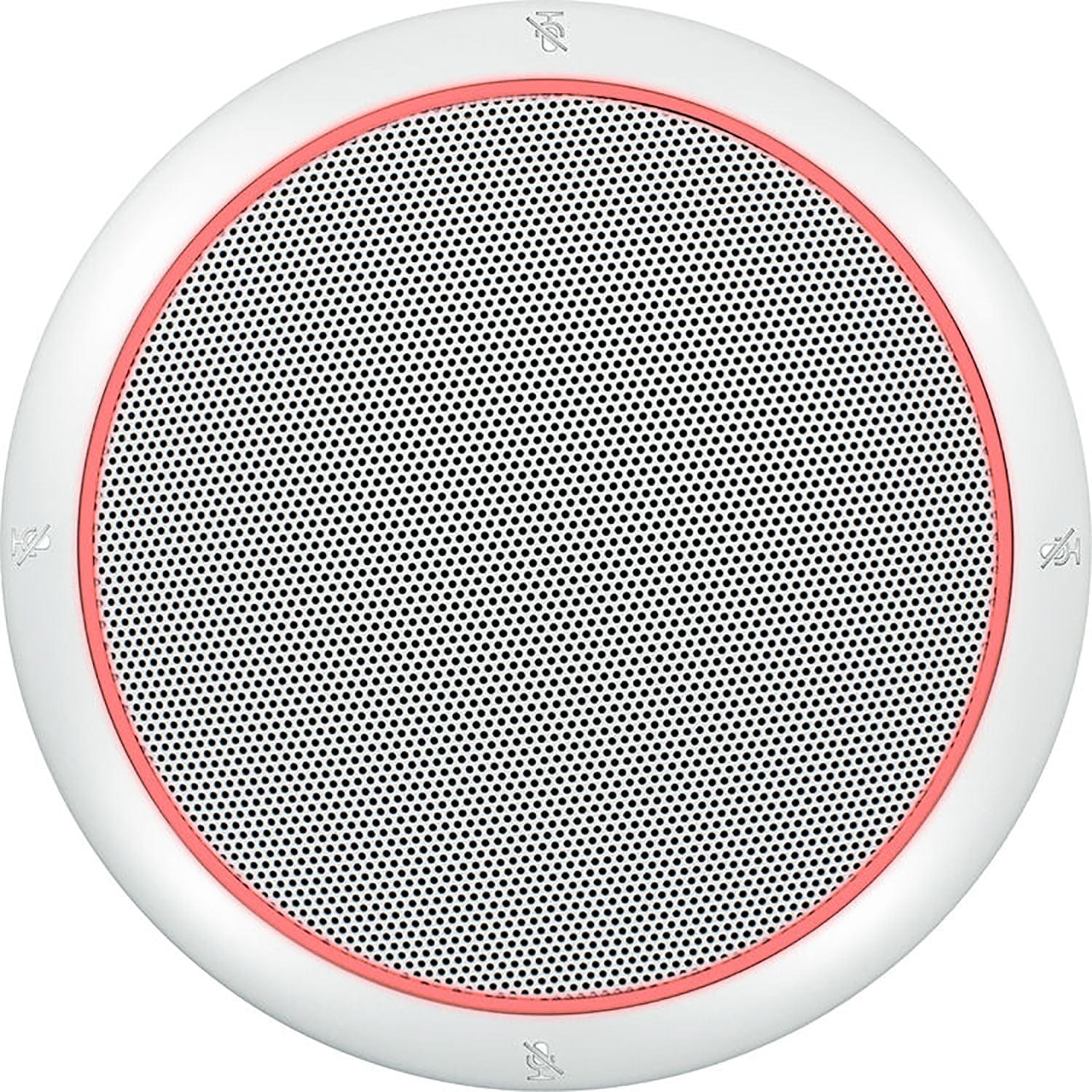

- Configurable multi-color LED:
- Displays Mute and Unmute status in Ring, Segment or Automix in two colors (available in red, orange, yellow, green, blue, purple, white, pink)
- Brightness controls (default, dim, disabled)
- Mute Switch modes:
- Toggle, Push-to-Talk, Push-to-Mute, Disable
- Backlit LED indicator of enabled/disabled mute switch
- Generates external control signal to mute a downstream device or trigger camera presets
- Available in white, black and aluminum
- CommShield RF Immunity

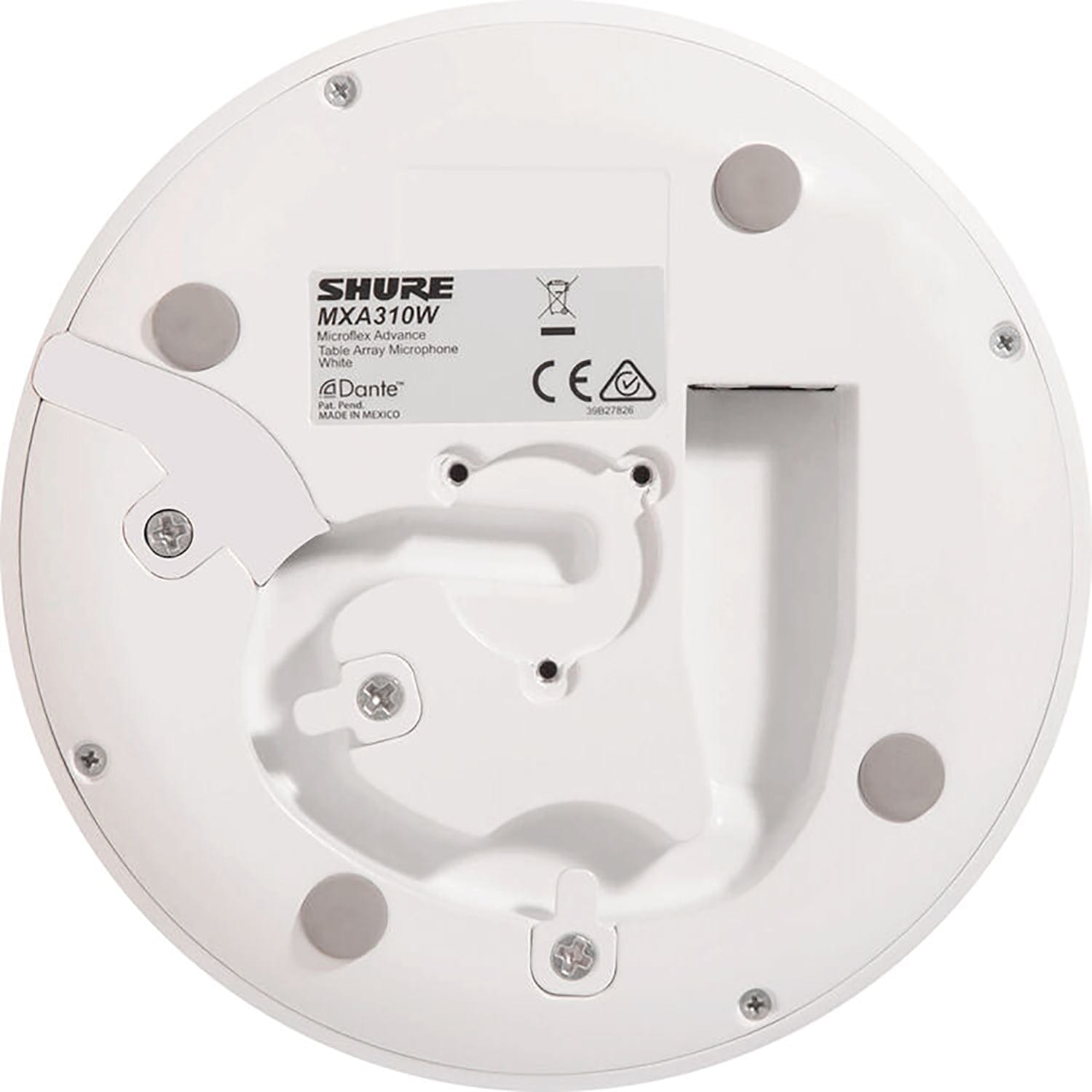

- Cable exit along or through table allows for easy retrofitting of previous Shure MX396/MX395 boundary microphone installations
- Device Reboot/Factory Reset Options:
- Two stage hardware reset: 4 second press resets network settings, 8 second press resets to factory default restoring all settings including device name and network details

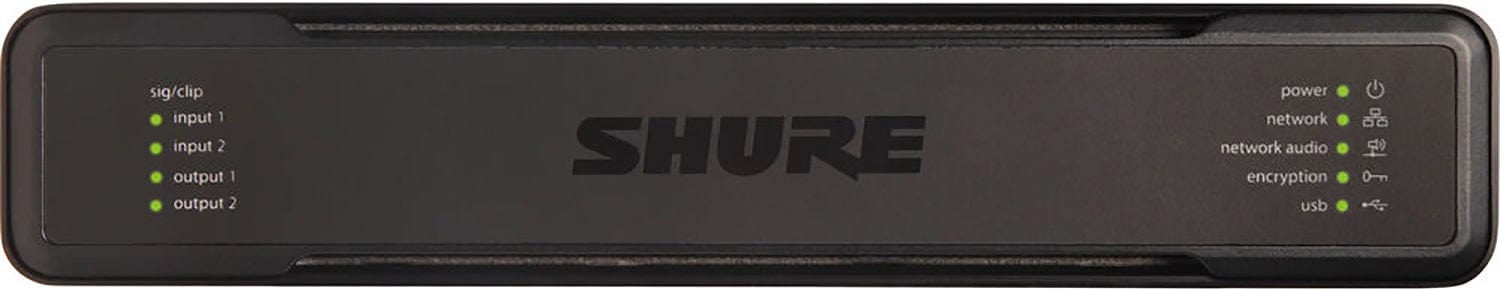

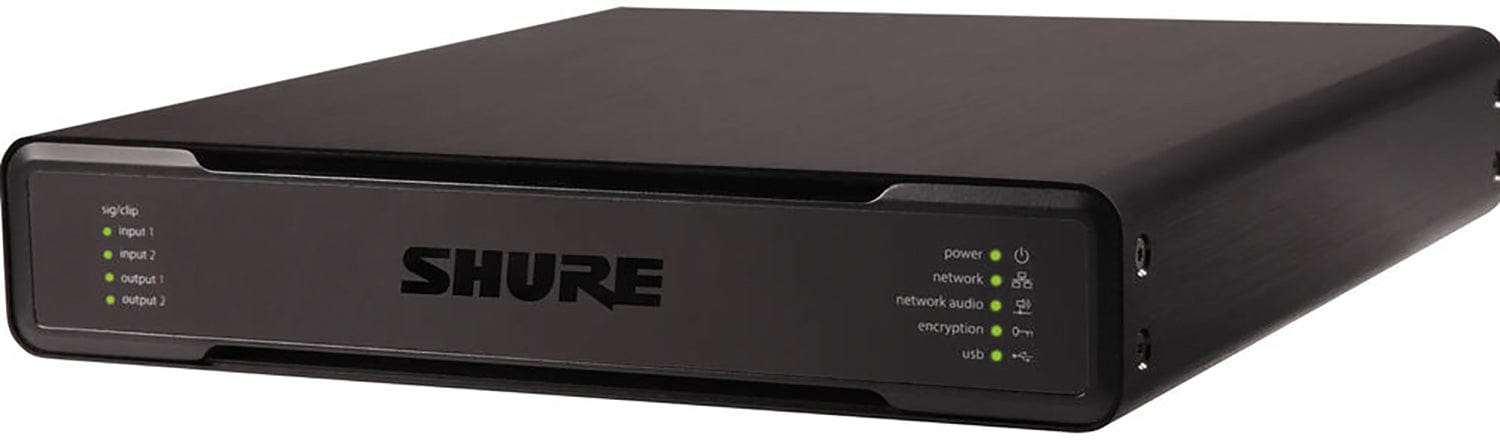

- P300-IMX:
- Connects 10 Dante audio inputs, 2 analog inputs, USB and a mobile device to an AV conferencing system or a PC-based videoconferencing application
- Includes Shure developed DSP algorithms to enhance audio quality in AV conferences: 8 channels of microphone processing featuring AEC, noise reduction, and automatic gain control, IntelliMix automatic mixing, matrix mixing, delay, compressor and PEQ
- Flexible signal routing and connectivity: analog audio (2 block in / 2 block out) to connect to room AV conferencing system; USB (1 in/out) to connect to laptop or room PC; one 3.5 mm TRRS jack to connect to a mobile device to enable an additional participant to join
- Power-over-Ethernet (PoE+) eliminates the need for an outboard power supply
- Compact form factor is easy to mount without equipment rack
Specifications:
- Shure MXA310W:
- Polar Pattern:
- All channels independently adjustable
- Cardioid, Hypercardioid, Supercardioid, Toroid, Omnidirectional, Bidirectional
- Connector Type: RJ45
- Power Requirements: Power over Ethernet (PoE), Class 0
- Power Consumption: 4W, maximum
- Weight: 362 g (0.8 lbs)
- Dimensions: H x W x D: 3.6 x 13.4 x 13.4 cm (1.4 x 5.3 x 5.3 in.)
- Control Application: HTML5 Browser-based
- Operating Temperature Range: 6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range: 29°C (-20°F) to 74°C (165°F)
- Audio:
- Frequency Response: 100 to 20,000 Hz
- Dante Digital Output:
- Channel Count: 5 total channels (4 independent transmit channels, 1 Automatic mixing transmit channel)
- Sampling Rate: 48 kHz
- Bit Depth: 24
- Sensitivity: At 1 kHz, -15 dB Gain Setting: -21 dBFS/Pa
- Maximum SPL: 1 kHz at 1% THD, -15 dB Gain Setting: 115.2 dB SPL
- Signal-To-Noise Ratio:
- Ref. 94 dB SPL at 1 kHz, -15 dB Gain Setting:
- Cardioid: 75 dB
- Toroid: 67 dB
- Latency: Not including Dante latency: <1 ms
- Self Noise:
- -15 dB Gain Setting:
- Cardioid: 19.2 dB SPL-A
- Toroid: 26.8 dB SPL-A
- Dynamic Range:
- -15 dB Gain Setting:
- Cardioid: 96 dB
- Toroid: 90 dB SPL
- Built-in Digital Signal Processing:
- Per Channel Equalizer (4-band Parametric), Mute, Gain (140 dB range)
- System Automatic mixing, Low-Cut Filter (-12 dB/octave @150 Hz)
- Networking: Cable Requirements: Cat 5e or higher (shielded cable recommended)
- P300-IMX:
- General:
- Input: (2) 3-pin block connector (Active Balanced)
- Output: (2) 3-pin block connector (Impedance Balanced)
- Mobile: (1) TRRS 3.5 mm (1/8')
- USB Connections:
- (1) USB 2.0, Type B
- Single port carries 2 input and 2 output channels (Summed mono)
- Network Connections (Dante Digital Audio):
- (1) RJ45
- 10 Dante Inputs, 8 Dante Outputs
- Polarity: Non-inverting, any input to any output
- Power Requirements: 802.3 at Type 2 (PoE Plus), Class 4
- Power Consumption: 17.5 W, maximum
- Weight: 1710 g (3.8 lbs)
- Dimensions: H x W x D: 4 x 21 x 22.6 cm (1.6 x 8.3 x 8.9 in.)
- Control Software: Shure Designer
- Operating Temperature Range: 6.7°C (20°F) to 50°C (122°F)
- Storage Temperature Range: 29°C (-20°F) to 74°C (165°F)
- Thermal Power Dissipation:
- Maximum: 17.5 W (60 BTU/hr)
- Typical: 14.6 W (50 BTU/hr)
- Audio:
- Frequency Response: +1, -1.5 dB, 20 to 20,000 Hz
- Dante Digital Audio:
- Dante Digital Audio Sampling Rate: 48 kHz
- Bit Depth: 24
- USB Audio
- Sampling Rate: 48 kHz
- Bit Depth: 16, 24
- Latency:
- Firmware 4.1 and newer:
- Dante 1-8 in to Dante out (AEC enabled): 15.4 ms
- Dante 1-8 in to Dante out (AEC disabled): 8.7 ms
- Dante 9-10 in to Dante out: 3.4 ms
- Analog in to Analog out: 3.8 ms
- Firmware 3.1 and older:
- Dante 1-8 in to Dante out (AEC enabled): 12.5 ms
- Dante 1-8 in to Dante out (AEC disabled): 5.8 ms
- Dante 9-10 in to Dante out: 1.8 ms
- Analog in to Analog out: 2.2 ms
- Analog Connections (Block Connectors):
- Dynamic Range (20 Hz to 20 kHz, A-weighted, typical):
- Analog-to-Dante: 113 dB
- Dante-to-Analog: 117 dB
- Equivalent Input Noise (20 Hz to 20 kHz, A-weighted, input terminated with 150 ):
- Line: -86 dBV
- Aux: -98 dBV
- Total Harmonic Distortion: @ 1 kHz, 0 dBV Input, 0 dB analog gain: <0.05%
- Common Mode Rejection Ratio: 150 balanced source @ 1 kHz: >50 dB
- Input Impedance: 9.6 kΩ
- Input Clipping Level:
- Line: +27 dBV
- Aux: +15 dBV
- Output Impedance: 80 Ω
- Output Clipping Level:
- Line: +20 dBV
- Aux: +0 dBV
- Mic: -26 dBV
- Mobile Connection (3.5 mm Connector):
- Pin Assignments:
- Tip: Audio Input (Left)
- Ring 1: Audio Input (Right)
- Ring 2: Ground
- Sleeve: Audio Output (To Phone)
- Dynamic Range (20 Hz to 20 kHz, A-weighted, typical):
- Analog-to-Dante: 99 dB
- Dante-to-Analog: 90 dB
- Equivalent Input Noise (20 Hz to 20 kHz, A-weighted, input terminated with 20 ): -95 dBV
- Total Harmonic Distortion (@ 1 kHz, 0 dBV Input, 0 dB analog gain): <0.05%
- Input Impedance: 3.7 kΩ
- Input Clipping Level: +4 dBV
- Output Impedance: 1.4 kΩ
- Output Clipping Level (Output terminated with 2.2 kΩ): -20 dBV
- Networking:
- Cable Requirements: Cat 5e or higher (shielded cable recommended)
The Shure MXA310W-P300-P Conference Bundle is perfect for businesses and organizations looking to enhance their audio conferencing experience. With its natural voice quality and excellent speech intelligibility, this bundle is ideal for any audio/video conferencing setup. The MXA310W Table Array Microphone features steerable coverage, an intuitive user interface, and versatile connectivity options, while the P300-IMX Audio Conferencing Processor offers simplified setup, discrete installation, and versatile connectivity. The bundle also includes a variety of features and specifications to ensure crystal clear audio, including AEC, noise reduction, and automatic gain control. The MXA310W has a weight of 362 g (0.8 lbs) and dimensions of H x W x D: 3.6 x 13.4 x 13.4 cm (1.4 x 5.3 x 5.3 in.), while the P300-IMX has a weight of 1710 g (3.8 lbs) and dimensions of H x W x D: 4 x 21 x 22.6 cm (1.6 x 8.3 x 8.9 in.).
