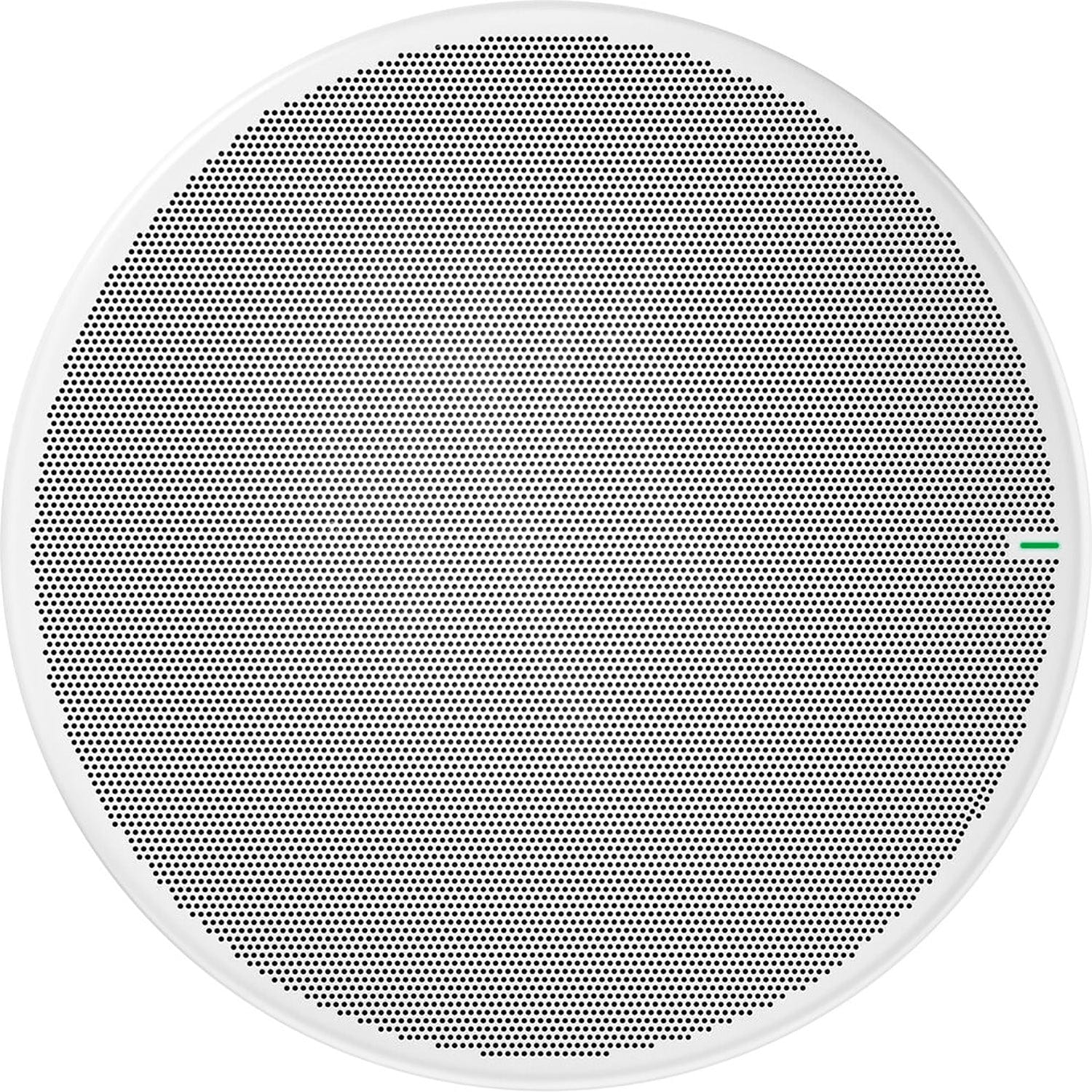

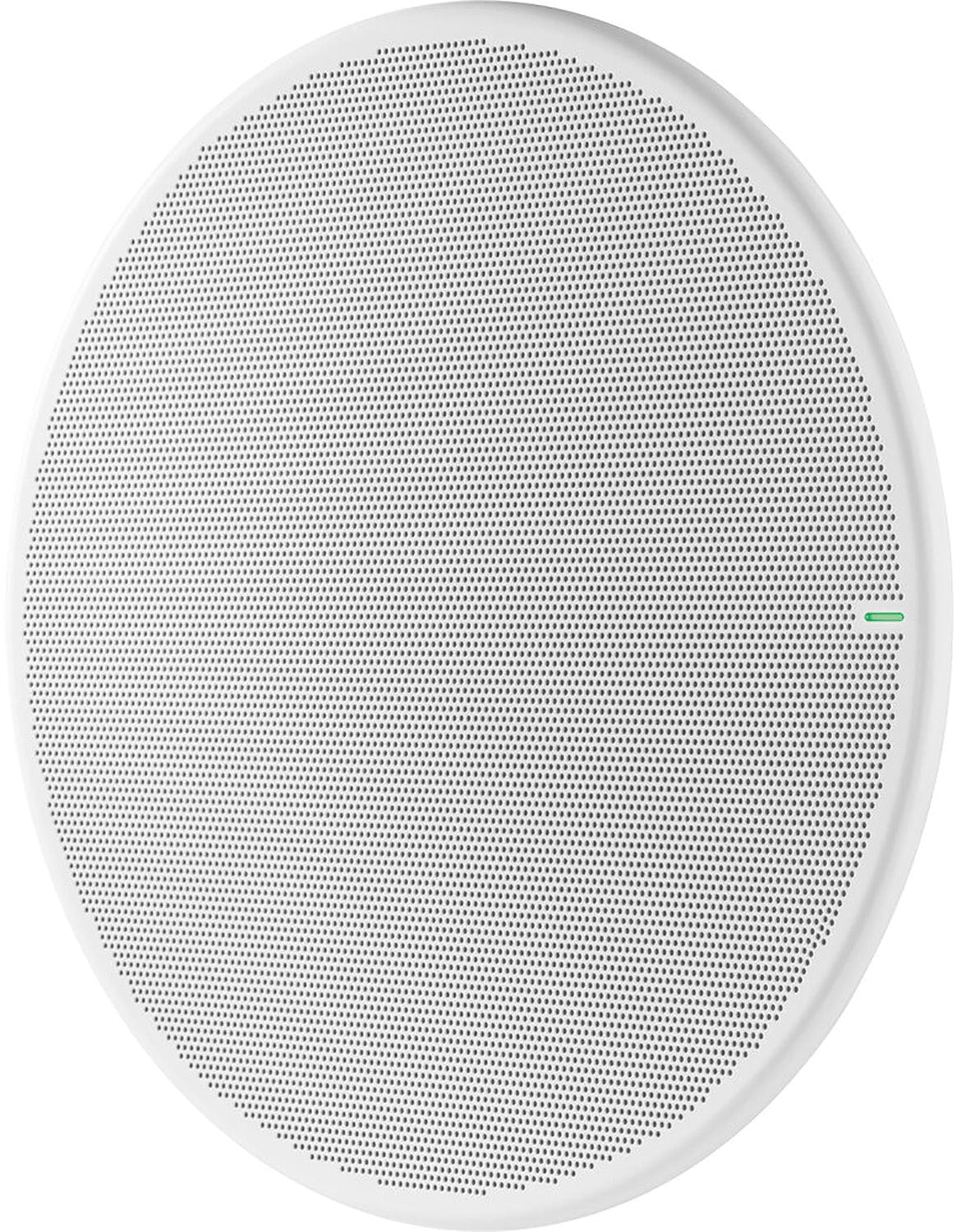

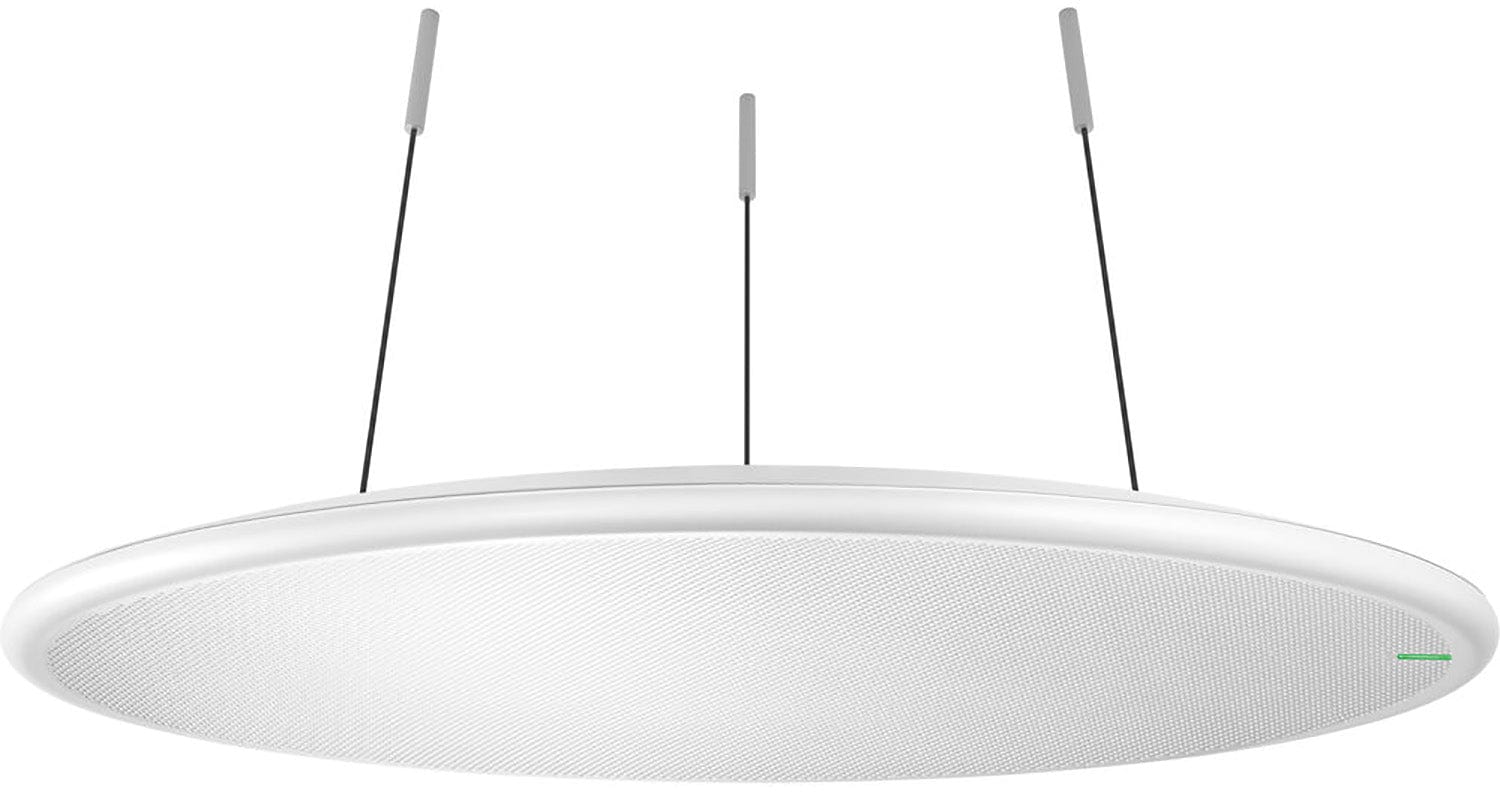

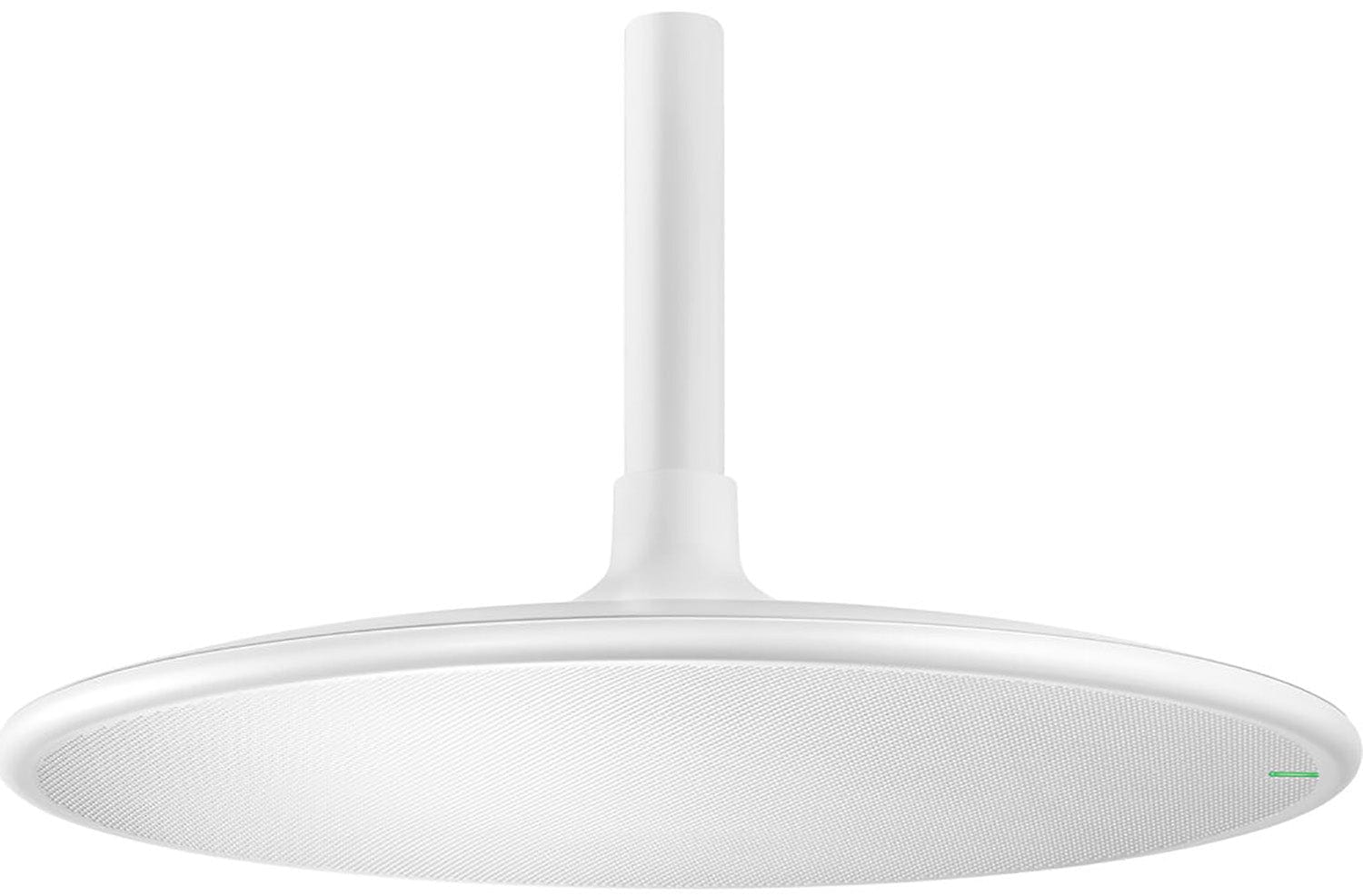

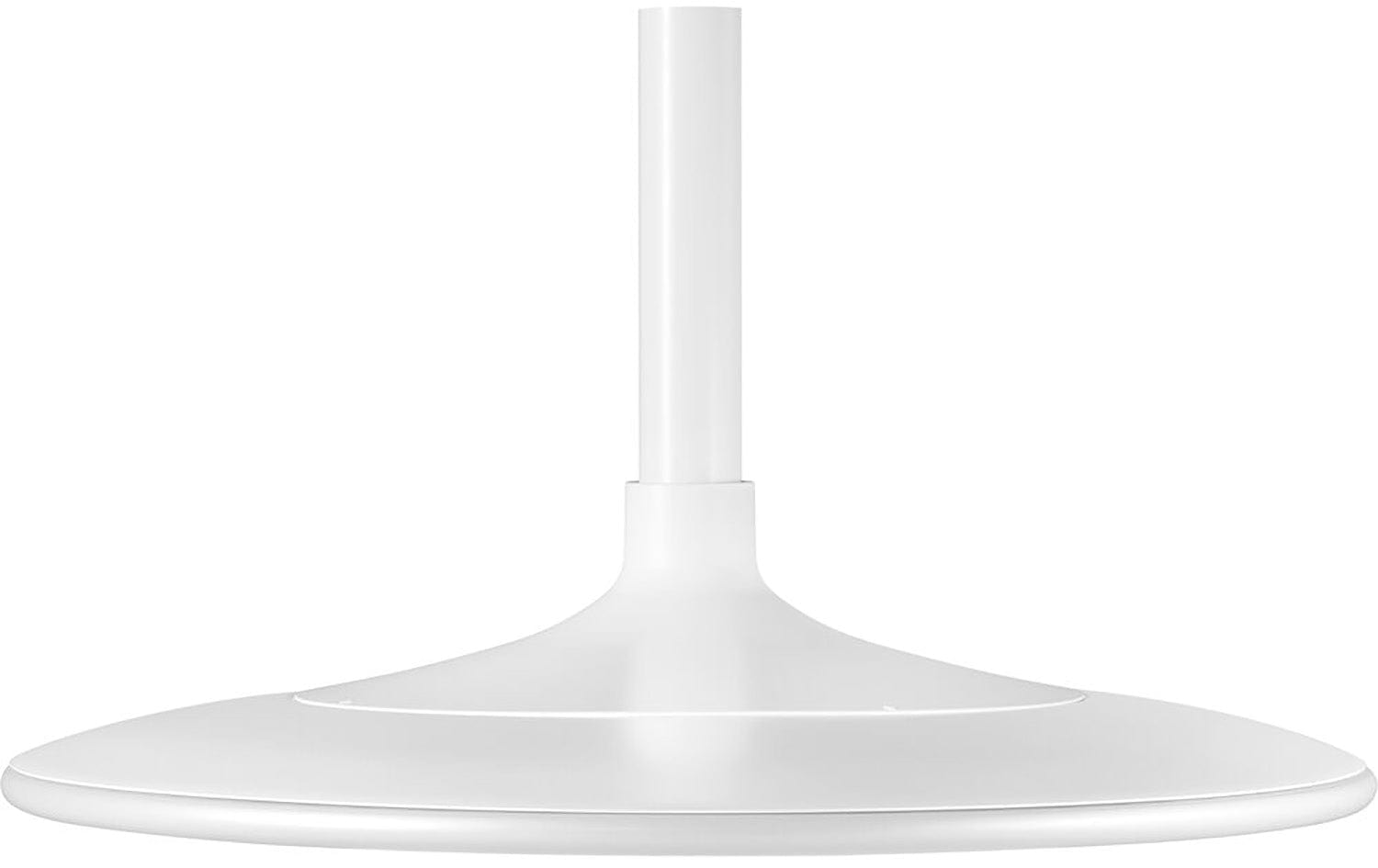

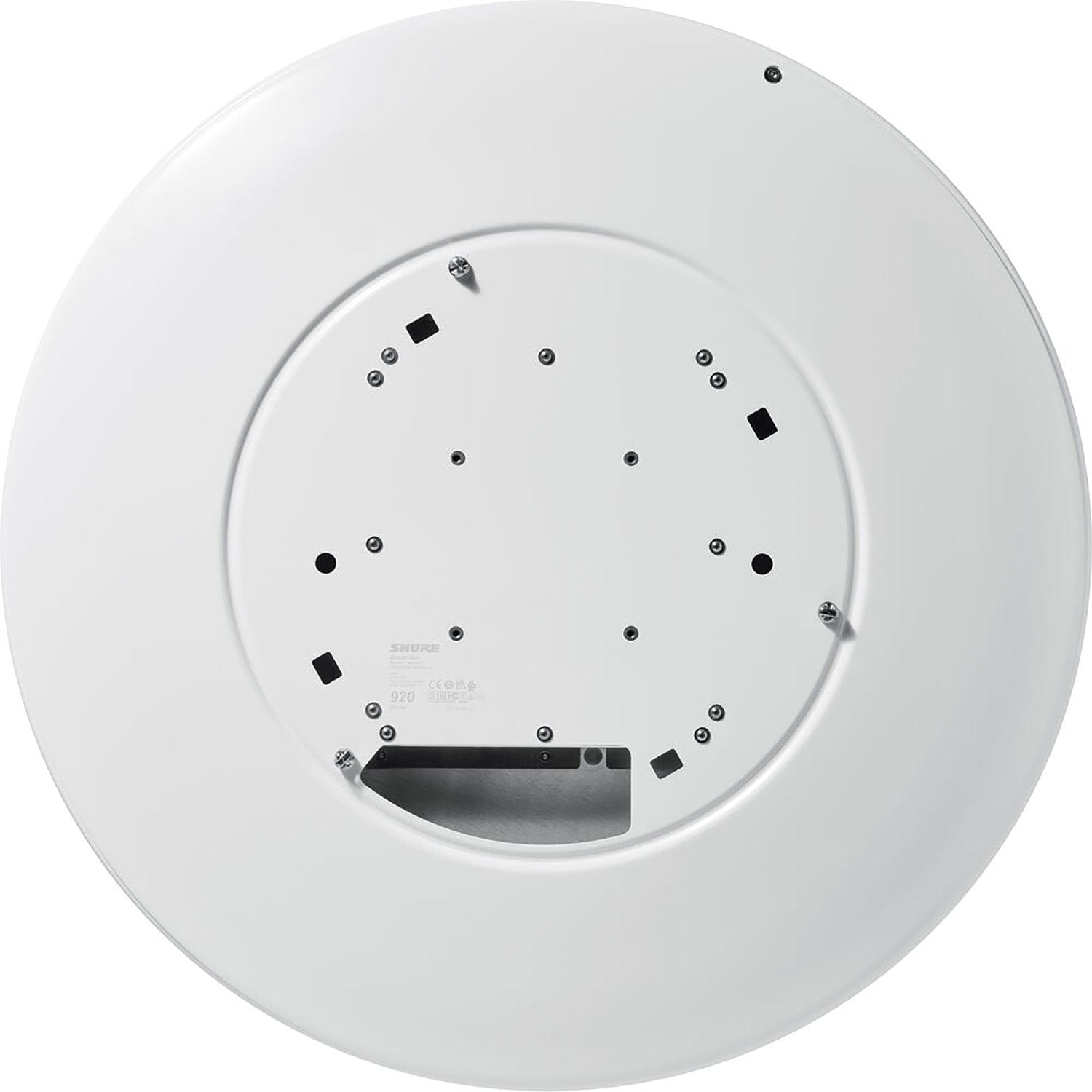

Shure MXA920W-R White Round Ceiling Array Microphone - Your Ultimate Audio Solution
Discover the Shure MXA920W-R! It offers effortless audio capture with Automatic Coverage technology. Its next-generation array architecture provides enhanced directional pickup and natural speech. Ideal for AV conferencing, camera tracking, voice lift, or sound reinforcement.
Features:
- • Perfect for Meetings, Conferences, Presentations
- • Covers 30 x 30' Area, No Setup Needed
- • Multiple Talkers Captured Seamlessly
Benefits:
- • Automatic Mixing and Gain Control for Clear Sound
- • Noise Reduction and Echo Cancellation for Distraction-Free Audio
- • Dante, PoE, and Single Cable Audio for Easy Setup
Specifications:
- General:
- Coverage Type: Automatic or steerable
- Power Requirements: Power over Ethernet (PoE), Class 0
- Power Consumption: 10.1 W maximum
- Control Software: Designer or web application
- Cable Requirements: Cat5e or higher (shielded cable recommended)
- Connector Type: RJ45
- Plenum Rating: UL2043 (Suitable for Air Handling Spaces)
- Dust Protection: IEC 60529 IP5X Dust Protected
- Operating Temperature Range: 6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range: 29°C ( 20°F) to 74°C (165°F)
- Audio:
- Microphone Elements: 113 MEMS
- Frequency Response: 125 Hz to 20,000 Hz
- AES67 or Dante Digital Output:
- Channel Count:
- Automatic coverage on: 2 total channels (1 output, 1 AEC reference in channel)
- Automatic coverage off: 10 total channels (8 independent transmit channels, 1 automix output, 1 AEC reference in channel)
- Sampling Rate: 48 kHz
- Bit Depth: 24
- Sensitivity: at 1 kHz, 1.74 dBFS/Pa
- Maximum SPL: Relative to 0 dBFS overload, 95.74 dBSPL
- Signal-to-Noise Ratio: Ref. 94 dBSPL at 1 kHz, 75.76 dB A-weighted
- Self Noise: 18.24 dB SPL-A
- Dynamic Range: 77.5 dB
- Digital Signal Processing: Automatic mixing, acoustic echo cancellation (AEC), noise reduction, automatic gain control, compressor, delay, equalizer (4-band parametric), mute, gain (140 dB range)
- Acoustic Echo Cancellation Tail Length: Up to 250 ms
- Dimensions:
- Weight: MXA920-R: 12.7 lbs (5.8 kg)
The Shure MXA920W-R is a great choice for meetings, conferences, and presentations. It has a 30 x 30' coverage area and requires no setup. Weighing 12.7 lbs (5.8 kg), it offers features like automatic and steerable coverage, capturing multiple talkers, and automatic mixing and gain control. It also has noise reduction and echo cancellation, along with Dante, PoE, and audio via a single cable. The operating temperature range is 6.7°C (20°F) to 40°C (104°F), and it's dust protected with an IP5X rating.
