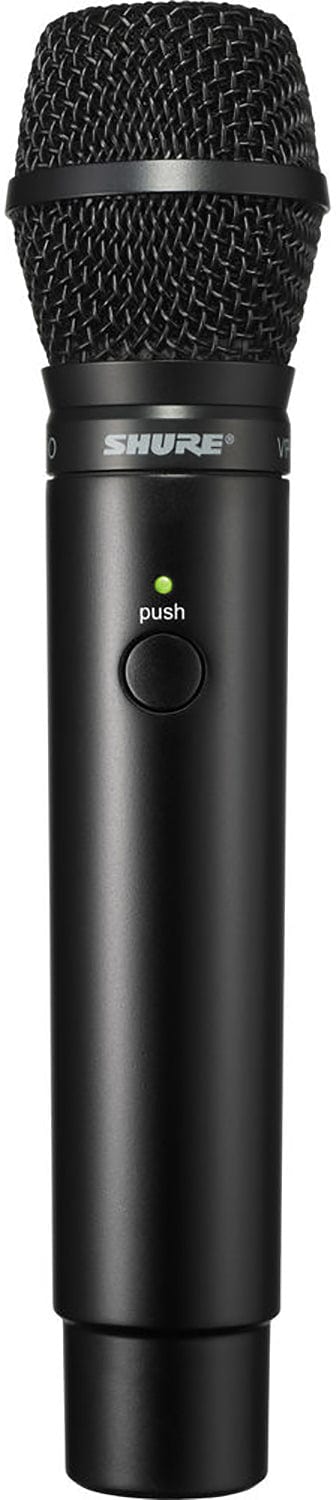

Shure MXW2/VP68 Handheld Transmitter - The Ultimate Solution for Crystal-Clear Sound
The MXW2 handheld transmitter, paired with the VP68 capsule, is a game-changer for Microflex Wireless Systems. With its lightweight yet durable build and integrated antennas, it delivers exceptional sound quality, intelligent wireless performance, encrypted transmission, and advanced rechargeability for presentations and conferences.
Features:
- • Interchangeable microphone cartridges: Choose from SM58, SM86, Beta 58A, and VP68 signature Shure microphones
- • Dual transmit antennas: Maximize transmission strength based on hand placement
- • Bi-directional wireless: Control all wireless microphone settings in real time
- • Programmable mute button: Customize local or remote muting for any application
- • Standby mode: Extend battery life significantly during breaks or inactivity
- • Wide working range: Enjoy reliable wireless coverage up to 160 feet (50 meters)
- • Range warning alert: Get notified when range limit is exceeded
- • Easy transmitter linking: Simply dock and press “link” to assign to an Access Point channel
- • Encrypted wireless: AES 256-bit encryption for secure transmission
- • Advanced Li-ion batteries: Up to 9 hours of continuous use, 2-hour full charge, and remote monitoring
- • USB charging: Connect to any standard USB power source for constant use
Specifications:
- Transmitter:
- Gain Adjustment Range: -25 to 15 dB (in 1 dB steps)
- Maximum Input Level: -9 dBV (mic gain @ -16 dB)
- Headphone Output: 1/8' (3.5 mm) dual mono (drives stereo headphones)
- Output Power: Headphone: 17.5 mW (1 kHz @ 1% distortion, peak power, @ 16 Ω)
- Antenna Type: Internal, spatial, linear polarization
- Battery Type: Rechargeable Li-Ion
- Battery Life: Up to 15 hours (varies depending on battery health)
- Charge Connector: USB 3.0 Type A
- Housing: Molded plastic
- Temperature Range: Recommended for Storage: 32 to 77°F (0 to 25°C)
- Configuration: Unbalanced
- Input Impedance: >20 kΩ (@ 1 kHz)
- Microphone:
- Type: Condenser
- Frequency Response: 40 Hz to 20 kHz
- Polar Pattern: Omnidirectional
- Sensitivity: 41 dBV/Pa (@ 1 kHz)
- Maximum SPL: 136.5 dB (1% THD)
- Self Noise: 18.5 dB(A)
- Dimensions: 1.9 x 3' (49 x 76 mm)
- Weight: 7 oz (200 g)
- General:
- Dimensions: 2.0 x 8.9' (51 x 226 mm)
- Weight: 11.4 oz (323 g) with batteries and microphone capsule
- Packaging Info:
- Package Weight: 1.45 lb
- Box Dimensions (LxWxH): 11 x 5.3 x 3.2'
The Shure MXW2/VP68 Handheld Transmitter is perfect for presenters and conference organizers. With its lightweight design (2.0 x 8.9' or 51 x 226 mm, 11.4 oz or 323 g with batteries and capsule), it's easy to carry around. It offers exceptional sound quality, intelligent wireless performance, and encrypted transmission. The interchangeable microphone cartridges let you choose the sound you need. Ideal for presentations and conferences where clear audio is crucial.
