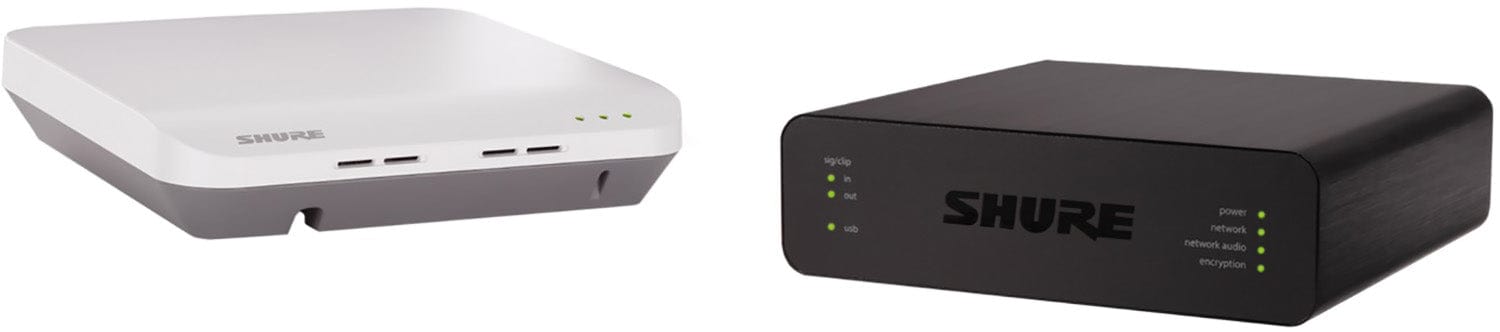

Shure MXWAPT4-Z10 + USB-P Bundle: 4-Channel Transceiver & USB Network Interface
MXWAPT4-Z10
• Ultra-slim design for discreet placement in AV environments
• Simplifies installation with single Ethernet cable (PoE compatible)
• Multiple units can be combined for up to 32 compatible channels
ANIUSB-MATRIX
• Ideal for audio/video conferencing in small to medium meeting rooms
• Connects 4 Dante audio inputs and 1 analog input
• Compact form factor for easy mounting
Features:

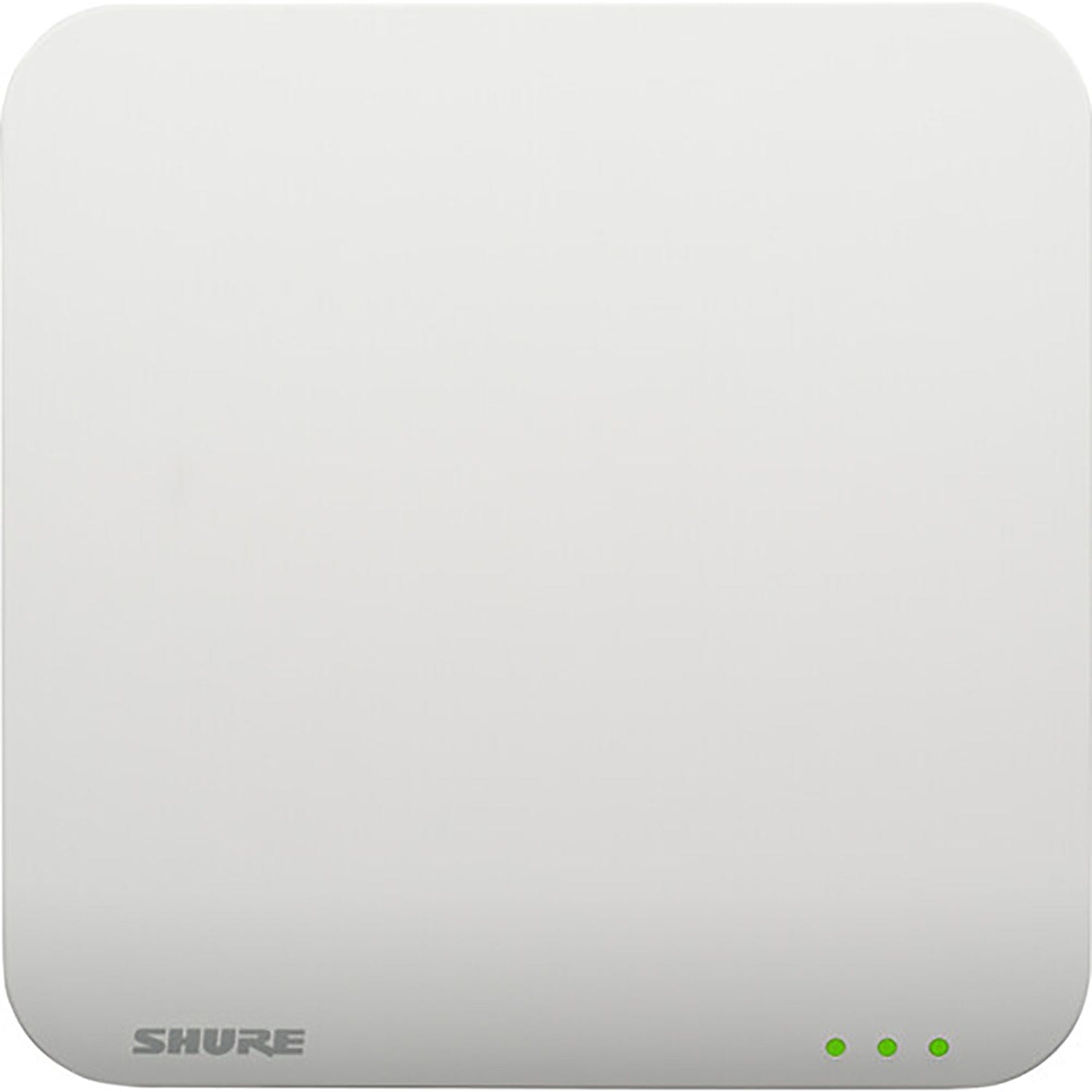

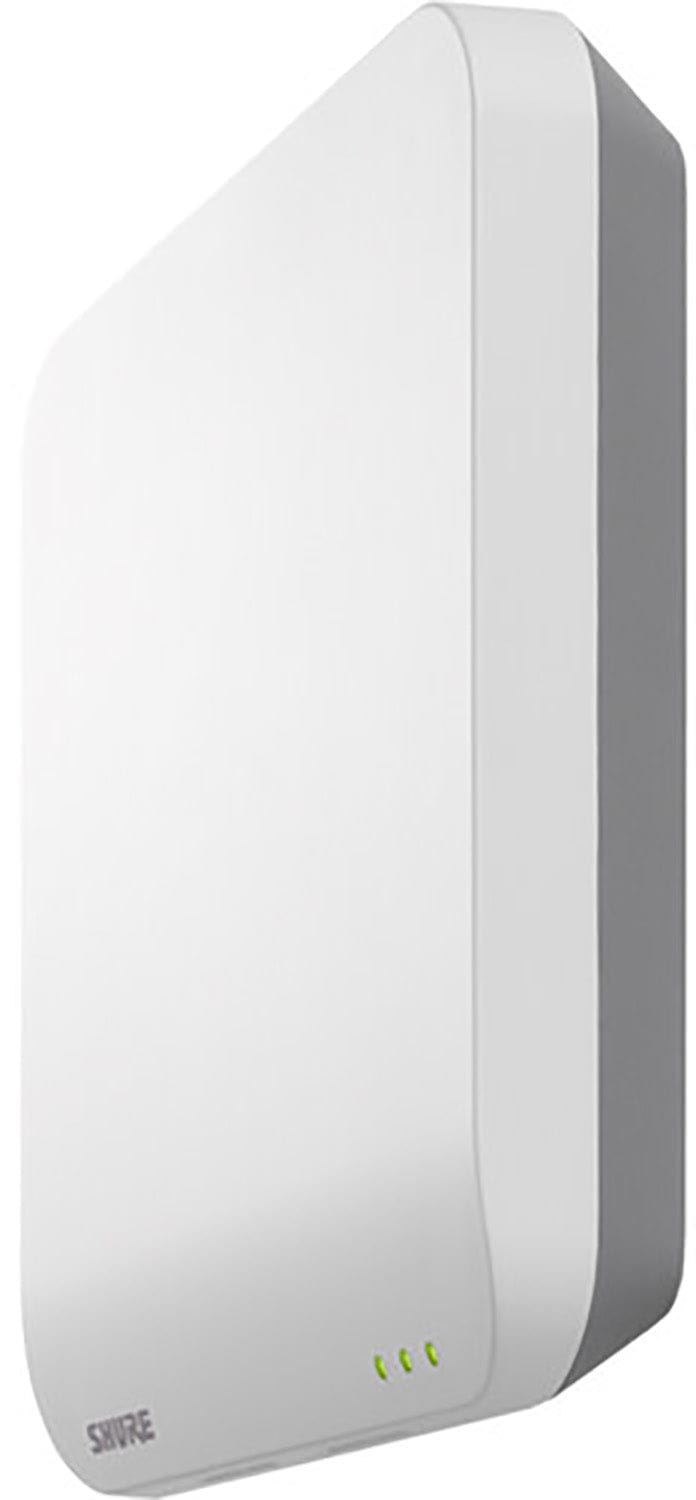

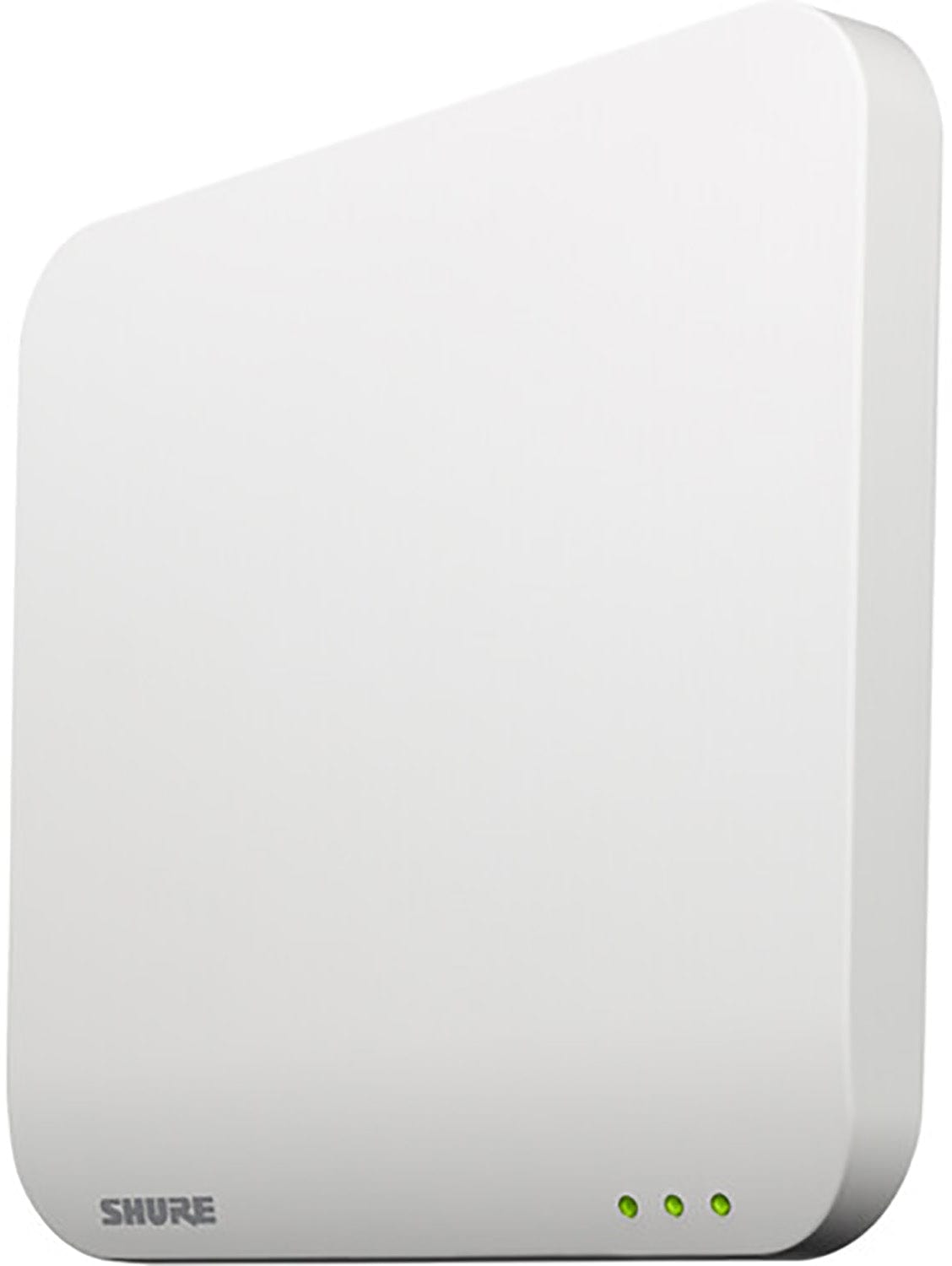

- Shure MXWAPT4 4-Channel Access Point Transceiver:
- Slim profile: Lightweight, discreet unit with paintable cover to match interior room colors and blend into AV environments
- Includes wall/ceiling mounting plate and connects to the system over single Ethernet cable (PoE compatible)
- Plenum rated: Meets rigorous fire safety test standards for installation above drop ceiling tiles
- Scalable configurations: Multiple units can be combined to support configurations of up to 32 compatible channels
- Bi-directional wireless: Provides return channel audio to wireless transmitters and enables real-time remote control of all wireless microphone settings
- Automated frequency coordination: Automatically scans available spectrum, coordinates clean frequency assignments, and moves channels away from unexpected interference
- Dante digital networked audio: Transports low latency digital audio received from wireless microphones over Cat5e cable to any other Dante-equipped device
- Encrypted wireless: AES 256-bit encryption for secure transmission
- Selectable output power: Optimize spectrum usage by selecting the appropriate wireless output power for the desired operating range
- Diagnostic LEDs: Provide easy visual reference to system activity and indicate power, wireless connection, and network audio status

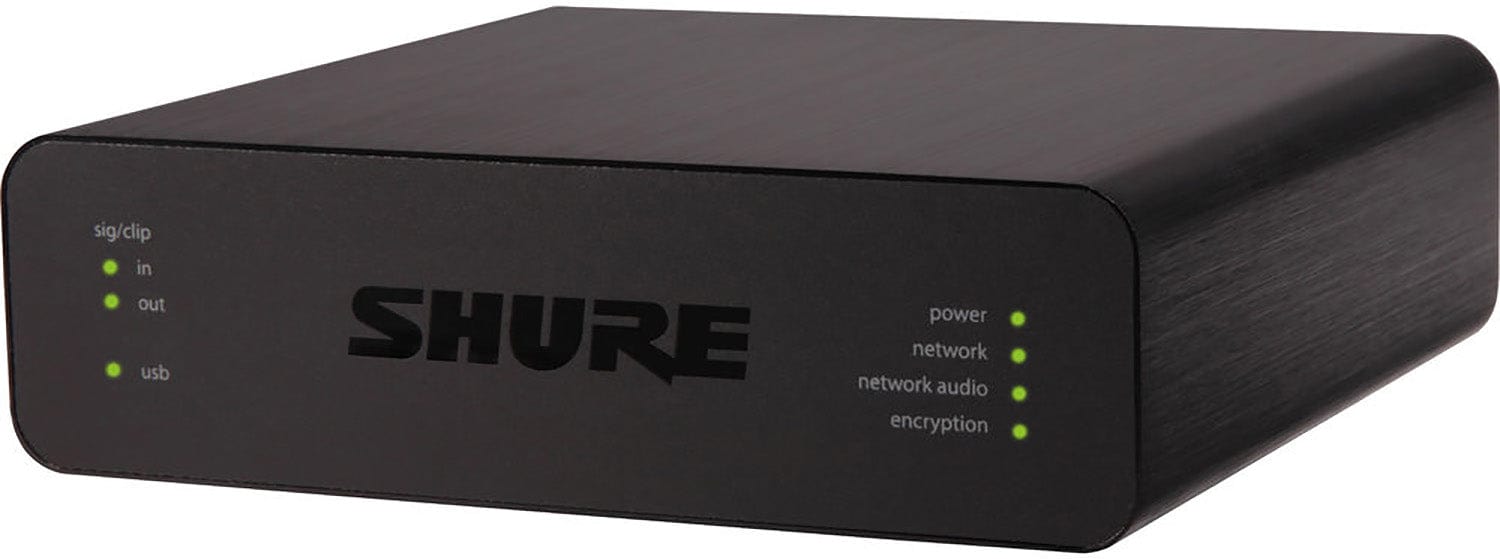

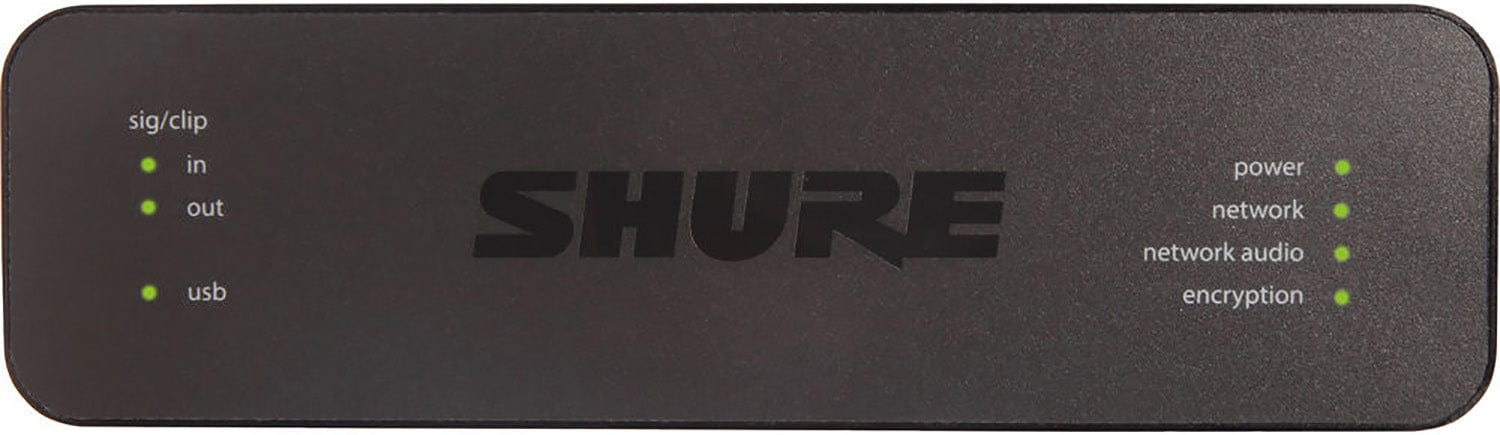

- Shure ANIUSB-MATRIX USB Audio Network Interface:
- Connects 4 Dante audio inputs and 1 analog input to a AV conferencing system or a PC-based videoconferencing application
- Flexible signal routing and connectivity: analog audio (1 block in / 1 block out) to room AV conferencing system; USB (1 in/out) to connect to laptop or room PC
- Power-over-Ethernet (PoE) eliminates the need for an outboard power supply
- Compact form factor is easy to mount without equipment rack
Specifications:
- Shure MXWAPT4 4-Channel Access Point Transceiver:
- Network Interface: RJ45 - Gigabit Ethernet, Dante digital audio
- Plenum: Rating - UL 2043
- Power Requirement: Power over Ethernet (PoE) Class 0, 6.5 W
- Antenna Type: Internal, spatial naversity, circular polarization
- Housing: Molded plastic, cast zinc
- Dimensions: 1.35 x 6.70 x 6.70' (24 x 170 x 170 mm)
- Weight:
- Unit: 1.86 lb (845 g)
- Paintable Cover: 0.2 lb (85 g)
- Mounting Bracket: 0.15 lb (68 g)
- Shure ANIUSB-MATRIX USB Audio Network Interface:

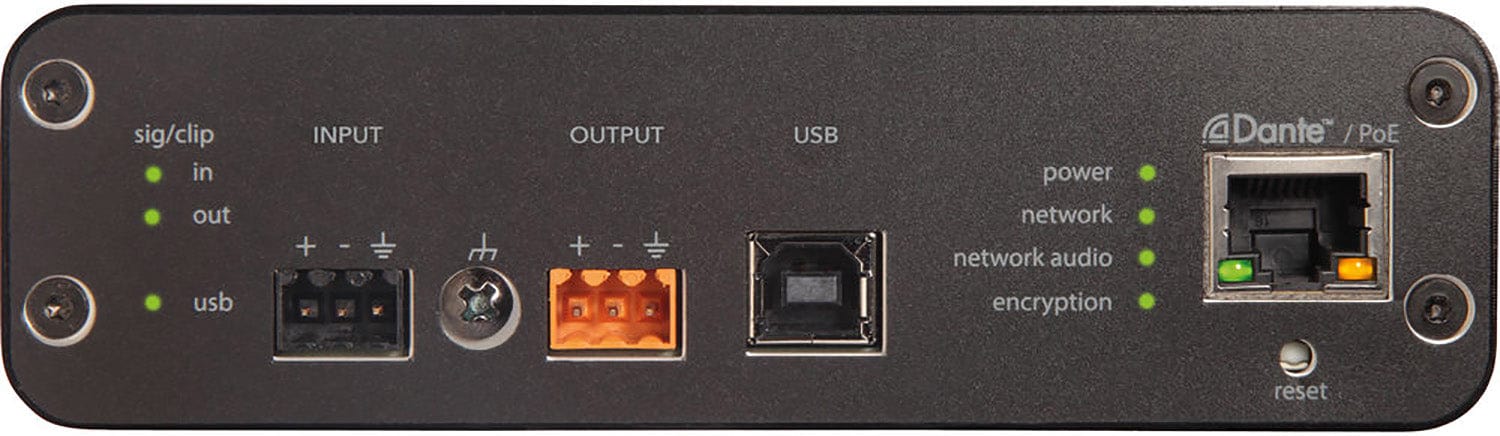

- USB Connections:
- (1) USB 2.0, Type B
- Single port carries 1 input and 1 output channel (Summed mono)
- Network Connections (Dante Digital Audio):
- (1) RJ45
- 4 input channels, 2 output channels
- Polarity: Non-inverting, any input to any output
- Power Requirements: Power over Ethernet (PoE), Class 0. (PoE Plus compatible)
- Power Consumption: 6.5W, maximum
- Weight: 1.5 lbs (668 g)
- Dimensions (HxWxD): 1.6' x 5.5' x 5.0' (4 x 14 x 12.8 cm)
- Control Application: HTML5 Browser-based
- Operating Temperature Range: 20°F - 104°F (-6.7°C - 40°C)
- Storage Temperature Range: -20°F - 165°F (74°C - -29°C)
This Shure bundle is perfect for boardrooms and conference rooms. Ideal for professionals who need high-quality audio solutions. The MXWAPT4-Z10 transceiver has a slim profile, weighs 1.86 lb, and measures 1.35 x 6.70 x 6.70'. The ANIUSB-MATRIX interface connects easily, weighs 1.5 lbs, and has dimensions of 1.6' x 5.5' x 5.0'.
