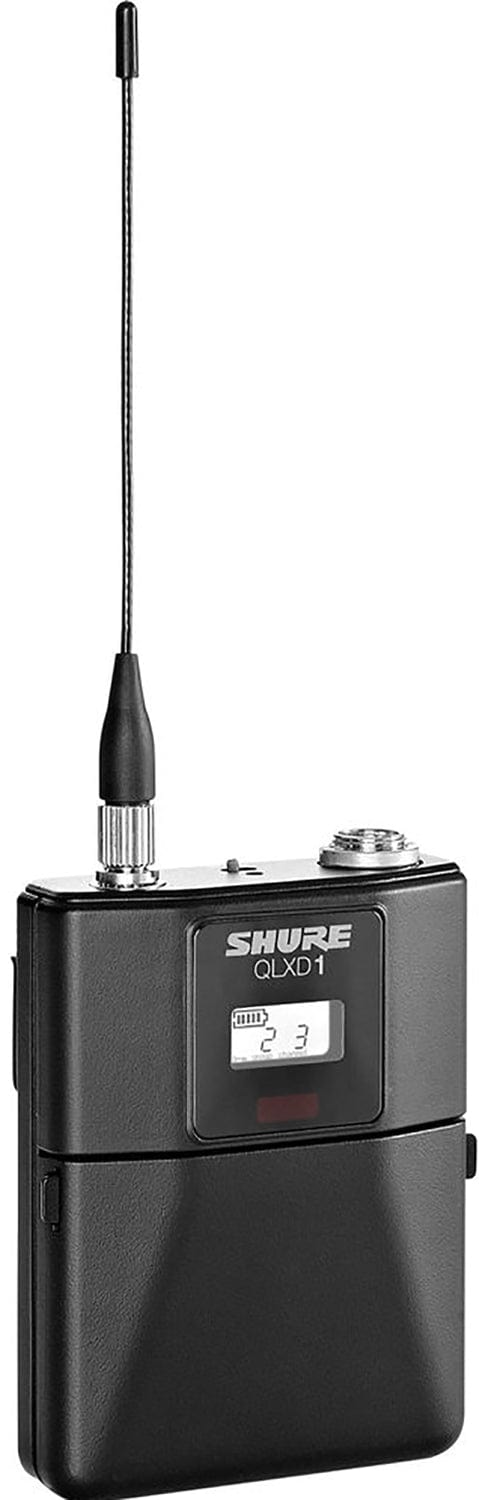

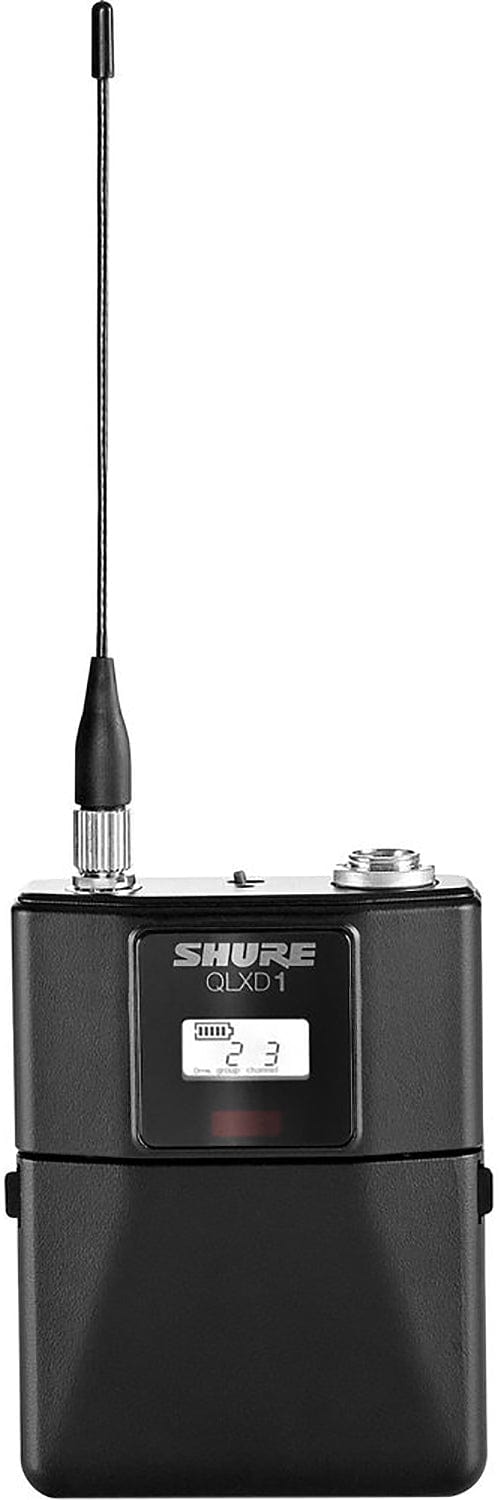

Shure QLXD1 V50 Band Bodypack Transmitter - Superior Audio for Your Venue
Elevate your sound with the Shure QLXD1 bodypack digital wireless microphone transmitter. Compatible with QLX-D receivers, it offers pristine audio quality, reliable RF performance, and secure AES 256-bit encryption. Ideal for medium-sized venues, houses of worship, and A/V installations in corporate, educational, and conference facilities.
Key Features:
- • Exceptional Audio Quality: Delivers crystal-clear sound for every performance.
- • Reliable RF Performance: Ensures stable signal transmission without interruptions.
- • Secure Encryption: Protects your audio with AES 256-bit encryption.
Technical Specs:
- RF Frequency Band: V50 (174 to 216 MHz)
- RF Bandwidth: 42 MHz
- Frequency Step Size: 25 kHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 330' / 100.6 m
- Sample Rate/Resolution: 48 kHz / 24-Bit
- Latency: < 2.9 ms
- Encryption: AES 256
- Modulation: Proprietary
- Transmitter:
- Transmitter Type: Bodypack
- RF Output Power: 1 / 10 mW
- Audio I/O: 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
- Audio Input Level: 8.5 dBV / 7.5 Vpp
- Gain Range: 0 to 21 dB (3 dB Steps)
- Frequency Response: 20 Hz to 20 kHz
- Sync Method: IR
- Antenna: 1 x 1/4 Wave Detachable
- Power Requirements: Battery
- Battery Type:
- 2 x AA (Included)
- 1 x Shure SB900A (Not Included, Replaceable)
- Approx. Battery Life: 9 Hours (Alkaline)
- Display & Indicators: 1 x Backlit LCD (Channel, Group, RF Output Power)
- Housing: Aluminum
- Dimensions: 2.6 x 3.4 x 0.9' / 65 x 86 x 23 mm
- Weight: 4.9 oz / 138 g (without Batteries)
The Shure QLXD1 V50 Band Bodypack Transmitter is perfect for medium-sized venues like conference rooms, houses of worship, and educational facilities. It's great for presenters, musicians, and anyone needing high-quality audio. With a rugged aluminum housing, it's lightweight and easy to carry. Dimensions are 2.6 x 3.4 x 0.9' / 65 x 86 x 23 mm and it weighs 4.9 oz / 138 g without batteries.
