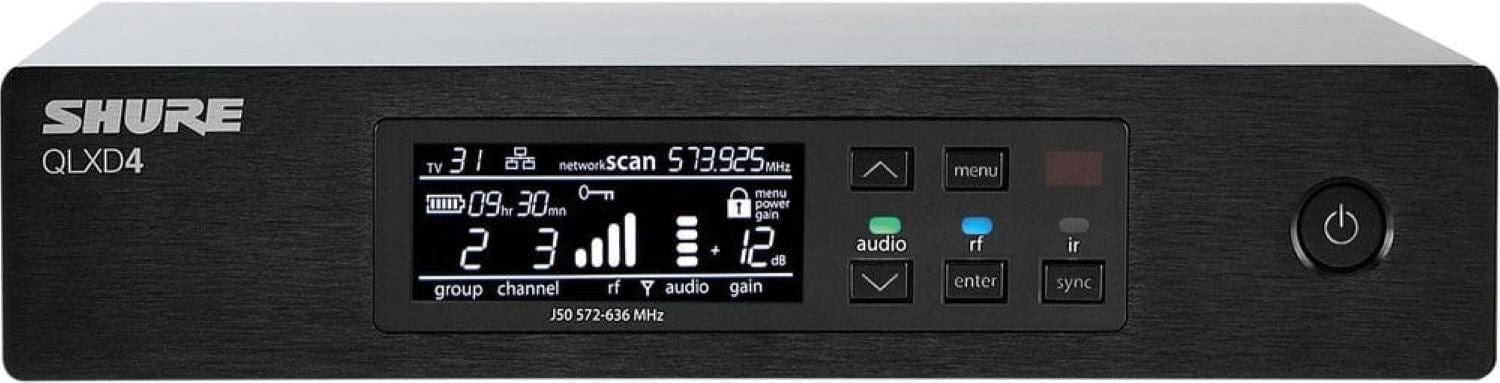

Shure QLXD4-V50 Digital Wireless Receiver - The Ultimate in Audio Clarity
Unleash crystal-clear 24-bit digital audio and maximize RF spectrum efficiency with the QLXD4. This half-rack digital wireless receiver is perfect for presentation spaces, music venues, and houses of worship. Enjoy professional features, easy setup, and seamless operation. Automatic scanning finds open frequencies fast, and one-touch sync deploys them to transmitters effortlessly. Ethernet networking enables networked channel scanning and Wireless Workbench software integration for remote control from your PC or Mac.
- • Exceptional audio quality with 24-bit digital clarity
- • Effortless frequency finding and deployment
- • Seamless networking and remote control
Product Specifications
- General Specs
- Dimensions: 41 x 197 x 151 mm, H x W x D
- Weight: 777 g, without antennas
- Housing: Steel
- Power requirements: 12 V DC @ 0.4 A, supplied by external power supply (tip positive)
- RF Input
- Spurious Rejection: > 80 dB, typical
- Connector Type: BNC
- Impedance: 50 Ω

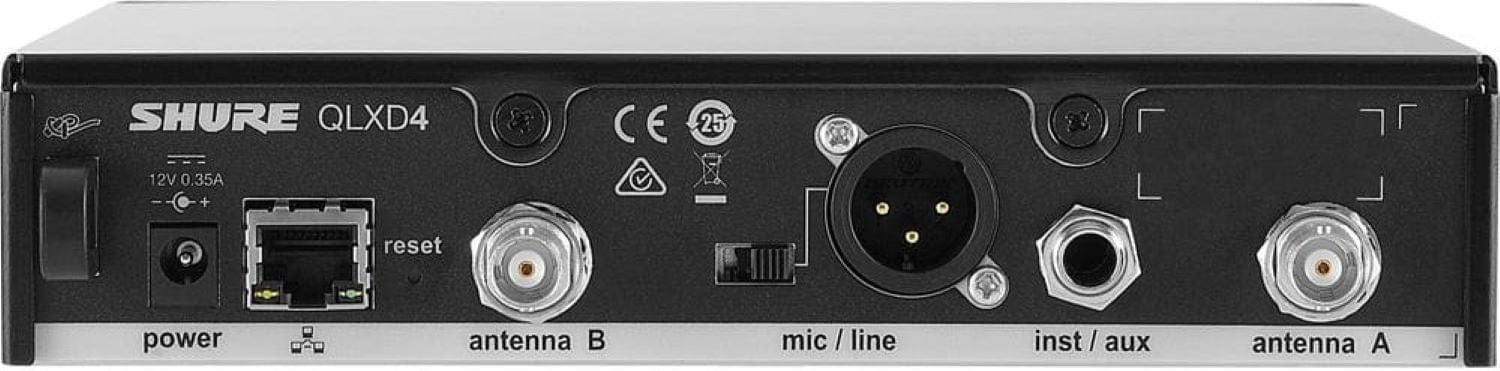

- Audio Output
- Gain Adjustment Range: -18 to +42 dB in 1 dB steps
- Configuration: 1/4' (6.35 mm): Impedance balanced (Tip = audio, Ring = no audio, Sleeve = ground) / XLR: Balanced (1 = ground, 2 = audio +, 3 = audio )
- Impedance: 1/4' (6.35 mm): 100 Ω (50 Ω Unbalanced) / XLR: 100 Ω
- Full Scale Output: 1/4' (6.35 mm): +12 dBV / XLR: LINE setting = +18 dBV, MIC setting = 12 dBV
- Mic/Line Switch: 30 dB pad
- Phantom Power: Protection 1/4' (6.35 mm): Yes / XLR: Yes
- Networking
- Network Interface: Single Port Ethernet 10/100 Mbps
- Network Addressing Capability: DHCP or Manual IP address
- Maximum Ethernet Cable Length: 100 m
The Shure QLXD4-V50 Digital Wireless Receiver is a versatile audio solution for various settings. It's great for presenters, musicians, and those in religious settings. With dimensions of 41 x 197 x 151 mm and weighing 777 g without antennas, it's compact and easy to handle. Enjoy features like automatic frequency scanning, one-touch sync, and Ethernet networking for seamless setup and operation.
