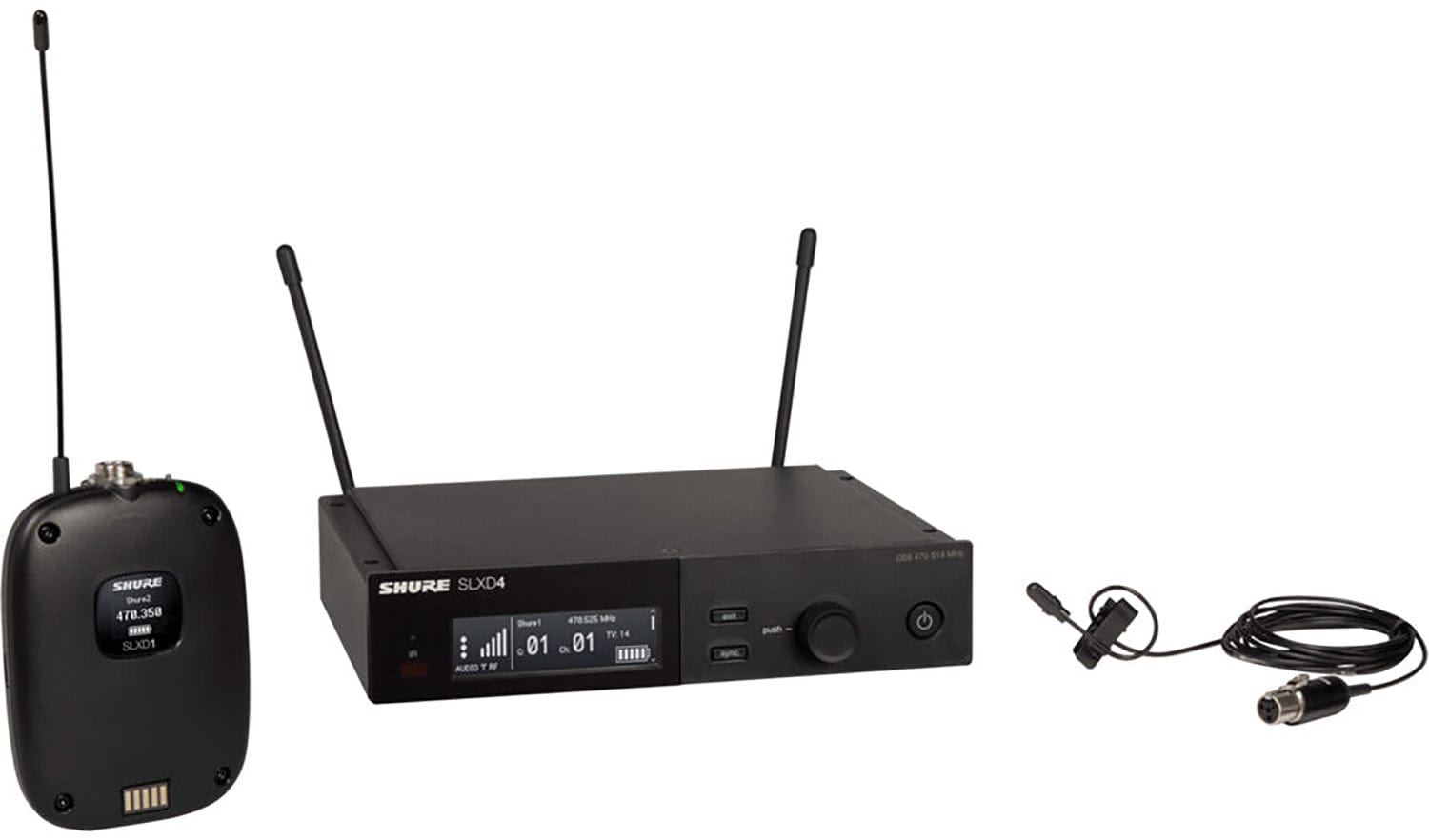

Shure SLXD14 Wireless System with SLXD1 Bodypack Transmitter and DL4 Lavalier Microphone - H55 Band

Shure SLXD14 Wireless Lavalier Microphone System - H55 Band: Crystal-Clear Sound for Performers

Get crystal-clear digital sound quality with the Shure SLXD14/DL4B wireless lavalier microphone system. It's easy to set up and dependable, perfect for actors, performers, instructors, clergy, and presenters. • Crystal-Clear Digital Sound: Enjoy pristine audio quality. • Easy Setup: Hassle-free installation. • Dependable Performance: Reliable for every use.

Features:

• For Active Performers & Actors

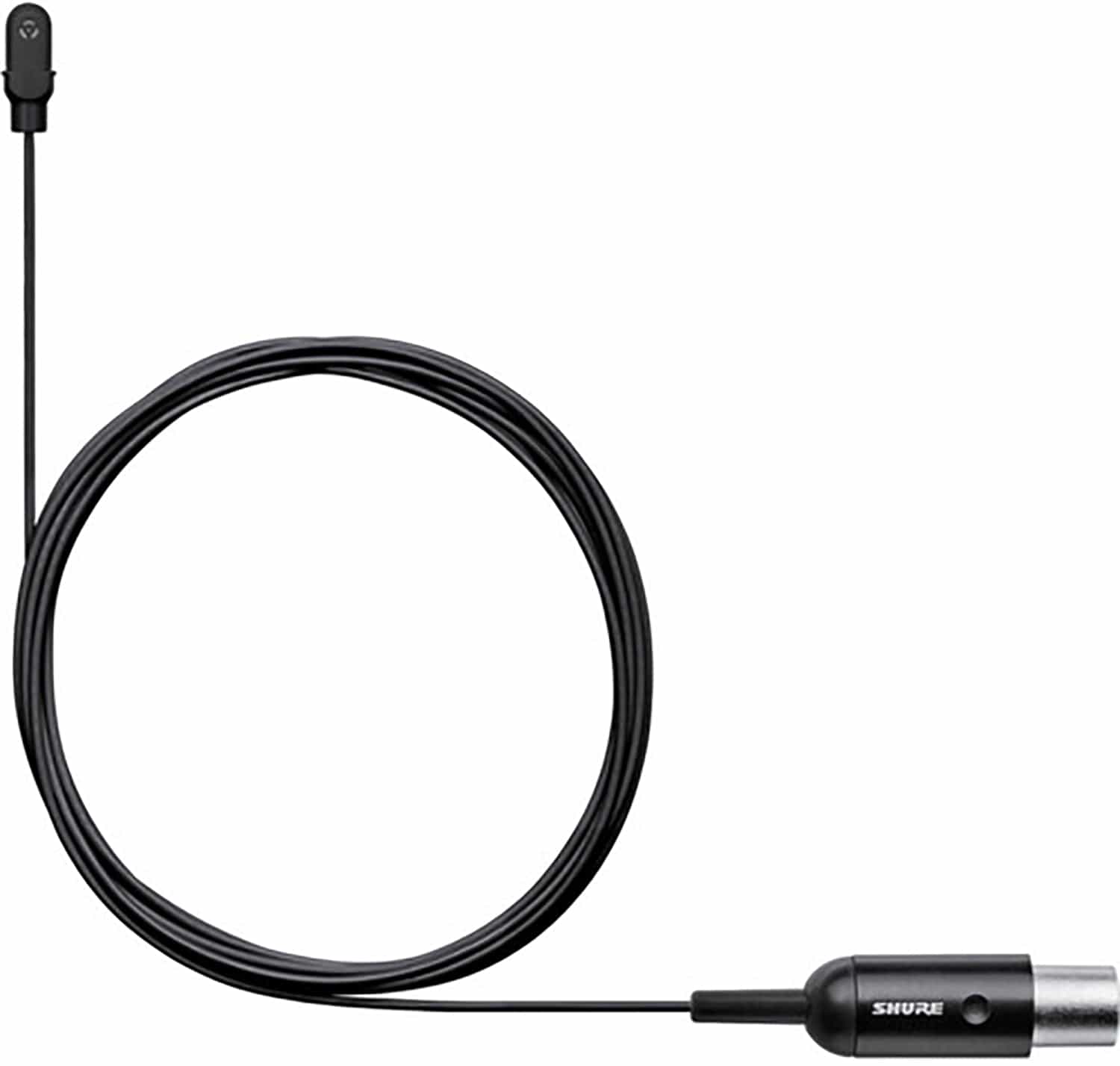

• DL4 Waterproof Omni Lavalier Mic (Black)
• Lightweight Bodypack Transmitter
• Digital Predictive Diversity Receiver
• 1760 Auto-Scan Frequencies
• 1/10mW RF Power
• High-Contrast LCD Screens
• Ethernet for Group Scans & Local Control
• Compatible with 8-Hr Rechargeable SB903
• Expandable to 32 Mic Channels/330' Range

Specifications:

• System:
  • Wireless Technology: Digital UHF
  • Number of RF Channel Frequencies: 1760
  • Included Transmitters: 1 x Bodypack with Microphone
  • Diversity: Antenna Diversity
  • RF Frequency Band: H55 (514 to 558 MHz)
  • RF Bandwidth: 44 MHz
  • Frequency Step Size: 25 kHz
  • RF Channel Scanning: Auto-Scan
  • Max Operating Range: 328' / 100 m
  • Max Transmitters per Band: 32
  • Built-In Recorder: No
  • Timecode Support: No
  • Mobile App Compatible:
    • Yes: Android & iOS
    • App Name: ShurePlus Channels
    • Functionality: Remote Control
  • OS Compatibility:
    • Windows 10 or Later
    • macOS 10.14
  • Sample Rate/Resolution: 24-Bit
  • Latency: 3.2 ms
  • Dynamic Range: 120 dBA (Typical)
  • Encryption: No
• Receiver:
  • Receiver Type: Tabletop / Rackmount
  • Mounting Options: Rackmount (with Included Hardware)
  • Rackmount Size: 1 RU (1/2 Rack)
  • Antenna: 2 x 1/4 Wave External, BNC (Rear-Mount)
  • Number of Audio Channels: 1
  • Audio I/O:
    • 1 x XLR 3-Pin Male Balanced Output
    • 1 x 1/4' TRS Female Balanced Output
  • Gain Range: 0 to +21 dB (3 dB Steps)
  • Pad: 30 dB
  • Audio Output Level: -18 to +42 dB (Balanced, Unbalanced)/li>
  • Phantom Power Protection: On 1/4', XLR Outputs
  • Network I/O: 1 x RJ45 (10/100 Mb/s)
  • Network Protocols: DHCP, Manual IP
  • Word Clock I/O: No
  • USB/Lightning Connectivity: No
  • Impedance:
    • XLR Output: 400 Ohms (Balanced), 150 Ohms (Balanced)
    • 1/4' Output: 1.3 Kilohms (Balanced)
    • 1/4' Output: 670 Ohms (Unbalanced)
  • Adjacent Channel Isolation: >70 dB
  • Spurious: Rejection >75dB
  • Power Requirements: AC/DC Power Adapter
  • AC/DC Power Adapter: 15 VDC at 600 mA, Center-Positive (Included)
  • AC Input Power: 100 to 240 VAC, 50 / 60 Hz
  • Display & Indicators: LCD (AF Level, Channel, Frequency, Group, RF Level, Transmitter Battery Status)
  • Housing: Steel
  • Operating Temperature: 0 to 122 °F / -17 to 50 °C
  • Storage Temperature: -20 to 165 °F / -28 to 73 °C
  • Dimensions: 7.8 x 1.7 x 6' / 197 x 42 x 152 mm
  • Weight: 1.8 lb / 816 g (without Antenna)
• Transmitter:
  • Transmitter Type: Bodypack with Microphone
  • RF Output Power: 1 / 10 mW
  • Audio I/O: 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Locking)
  • Auto-Level Control: No
  • Gain Range: 0 to 21 dB
  • Sync Method: IR
  • Antenna: 1/4 Wave External, Fixed
  • Power Requirements: Battery
  • Battery Type:
    • 2 x AA (Included)
    • 1 x Shure SB903 (Not Included)
  • Battery Charging Time: 1.25 to 5.5 Hours
  • Approx. Battery Life:
    • 8 Hours (Lithium Shure SB903)
    • 8 Hours (Alkaline)
  • Display & Indicators: LCD (Battery Status, Channel, Group)
  • Housing: ABS, Plastic
  • Operating Temperature: 0 to 122 °F / -17 to 50 °C
  • Storage Temperature: -20 to 165 °F / -28 to 73 °C
  • Dimensions: 2.7 x 3.9 x 1' / 68 x 98 x 25.5 mm
  • Weight: 3.1 oz / 89 g

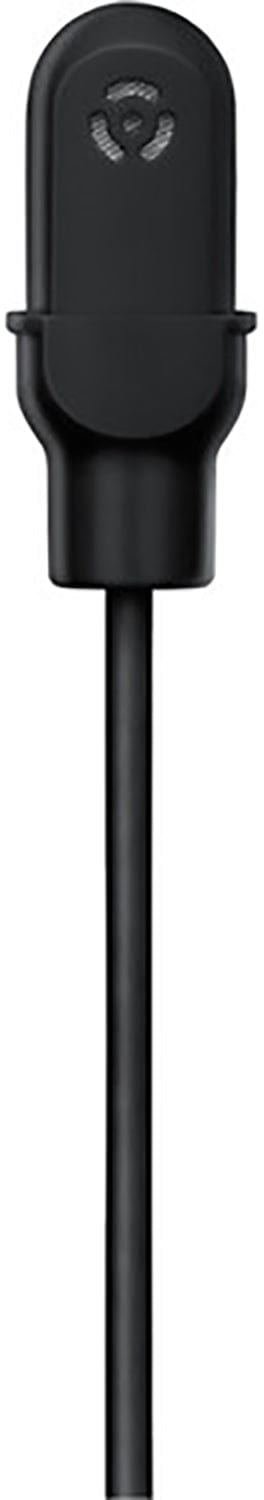

• Microphone:
  • Microphone Type: Lavalier
  • Color: Black
  • Sound Field: Mono
  • Capsule: MEMS
  • Polar Pattern: Omnidirectional
  • Frequency Range: 20 Hz to 20 kHz
  • SNR: 63 dB
  • Equivalent Noise Level: 31 dB A-Weighted
  • Maximum SPL: 132 dB SPL
  • Sensitivity: -42.5 dBV/Pa
  • Dynamic Range: 101 dB
  • Output Connector: 1 x TA4F/Mini-XLR 4-Pin Female Unbalanced
  • Cable Length: 66' / 1.7 m
  • Operating Voltage: 5 V
  • Operating Current Consumption: 220 µA
  • Length: 0.6' / 14.5 mm
  • Diameter: 0.2' / 5.2 mm
  • Weight: 0.5 oz / 15 g
• Packaging Info:
  • Package Weight: 7.015 lb
  • Box Dimensions (LxWxH): 17.8 x 13.7 x 4.5'

The Shure SLXD14 Wireless System with SLXD1 Bodypack Transmitter and DL4 Lavalier Microphone - H55 Band is perfect for a variety of scenarios. Ideal for actors, performers, instructors, clergy, and presenters, it offers a reliable wireless lavalier microphone solution. The receiver has a rackmount size of 1 RU (1/2 Rack), weighs 1.8 lb / 816 g (without Antenna), and the transmitter is lightweight at 3.1 oz / 89 g. It's great for portable rigs or long-term installations in small- to medium-sized venues like event spaces, conference rooms, houses of worship, and education facilities.
