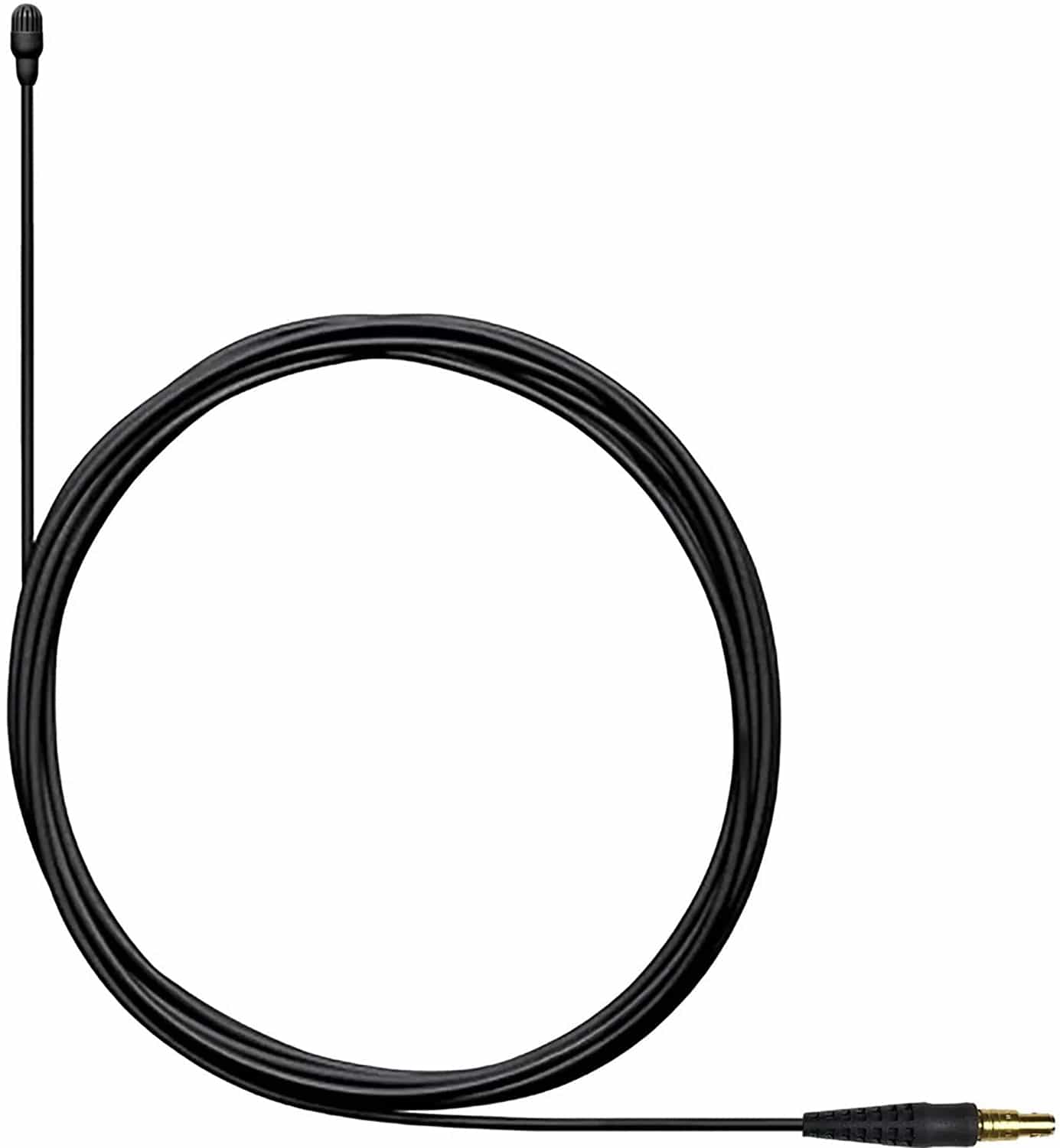

Shure TL46B/O-LEMO1-A: The Ultimate Omnidirectional Subminiature Microphone
Unleash the power of crystal-clear sound with the Shure TL46B/O-LEMO1-A. This exceptional microphone offers unmatched signal-to-noise ratio, superior natural sound quality, and high sensitivity output. It's a game-changer for dialogue and medium SPL applications!
Features:
- • Ideal for theater, film, broadcast, and live TV when you need an extra boost (8-10dB) •
- • Twice the surface area of other mics for pristine, natural sound and a strong low-frequency response thanks to the innovative dual-diaphragm design •
- • Enhanced off-axis consistency ensures accurate sound reproduction no matter where the voice comes from •
- • Best-in-class low self-noise and dynamic range for cleaner audio •
- • Interchangeable sweat- and moisture-resistant caps keep your audio clear, even in tough conditions •
- • 1.6 mm paintable cable that's kink-free and memory-effect resistant •
- • Dual redundant ground in cable for long-lasting protection •
- • Natural sound signature •
- • High sensitivity (8-10db increased output) •
- • Sleek black color •
- • LEMO connectors •
- • Accessories available separately •
Specifications:
- Microphone Capsule: Dual-Diaphragm, Prepolarized Condenser
- Polar Pattern: Omnidirectional
- Frequency Response: 20 Hz to 20 kHz
- Sensitivity: -37.0 dBV(14.1 mV) at 1 kHz
- Self-Noise, A-Weighted, Equivalent Acoustical: 24.5 dB SPL-A
- Signal-To-Noise Ratio: 69.5 dB
- Output Clipping Level: 3.0 dBV,1 kHz at 1% THD, typical
- Maximum SPL: 142.0 dB SPL 1 kHz at 1% THD, typical
- Dynamic Range: 117.5 dB typical
- Microphone Current Draw: 120 to 240 μA, typical
- Bias Voltage Recommended Operating Voltage: 5 VDC
- Housing: Molded ABS
- Polarity: Positive pressure at diaphragm leads to negative voltage with respect to ground
- Cable Diameter: 1.1 mm
- Cable Length: 66 in. (1.67 m)
- Microphone Length: 13.5 mm
- Microphone Diameter: 5.6 mm
- Net Weight with Cable: 12.0 g (0.42 oz.)
The Shure TL46B/O-LEMO1-A is a versatile omnidirectional subminiature microphone perfect for theater, film, broadcast, and live TV applications. It features an ultra-durable 1.6 mm paintable cable and interchangeable moisture-resistant frequency caps. With a high sensitivity output and superior natural sound quality, it's ideal for capturing clear dialogue. The microphone has a dual-diaphragm design for a robust low-frequency response. It measures 13.5 mm in length, 5.6 mm in diameter, and weighs 12.0 g with a 66 in. (1.67 m) cable.
