Shure ULXD4D V50 Band Dual-Channel Digital Wireless Receiver - Your Ultimate Sound Solution
Part of the ULX-D wireless series, the Shure ULXD4D is a game-changer for large venues and A/V installations. It packs 2 independent digital receivers into a rugged, single-rack unit with an internal power supply.
Why Choose Shure ULXD4D?
- • Ideal for large venues and A/V setups
- • Expandable up to 60 channels for flexibility
- • Secure AES-256 encryption for peace of mind
Key Features
- • 2 x Digital Audio Channels, 1 Rackspace
- • 64 MHz Tuning Range
- • 2 x Ethernet/Dante Ports for seamless audio integration
- • 2 x RF Cascade Ports for signal distribution
- • Audio Summing for mixer functionality
- • Antenna Diversity for reliable reception
Specifications
- Number of RF Channel Frequencies: 1680
- Diversity: Antenna Diversity
- RF Frequency Band: V50 (174 to 216 MHz)
- RF Bandwidth: 42 MHz
- Frequency Step Size: 25 kHz
- Max Operating Range: 328.1' / 100 m
- Max Transmitters per Band: 60
- Latency: < 2.9 ms
- Modulation: Proprietary
- Receiver:
- Receiver Type: Tabletop
- Mounting Options: Rackmount (with Included Hardware)
- Rackmount Size: 1 RU (1/2 Rack)
- Antenna: 2 x 1/2 Wave External, BNC (Rear-Mount)
- Antenna Bias Voltage: 12 to 13 VDC, 150 mA (per Antenna)
- Number of Audio Channels: 2
- Audio I/O: 2 x XLR 3-Pin Male Balanced Output
- Gain Range: -18 to +42 dB (1 dB Steps)
- Pad: 30 dB
- Audio Output Level:
- XLR Outputs: +18 dBV (Line Level, Balanced)
- XLR Output: -12 dBV (Mic Level)
- Phantom Power Protection: On XLR Outputs
- Frequency Response: 30 Hz to 20 kHz ±1 dB (Dependent on Mic)

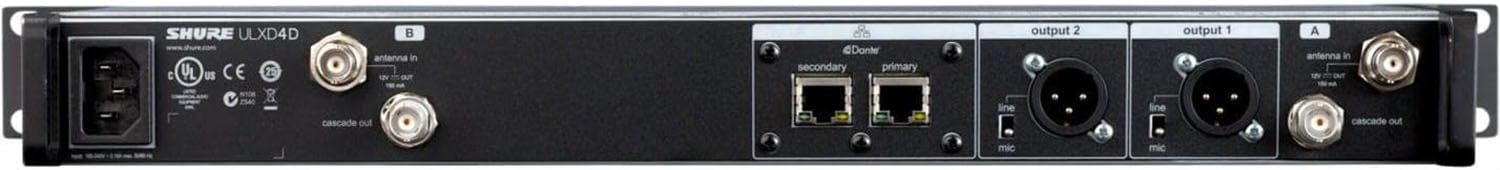

- Network I/O: 2 x RJ45 (1 Gb/s)
- Network Protocols: DHCP, Dante, Manual IP
- Impedance: XLR Output: 100 Ohms (Balanced)
- Approximate RF Sensitivity: -98 dBm
- Adjacent Channel Isolation: >70 dB
- Spurious: Rejection (>80 dB)
- Power Requirements: AC Input
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz at 0.32 A
- Display & Indicators:

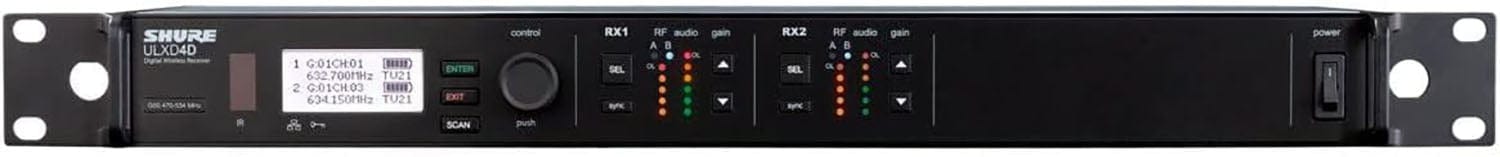

- 1 x Backlit LCD (Battery Status, Channel, Group, Menu Navigation)
- 2 x Multi-Segment LED (AF Level, Output Level, Peak)
- Housing: Steel
- Operating Temperature: 0 to 122°F / -17 to 50°C
- Storage Temperature: -20 to 165°F / -28 to 73°C
- Dimensions: 19 x 1.7 x 10.8' / 482 x 44 x 274 mm
- Weight: 7.4 lb / 3.4 kg
- Packaging Info:
- Package Weight: 11.95 lb
- Box Dimensions (LxWxH): 27.5 x 17.5 x 3'
The Shure ULXD4D is perfect for large venues and A/V installations. It's a single-rack unit with 2 independent digital receivers and an internal power supply. Ideal for those seeking reliable audio solutions. With dimensions of 19 x 1.7 x 10.8' / 482 x 44 x 274 mm and weighing 7.4 lb / 3.4 kg, it's easy to install and manage.
