Shure ULXD4D-GV Dual-Channel Digital Wireless Receiver for Government & High-Level Executives

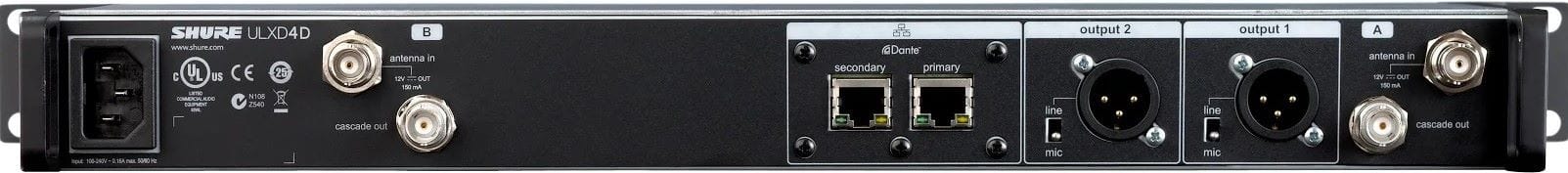

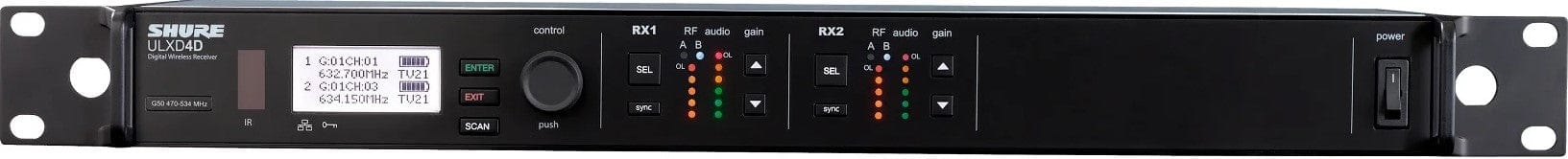

Part of the ULX-D wireless series, the Shure ULXD4D offers a powerful and secure solution for transmitting sensitive audio information. This receiver houses 2 independent digital receivers in a rugged, single-rack unit with an internal power supply. The GV version features always-on AES-256 encryption, making it ideal for government and high-level executive applications. With two Ethernet ports supporting Dante digital audio and RF cascade ports for antenna signal distribution, it provides seamless connectivity. Audio summing allows the receiver to function as a 2-channel mixer.
Features:
- • Secure AES-256 Encryption for sensitive audio
- • Ideal for government and high-level executive work
- • 2 digital audio channels in 1 rackspace
- • 64 MHz tuning range
- • Expandable up to 60 channels
- • 2 Ethernet/Dante ports
- • 2 RF cascade ports
- • Audio summing
Specifications:
- • Number of RF Channel Frequencies: 2560
- • Diversity: Antenna Diversity
- • RF Frequency Band: G50 (470 to 534 MHz)
- • RF Bandwidth: 64 MHz
- • Frequency Step Size: 25 kHz
- • Max Operating Range: 328.1' / 100 m
- • Max Transmitters per Band: 60
- • Latency: < 2.9 ms
- • Modulation: Proprietary
- • Receiver:
- • Receiver Type: Rackmount
- • Mounting Options: Rackmount (with Included Hardware)
- • Rackmount Size: 1 RU (1/2 Rack)
- • Antenna: 2 x 1/2 Wave External, BNC (Rear-Mount)
- • Antenna Bias Voltage: 12 to 13 VDC, 150 mA (per Antenna)
- • Number of Audio Channels: 2
- • Audio I/O: 2 x XLR 3-Pin Male Balanced Output
- • Gain Range: -18 to +42 dB (1 dB Steps)
- • Pad: 30 dB
- • Audio Output Level:
- • XLR Outputs: +18 dBV (Line Level, Balanced)
- • XLR Output: -12 dBV (Mic Level)
- • Phantom Power Protection: On XLR Outputs
- • Frequency Response: 30 Hz to 20 kHz ±1 dB (Dependent on Mic)
- • Network I/O: 2 x RJ45 (1 Gb/s)
- • Network Protocols: DHCP, Dante, Manual IP
- • Impedance: XLR Output: 100 Ohms (Balanced)
- • Approximate RF Sensitivity: -98 dBm
- • Adjacent Channel Isolation: >70 dB
- • Spurious: Rejection (>80 dB)
- • Power Requirements: AC Input
- • AC Input Power: 100 to 240 VAC, 50 / 60 Hz at 0.32 A
- • Display & Indicators:
- • 1 x Backlit LCD (Battery Status, Channel, Group, Menu Navigation)
- • 2 x Multi-Segment LED (AF Level, Output Level, Peak)
- • Housing: Steel
- • Operating Temperature: 0 to 122°F / -17 to 50°C
- • Storage Temperature: -20 to 165°F / -28 to 73°C
- • Dimensions: 19 x 1.7 x 10.8' / 482 x 44 x 274 mm
- • Weight: 7.4 lb / 3.4 kg
This Shure ULXD4D-GV Dual-Channel Digital Wireless Receiver is perfect for government and high-level executive applications where secure audio transmission is crucial. It comes in a single-rack unit with an internal power supply, measuring 19 x 1.7 x 10.8' / 482 x 44 x 274 mm and weighing 7.4 lb / 3.4 kg. With features like AES-256 encryption, Ethernet ports for Dante digital audio, and RF cascade ports for signal distribution, it ensures seamless connectivity and reliable performance.
