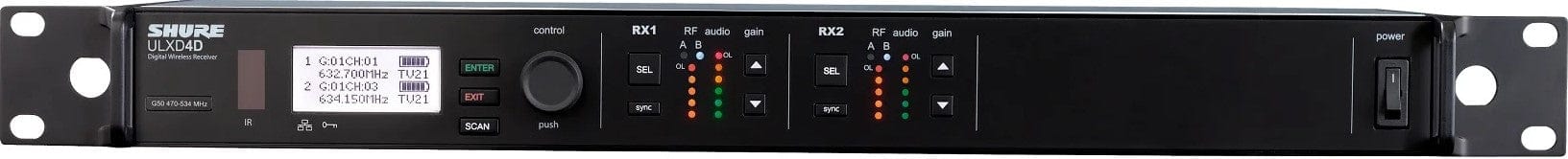

Shure ULXD4D-GV: Your Reliable Dual-Channel Digital Wireless Receiver
Part of the ULX-D wireless series, the Shure ULXD4D packs 2 independent digital receivers into a tough, single-rack unit with an internal power supply. This GV version offers always-on AES-256 encryption, perfect for government and high-level executive work where sensitive audio matters. With two Ethernet ports for Dante digital audio and RF cascade ports for signal distribution, it's a versatile choice. Audio summing lets it act as a 2-channel mixer.
Features:
- • Secure AES-256 Encryption for peace of mind
- • Ideal for sensitive government and business use
- • 2 digital audio channels in 1 rackspace
Specifications:
- • 64 MHz tuning range
- • Expandable up to 60 channels

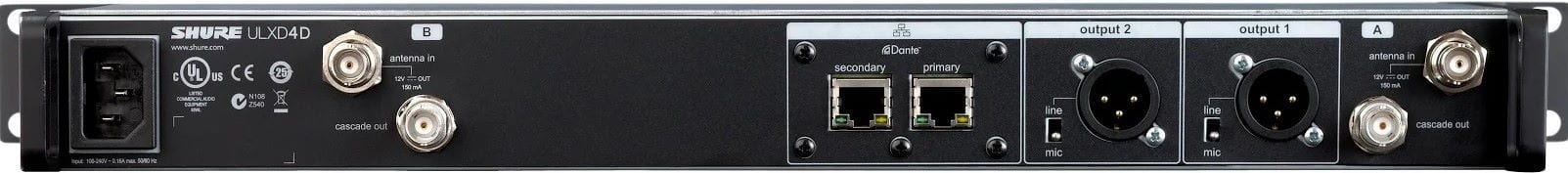

- • 2 Ethernet/Dante ports
- • 2 RF cascade ports
- • Audio summing
- • Number of RF Channel Frequencies: 1760
- • Diversity: Antenna Diversity
- • RF Frequency Band: J50A (572 to 608 MHz - 614 to 616 MHz)
- • RF Bandwidth: 44 MHz
- • Frequency Step Size: 25 kHz
- • Max Operating Range: 328.1' / 100 m
- • Max Transmitters per Band: 60
- • Latency: < 2.9 ms
- • Modulation: Proprietary
- • Receiver: Rackmount type, 1 RU (1/2 Rack) size with included hardware, 2 x 1/2 Wave External BNC rear-mount antennas, antenna bias voltage 12 to 13 VDC, 150 mA per antenna, 2 audio channels, 2 x XLR 3-Pin Male Balanced Outputs, gain range -18 to +42 dB (1 dB steps), 30 dB pad, XLR outputs +18 dBV (line level, balanced) and -12 dBV (mic level), phantom power protection on XLR outputs, frequency response 30 Hz to 20 kHz ±1 dB (dependent on mic), 2 x RJ45 (1 Gb/s) network I/O, network protocols DHCP, Dante, Manual IP, XLR output impedance 100 Ohms (balanced), approximate RF sensitivity -98 dBm, adjacent channel isolation >70 dB, spurious rejection (>80 dB), AC input power 100 to 240 VAC, 50 / 60 Hz at 0.32 A, 1 backlit LCD for battery status, channel, group, menu navigation, 2 multi-segment LEDs for AF level, output level, peak, steel housing, operating temperature 0 to 122 °F / -17 to 50 °C, storage temperature -20 to 165 °F / -28 to 73 °C, dimensions 19 x 1.7 x 10.8' / 482 x 44 x 274 mm, weight 7.4 lb / 3.4 kg
The Shure ULXD4D-GV Dual-Channel Digital Wireless Receiver is perfect for government and high-level executive applications. It comes in a single-rack unit with an internal power supply. With dimensions of 19 x 1.7 x 10.8' / 482 x 44 x 274 mm and weighing 7.4 lb / 3.4 kg, it's easy to install and handle. The receiver offers features like secure AES-256 encryption, 2 digital audio channels, and more, making it great for transmitting sensitive audio information.
