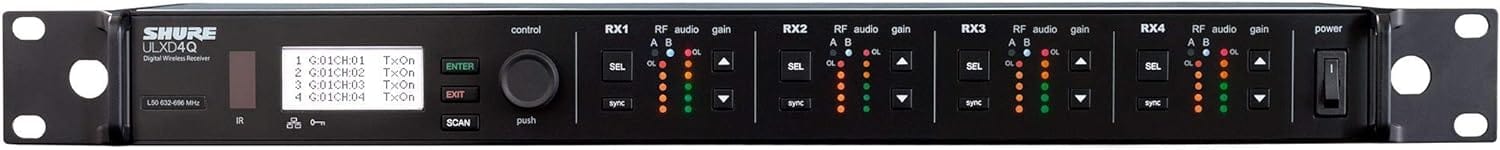

Shure ULXD4Q Quad-Channel Digital Wireless Receiver - V50 Band
Part of the ULX-D wireless series, the Shure ULXD4Q offers an outstanding audio experience. It houses 4 independent digital receivers in a rugged, single-rack unit with an internal power supply. Two Ethernet ports support Dante digital audio, while RF cascade ports allow for antenna signal distribution to another receiver unit. Audio summing enables the receiver to function as a 4-channel mixer.
Features:
- Designed for large venues and A/V installations, this receiver is a must-have for professionals.
- • 4 x Digital Audio Channels, 1 Rackspace - Compact and powerful.
- • 64 MHz Tuning Range - Wide range for seamless connectivity.
- • Expandable up to 60 Channels - Grow your setup as needed.
- • 2 x Ethernet/Dante Ports - Support for high-quality digital audio.
- • 2 x RF Cascade Ports - Easy antenna signal distribution.
- • Audio Summing - Function as a 4-channel mixer.
- • Secure AES-256 Encryption - Keep your audio secure.
Specifications:
- Number of RF Channel Frequencies: 1680
- Diversity: Antenna Diversity
- RF Frequency Band: V50 (174 to 216 MHz)
- RF Bandwidth: 42 MHz
- Frequency Step Size: 25 kHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 328.1' / 100 m
- Max Transmitters per Band: 60
- OS Compatibility:
- Windows 10 to 11
- macOS 10.14 to 11.0
- Latency: < 2.9 ms
- Modulation: Proprietary
- Receiver:
- Receiver Type: Rackmount
- Mounting Options: Rackmount (with Included Hardware)
- Rackmount Size: 1 RU (1/2 Rack)
- Antenna: 2 x 1/2 Wave External, BNC (Rear-Mount)
- Antenna Bias Voltage: 12 to 13 VDC, 150 mA (per Antenna)
- Number of Audio Channels: 4
- Audio I/O: 4 x XLR 3-Pin Male Balanced Output
- Gain Range: -18 to +42 dB (1 dB Steps)
- Pad: 30 dB
- Audio Output Level:
- XLR Outputs: +18 dBV (Line Level, Balanced)
- XLR Output: -12 dBV (Mic Level)
- Phantom Power Protection: On XLR Outputs
- Frequency Response: 30 Hz to 20 kHz ±1 dB (Dependent on Mic)
- Network I/O: 2 x RJ45 (1 Gb/s)
- Network Protocols: DHCP, Dante, Manual IP
- Impedance: XLR Output: 100 Ohms (Balanced)
- Approximate RF Sensitivity: -98 dBm
- Adjacent Channel Isolation: >70 dB
- Spurious: Rejection (>80 dB)
- AC/DC Power Adapter: 15 VDC at 600 mA (Included)
- Power Requirements: AC/DC Power Adapter
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz at 0.32 A
- Display & Indicators:
- 1 x Backlit LCD (Battery Status, Channel, Group, Menu Navigation)
- 2 x Multi-Segment LED (AF Level, Output Level, Peak)
- Housing: Steel
- Operating Temperature: 0 to 122 °F / -17 to 50 °C
- Storage Temperature: -20 to 165 °F / -28 to 73 °C
- Dimensions: 19 x 1.7 x 10.8' / 482 x 44 x 274 mm
- Weight: 7.6 lb / 3.4 kg
- Packaging Info:
- Package Weight: 12.3 lb
- Box Dimensions (LxWxH): 27.5 x 17.5 x 4'
This Shure ULXD4Q Quad-Channel Digital Wireless Receiver is perfect for large venues and A/V installations. It's great for professionals who need a reliable audio solution. It has a rackmount size of 1 RU (1/2 Rack), weighs 7.6 lb / 3.4 kg, and comes with a power adapter. The box dimensions are 27.5 x 17.5 x 4' and the package weight is 12.3 lb.
