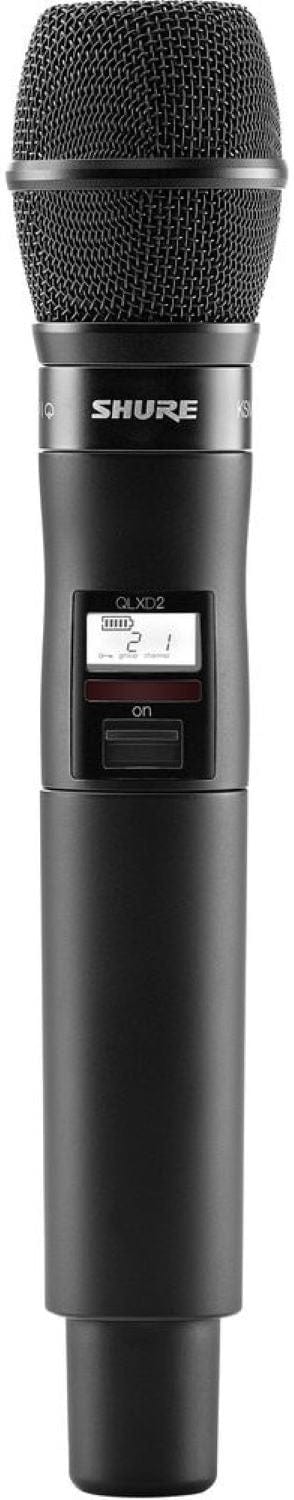

Shure QLXD2/KSM9HS Handheld Transmitter: High - End Live Performance Wireless Mic
The Shure QLXD2/KSM9HS is a digital handheld wireless microphone transmitter that's perfect for high - end live performances. It pairs seamlessly with QLX - D receivers.
Key Features:
- • Superior Detail Capture: The dual - diaphragm KSM9HS condenser capsule records every nuance, ensuring precise vocal reproduction.
- • Wide Frequency Selection: With 2560 selectable frequencies, you can find the perfect signal.
- • Long Battery Life: Enjoy up to 9 hours of continuous use with AA batteries.
This transmitter also features a hypercardioid/subcardioid polar pattern, interchangeable capsule design, 1/10mW RF output power, backlit LCD, adjustable gain control, secure AES - 256 encryption, and networked intelligent charging.
Specifications:
- RF Frequency Band: H50 (534 to 598 MHz)
- RF Bandwidth: 64 MHz
- Frequency Step Size: 25 kHz
- RF Channel Scanning: Auto - Scan
- Max Operating Range: 330' / 100.6 m
- Sample Rate/Resolution: 48 kHz / 24 - Bit
- Latency: < 2.9 ms
- Encryption: AES 256
- Modulation: Proprietary
- Transmitter:
- Transmitter Type: Handheld
- RF Output Power: 1 / 10 mW
- Audio I/O: No
- Gain Range: 0 to 21 dB (3 dB Steps)
- Frequency Response: 30 Hz to 20 kHz
- Sync Method: IR
- Antenna: 1x 1/4 Wave
- Power Requirements: Battery
- Battery Type:
- 2x AA (Included)
- 1x Shure SB900A (Not Included, Replaceable)
- Approx. Battery Life: 9 Hours (Alkaline)
- Display & Indicators: 1x Backlit LCD (Channel, Group, RF Output Power)
- Housing: Aluminum
- Dimensions: 2 x 10.1' / 51 x 256 mm
- Weight: 12.2 oz / 347 g (without Batteries)
- Microphone:
- Microphone Type: Handheld Capsule
- Sound Field: Mono
- Capsule: Condenser
- Polar Pattern: Hypercardioid, Subcardioid
- Frequency Range: 50 Hz to 20 kHz
- Maximum SPL: Hypercardioid (150.8 dB SPL)
- Sensitivity: Hypercardioid (-50.5 dBV/Pa)
This Shure QLXD2/KSM9HS handheld wireless microphone transmitter is ideal for high - end live performances. It comes with a dual - diaphragm KSM9HS condenser capsule for great sound. It has a hypercardioid/subcardioid polar pattern, 2560 selectable frequencies, and up to 9 - hour battery life with AA batteries. The transmitter is handheld, made of aluminum housing. It weighs 12.2 oz (347 g) without batteries and has dimensions of 2 x 10.1' (51 x 256 mm). It's compatible with QLX - D receivers and has features like backlit LCD, adjustable gain control, and secure AES - 256 encryption.
