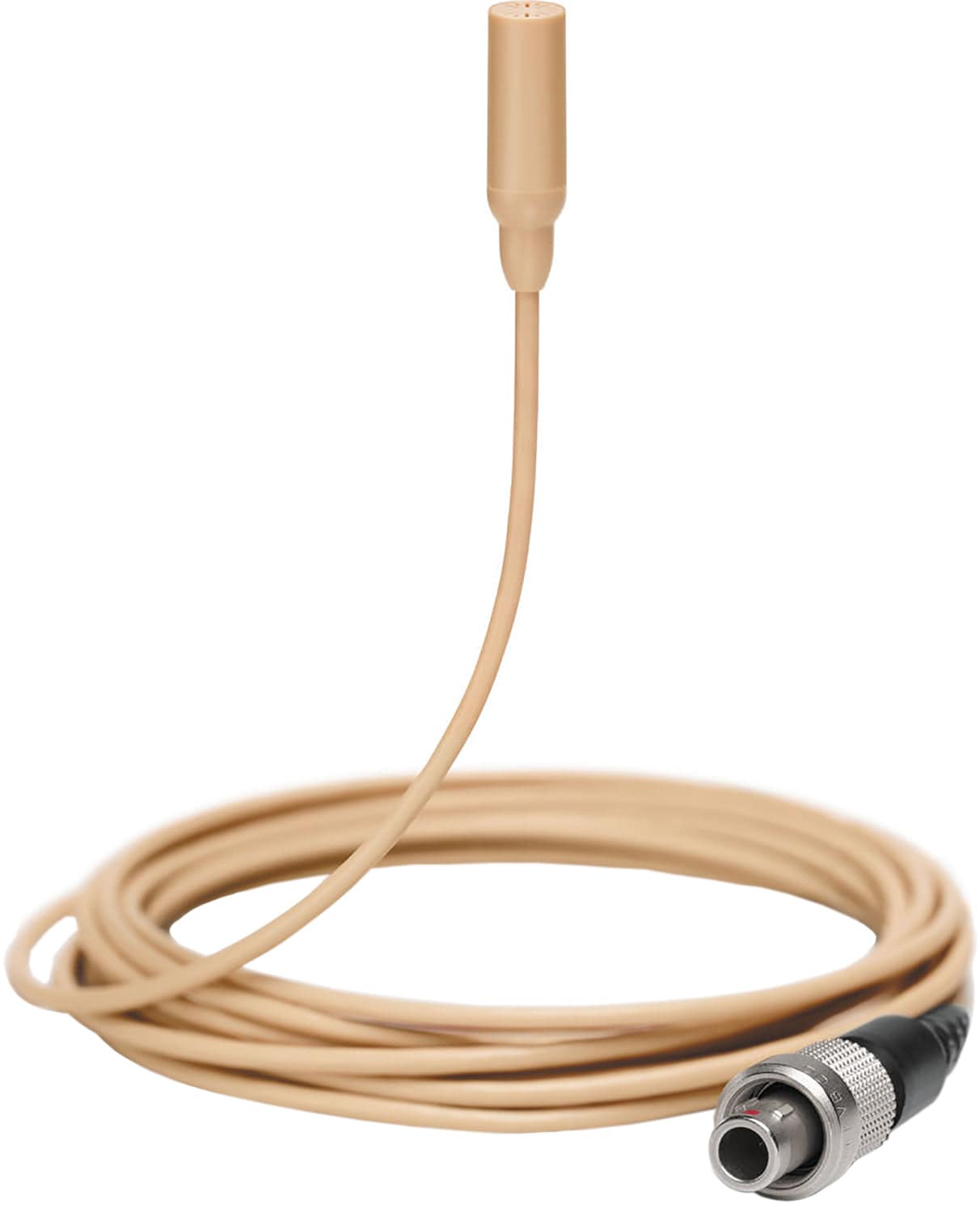

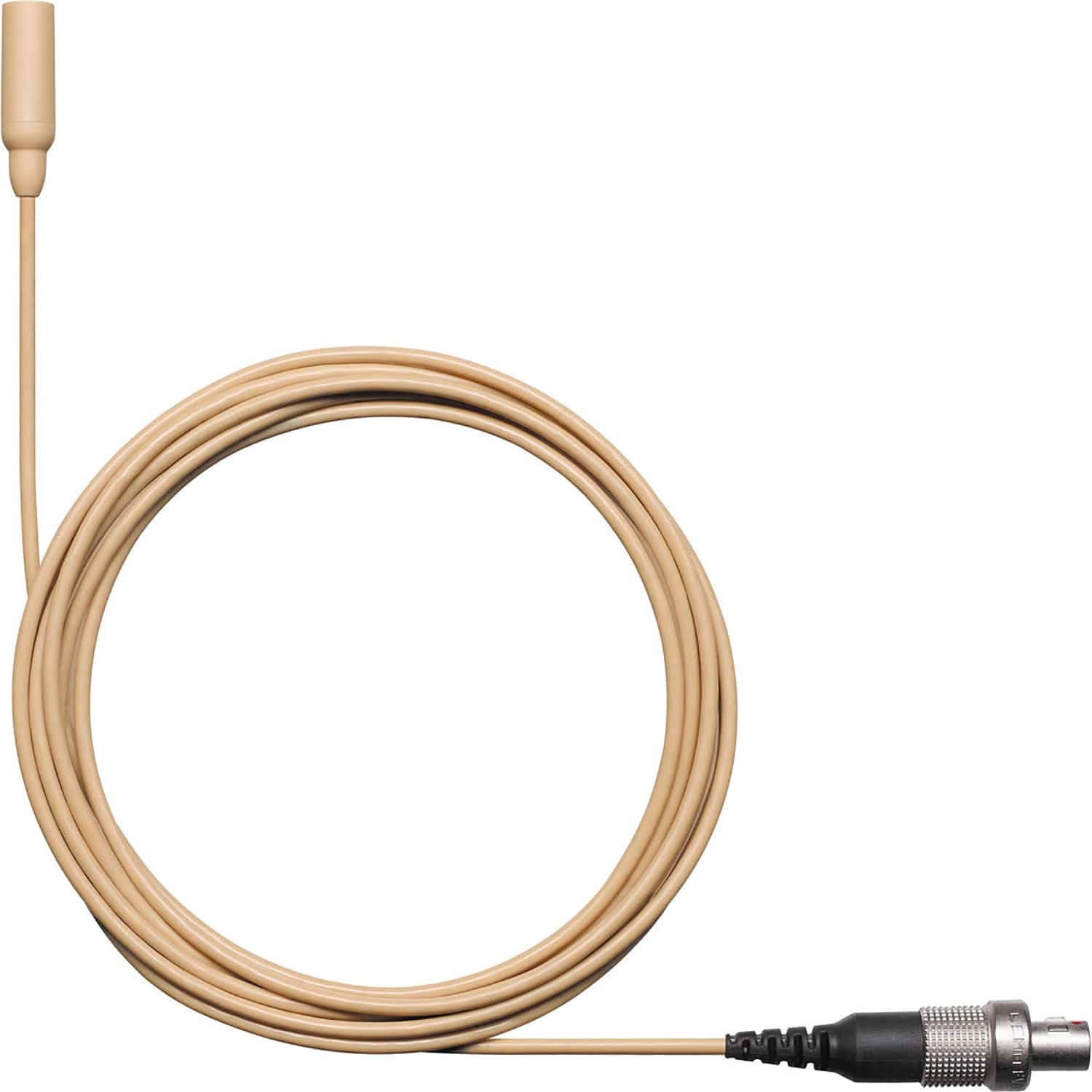

Shure TL48T/O-LEMO-A TwinPlex Omnidirectional Lavalier Microphone - Your Perfect Choice for Crystal Clear Sound in Film and TV
Get ready to revolutionize your audio recording experience with the Shure TL48T/O-LEMO-A TwinPlex Omnidirectional Lavalier Microphone! This incredible microphone is designed to deliver exceptional sound quality, making it ideal for a wide range of applications, especially film and TV.
Key Features:
- • Tailored Response: The TL48 offers a mid-range rise that's perfect for speech and dialogue, ensuring crystal clear audio for your film and TV projects.
- • Easy Concealment: Designed with input from leading audio professionals, this microphone can be easily hidden in a costume or worn directly against the skin under wardrobe, without compromising on sound quality.
- • Extensive Accessories: Comes with a range of accessories to ensure quick, easy, and secure mounting, so you can focus on capturing the perfect sound.
Technical Specifications:
- • Microphone Capsule: Dual-Diaphragm, Prepolarized Condenser
- • Polar Pattern: Omnidirectional
- • Frequency Response: 20 Hz to 20 kHz
- • Sensitivity: -45.0 dBV (5.62 mV) at 1kHz
- • Self-Noise, A-Weighted, Equivalent Acoustical: 24.5 dB SPL-A
- • Signal-To-Noise Ratio: 69.5 dB
- • Output Clipping Level: 3.0 dBV,1 kHz at 1% THD, typical
- • Maximum SPL: 142.0 dB SPL 1 kHz at 1% THD, typical
- • Dynamic Range: 117.5 dB typical
- • Microphone Current Draw: 120 to 240 μA, typical
- • Bias Voltage Recommended Operating Voltage: 5 VDC
- • Housing: Molded ABS
- • Polarization: Positive pressure at diaphragm leads to negative voltage with respect to ground
- • Cable Diameter: 1.6 mm
- • Cable Length: 66 in. (1.67 m)
- • Microphone Length: 19 mm
- • Microphone Diameter: 5.6 mm
- • Net Weight with Cable: 12.0 g (0.42 oz.)
The Shure TL48T/O-LEMO-A TwinPlex Omnidirectional Lavalier Microphone is a must-have for anyone working in film and TV. Its tailored response and mid-range rise make it perfect for capturing clear speech and dialogue. With its easy concealment design, it can be worn under wardrobe or in a costume without any issues. It comes with a range of accessories for quick and secure mounting. The microphone has a dual-diaphragm, prepolarized condenser capsule, an omnidirectional polar pattern, and a frequency response of 20 Hz to 20 kHz. It has a sensitivity of -45.0 dBV (5.62 mV) at 1kHz, a self-noise of 24.5 dB SPL-A, and a signal-to-noise ratio of 69.5 dB. The output clipping level is 3.0 dBV, 1 kHz at 1% THD, typical, and the maximum SPL is 142.0 dB SPL 1 kHz at 1% THD, typical. The dynamic range is 117.5 dB typical. It has a cable diameter of 1.6 mm, a cable length of 66 in. (1.67 m), a microphone length of 19 mm, a microphone diameter of 5.6 mm, and a net weight with cable of 12.0 g (0.42 oz.).
