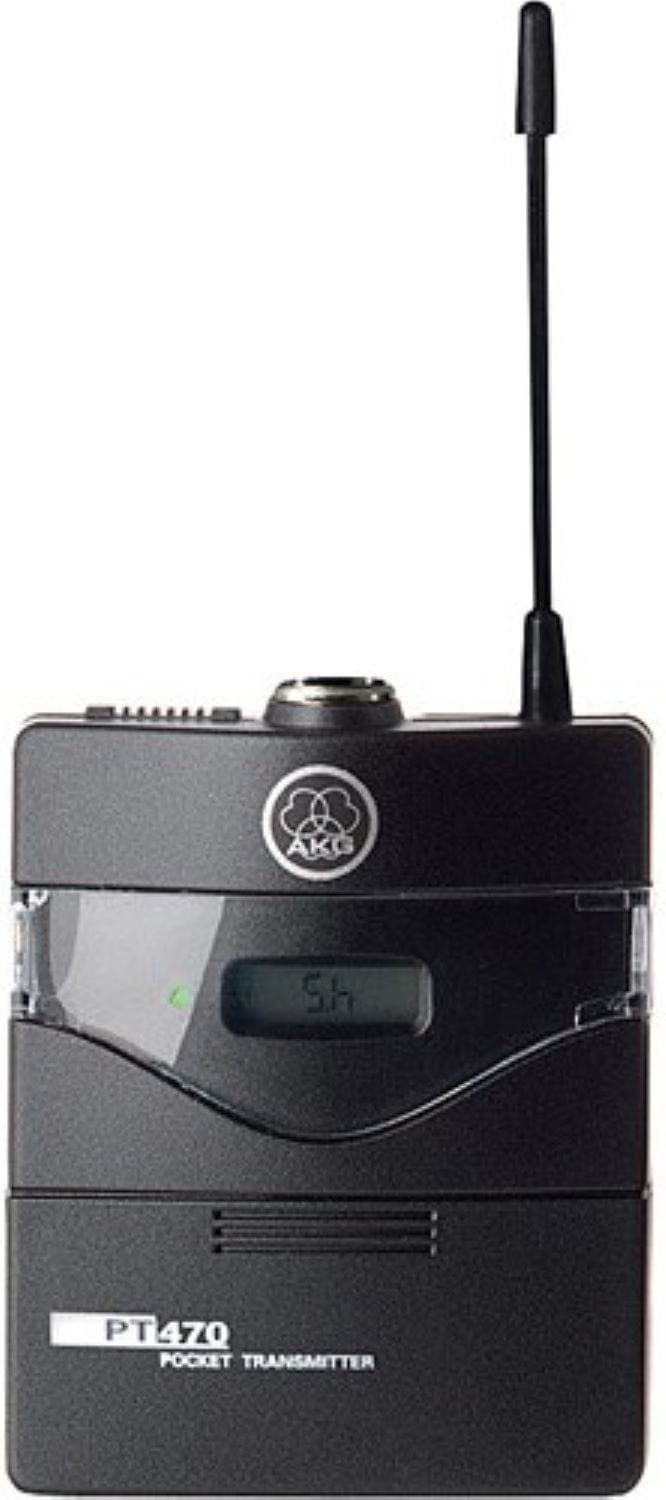

AKG PT470 Professional Wireless Body-Pack Transmitter - Band 8 - 50mW

AKG PT470 Professional Wireless Body-Pack Transmitter - Band 8 - 50 milliWatt

The PT470 is an analog professional wireless body-pack transmitter in a small, rugged housing. It's perfect for those who need reliable audio transmission on the go. • Pilot tone transmission ensures no unexpected startup noise and continuously sends transmitter data, including low battery info, to the receiver. • Enhanced battery management allows up to 14 hours of operation on a single AA-size battery. With integrated charging contacts, you can charge a standard NiMH rechargeable battery right inside the transmitter. • Its professional mini XLR audio connector makes it compatible with a wide range of lavalieres and headsets.

Features:

• Pilot tone transmission
• Compact, rugged bodypack design
• External mute switch connector
• Integrated charging contacts
• Infrared synchronization for instant transmitter setup

Specifications:

• Audio:
  • Audio Frequency bandwidth: 35 Hz to 20 kHz
  • Signal to Noise: 120 dB-A
  • THD at 1 kHz: 0.7%
• Enhanced:
  • Peak deviation: 48 kHz
• Pocket Transmitter:
  • Nominal deviation: 20 kHz
  • Radio Output Power (min/max): 10 to 50 mW
  • Transmitter Synchronization: Infrared
• Audio Input: 3-pin mini female XLR
  • Maximum audio level: 12 dB
• Mute Switch Interface: 1/4' female mono jack
  • Dimensions (LxHxW): 30 x 73.5 x 60 mm
  • Radio:
  • Switching bandwidth: 30 MHz
  • Recommended simultaneous channels: 2
  • Number of selectable frequencies: 1220 (selectable in 25kHz steps)
  • Frequency Selection: Selectable frequency in 25kHz steps
  • Wireless channels within device: -
  • Radio Range (Line of Sight): 100m (depending on antenna system)
  • Switchable RF Power: no
  • Modulation: FM (Frequency Modulation)
  • Pilot Tone: Yes

The AKG PT470 is a professional wireless body-pack transmitter designed for on-the-go audio needs. Ideal for professionals in the fields of event management, journalism, and live performances. It has a compact and rugged design with dimensions of 30 x 73.5 x 60 mm. With features like pilot tone transmission, enhanced battery management, and compatibility with various audio accessories, it's a great choice for reliable audio transmission.
